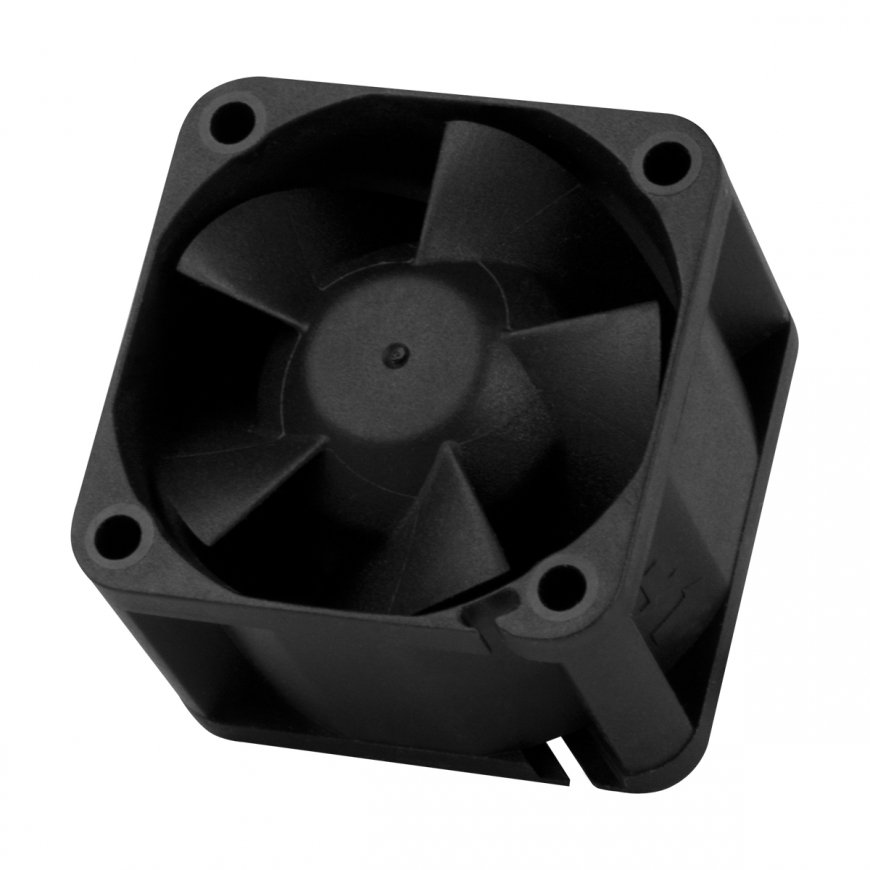

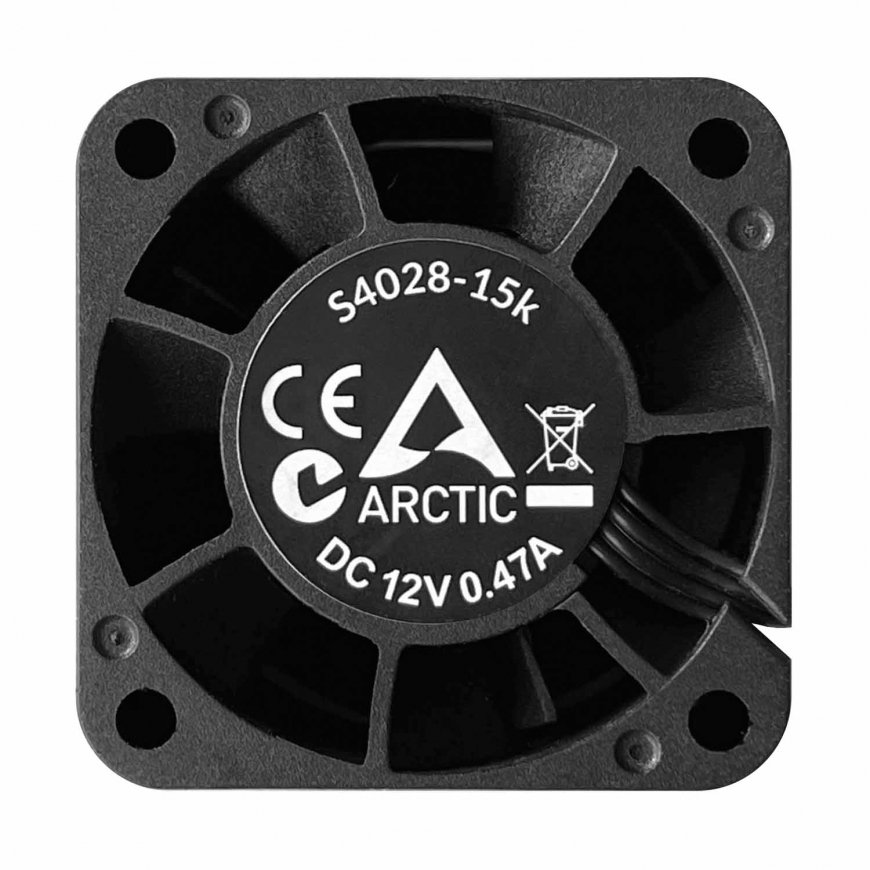

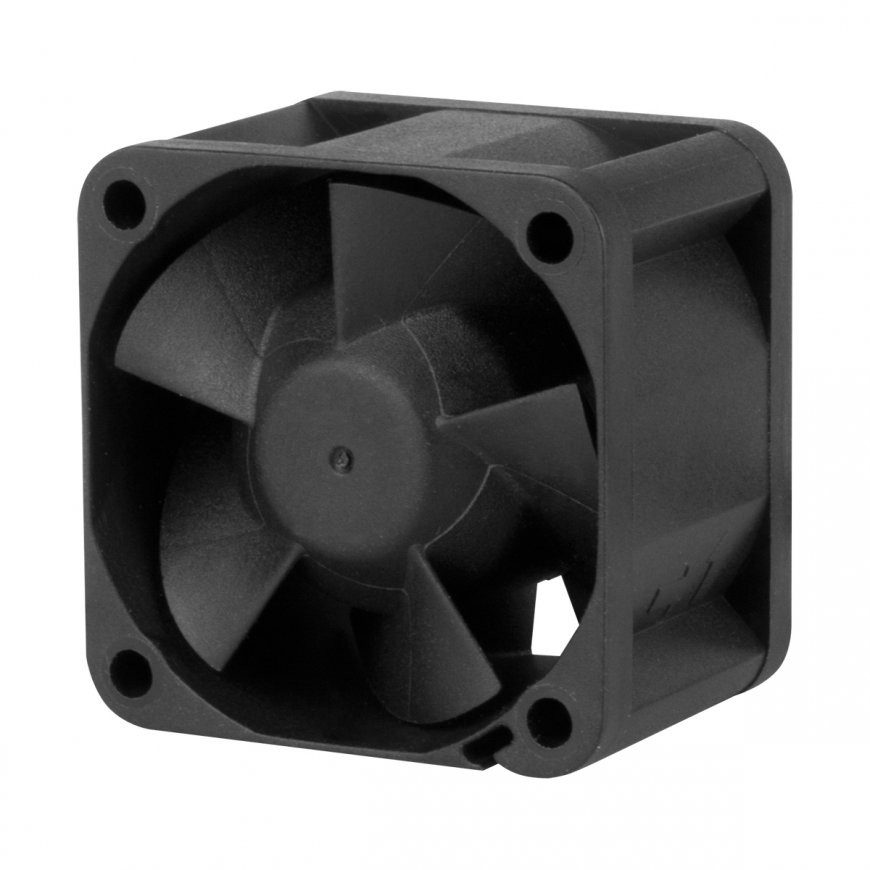

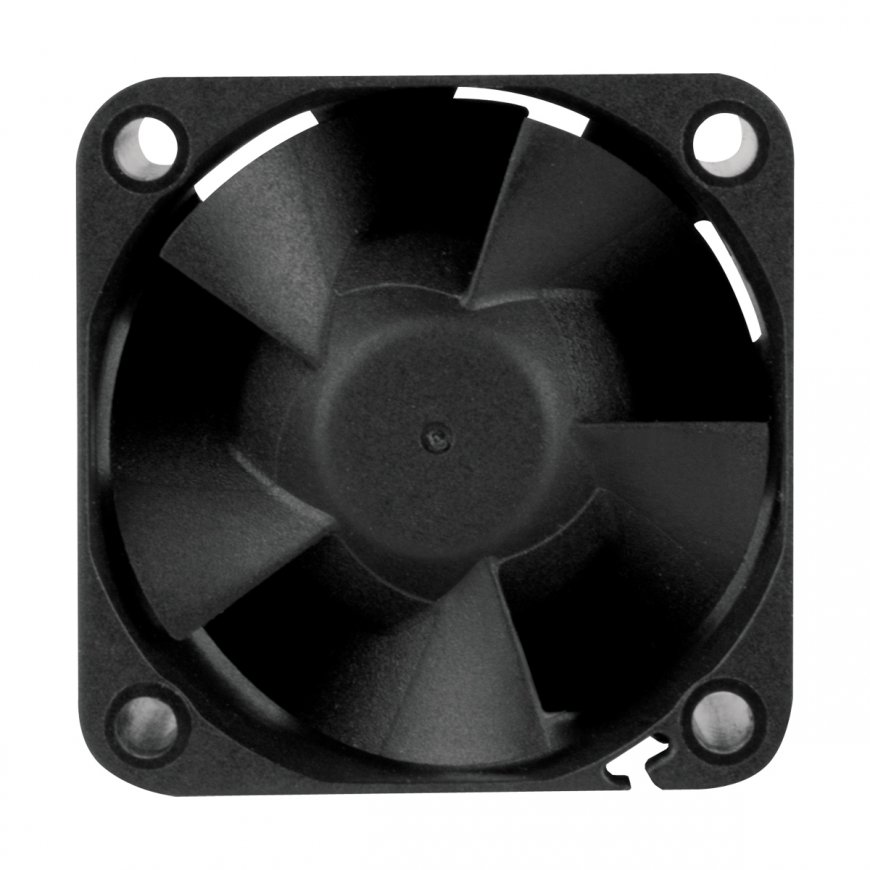

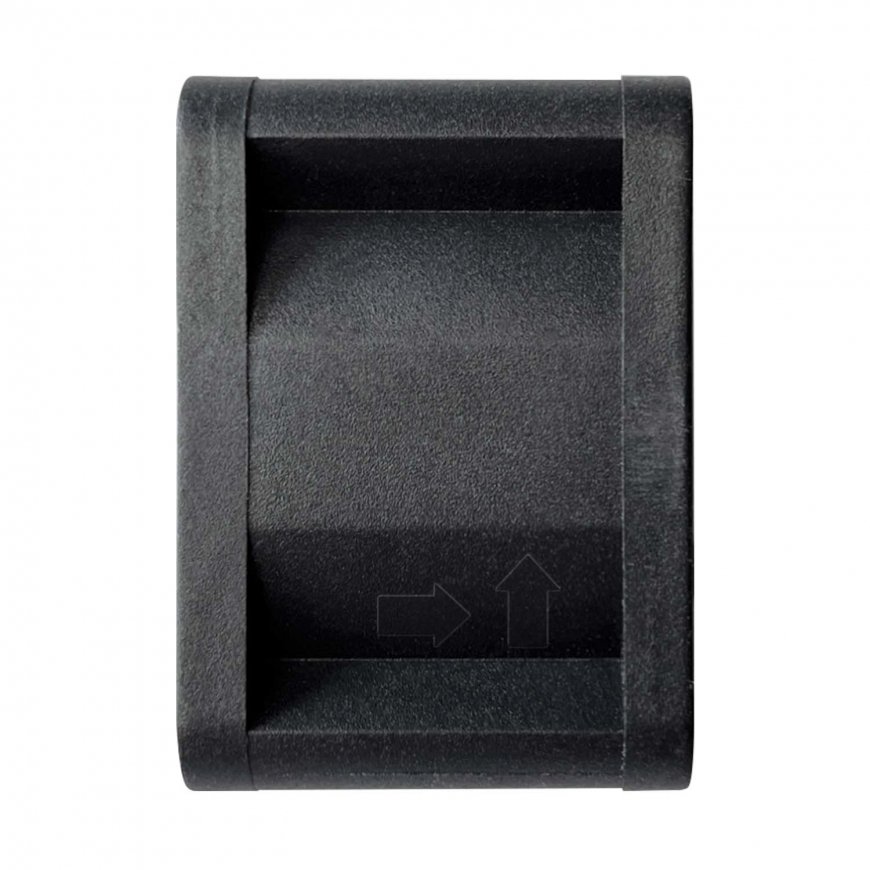

ARCTIC S4028-15K - 40 mm Server Fan
2269290 ACFAN00264A
4895213703802, 0840033401616
Shipping 3-5 b.d.
DESIGNED FOR CONTINUOUS OPERATION
The impeller of the S4028-15K is held in place by two ball bearings and is therefore particularly durable and less sensitive to external influences such as heat and dust.
FULL CONTROL WITH A WIDE SPEED RANGE
The S4028-15K has a very wide speed range that can be regulated via PWM and voltage. With its 15000 rpm max, it offers a high cooling capacity at a relatively low noise.
HIGH AIRFLOW AND STATIC PRESSURE
With a static pressure of 26.5 mm/H2O and a maximum airflow of 32.67 m³/h, the S4028-15K is a true all-rounder and is suitable as both a radiator and case fan.
WIDE RANGE OF APPLICATIONS
The S4028-15K fits into 1U server cases and can serve as a replacement fan for routers, switches and NAS. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures and 3D printers.
FLEXIBLE CONNECTION OPTIONS
The fan has a standard 4-pin fan connector and can also be connected to and controlled on 2-pin or 3-pin headers, while the 40cm cable allows a lot of flexibility in positioning.
Performance | |
| Type | Fan |
| Fan diameter | 4 cm |
| Airflow | 32.67 m³/h |
| Maximum airflow | 19.23 cfm |
| Maximum air pressure | 26.5 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 1400 RPM |
| Rotational speed (max) | 15000 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Fan connector | 4-pin |
Power | |
| Rated current | 0.47 A |
| Voltage | 12 V |
| Starting voltage | 4.5 V |
Weight & dimensions | |
| Weight | 42 g |
| Package weight | 51 g |
| Height | 28 mm |
| Width | 40 mm |
| Depth | 40 mm |
| Cable length | 0.4 m |
| Package height | 57 mm |
| Package width | 33 mm |
| Package depth | 45 mm |
Packaging content | |
| Screws included | Yes |
| Number of screws | 4 |
| Package type | Box |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
