The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

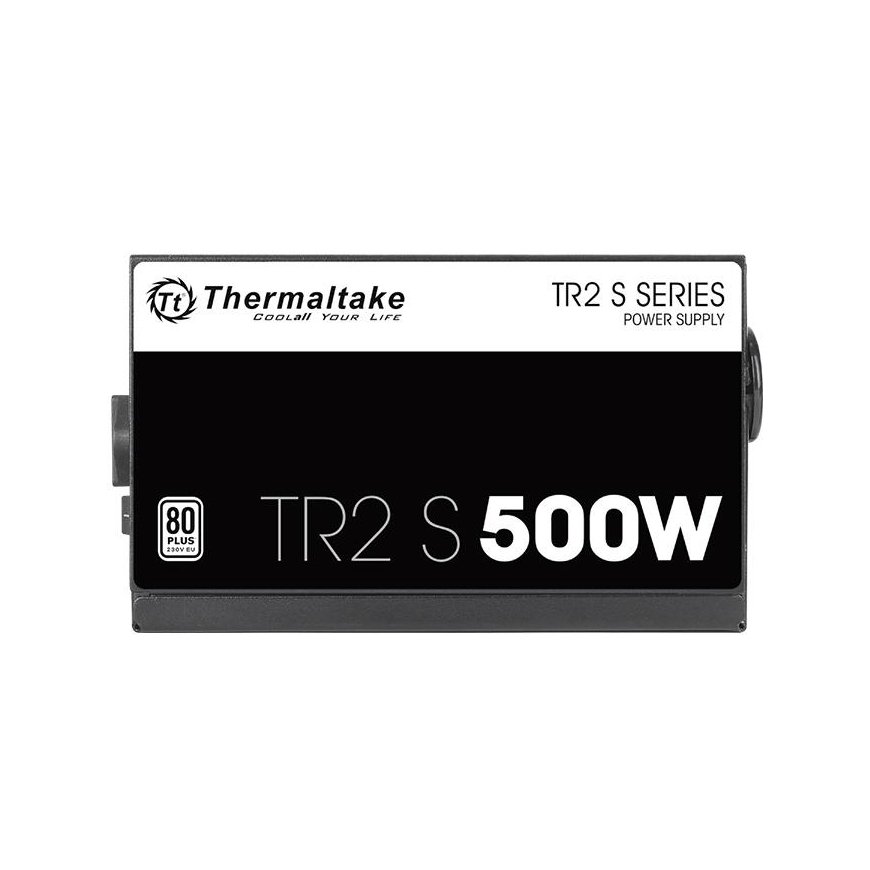

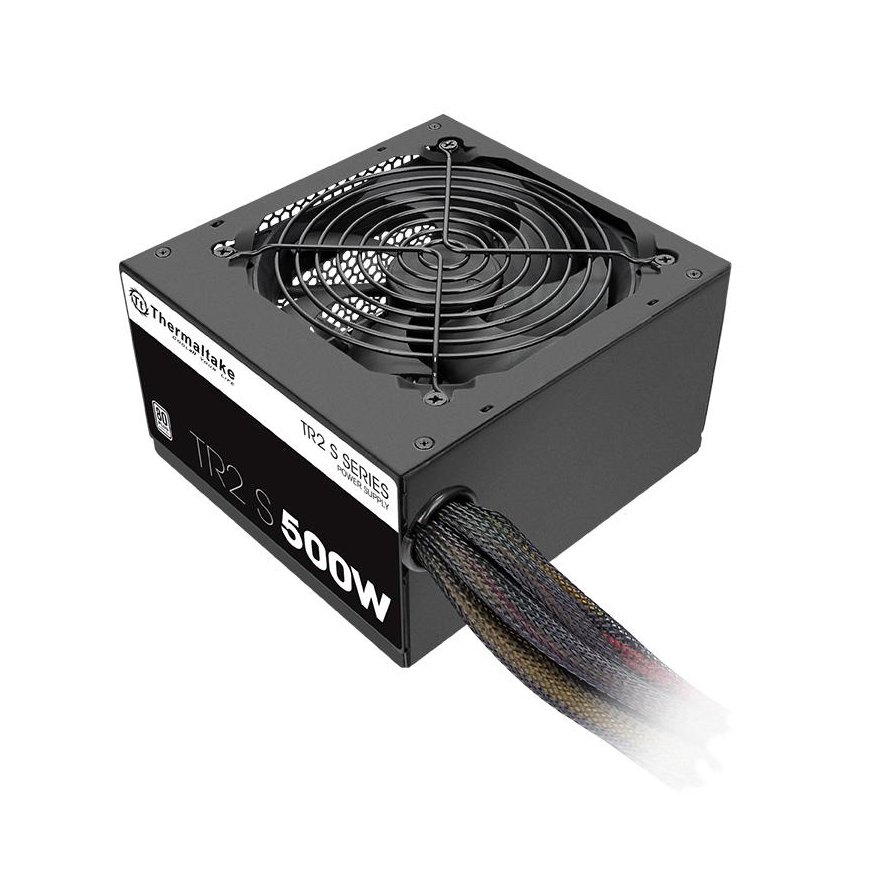

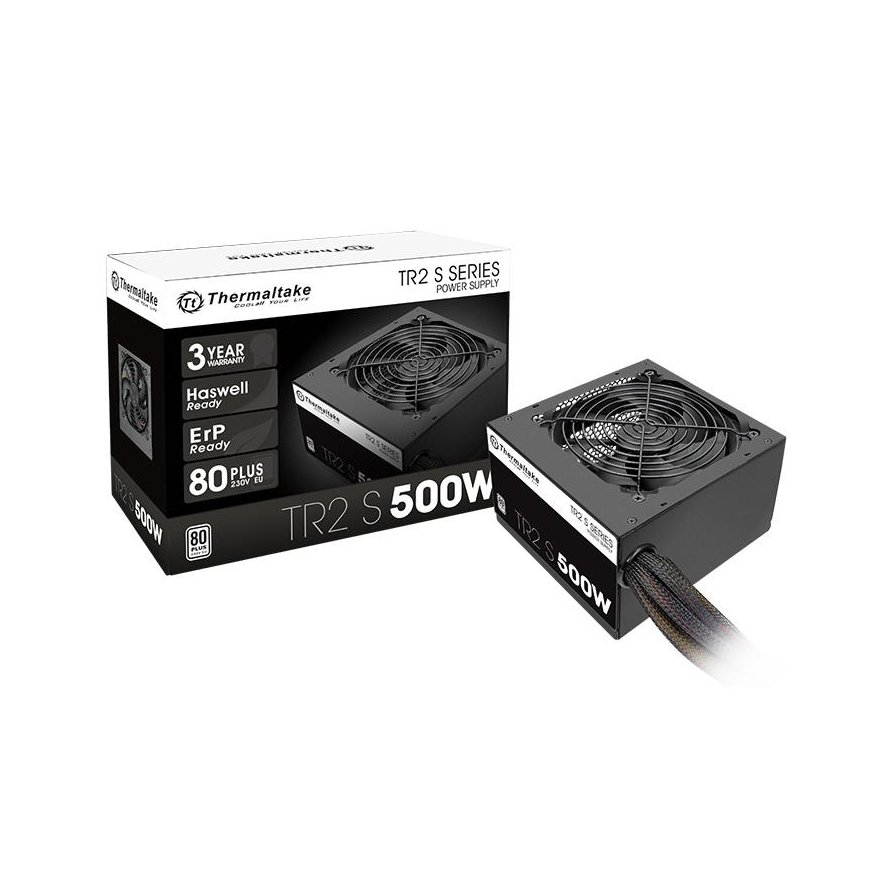

Thermaltake TR2 S power supply unit 500 W 20+4 pin ATX ATX
50,88 €
Monthly payment from 2.21 €
2262571 PS-TRS-0500NPCWEU-2
4717964401779
This product is no longer in stock
You are interested in this product?
Incorporating various high-quality components, the new TR2 S Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

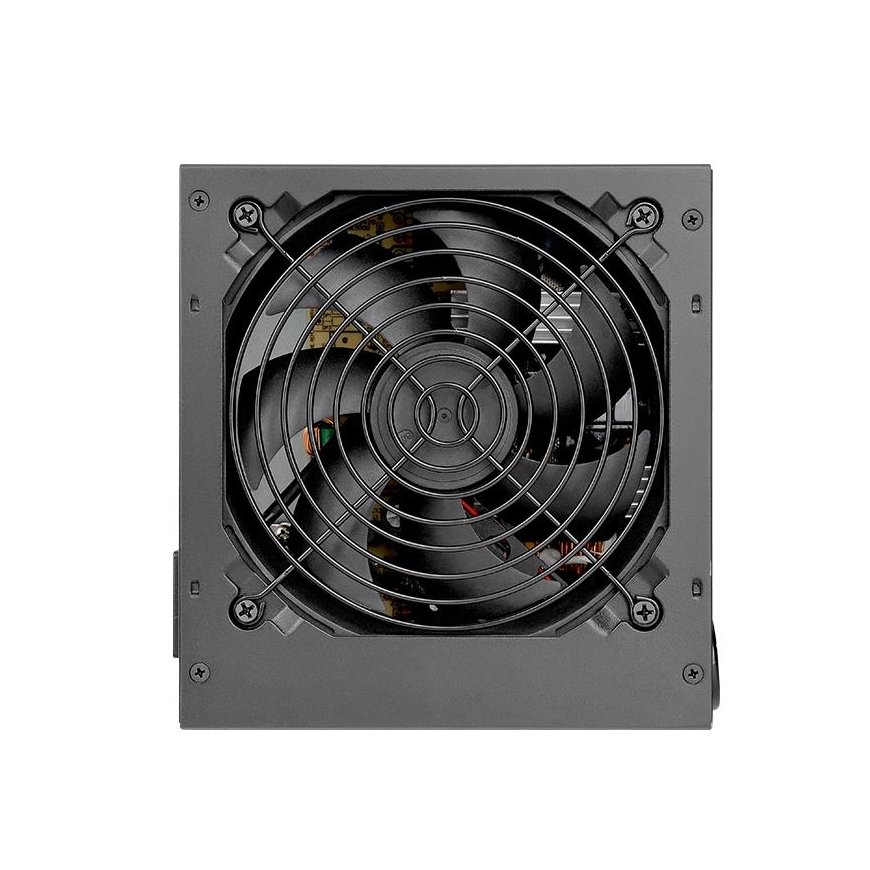

Ultra Quiet 120mm Fan
TR2 S Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Multiple Connectors
The cables used for TR2 S Series are all sleeved. TR2 S 500W connector’s specification as below:
80 PLUS 230V Standard Certified and Haswell Ready
TR2 S Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® 230V Standard Certified.

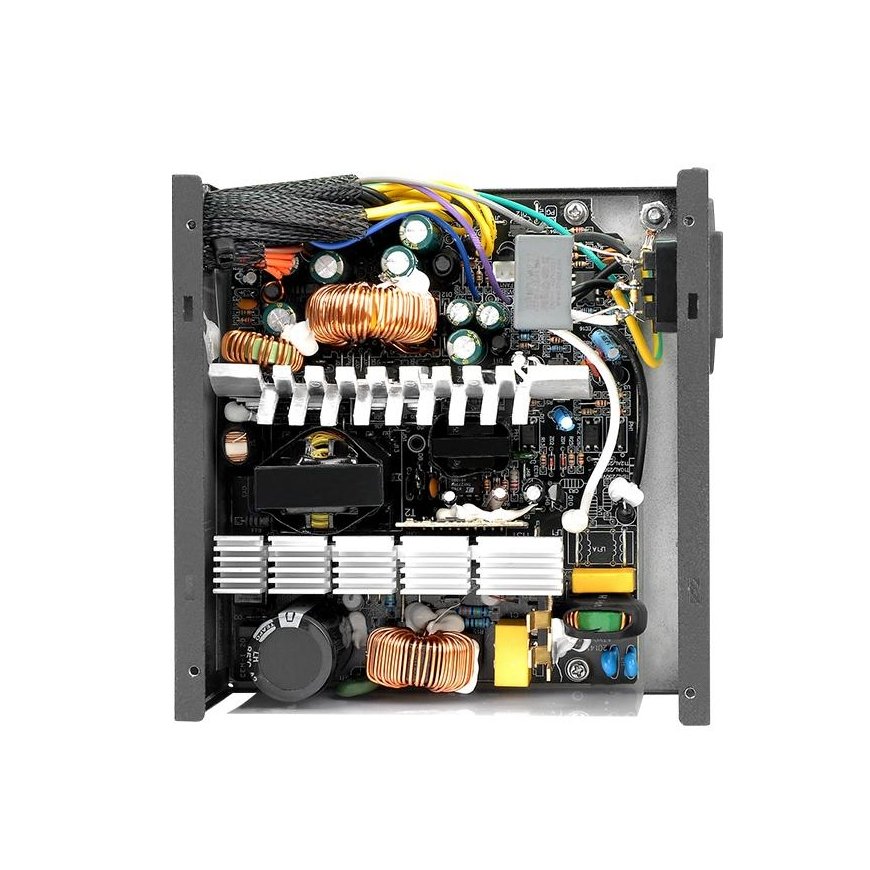

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Single +12V Output
TR2 S Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
Power | |
| Hold time | 16 ms |
| Efficiency | 86% |
| Input current | 8 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 420 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 35 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Power Good signal delay range | 100 - 500 ms |
| Total power | 500 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.3 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Fan speed | 1800 |
| Cooling type | Active |
Ports & interfaces | |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| Floppy disk drive connector | Yes |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions | |
| Width | 86 mm |
| Depth | 140 mm |
| Height | 150 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Certification | CE/CB/TUV |
