STAMPED EARTH AND LEAKAGE CURRENT METER UT-275 UNI-T
429,00 €
Monthly payment from 11.95 €
2261054 MIE0347
5901890044233
2026-07-31
You are interested in this product?

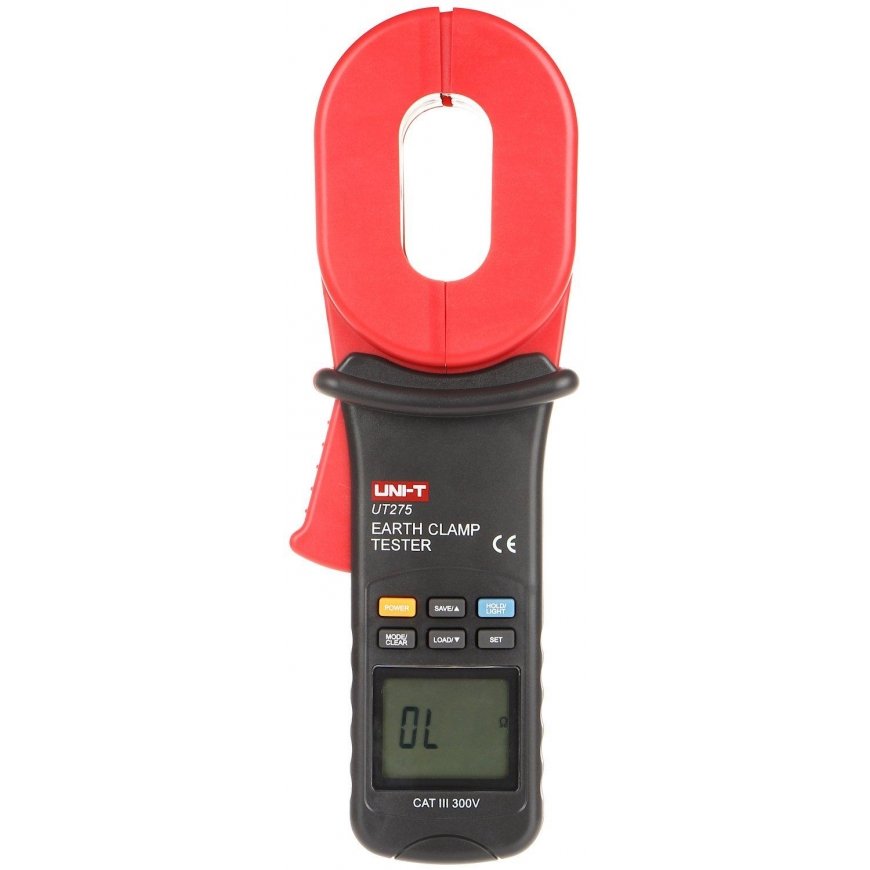

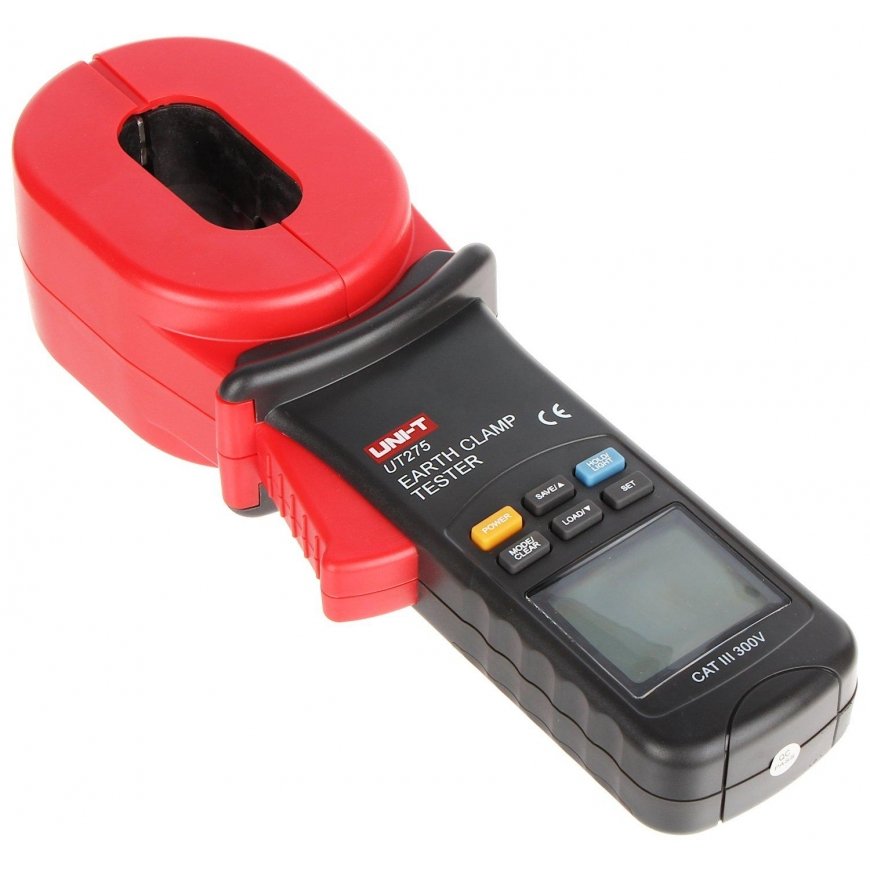

The clamp meter UT-275 allows you to measure the grounding resistance and the intensity of the leakage current.
| DC current measurement : | - |
| AC current measurement : | 0 ... 99 mA ± (2.5% + 20 mA) @ 0.1 mA , 100 ... 299 mA (2.5% + 20 mA) @ 1 mA, 0.30 ... 2.99 A ± (2.5% + 0.1 A) @ 0.01 A , 3 ... 30 A ± (2.5% + 0.1 A) @ 0.1 A |
| Resistance measurement : | 0.01 ... 0.099 Ω ± (2% + 0.02 Ω) @ 0.001 Ω, 0.1 ... 0.99 Ω ± (2% + 0.02 Ω) @ 0.01 Ω, 1.0 ... 49.9 Ω ± (1.5% + 1 Ω) @ 0.1 Ω , 50.0 ... 99.5 Ω ± (2% + 0.5 Ω) @ 0.5 Ω , 100 ... 199 Ω ± (3% + 1 Ω) @ 1 Ω , 200 ... 395 Ω ± (10% + 5 Ω) @ 5 Ω , 400 ... 590 Ω ± (20% + 10 Ω) @ 10 Ω , 600 ... 1000 Ω ± (25% + 20 Ω) @ 20 Ω |
| Automatic change of measuring scale : | ✔ |
| RS-232 : | - |
| USB : | - |

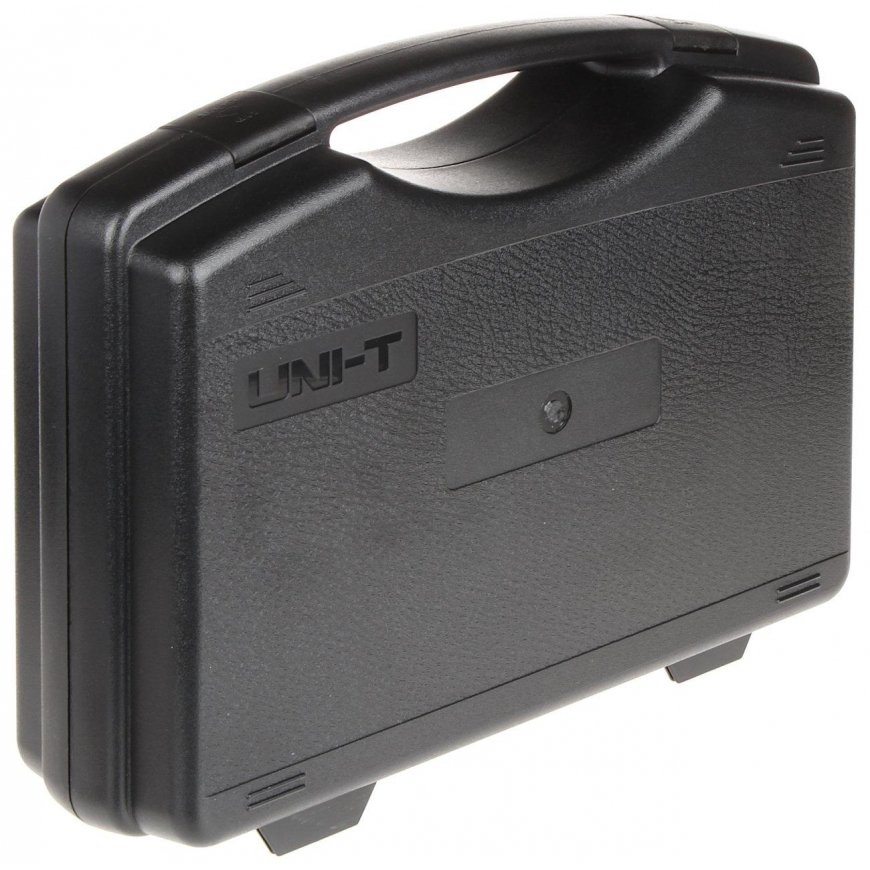

| Main features : | Freezing the highest or lowest reading, Hold - stopping the meter reading, Large, readable LCD display with lighting, Low battery signal, Aesthetic and solid manufacturing, A practical case is included |

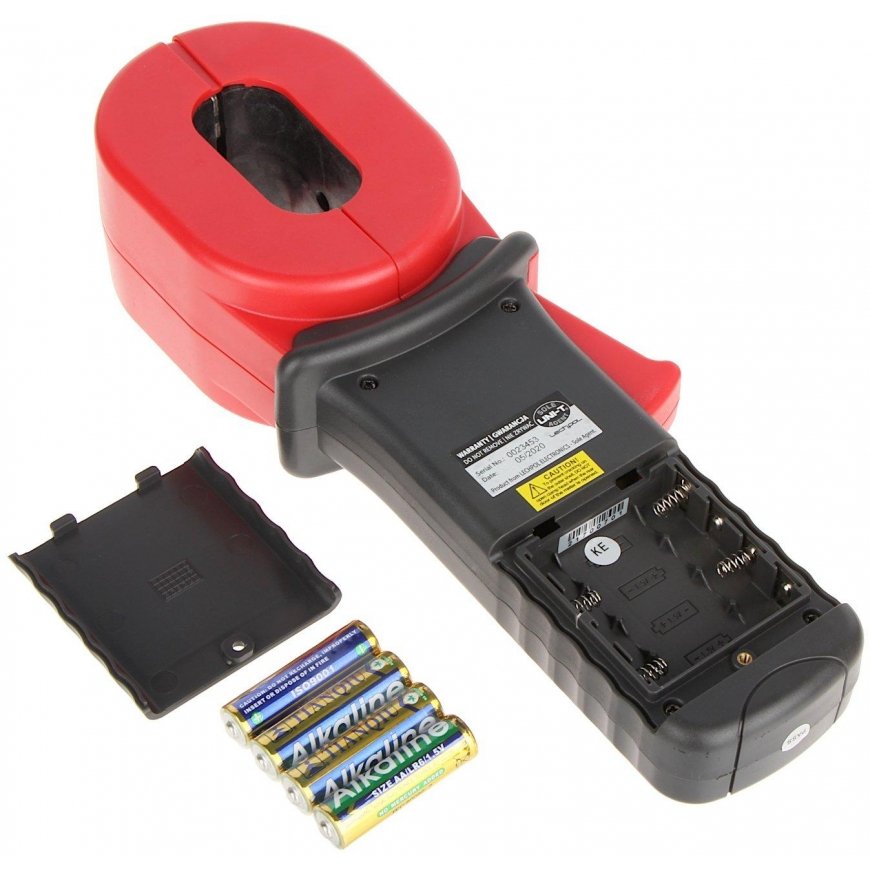

| Meals : | 4 x 1.5V batteries, AA/LR6/FR6 type - included |
| Weight : | 1.33 kg |
| Dimensions : | 304 x 104 x 68 mm |
| Manufacturer / Brand : | UNI-T |
| Warranty : | 2 years |
