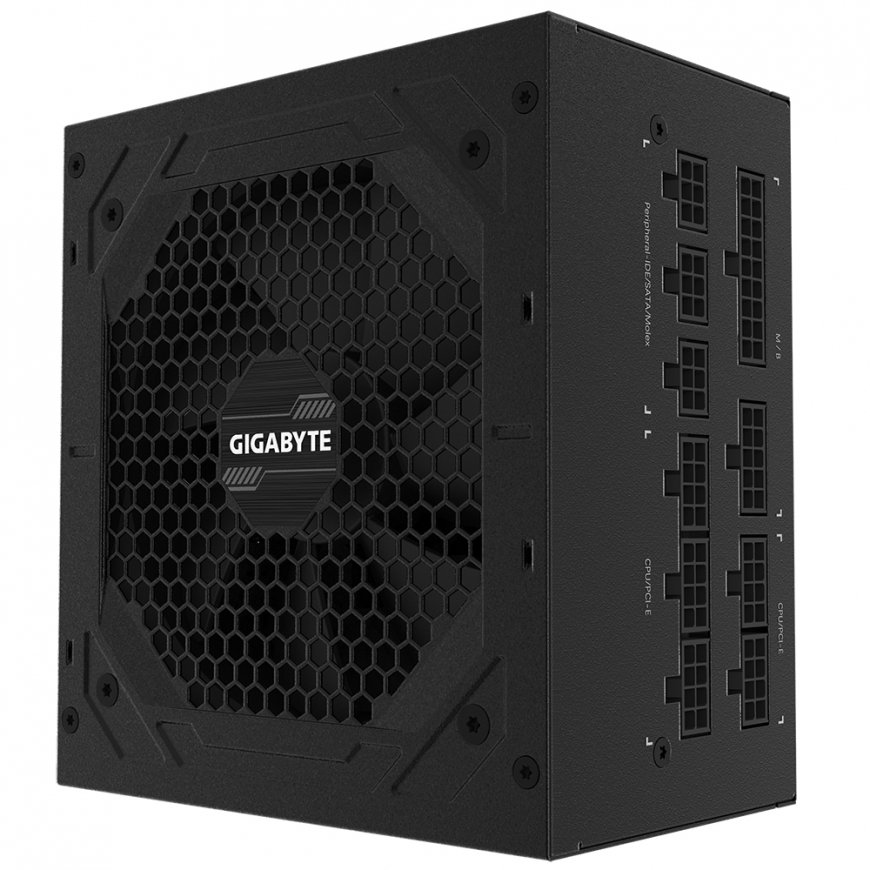

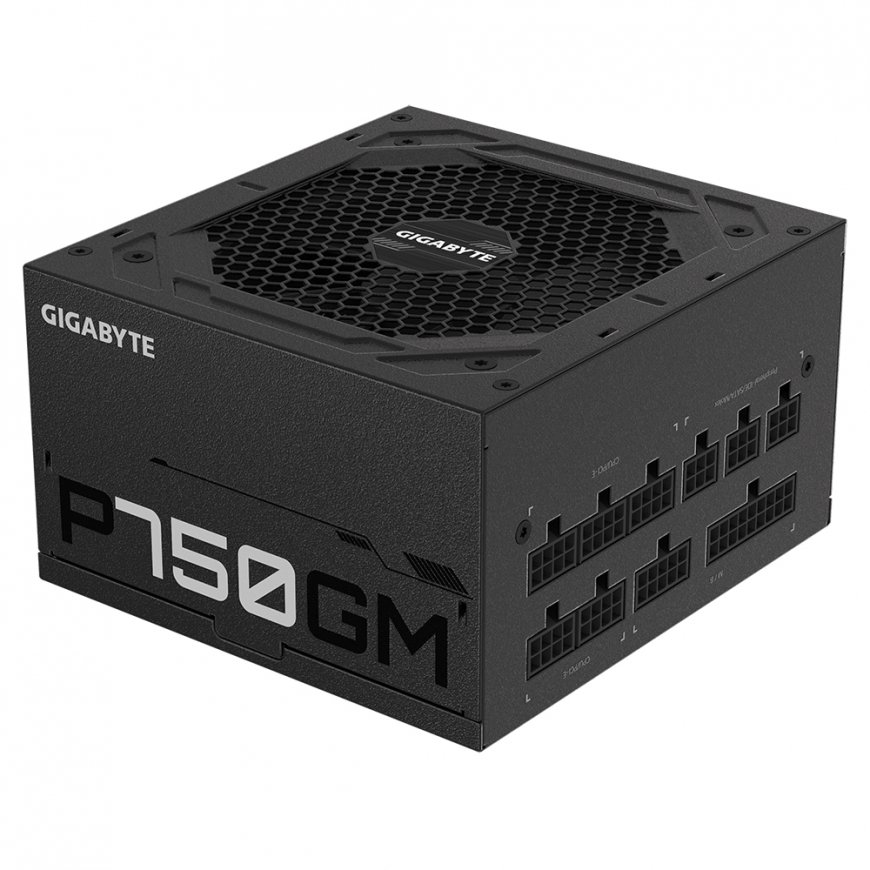

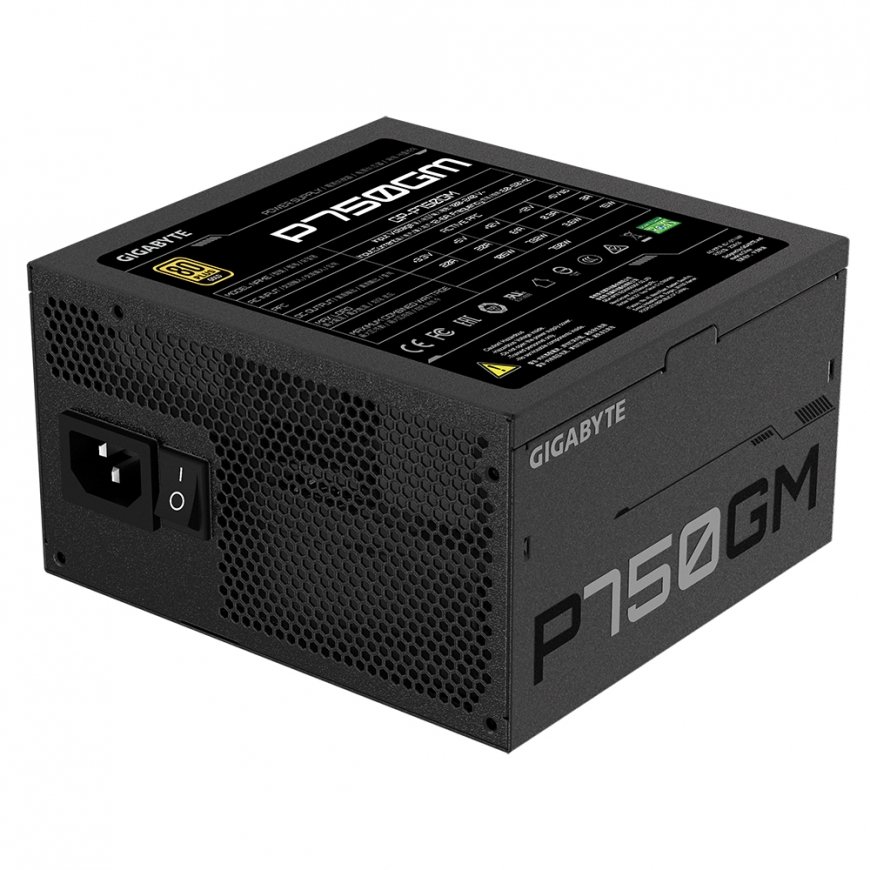

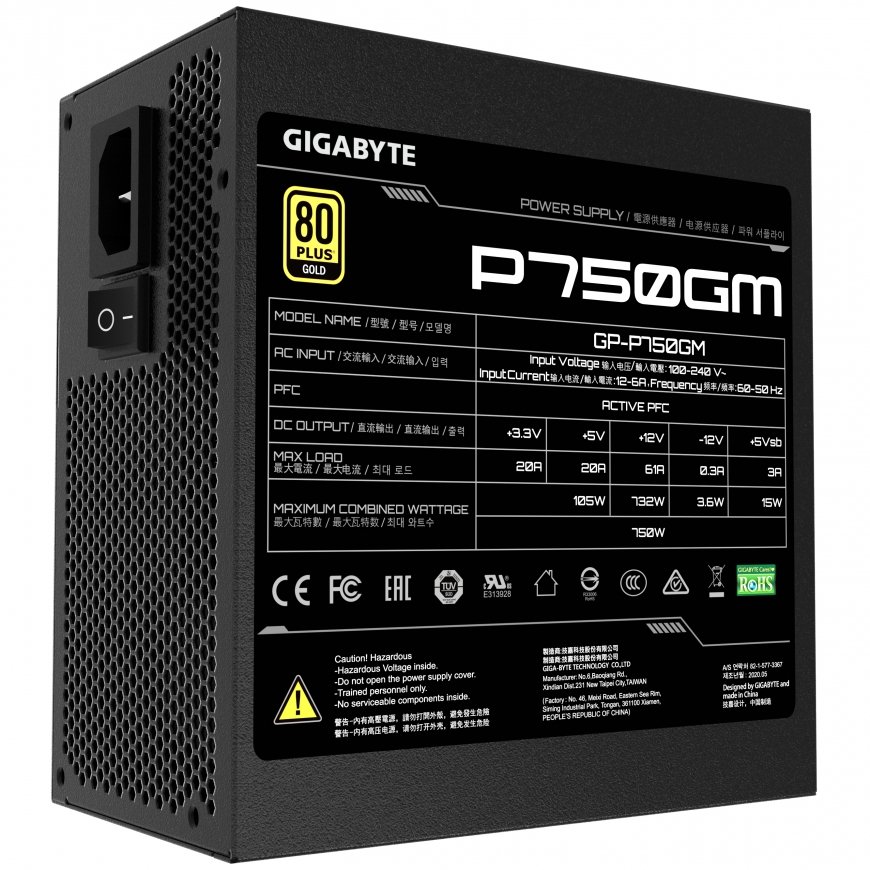

GIGABYTE P750GM power supply unit 750 W 20+4 pin ATX ATX Black
GIGABYTE P750GM power supply unit 750 W 20+4 pin ATX ATX Black
GIGABYTE P750GM power supply unit 750 W 20+4 pin ATX ATX Black
GIGABYTE P750GM power supply unit 750 W 20+4 pin ATX ATX Black
GIGABYTE P750GM power supply unit 750 W 20+4 pin ATX ATX Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

GIGABYTE P750GM power supply unit 750 W 20+4 pin ATX ATX Black

81,16 €
Monthly payment from 2.99
2233317

GP-P750GM

4719331551759, 0813567028710, 4719331551766, 4719331551773

Shipping 4-6 b.d.

Quantity
You are interested in this product?
(Read terms of service)
FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

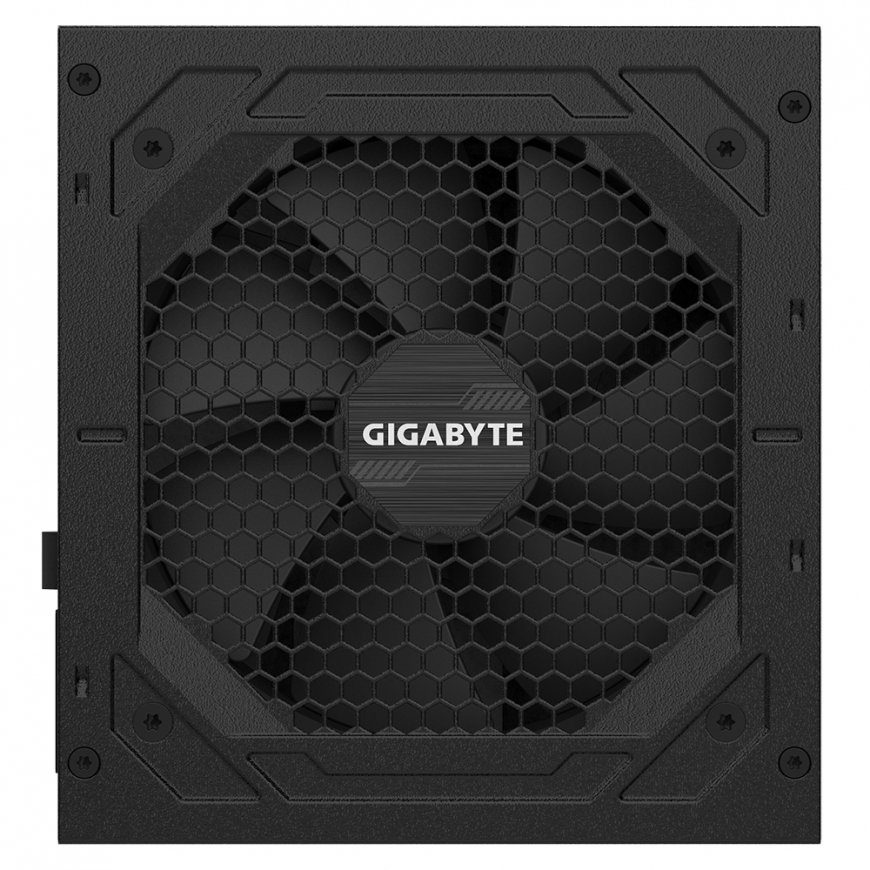

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.
Power
Hold time 16 ms
Efficiency 90%
Input current 12-6 A
Power protection features Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) type Active
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Total power 750 W
Performance
Mean time between failures (MTBF) 100000 h
ATX version 2.31
Purpose PC
80 PLUS certification 80 PLUS Gold
Power supply unit (PSU) form factor ATX
Design
Product colour Black
Number of fans 1 fan(s)
Fan diameter 12 cm
Fan location Top
Cooling type Active
Ports & interfaces
Floppy drive power connector 1
Number of SATA power connectors 8
Peripheral (Molex) power connectors (4-pin) 4
ATX power connector (20+4 pin) Yes
CPU power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
Motherboard power connector 20+4 pin ATX
Cabling type Fully-Modular
PCI Express connector Yes
Motherboard power cable length 61 cm
SATA power cable length 150, 600
Peripheral (Molex) power cable length 500, 120
PCI Express power cable length 60 cm
CPU power cable length 60 cm
Floppy disk drive cable length 12 cm
EPS power connector (4+4 pin) Yes
Weight & dimensions
Width 150 mm
Depth 140 mm
Height 86 mm
Logistics data
Harmonized System (HS) code 84733020
Packaging content
Cables included SATA, CPU, PCIe, Peripheral (Molex)
