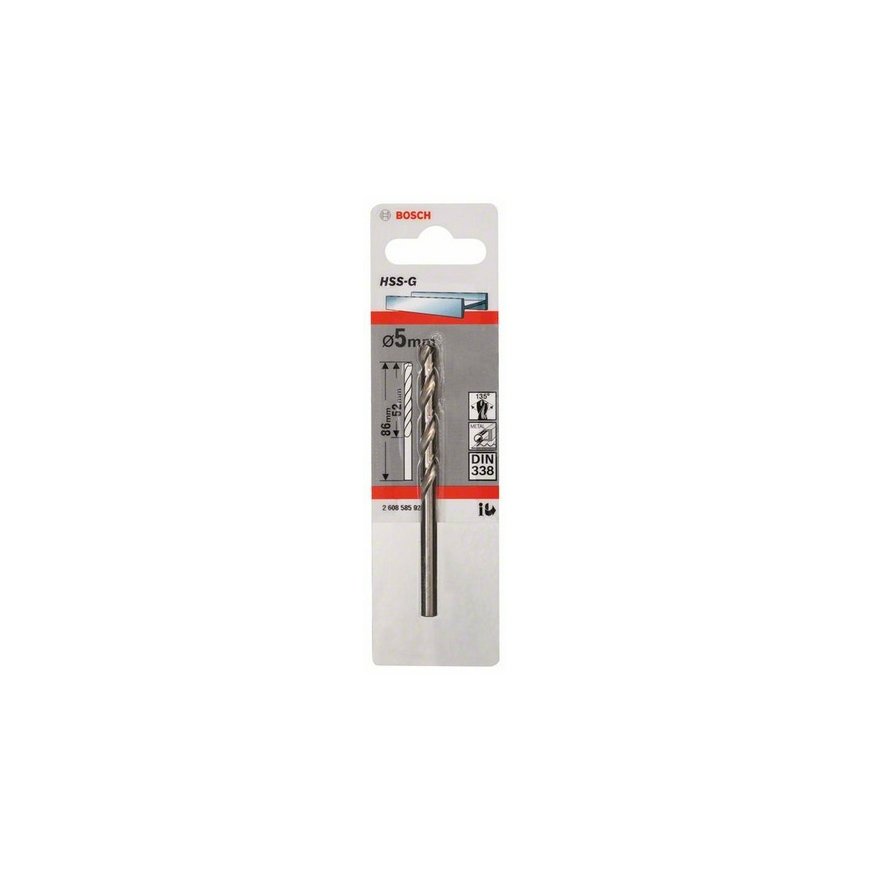

Bosch Metal drill bit HSS-G, DIN 338
32.39 €
2169068 2 608 585 922
3165140521574
Shipping 6-8 b.d.
You are interested in this product?
All about the product
- Suitable for alloyed and non-alloyed steel up to a tensile strength of 900 N/mm², cast steel, cast iron, sintered iron, malleable cast iron, non-ferrous metals, hard plastics- Precision-ground HSS-G drill bit enables up to 40% faster drilling rate and up to 50% lower feed pressure than standard-ground HSS drill bits with a chisel edge
- Self-centring split point drill tip means there is no need to pre-punch or pilot drill up to 10 mm diameter
- The HSS-G drill bits are available in two qualities. The Topline drill bits are for the highest requirements and the standard drill bits are for professional use
Features
| Proper use | Drill |
| Length | 86 mm |
| Drill bit diameter | 5 mm |
| Suitable for materials | Metal |
| Working length | 5.2 cm |
| Shank shape | Cylindrical shank |
| Number of drill bits | 1 pc(s) |
| Drill bit type | Twist drill bit |
| Drill bit material | Ground High-Speed Steel (HSS-G) |
| Point angle | 135° |
| DIN compliance | 338 |
| Shank diameter | 5 mm |
