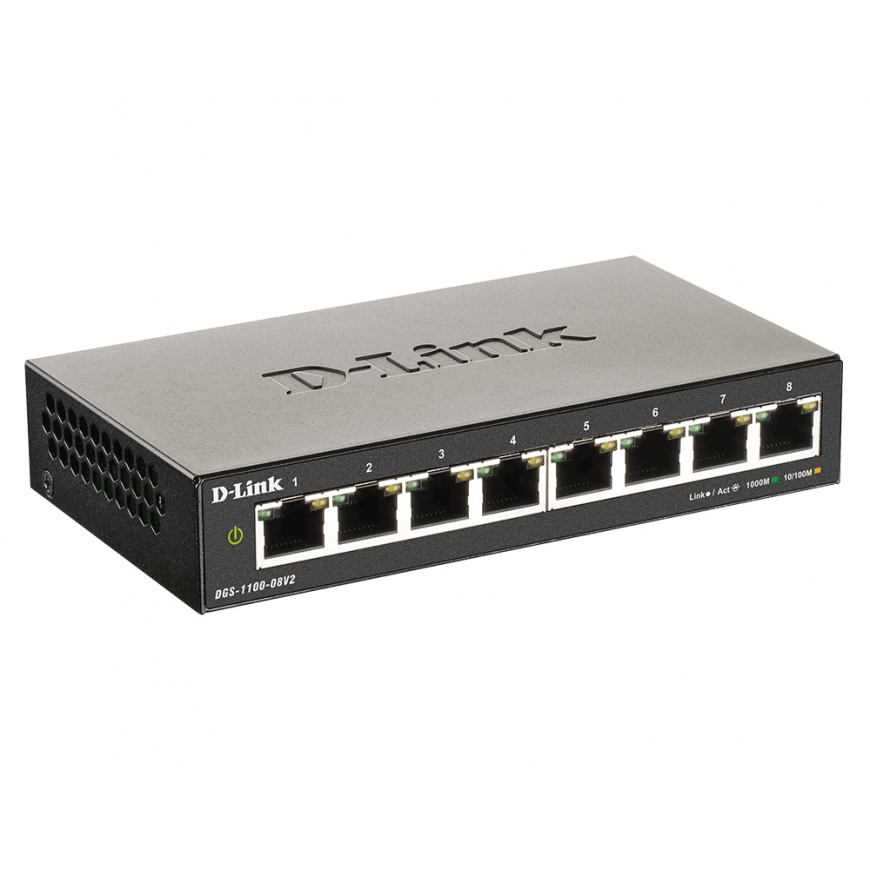

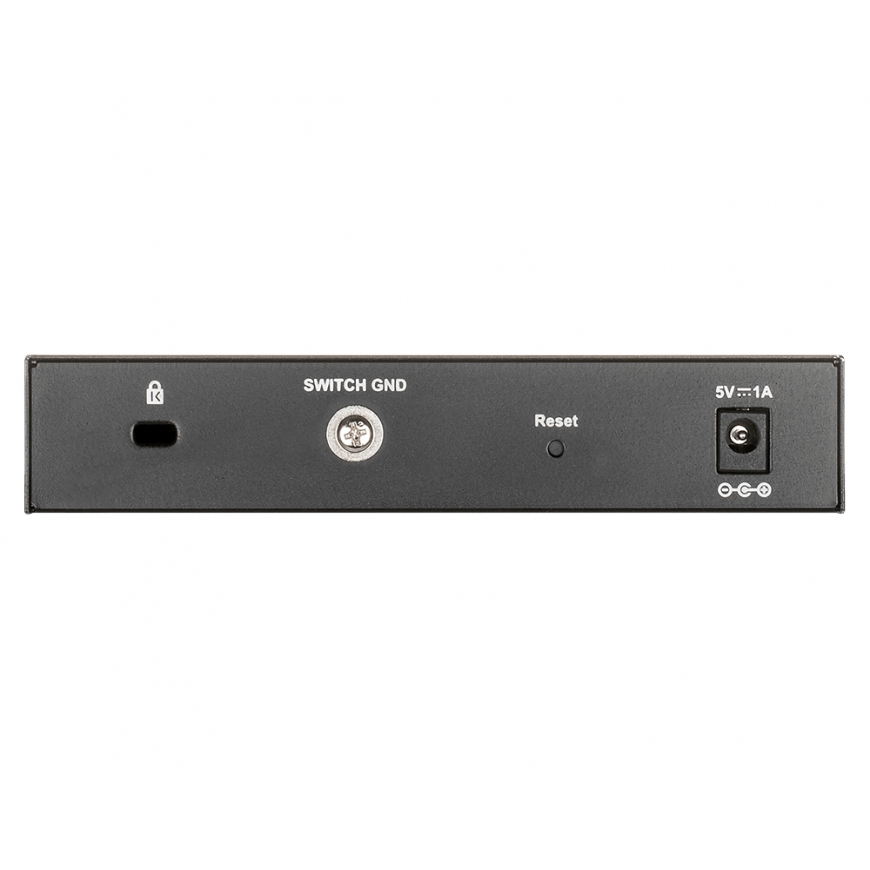

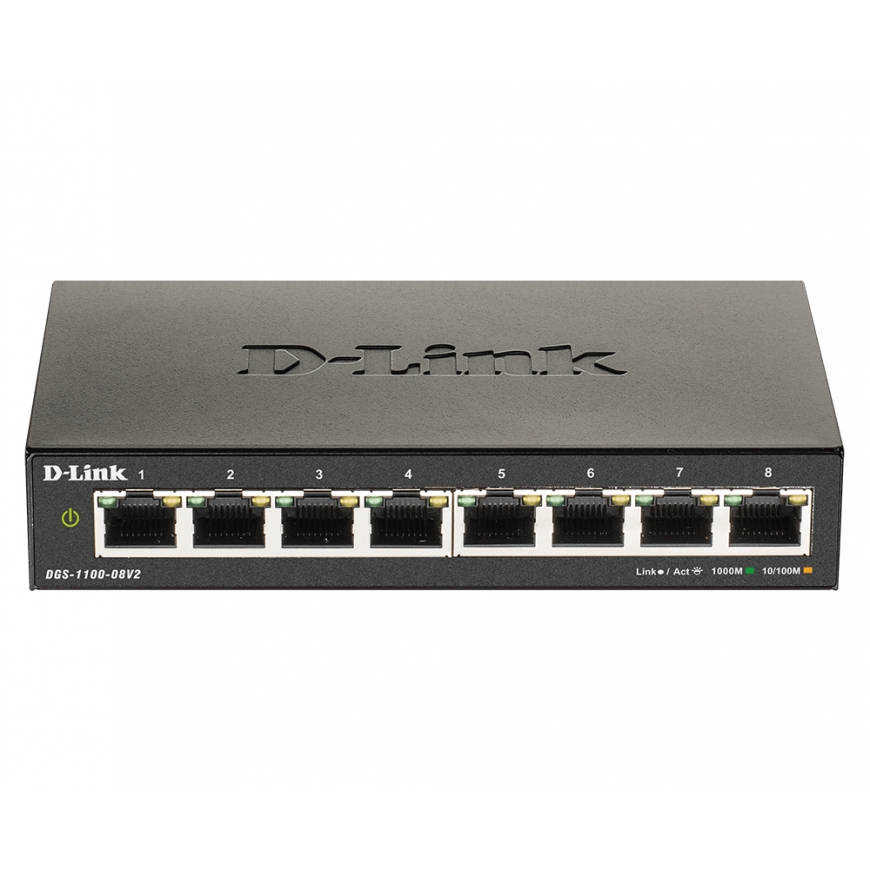

D-Link Gigabit Smart Managed Switches DGS-1100 Series
47,89 €
Monthly payment from 2.13 €
2158250 DGS-1100-08V2/B
0790069453410, 0790069453304
Shipping 6-8 b.d.
You are interested in this product?
Easy to use web interface to access management features
VLANs
Segment your network into VLANs.
Easy deployment with automatic configuration
Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration
Energy Efficient Design
Automatic power saving features to reduce power usage
Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.
Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Free Nuclias Connect remote network management software.
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.
PoE and PoE+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models).
| Product colour | Black |
| Weight | 340 g |
| Width | 145 mm |
| Depth | 82 mm |
| Height | 28 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Networking standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.3af; IEEE 802.3at; IEEE 802.3az; IEEE 802.3x |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| AC input voltage | 100 - 240 V |
| Input current | 1 A |
| Power source | DC |
| AC input frequency | 50/60 Hz |
| Mean time between failures (MTBF) | 1456992 h |
| Number of fans | 0 fan(s) |
| Noise level | 0 dB |
| Power consumption (max) | 4.94 W |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Power over Ethernet (PoE) | No |
| Copper ethernet cabling technology | 1000BASE-T |
| 10G support | No |
| Harmonized System (HS) code | 85176990 |
| Reset button | Yes |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN; Tagged VLAN; Voice VLAN; Management VLAN |
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| IGMP snooping | Yes |
| Rack mounting | No |
| DC input voltage | 5 V |
| Port mirroring | Yes |
| Number of VLANs | 4094 |
| Forwarding rate | 11.9 Mpps |
| Number of queues | 4 |
| Packet buffer memory | 1.5 MB |
| Heat dissipation | 16.85 BTU/h |
| Auto-negotiation | Yes |
| Power connector | DC-in jack |
| IGMP entries | 128 |
| Head-of-line (HOL) blocking | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR); SP |
| Static port security | Yes |
| Fanless | Yes |
| Half duplex | Yes |
| Compliance certificates | CE; Federal Communications Commission (FCC); Low Voltage Directive (LVD); VCCI; BSMI; cUL |
