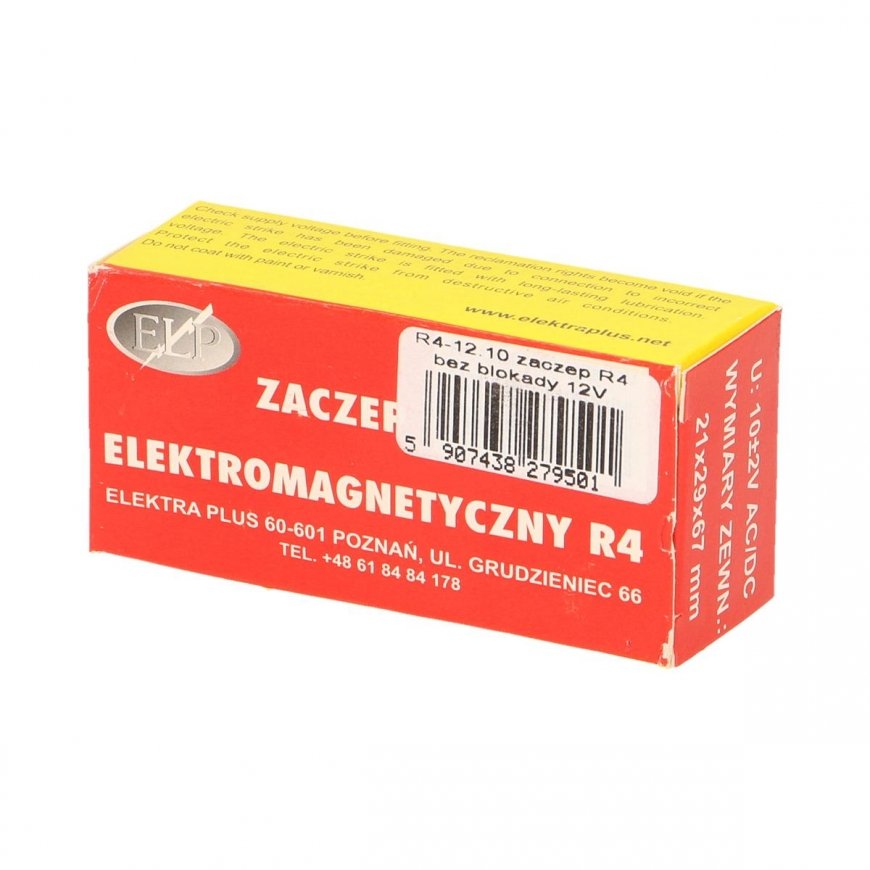

Orno ELECTROMAGNETIC HOOK R4-12.10
31,61 €
31,46 €
1980859 R4-12.10
5907438279501
Shipping 1-14 b.d.
You are interested in this product?
The R4-12.10 type electromagnetic lock is designed for doors and vents made of metal profiles and is designed to work with a ratchet-latch or ratchet lock.
| Nominal voltage : | 10 V ± 2 V AC/DC |
| Current consumption : | 530 mA AC / 660 mA DC |
| Usage : | right door / left door |
| Ratchet Blocker : | - |
| Memory function : | - |
| Reverse work : | - |
| Freedom regulation : | ✔ |
| Permissible pressure on the door when releasing the latch : | 30 N |
| Permissible door load acting on the lock : | 3000 N |
| Allowable duration of continuous operation : | 30 minutes |
| Weight : | 0.16 kg |
| Dimensions : | 21 x 29 x 67 mm |
| Warranty : | 2 years |
