The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

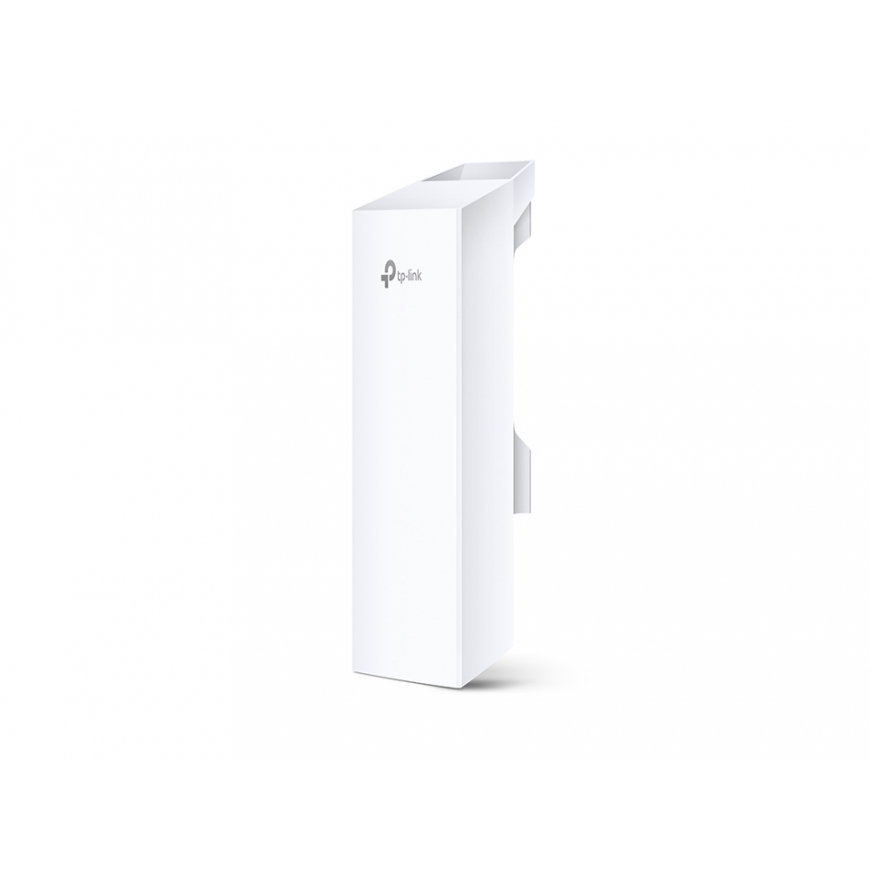

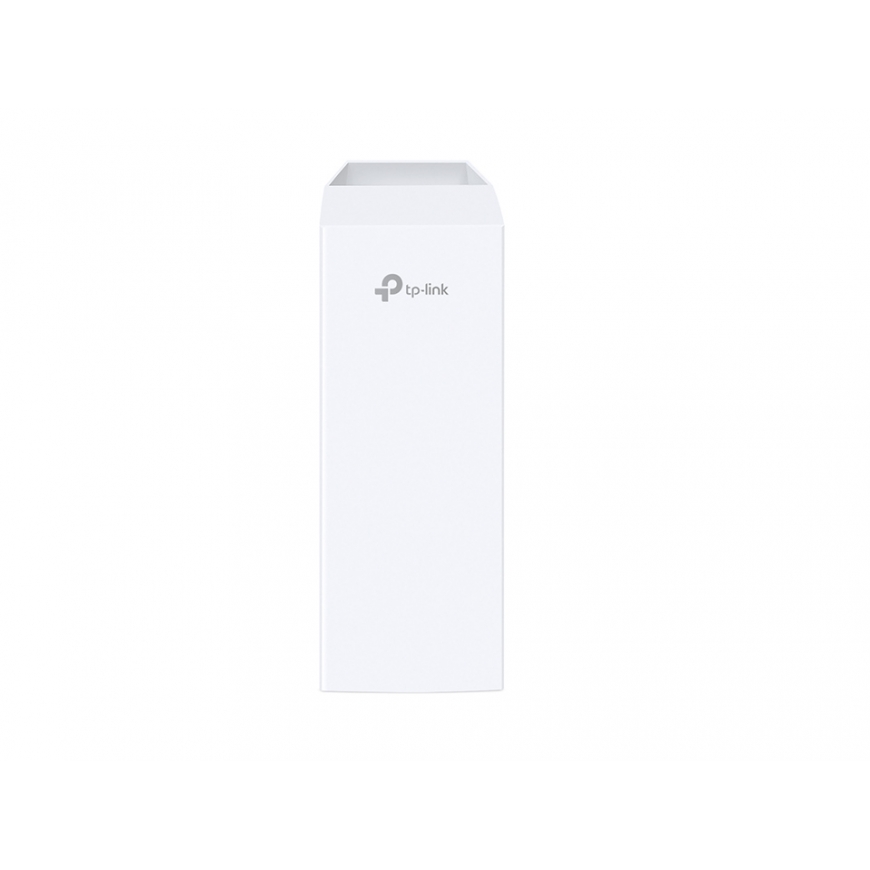

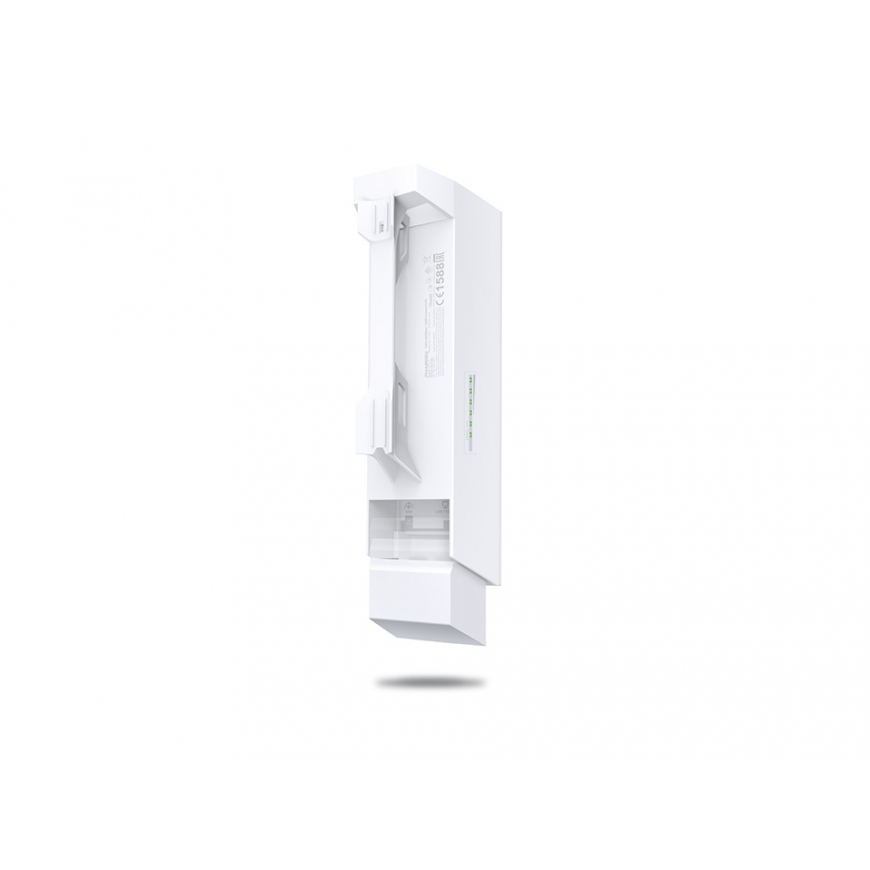

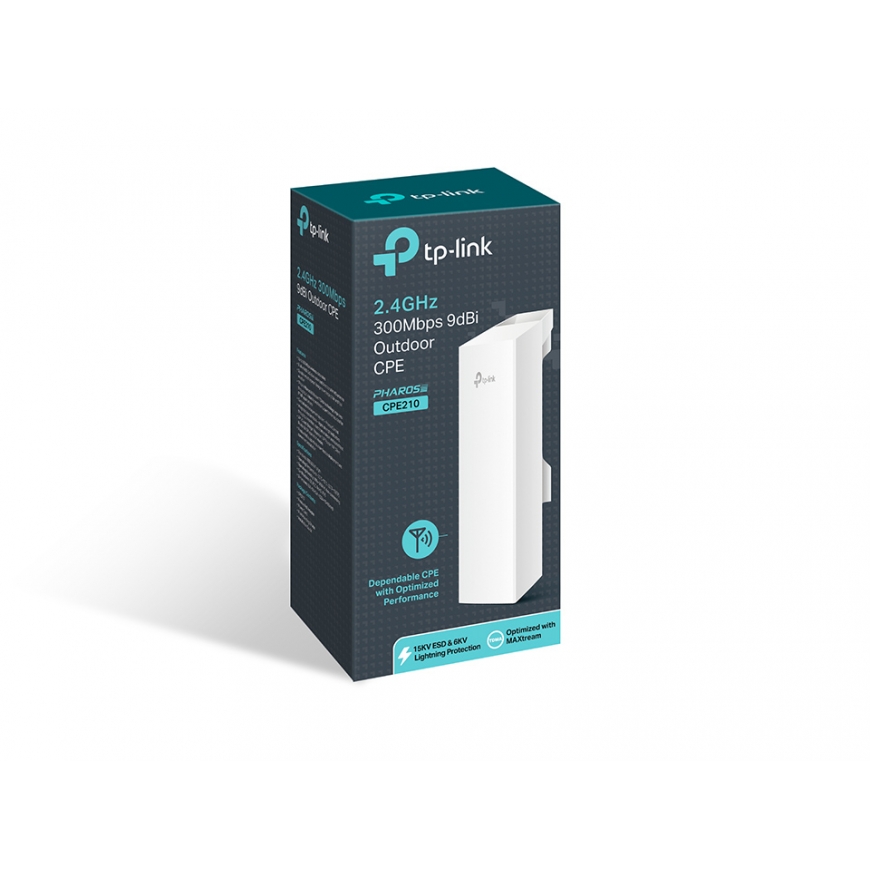

TP-Link CPE210 300 Mbit/s White Power over Ethernet (PoE)
42,20 €
Monthly payment from 1.99 €
1975133 CPE210 V3.20
6935364071677
Shipping 5-7 days
You are interested in this product?
Enterprise Hardware
With Qualcomm Atheros level chipsets, high gain antennas and high
quality material, specially designed enclosure, and PoE power supply, CPE210 is
specially designed for outdoor use and can operate flawlessly in almost any climate,
with operating temperatures ranging from -40℃ (-40℉) to +70℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain and lower noise interference
5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.
TP-Link MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be
so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user
experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily
manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery,
status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
Wireless LAN features | |
| Maximum outdoor range | 5000 m |
Network | |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection | Yes |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| MIMO | Yes |
Security | |
| Security algorithms | WPA, WPA-PSK, WPA2, WPA2-PSK, AES, TKIP |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
Protocols | |
| Universal Plug and Play (UPnP) | Yes |
Design | |
| LED indicators | Status |
| Product colour | White |
| International Protection (IP) code | IPX5 |
Antenna | |
| Antenna gain level (max) | 9 dBi |
| Antenna direction type | Directional |
| Antenna type | Internal |
Features | |
| Built-in processor | Yes |
| Processor frequency | 560 MHz |
| Firmware upgradeable | Yes |
| Internal memory | 64 MB |
| Flash memory | 8 MB |
| Processor model | Qualcomm Atheros |
| Processor architecture | MIPS 74Kc |
Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Output voltage | 24 V |
| Output current | 0.25 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions | |
| Width | 224 mm |
| Depth | 79 mm |
| Height | 60 mm |
Packaging data | |
| Package width | 132 mm |
| Package depth | 270 mm |
| Package height | 106 mm |
| Package weight | 760 g |
Other features | |
| Management platform | Pharos Control |
| Frequency band | 2.4 - 2.483 GHz |
| Maximum data transfer rate | 300 Mbit/s |
Certificates | |
| Certification | CE, FCC, RoHS, CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark |
Logistics data | |
| Quantity per pack | 1 pc(s) |
Packaging content | |
| Cables included | AC |
| Mounting kit | Yes |
