LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C
LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

LevelOne 5-Port Gigabit Industrial Switch, DIN-Rail, -30°C to 65°C

209,49 €
Monthly payment from 6.29 €
1912849

IGP-0501

4015867196625, 0846359040508

This product is no longer in stock

You are interested in this product?
(Read terms of service)

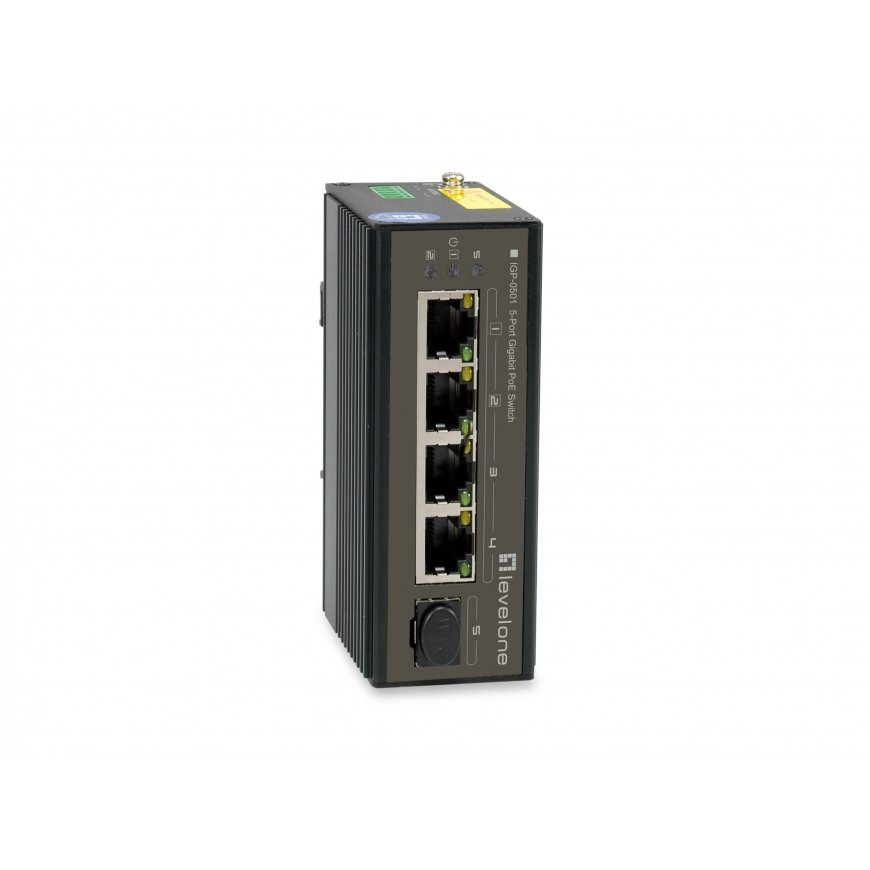

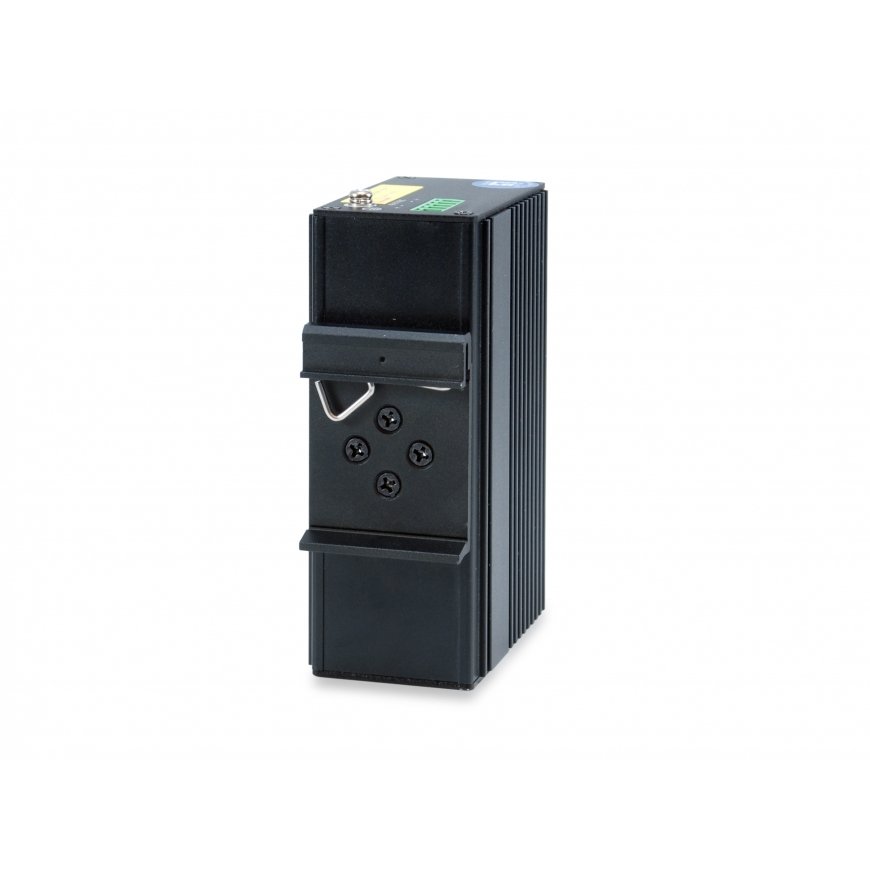

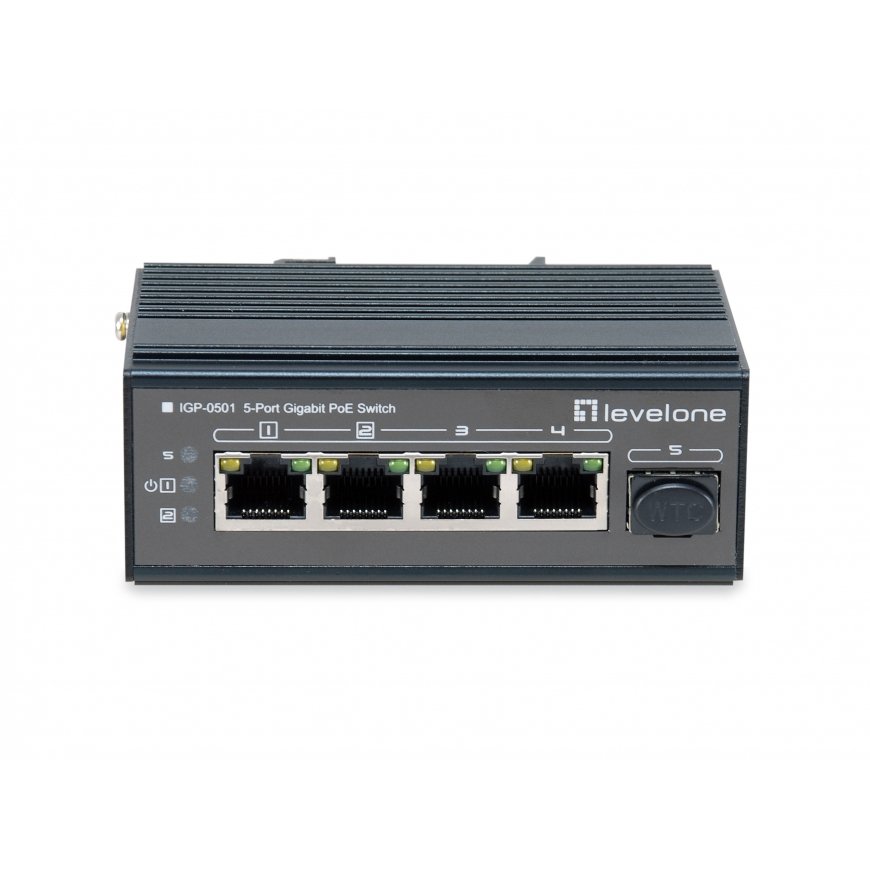

LevelOne IGP-0501 Industry Ethernet Switch provides 4 PoE ports 10/100/1000Base plus 1 port Gigabit SFP to enable high speed network at mission-critical environment. With the industrial standard DIN-rain mount; this switch can be easily installed in the cabinet, plus the clearly visible status LEDs provide simple monitoring of port link activity. Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers. This switch is Power Sourcing Equipment (PSE), and it is fully complied with IEEE 802.3at PoE standard at maximum 30W power budget per port. It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed. Also, it is compatible with IEEE802.3af standard PD devices.
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.3z
Flow control support Yes
Auto MDI/MDI-X Yes
Full duplex Yes
Design
LED indicators Power, Activity
Product colour Black
Housing material Metal
Wall mountable Yes
International Protection (IP) code IP30
Power
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) -30 - 65 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 65 mm
Depth 36 mm
Height 101 mm
Weight 350 g
Packaging data
Package width 70 mm
Package depth 60 mm
Package height 110 mm
Package weight 400 g
Package type Box
Other features
Rack mounting No
Logistics data
Country of origin China
Master (outer) case width 422 mm
Master (outer) case length 566 mm
Master (outer) case height 360 mm
Master (outer) case gross weight 13 kg
Products per master (outer) case 28 pc(s)
Pallet gross length 80 cm
Pallet gross width 120 cm
Pallet height (air) 159 cm
Products per pallet 24 pc(s)
Harmonized System (HS) code 85176990
Packaging content
Quick start guide Yes
