Digitus 16 port Gigabit Ethernet network switch, industrial, unmanaged, 2 SFP uplink
Digitus 16 port Gigabit Ethernet network switch, industrial, unmanaged, 2 SFP uplink

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Digitus 16 port Gigabit Ethernet network switch, industrial, unmanaged, 2 SFP uplink

398,99 €
Monthly payment from 11.17
1882305

DN-651138

4016032486084

This product is no longer in stock

You are interested in this product?
(Read terms of service)
The DN-651138 is a 16+2 port Gigabit Ethernet switch suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments.

- The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections.
- Ensures reliable data transmission
- Supports full-duplex or half-duplex mode, with automatic negotiation
- Network connection supports automatic cross-identification
- Uses "Store and Forward" technology The switch supports a variety of protocols
- complies with industrial operating standards
- Operating voltage: DC 12-52V
- Lightning surge protection (power): 5000A(8/20μs)

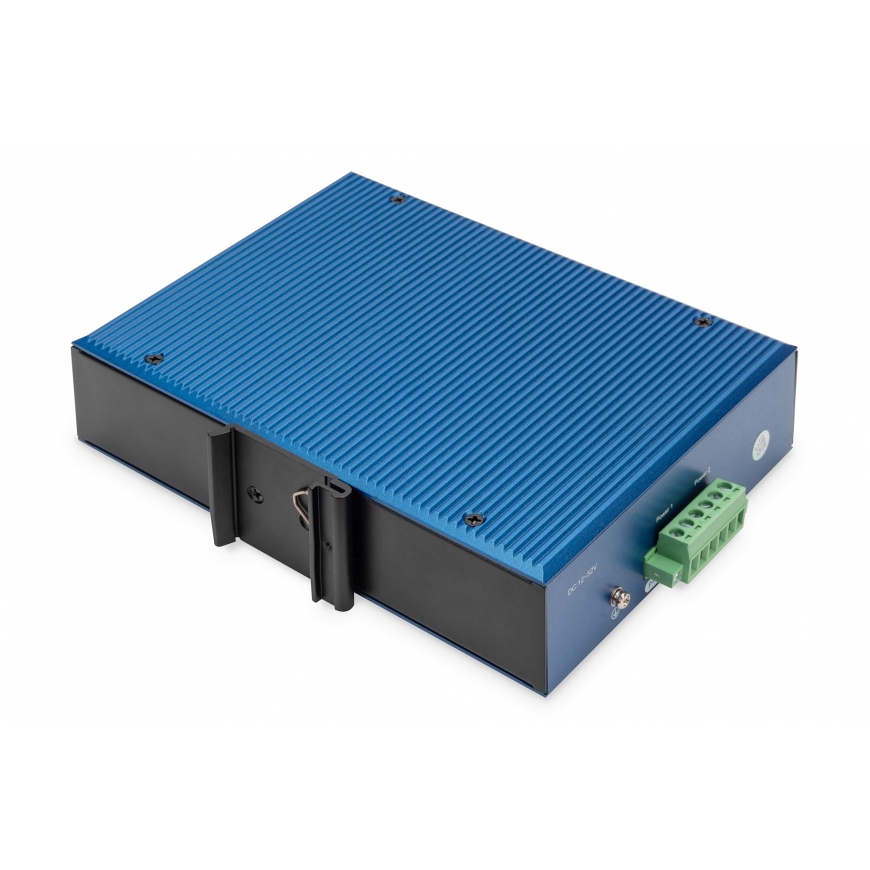

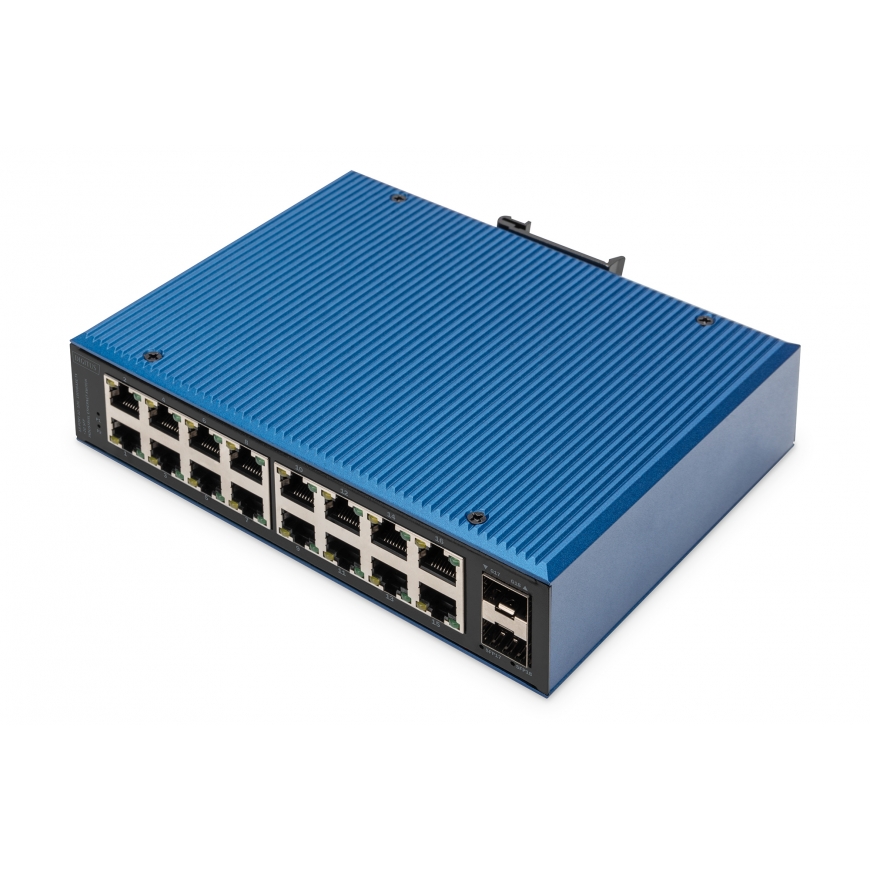

DN-651138 is an industrial Gigabit Ethernet switch with 16 port 10/100/1000 Mbps RJ45 +2 port 1000 Mbps base-FX. The industrial switch has the operating temperature of -40℃ ~ 80℃, has been manufactured ruggedly and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651138 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.
Network
Networking standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control support Yes
Ethernet LAN data rates 10, 100, 1000
Auto MDI/MDI-X Yes
Full duplex Yes
Security
MAC address table 8000 entries
Design
LED indicators Yes
Product colour Black, Blue
Housing material Aluminium
International Protection (IP) code IP40
Power
Power consumption (typical) 10 W
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) -40 - 80 °C
Storage temperature (T-T) -40 - 80 °C
Operating relative humidity (H-H) 5 - 95%
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 175.6 mm
Depth 135 mm
Height 45.5 mm
Weight 1 kg
Packaging data
Package width 186 mm
Package depth 72.5 mm
Package height 208 mm
Package weight 1.17 kg
Package volume 2804.88 cm³
Other features
Bandwidth 56 Gbit/s
Rack mounting No
Logistics data
Country of origin China
UK Trade Tariff code 85176200
