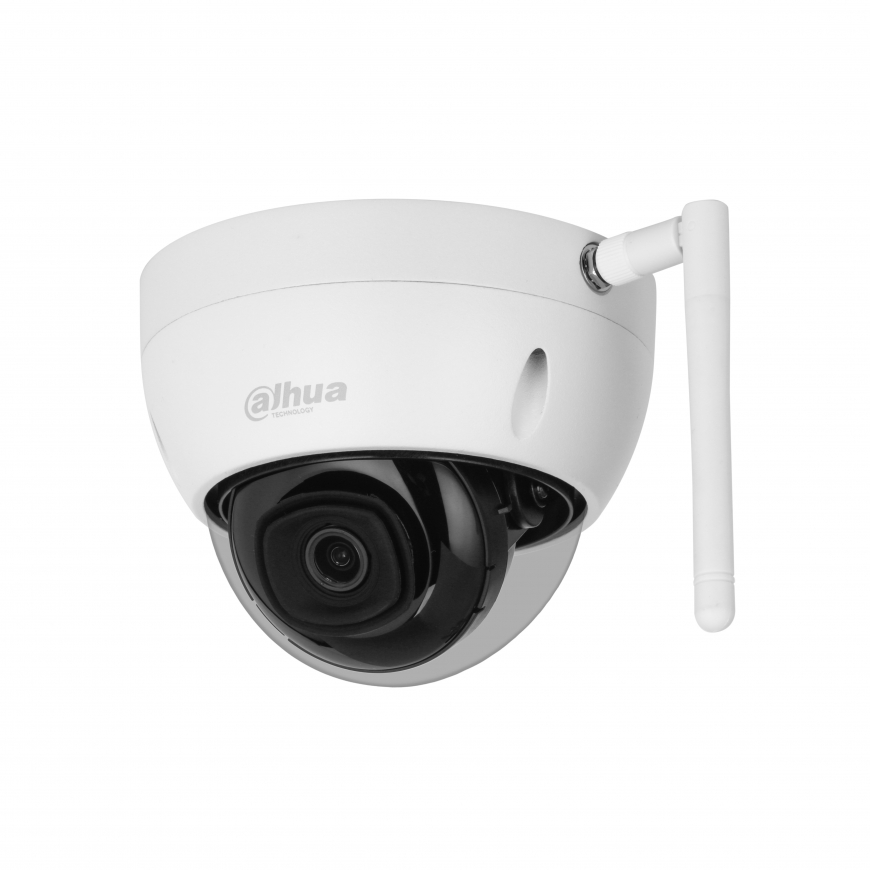

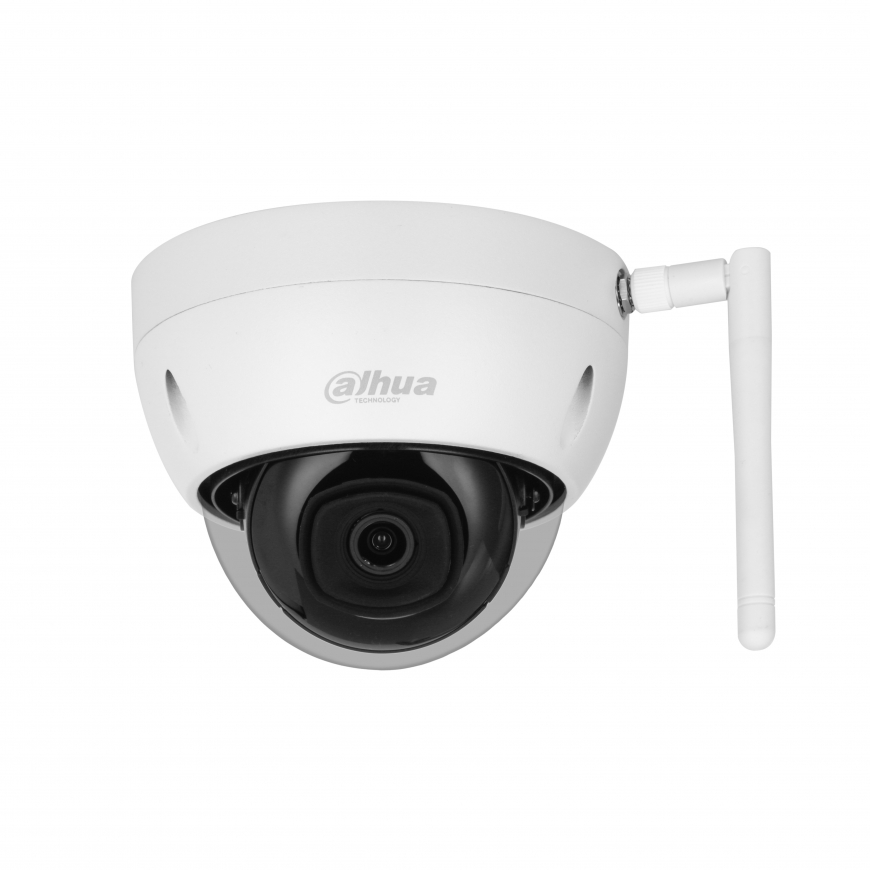

Dahua Technology Consumer DH-IPC-HDBW1230DEP-SW-0280B security camera
70,31 €
Monthly payment from 2.71 €
1860407 DH-IPC-HDBW1230DEP-SW-0280B
6923172539960
2026-07-29
You are interested in this product?
> Outputs max. 2 MP (1920 × 1080)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED.
> SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
> Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
> Supports single antenna 2.4G Wi-Fi that covers a range of up to 80 m in an open area.
> Supports max. 256 G Micro SD card.
> 12 VDC power supply.
> IP67, IK10 protection.
Performance | |
| Connectivity technology | Wired & Wireless |
| Wide Dynamic Range (WDR) | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Antenna type | External |
| Antennas quantity | 1 |
| Dynamic range | 56 dB |
| Luminous flux | 0.0025 lm |
Design | |
| Housing material | Metal |
| Mounting type | Ceiling |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Form factor | Dome |
| IK code | IK10 |
Camera | |
| Minimum illumination | 0.0025 lx |
| Camera shutter speed | 1/3 s–1/100,000 s |
| Tilt angle range | 0 - 75° |
| Pan range | 0 - 355° |
| Angle of rotation | 355° |
| White balance | Manual, Outdoor, Custom modes, Natural, Street lamp |
| Field of view (FOV) angle | 120° |
| Camera shutter type | Electronic |
| Adjustment shutter speed | Auto/Manual |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 100° |
| Lens viewing angle, vertical | 53° |
| Lens viewing angle, diagonal | 120° |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of sensors | 1 |
Lens system | |
| Focal length range | 2.8 mm |
| Lens diameter | 2.8 mm |
| Zoom capability | No |
| Maximum aperture number | 2 |
| Fixed focus | Yes |
| Detect distance | 46.9 m |
| Observe distance | 18.8 m |
| Recognize distance | 9.4 m |
| Identify distance | 4.7 m |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 1920 x 1080 pixels |
| Frame rate | 30 fps |
| Video formats supported | H.264, H.265, H.264B |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1280 x 960 |
| Supported video modes | 720p, 1080p, 960p |
| Video compression formats | H.264, H.265, H.264B, H.264H |
| Noise reduction | Yes |
| Video streaming | Yes |
| Flip & mirror | Yes |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 9 - 4096 |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Gain control type | Auto |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 2 MP |
| Video recording | Yes |
Audio | |
| Signal-to-Noise Ratio (SNR) | 56 dB |
Network | |
| Wi-Fi | Yes |
| Supported network protocols | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Wi-Fi data rate (max) | 2400 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Number of users | 6 user(s) |
| Bluetooth | No |
| Live view | Yes |
| Channel bandwidth | 36 MHz |
Storage | |
| Flash memory | 64 MB |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| ROM capacity | 16 MB |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
Security | |
| Video motion detection | Yes |
| Security algorithms | HTTPS |
| HTTPS encryption | Yes |
| Motion sensor | Yes |
Power | |
| Power consumption (typical) | 2 W |
| DC output voltage | 12 |
| Power consumption (max) | 4.9 W |
| Power source type | DC |
Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions | |
| Weight | 414 g |
| Height | 88.7 mm |
| Diameter | 11.1 cm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Number of illumination LEDs | 3 |
| Night vision | Yes |
| LED type | IR |
Management features | |
| Web-based management | Yes |
| Firmware upgradeable | Yes |
| Web browser | Yes |
| Management software | Smart PSS; DSS; DMSS |
| Smartphone/tablet remote support | Yes |
System requirements | |
| Mobile operating systems supported | Android, iOS |
Packaging data | |
| Package weight | 592 g |
Sustainability | |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
