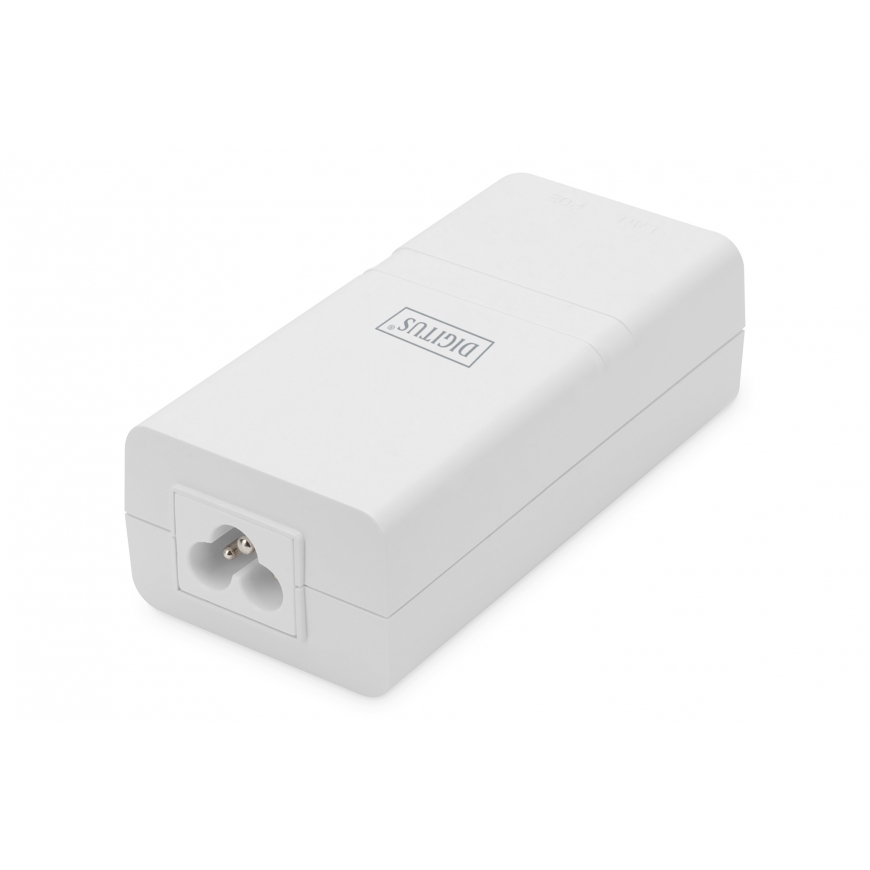

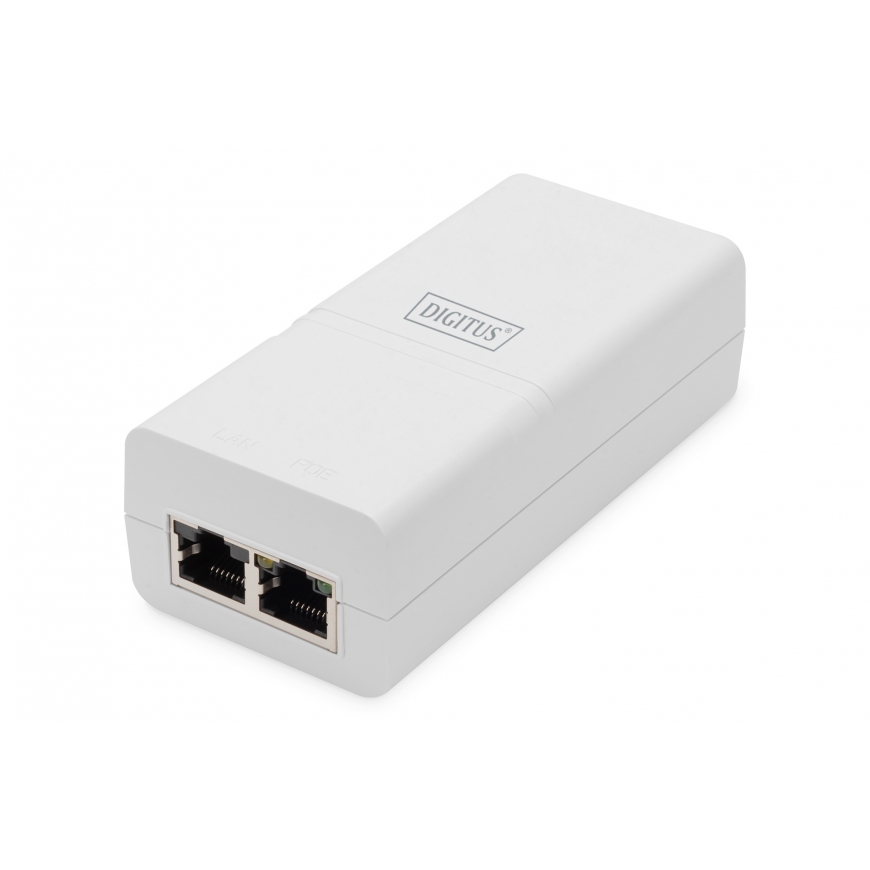

Digitus Gigabit Active 802.3at PoE Midspan
25,04 €
1857843 DN-95132
4016032485834
Shipping 3-7 b.d.
You are interested in this product?
- Provides 52Vdc, 0.58A power for remote PDs over 2 pairs output
- Supports both 10/100 Base-T and Gigabit device
- Works with a wide input voltage of 100-240 VAC, 50 or 60 Hz.
- Easily merge of power and data cables into a single cable
- Each output port has output current limited, short-circuit protection, complete Powered Device (PD) detection and classification
- The Injector can be used independent of operating system
DN-95132 is an indoor rated active PoE midspan Injector specially designed for complex backhaul and networking applications. It provides 52Vdc, 0.58A power for remote PDs over 2 pairs output. It supports both 10/100 Base-T and Gigabit device. It works for 30W PoE PDs, such as wireless APs, WLAN routers, Network cameras, IP Phones, Microwave Radio and other power Ethernet terminals. It fully complies to IEEE802.3af/at PoE standard. Enclosed in an IP40 fire retardant plastic case. Enclosed in an IP40 fire retardant plastic case. It works with a wide input voltage of 100-240 VAC, 50 or 60 Hz. It has detection chip inside, which will detect and classify PD before powering it. It will not provide power until a standard-compliant PD is detected.
Network | |
| Networking standards | IEEE 802.3at |
| Ethernet LAN data rates | 1000 Mbit/s |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
Design | |
| LED indicators | Yes |
| Product colour | White |
| Housing material | Plastic |
| International Protection (IP) code | IP40 |
Features | |
| Safety | CE/FCC |
| Plug and Play | Yes |
Power | |
| Output current | 0.58 A |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 2000 m |
Weight & dimensions | |
| Width | 107.3 mm |
| Depth | 56 mm |
| Height | 34 mm |
| Weight | 146.8 g |
Packaging data | |
| Package width | 168 mm |
| Package depth | 100 mm |
| Package height | 43 mm |
| Package weight | 36.25 g |
| Package volume | 722.4 cm³ |
| Number of products included | 1 pc(s) |
Other features | |
| Input current | 1 A |
Technical details | |
| Compliance certificates | RoHS, WEEE |
Logistics data | |
| Country of origin | China |
| UK Trade Tariff code | 85176200 |
Packaging content | |
| Manual | Yes |
