The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

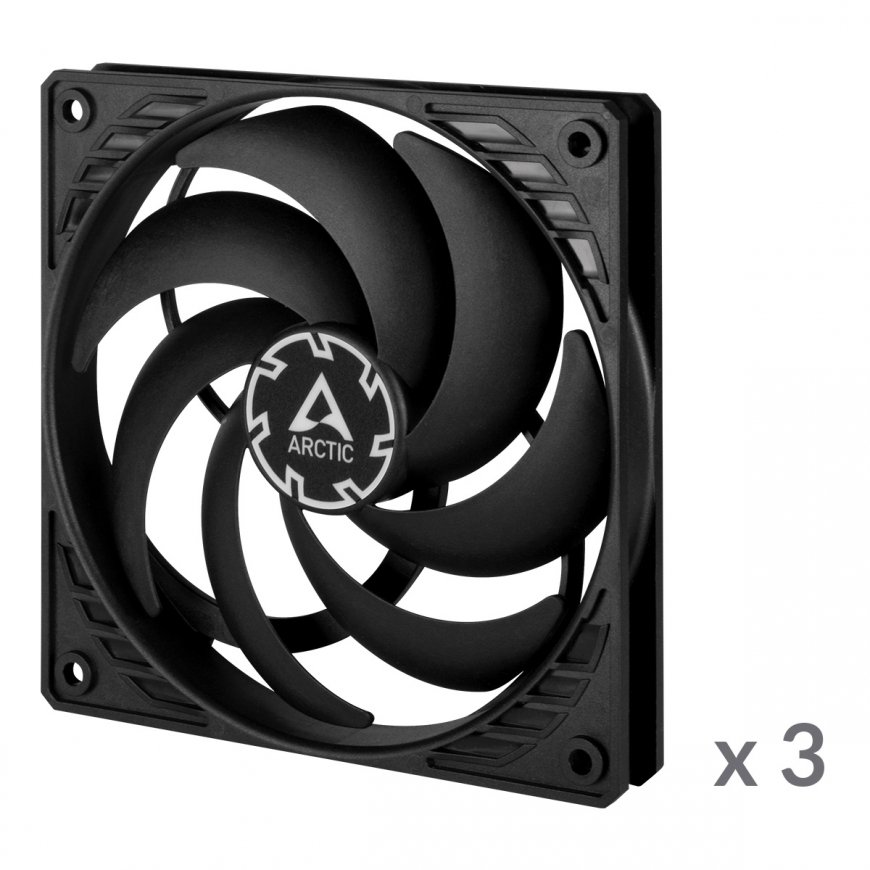

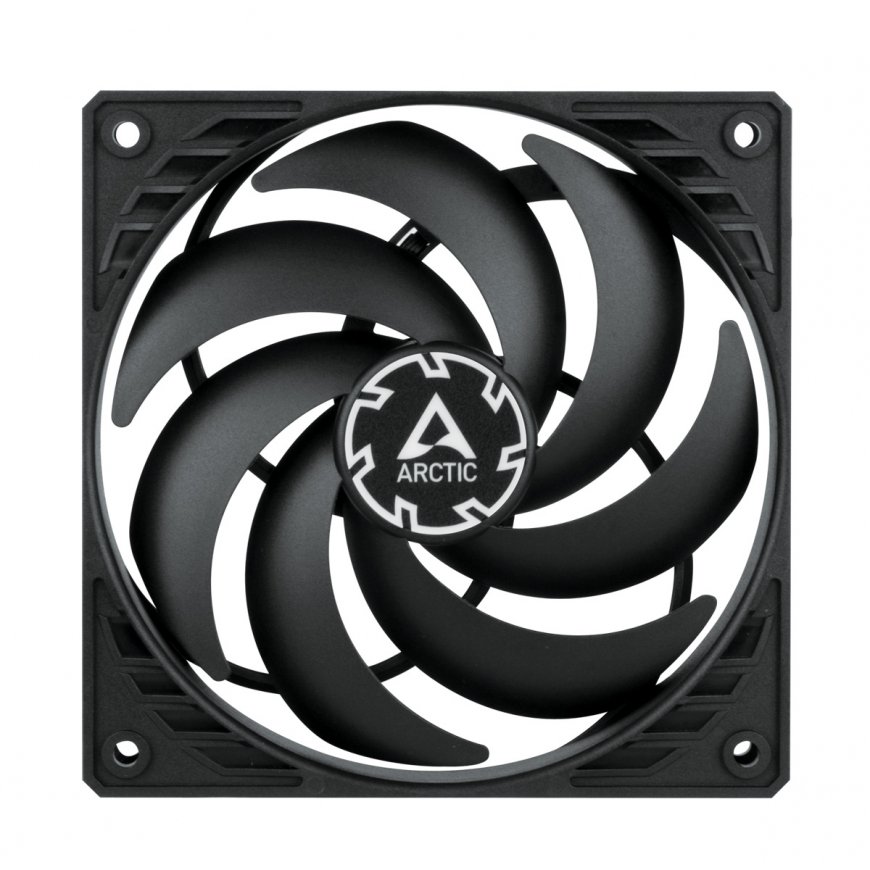

ARCTIC P12 Slim PWM PST Pressure-optimised 120 mm PWM Fan with integrated Y-cable
17,40 €
1830504 ACFAN00275A
4895213703888, 0840033401692
Shipping 4-6 b.d.
You are interested in this product?
Ideal where space is limited

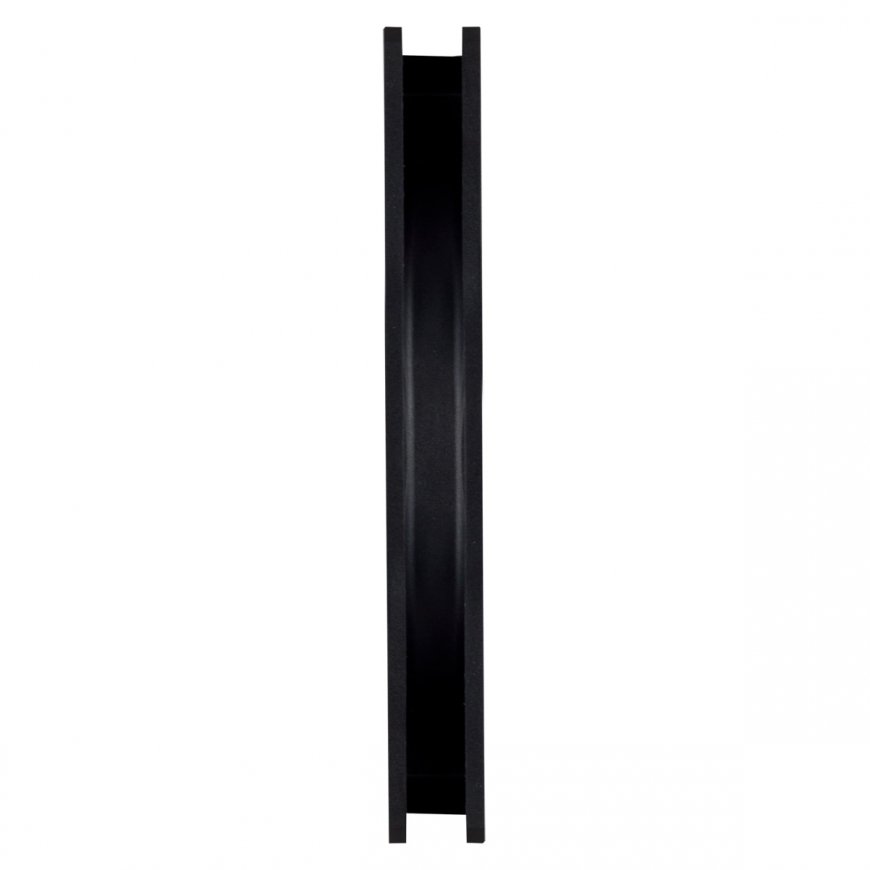

Unlike normal case fans, which are 25 mm thick, the P12 Slim PWM PST has an installation depth of only 15 mm. This makes it a predestined fan for small form factor builds.
OPTIMISED FOR STATIC PRESSURE
During the development of the new P12 Slim PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 Slim PWM PST is particularly suitable for use on covered case vents or inlets with filters.
MORE EFFICIENT TECHNOLOGY
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P12 Slim PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
MAXIMUM QUIETNESS, MINIMUM VIBRATION
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable.
Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
EXTENDED LIFE SPAN
A 10 °C lower motor temperature roughly doubles the life span of a fan.
Due to the low coil temperature of the new ARCTIC fan motors, the service life of the fans increases considerably. Therefore, we extend the warranty to 6 years.
300 TO 2100 RPM REGULATED VIA PWM PST
With a wide range of regulation and the PWM Sharing Technology (PST), the P12 Slim PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.
HIGH QUALITY BEARING
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
TWO WAY INSTALLATION
Push warm air out of the case
Pull cool air into your case
Performance | |
| Supported processor sockets | Not supported |
| Type | Fan |
| Fan diameter | 12 cm |
| Airflow | 71.53 m³/h |
| Maximum airflow | 41.1 cfm |
| Maximum air pressure | 1.45 mmH2O |
| Compatible processor series | Not supported |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 2100 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level | 0.3 sone |

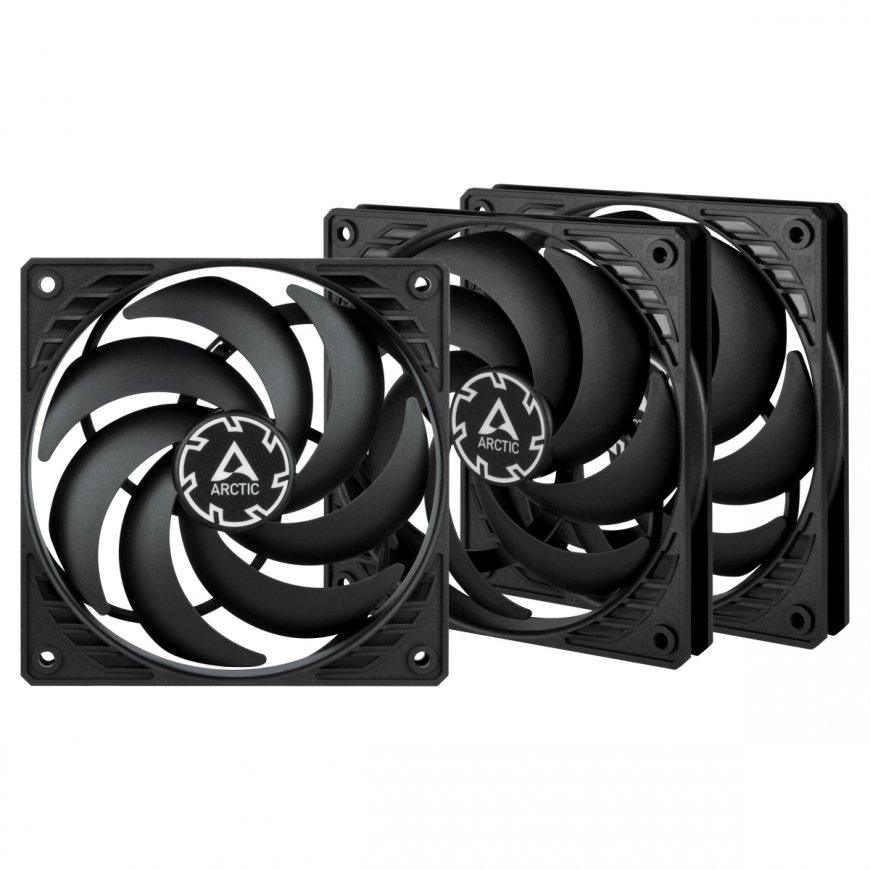

| Quantity per pack | 3 pc(s) |
| Fan bearing technology | Fluid Dynamic Bearing (FDB) |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Material | Plastic |
| Number of fans | 1 fan(s) |
Power | |
| Rated current | 0.12 A |
| Voltage | 12 V |
| Starting voltage | 4 V |
Weight & dimensions | |
| Weight | 85 g |
| Package weight | 345 g |

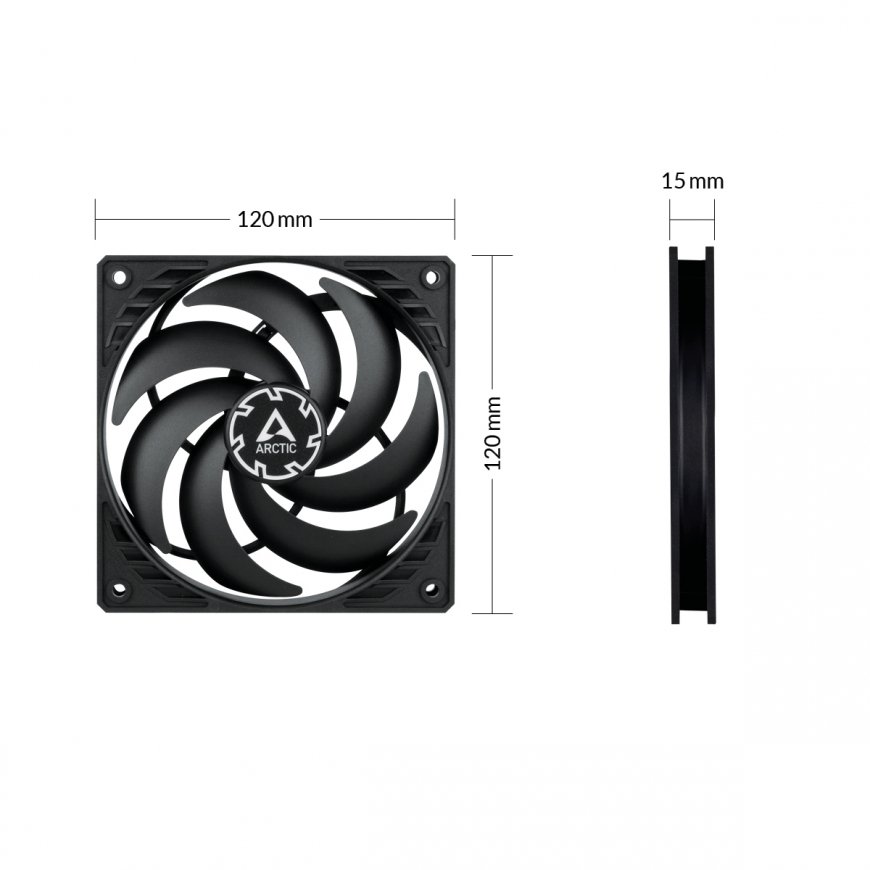

| Height | 15 mm |
| Width | 120 mm |
| Depth | 120 mm |
| Cable length | 0.48 m |
| Package height | 14 mm |
| Package width | 53 mm |
| Package depth | 123 mm |
Packaging content | |
| Screws included | Yes |
| Package type | Box |
| Mounting kit | Yes |
Logistics data | |
| Harmonized System (HS) code | 84733080 |
