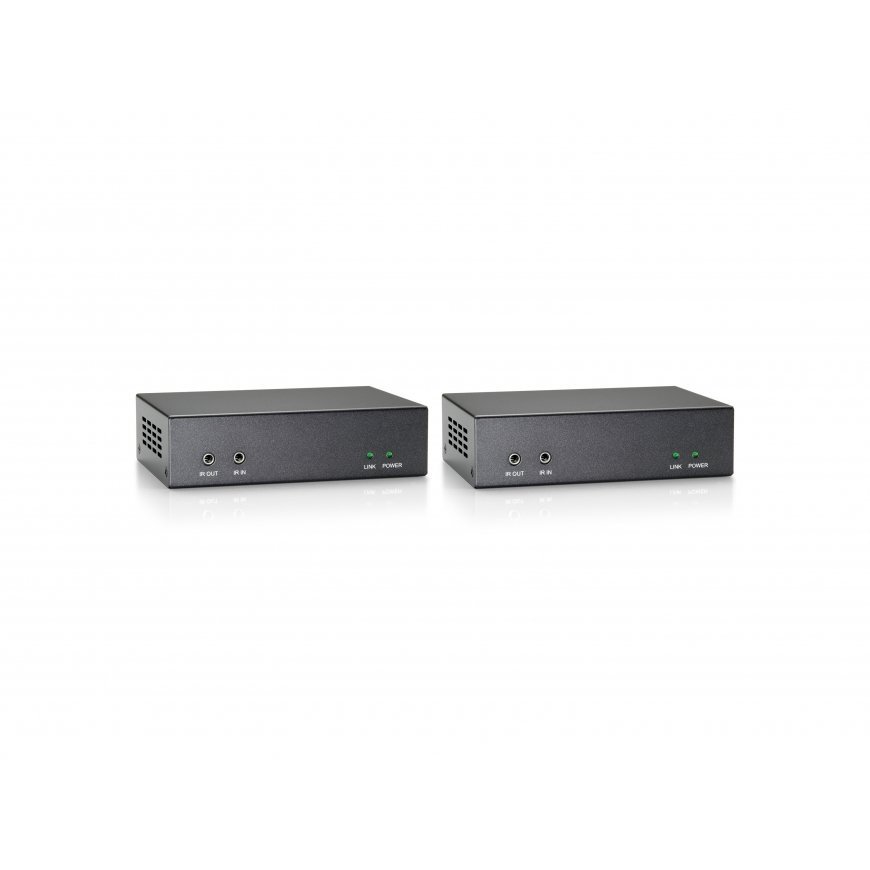

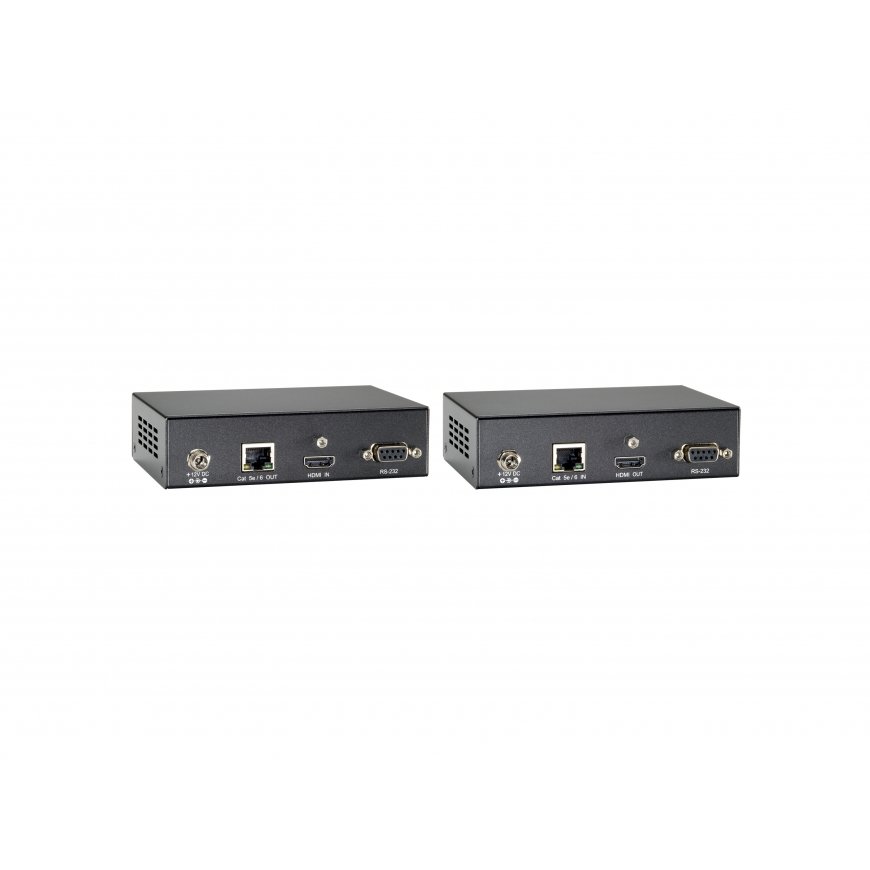

LevelOne HDMI over Cat.5 Extender Kit, HDBaseT, 100m
332,20 €
Monthly payment from 9.45 €
1815862 HVE-9200
4015867192894, 0846359037584
2026-08-04
You are interested in this product?
The series of products are embedded with EDID priority management of HDMI outputs supports EDID Hotplug refreshing function. These products also provide Bi-Directional RS-232 and IR to control the connected devices from either source or display location.
All the features are made to simplify installation and reduce costs, but at the same time providing exceptional video and audio quality. The HVE-92 series is the perfect solution for Digital Signage, trade shows, home theater installations, medical facilities, and other public exhibitions.
- Simple Plug and Play installation
- Built-in EDID Hot Plug Detection (HPD)
- HDMI outputs with EDID management
- Transmission distance of up to 100m for HDMI(4k2k), IR and RS-232
- Bi-Directional RS-232 pass through & IR Control
- Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 30Hz
- HDMI and HDCP complaint
- Supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital Plus, LPCM 7.1 audio
- Supports 3D, CEC & Lip Sync pass-through
- Screw-in power socket for added safety
| Width | 125 mm |
| Depth | 85 mm |
| Height | 40 mm |
| AC adapter included | Yes |
| Cables included | AC |
| Type | AV transmitter & receiver |
| Material | Metal |
| Package width | 300 mm |
| Package depth | 170 mm |
| Package height | 120 mm |
| Supported video modes | 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Package weight | 1.52 kg |
| Manual | Yes |
| DC-in jack | Yes |
| LED indicators | Yes |
| HDCP | Yes |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Current | 1 A |
| Operating voltage | 12 V |
| Package dimensions (WxDxH) | 300 x 170 x 120 mm |
| Receiver dimensions (WxDxH) | 85 x 125 x 40 mm |
| Bandwidth | 10.2 Gbit/s |
| Cable types supported | Cat5; Cat6; Cat5e |
| Maximum transfer distance | 100 m |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Colour depth | 48 bit |
| Transmitter dimensions (WxDxH) | 85 x 125 x 40 mm |
| RS-232 input ports | 2 |
