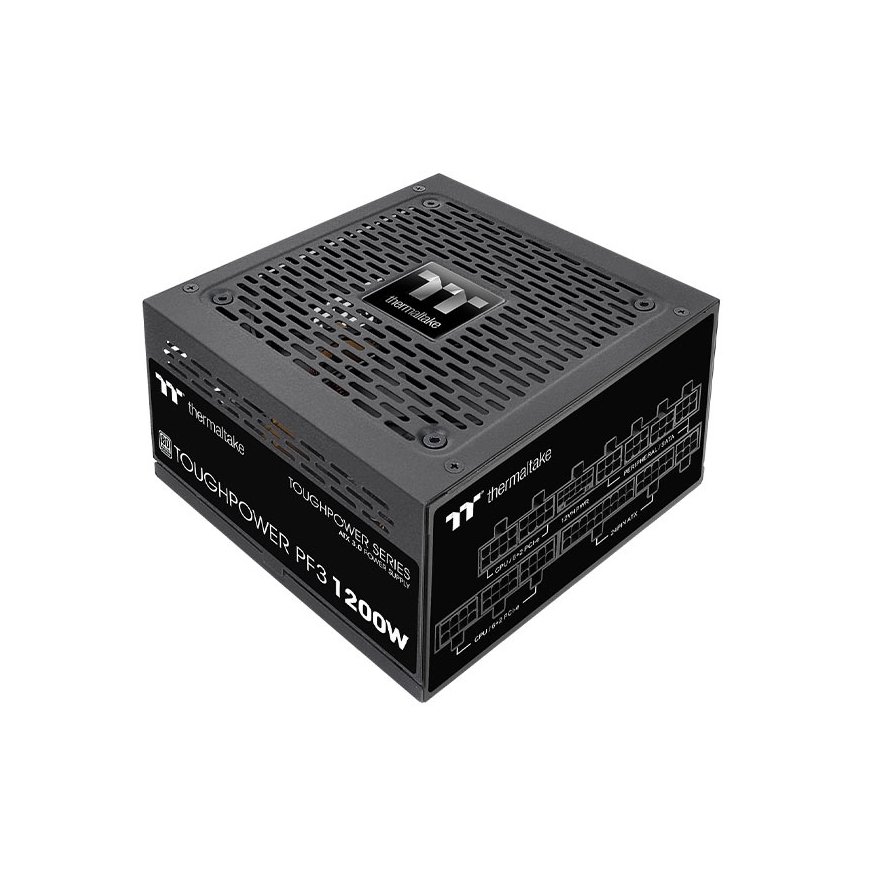

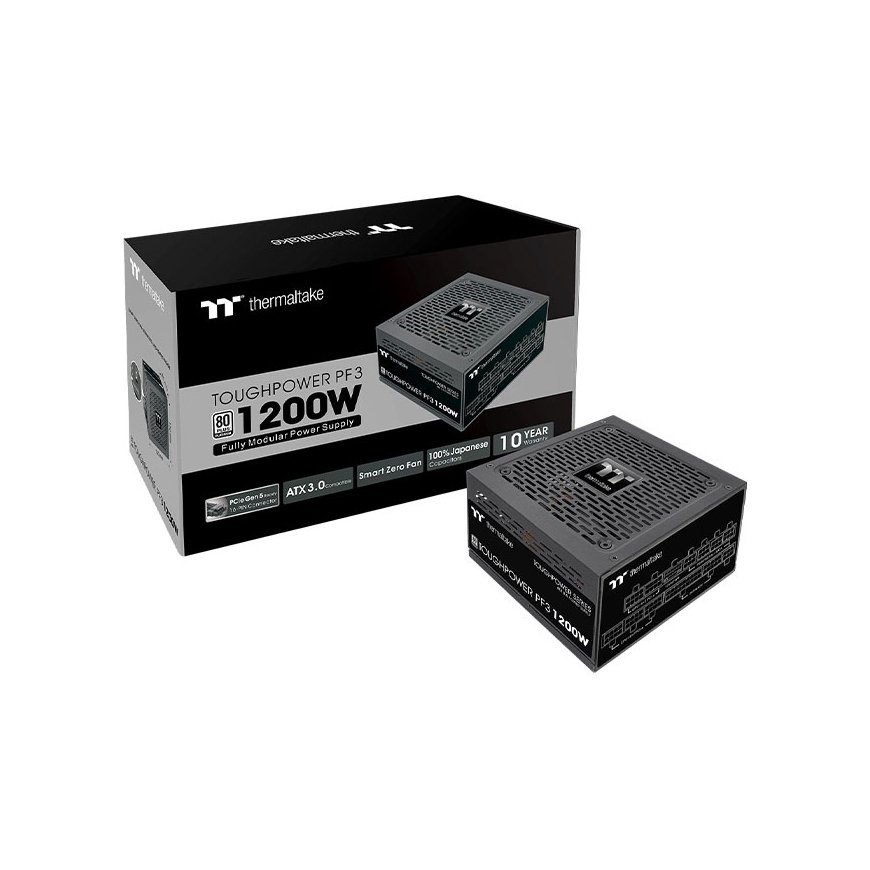

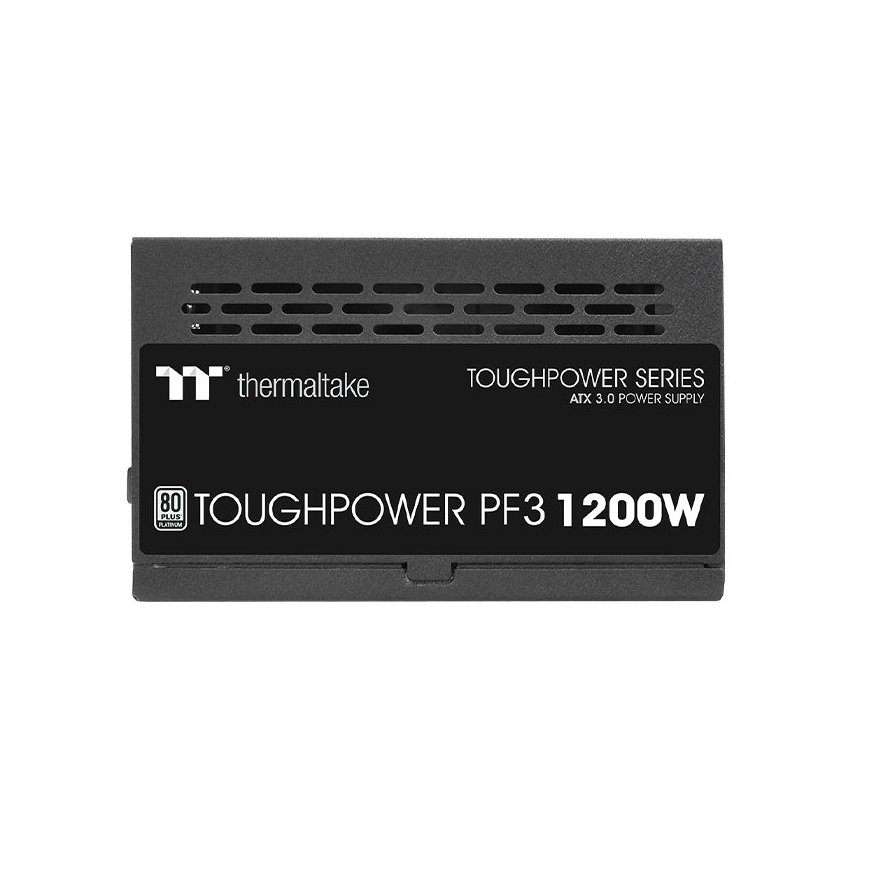

Thermaltake Toughpower PF3 power supply unit 1200 W 24-pin ATX ATX Black
Thermaltake Toughpower PF3 power supply unit 1200 W 24-pin ATX ATX Black
Thermaltake Toughpower PF3 power supply unit 1200 W 24-pin ATX ATX Black
Thermaltake Toughpower PF3 power supply unit 1200 W 24-pin ATX ATX Black
Thermaltake Toughpower PF3 power supply unit 1200 W 24-pin ATX ATX Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Thermaltake Toughpower PF3 power supply unit 1200 W 24-pin ATX ATX Black

239,00 €
Monthly payment from 7.05
1772231

PS-TPD-1200FNFAPE-3

4713227536783

Shipping 6-8 b.d.

Quantity
You are interested in this product?
(Read terms of service)
Thermaltake Toughpower PF3. Total power: 1200 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Safety: CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
Power
Hold time 17 ms
Input current 15 A
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 100 W
Combined power (+12V) 1200 W
Combined power (+5V) 100 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 15 W
Max output current (+3.3V) 20 A
Max output current (+12V) 100 A
Max output current (+5V) 20 A
Max output current (+5Vsb) 3 A
Max output current (-12V) 0.3 A
AC input voltage 100 - 240 V
AC input frequency 50/60 Hz
Total power 1200 W
Performance
Mean time between failures (MTBF) 100000 h
ATX version 3.0
Purpose PC
80 PLUS certification 80 PLUS Platinum
Power supply unit (PSU) form factor ATX
Design
Product colour Black

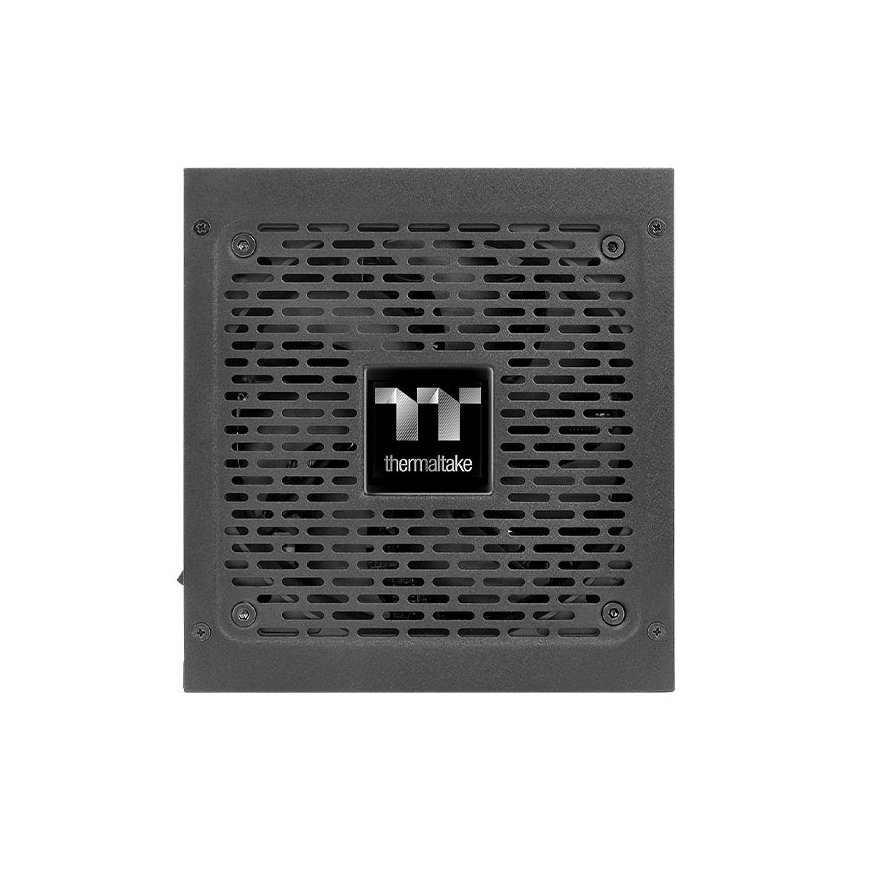

Number of fans 1 fan(s)
Fan diameter 12 cm
Cooling type Active
On/off switch Yes

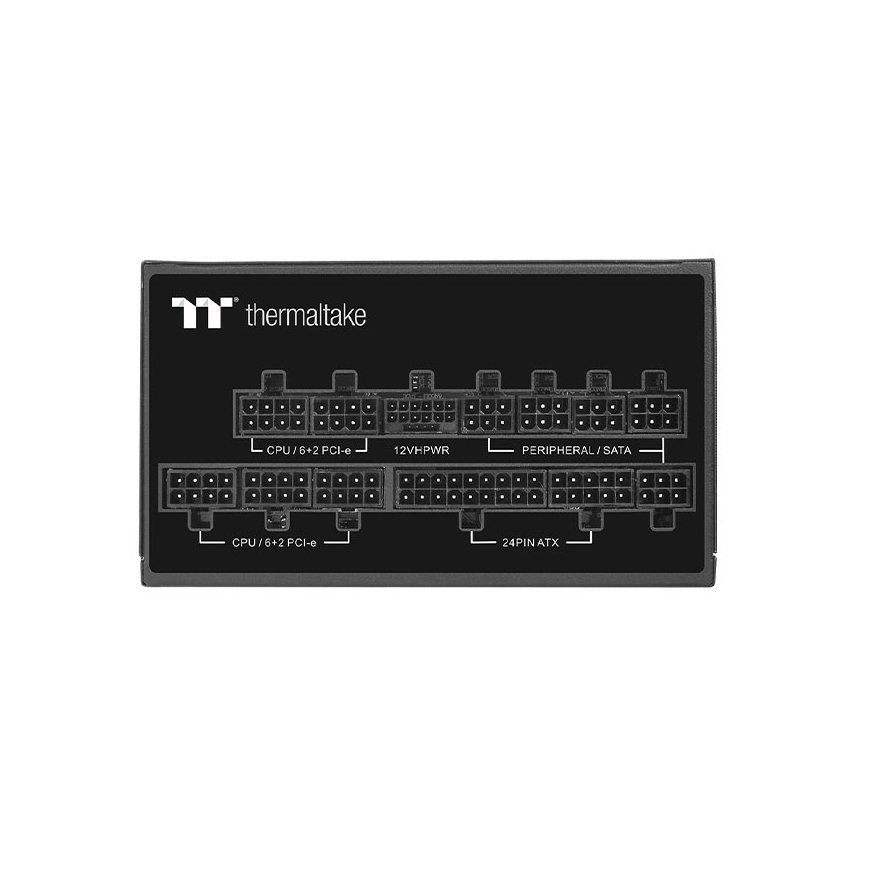

Ports & interfaces
Number of SATA power connectors 12
Peripheral (Molex) power connectors (4-pin) 8
PCI Express power connectors (6+2 pin) 5
Motherboard power connector 24-pin ATX
Cabling type Fully-Modular
Floppy disk drive connector Yes
Motherboard power cable length 60 cm
SATA power cable length 500, 150
Peripheral (Molex) power cable length 150, 500
Floppy disk drive cable length 15 cm
PCI Express power connectors (12+4 pin) 1
PCI Express power connectors (12+4 pin) cable length 600 mm
Operational conditions
Operating relative humidity (H-H) 5 - 85%
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Storage relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 140 mm
Depth 150 mm
Height 86 mm
Safety regulation & standards
Safety CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI
