-4%
The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

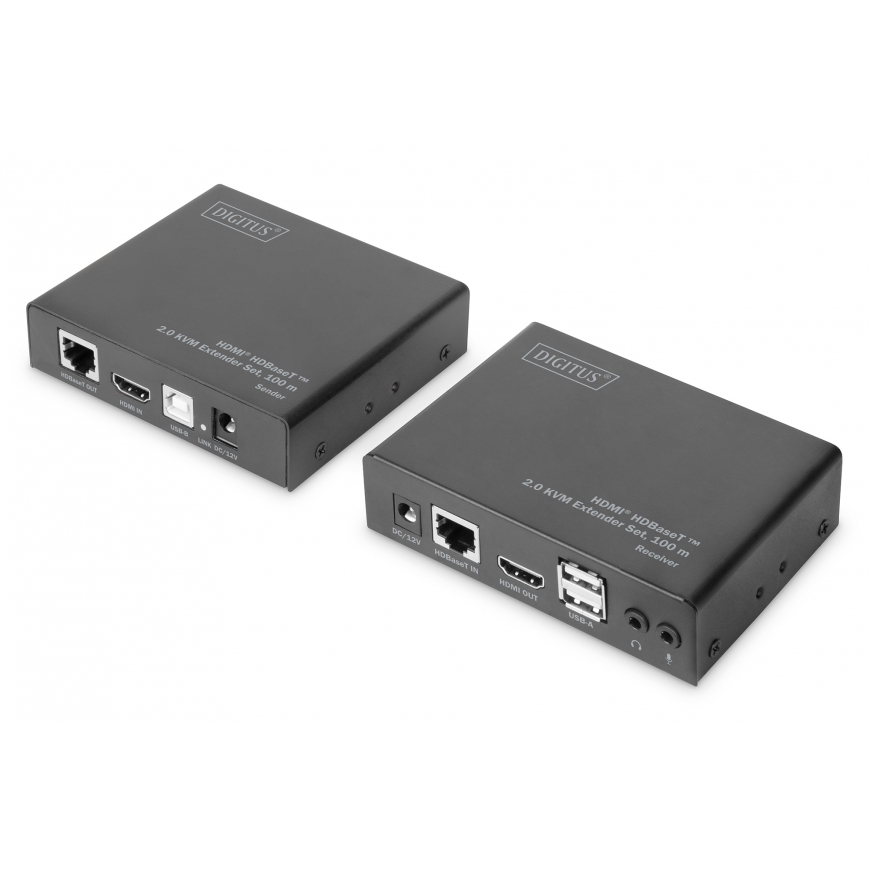

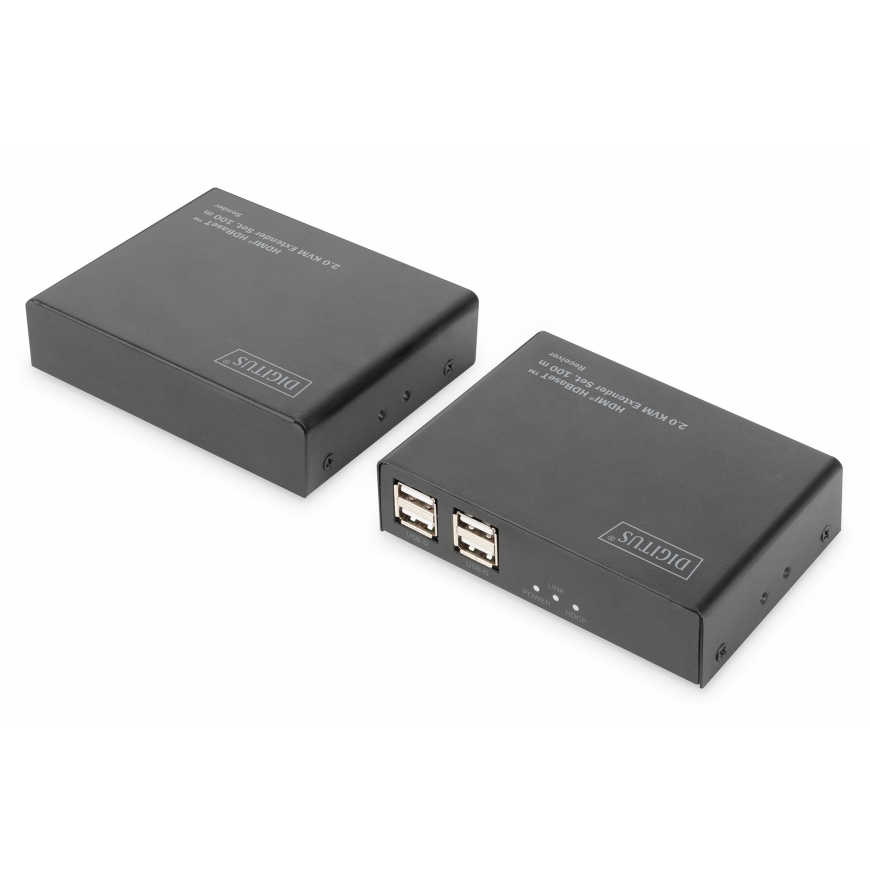

Digitus 4K HDMI HDBaseT™ 2.0 KVM extender set, 100 m
569,00 €
549,00 €
Monthly payment from 15.04 €
1191151 DS-55505
4016032472667
2026-07-30
You are interested in this product?
- Transmit high-resolution multimedia content without loss of quality and uncompressed over lengths of up to 100 m
- Saves unnecessary cabling and bundles multimedia and many other signals in one network cable
- Forwarding without loss of quality through transmission of uncompressed data
- Supports HDBaseT™ 2.0 via CAT6A/7/8 cable up to 100 m
- Supports transmission of video, audio + USB signals via network cable
- Supports Full 3D, 1080p, 4K@60Hz (YUV 4:2:0)
- Supports USB 2.0 features (HighSpeed) for up to 6 USB devices
- Supports CEC (Consumer electronics control)
- Supports uncompressed audio transmission (LPCM7.1)
- Supports compressed audio transmission (DTS, Dolby Digital incl. DTS-HD Master Audio™ and Dolby TrueHD)
With the DIGITUS® HDMI HDBaseT™ 2.0 KVM Extender Set, you can control your source device from up to 100 meters away over a single CAT6A/7/8 cable connection, with uncompressed 4K HDMI™ video content and access to up to 6 connected USB devices. This extender has been specifically designed for a smooth and straightforward setup. The HDBaseT™ 2.0 technology enables installation via a single cable, avoiding the hassle of running multiple cables. The typical use case would be a cross-room solution, for example, where the source device and display can be up to 100 meters apart. You can use up to 6 USB devices connected to the transmitter module from the receiver and of course enjoy video and audio content. A very simple KVM functionality in terms of installation and use. Instead of multiple cables, lay just one RJ45 network cable or use the existing network connections (point-to-point) with the HDMI HDBaseT™ 2.0 Extender from DIGITUS®.
| Product colour | Black |
| USB 2.0 ports quantity | 6 |
| Cables included | USB |
| Type | Transmitter & receiver |
| Material | Metal |
| Package width | 196 mm |
| Package depth | 243 mm |
| Maximum resolution | 3840 x 2160 pixels |
| Package weight | 975 g |
| Connectivity technology | Wired |
| Country of origin | China |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Maximum digital resolution | 4096 x 2160 pixels |
| AC input voltage | 100 - 240 V |
| Input current | 0.65 A |
| Package volume | 2857.68 cm³ |
| UK Trade Tariff code | 85176200 |
| Harmonized System (HS) code | 84733080 |
| Receiver weight | 240 g |
| AC adapter output voltage | 12 V |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| AC adapter output current | 2 A |
| Mounting bracket(s) included | Yes |
| Colour depth | 36 bit |
| Transmitter weight | 212 g |
| Receiver width | 11 cm |
| Receiver depth | 8 cm |
| Receiver height | 2.8 cm |
| Transmitter video port type | HDMI |
| Receiver local video port type | HDMI |
| Power consumption (transmitter) (max) | 3 W |
| Power consumption (receiver) (max) | 7 W |
| Transmitter width | 13 cm |
| Transmitter depth | 1 cm |
| Transmitter height | 2.5 cm |
| RJ-45 ports quantity (transmitter) | 1 |
| RJ-45 ports quantity (receiver) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Receiver local keyboard/mouse port type | USB |
