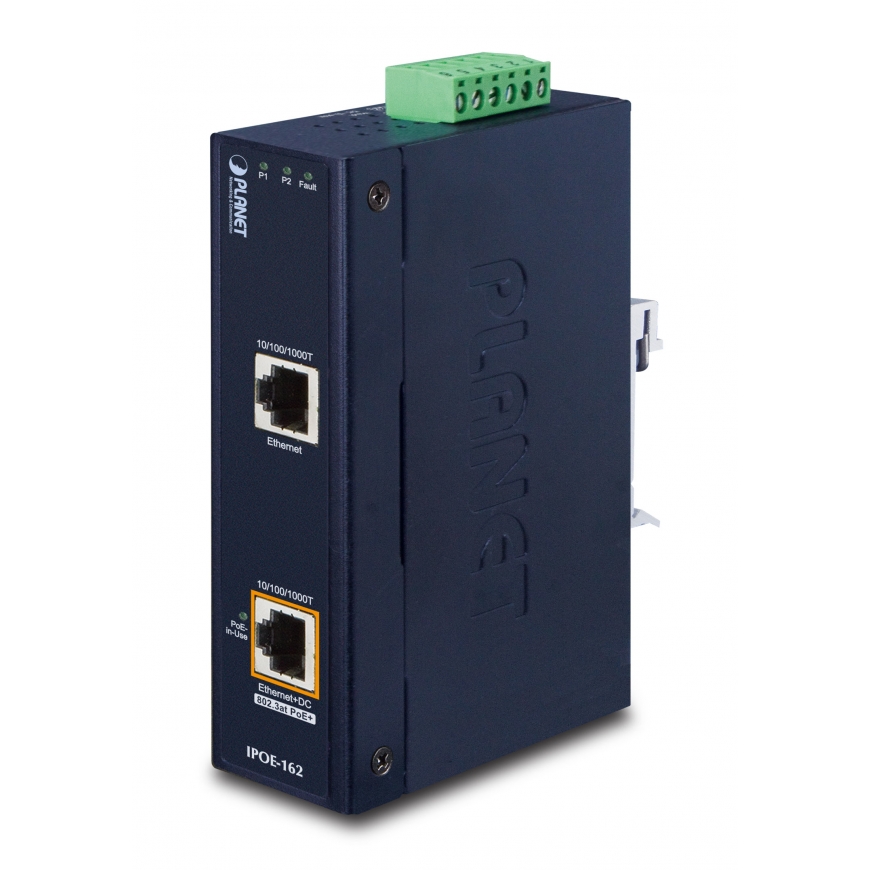

PLANET IPOE-162 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
PLANET IPOE-162 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
PLANET IPOE-162 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

PLANET IPOE-162 network switch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

109,00 €
Monthly payment from 3.71 €
1170838

IPOE-162

0638669863157, 4711213688881

This product is no longer in stock

You are interested in this product?
(Read terms of service)
Planet IPOE-162 Single-Port, Mid-span Industrial IEEE 802.3at Power over Ethernet Plus Injector provides a maximum of up to 30 watts of power output over Ethernet cables. It is specifically designed to fulfill the growing demand of higher power network equipment such as PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome cameras, color touch-screen voice over IP (VoIP) telephones, multi-channel (11a/b/g/n) wireless LAN access points and other network devices that need higher power to work stably.


Quick and Easy High Power PoE Network Deployment

The IPOE-162 can deliver 30-watt 56V DC power over Cat.5/5e/6 Ethernet cables which allow data and power to transmit simultaneously through the cable between the Injector (IPOE-162) and PoE PD (powered device) or PoE Splitter (IPOE-162S/POE-162S). The maximum distance between the Injector and Splitter is 100 meters. The IPOE-162 is also compatible with IEEE 802.3af PoE PD or PoE Splitter and provides a maximum of up to 15.4-watt power output. With Industrial IEEE 802.3at Power over Ethernet Plus devices installed, the system administrator only has to use one single RJ45 Ethernet cable to carry both power and data to each device. It would make the network deployment easier and more reliable.


Convenient and Reliable Power System

To facilitate the 802.3at PoE usage with commonly used 12~48V DC power input for transportation and industrial-level applications, the IPOE-162 adopts 12~48V DC to 56V power boost technology to solve power source issue but does not require special power supplies. Its wide-ranging voltages design is suitable for worldwide operability with high availability applications requiring dual or backup power inputs.


Stable Operating Performance under Difficult Environments

Today, the PoE demand expands from commercial applications to many critical networks in the harsh environment. The IPOE-162 will be one of the ideal solutions that provide a high level of immunity against electromagnetic interference and heavy electrical surges typical of environments found on plant floors or in curb-side traffic control cabinets. The IPOE-162 can operate stably under temperature range from -40 to 75 degrees C which enables the users to conveniently apply the device in almost any location of the network. The IPOE-162 is also equipped with a compact IP30 standard metal case that allows either DIN-rail or wall mounting for efficient use of cabinet space.
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates 1000 Mbit/s
Design
LED indicators Yes
Product colour Black
Wall mountable Yes
International Protection (IP) code IP30
Power
Power over Ethernet (PoE) Yes
Operational conditions
Operating temperature (T-T) -40 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Weight & dimensions
Width 32 mm
Depth 87 mm
Height 135 mm
Weight 489 g
Other features
Rack mounting No
Certificates
Certification FCC, CE, RoHS
Logistics data
Harmonized System (HS) code 85176990
