Digitus OnLine UPS system, 1500 VA/ 1500 W
401,78 €
Monthly payment from 11.25 €
1160283 DN-170094
4016032474654
2026-07-29
You are interested in this product?
- High power factor (1.0), a higher active power enables more connected loads, which saves space and reduces costs.
- High efficiency in online mode, higher efficiency means optimized energy management and lower heat dissipation, resulting in energy savings and improved reliability.
- User-friendly LCD screen provides insight into UPS status for easy installation, configuration and operation.

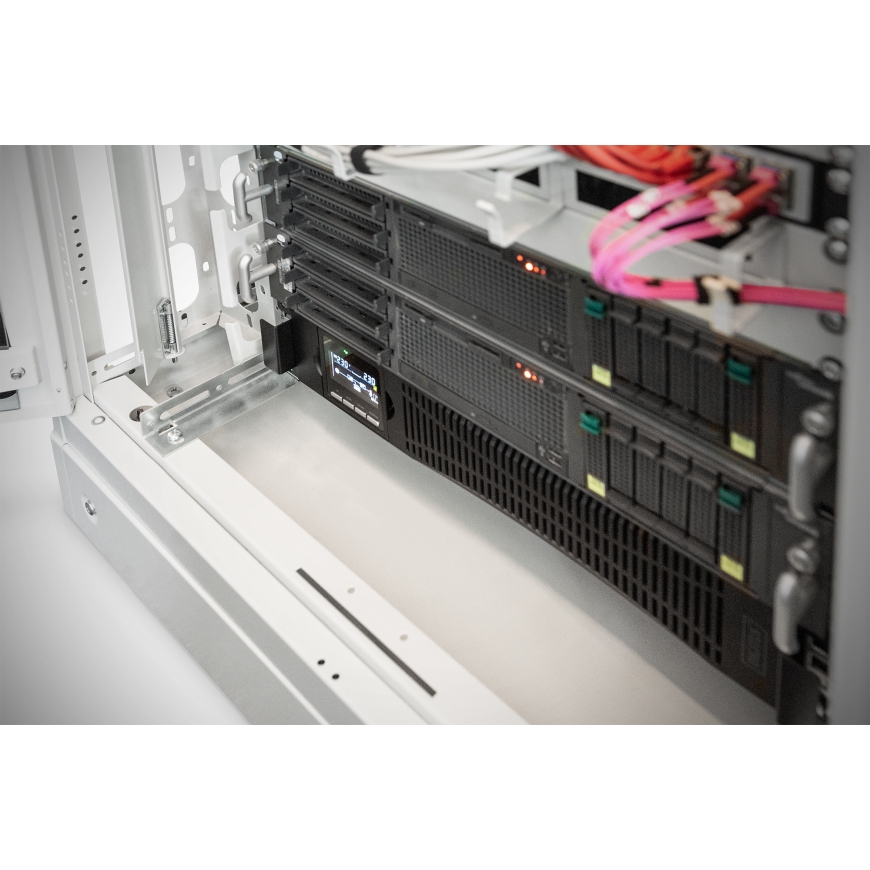

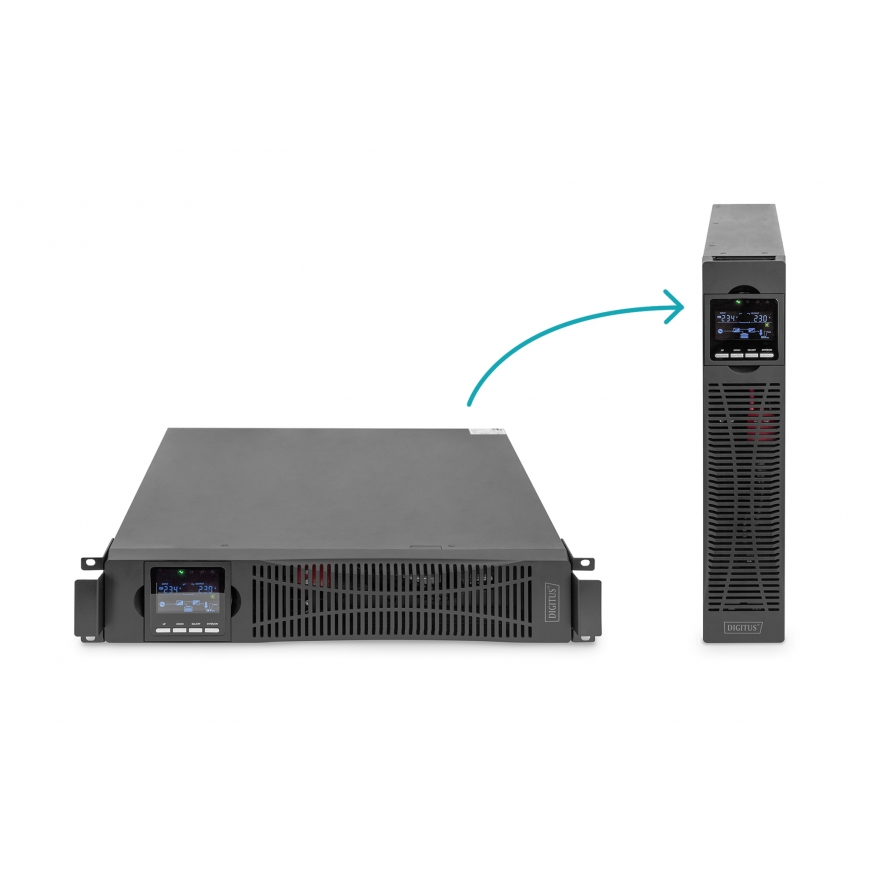

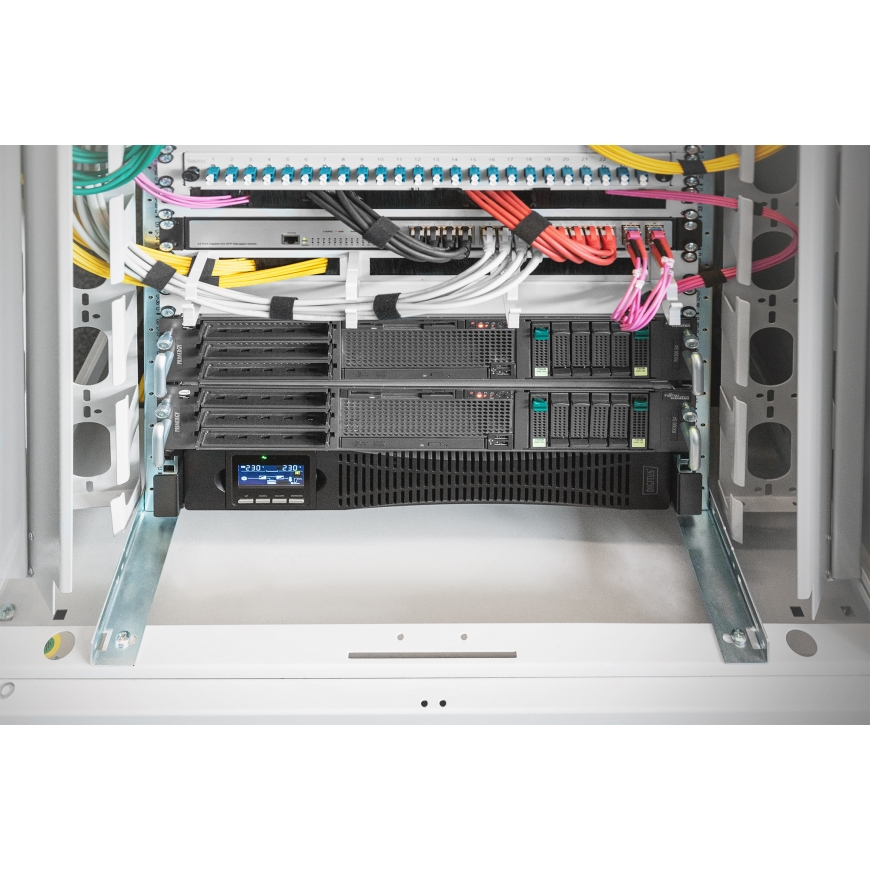

- Compact rack/tower design optimizes installation space in the rack and enables flexible installation.
- Minimize device downtime with hot-swappable, user-replaceable battery modules that can be replaced during operation.
- External battery modules allow the runtime to be extended.

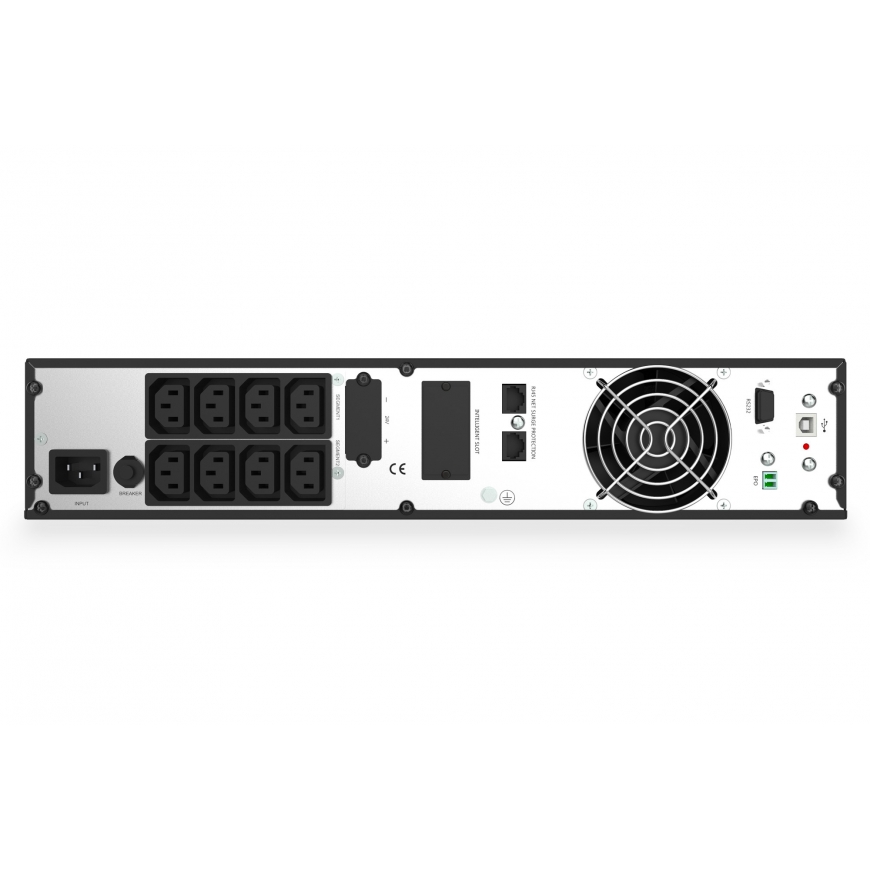

- High number of outlets (8 x C13) for optimum power distribution to the consumers.
- Various communication interfaces (RS232/USB, parallel port, SNMP slot) enable remote monitoring of the system.
- Automatic battery self-test and fan speed control increase the service life of the components.
- The REPO function (Remote Emergency Power Off) switches the UPS off in the event of an emergency. If an emergency occurs, the REPO switch turns off the rectifier and the inverter and immediately stops the power supply to the load. The UPS stops charging.

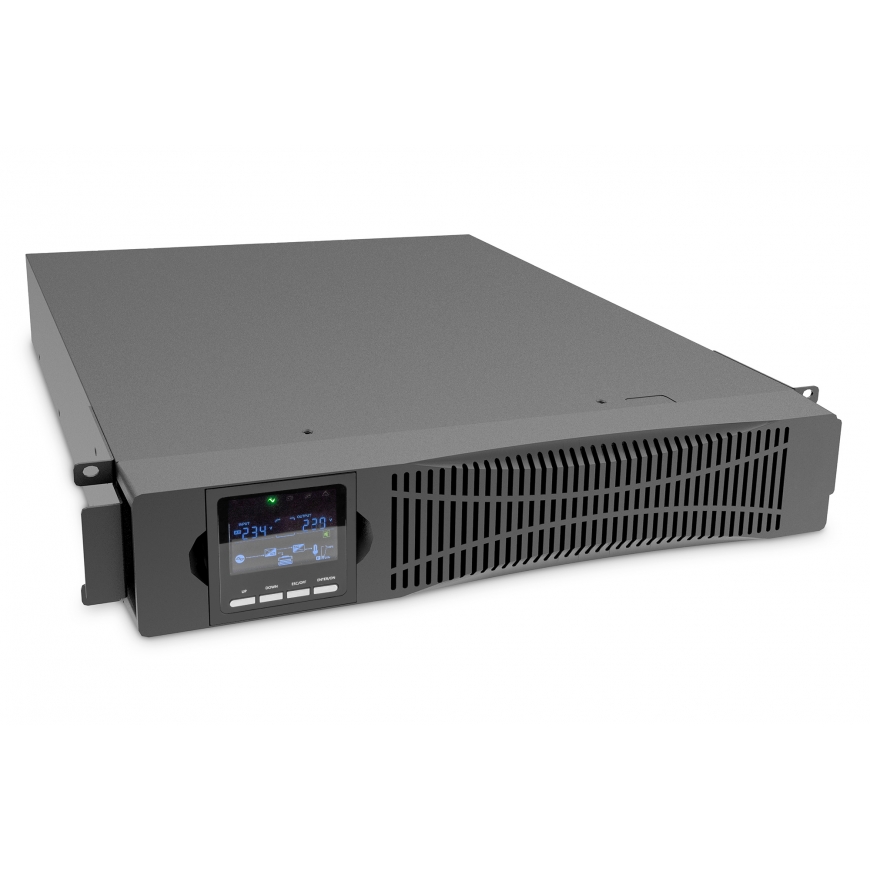

The DIGITUS® OnLine UPS is a double-conversion UPS solution that offers first-class power failure protection and continuous power generation in a compact and flexible system. The single-phase UPS operates with high energy efficiency and is ideal for protecting critical infrastructure in both centralized and edge network applications. Scalable runtime options with matching external battery cabinets provide additional flexibility when a longer uninterruptible power supply is required. The user-friendly LCD display and network management capability, including configuration, make this system easy to install and maintain. With market-leading efficiency and unity power factor, the UPS meets your critical application requirements.
| Product colour | Black |
| Display type | LCD |
| USB port | Yes |
| Form factor | Rackmount/Tower |
| Weight | 15.5 kg |
| Width | 440 mm |
| Depth | 460 mm |
| Height | 86.5 mm |
| Cables included | RS-232; USB cable |
| Package width | 555 mm |
| Package depth | 595 mm |
| Package height | 202 mm |
| Package weight | 19.8 kg |
| Number of batteries supported | 3 |
| Manual | Yes |
| Country of origin | China |
| Certification | IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4,IEC61000-4-5,IEC61000-4-6,IEC61000-4-8 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Power factor | 1 |
| Efficiency | 93% |
| Package volume | 66705.5 cm³ |
| Storage relative humidity (H-H) | 20 - 90% |
| AC outlets quantity | 8 AC outlet(s) |
| Maximum current | 10 A |
| Operating altitude | 0 - 1500 m |
| Output power | 1500 W |
| UK Trade Tariff code | 85044085 |
| Harmonized System (HS) code | 85078000 |
| Size (imperial) | 48.3 cm (19") |
| Serial interface type | RS-232 |
| Safety | IEC/EN62040-1,IEC/EN60950-1 |
| Serial interface | Yes |
| Software CD | Yes |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1.5 kVA |
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Typical backup time at full load | 4 min |
| Typical backup time at half load | 12 min |
| Rack mount kit | Yes |
| Efficiency (ECO mode) | 98% |
| Battery recharge time(90%) | 4 h |
