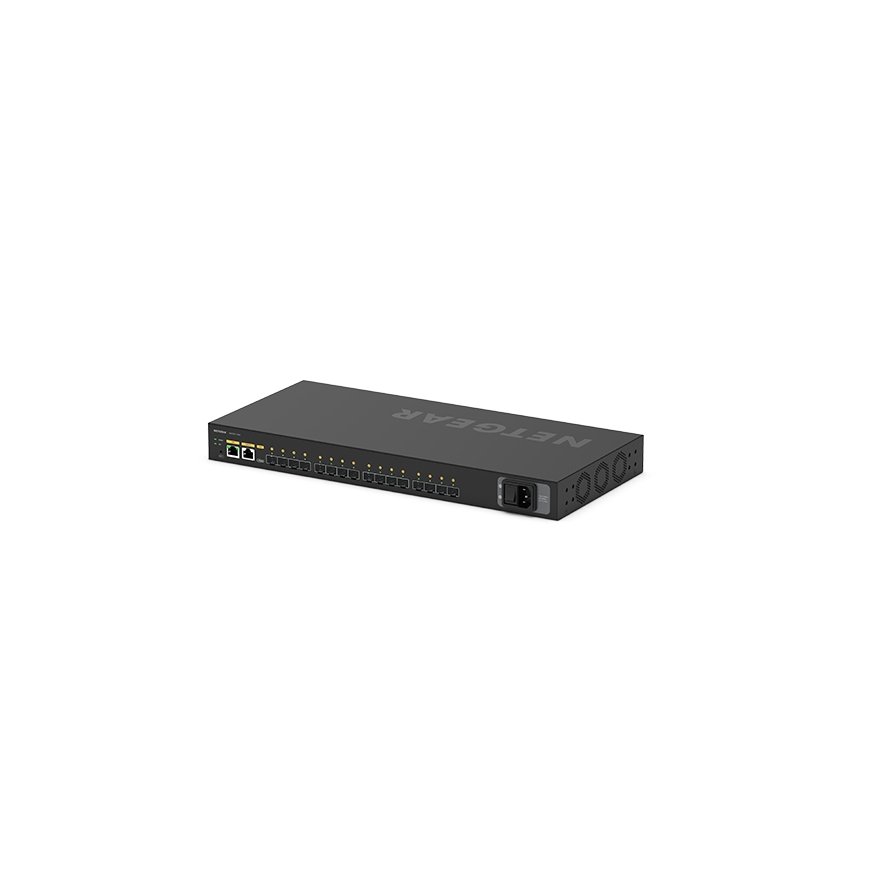

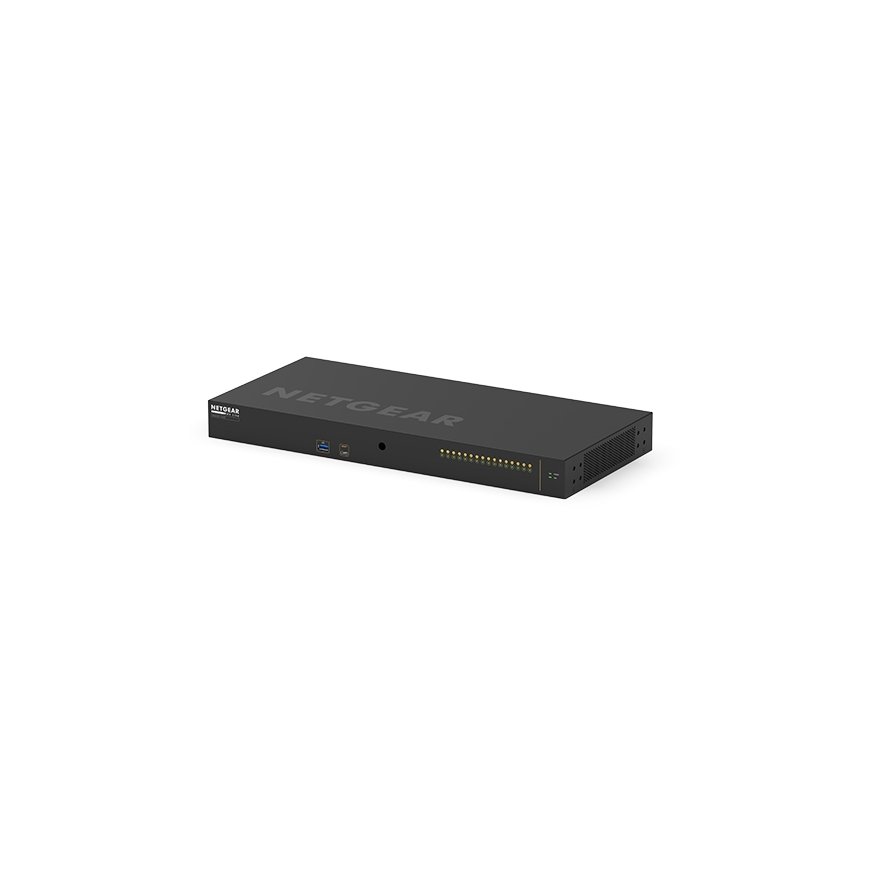

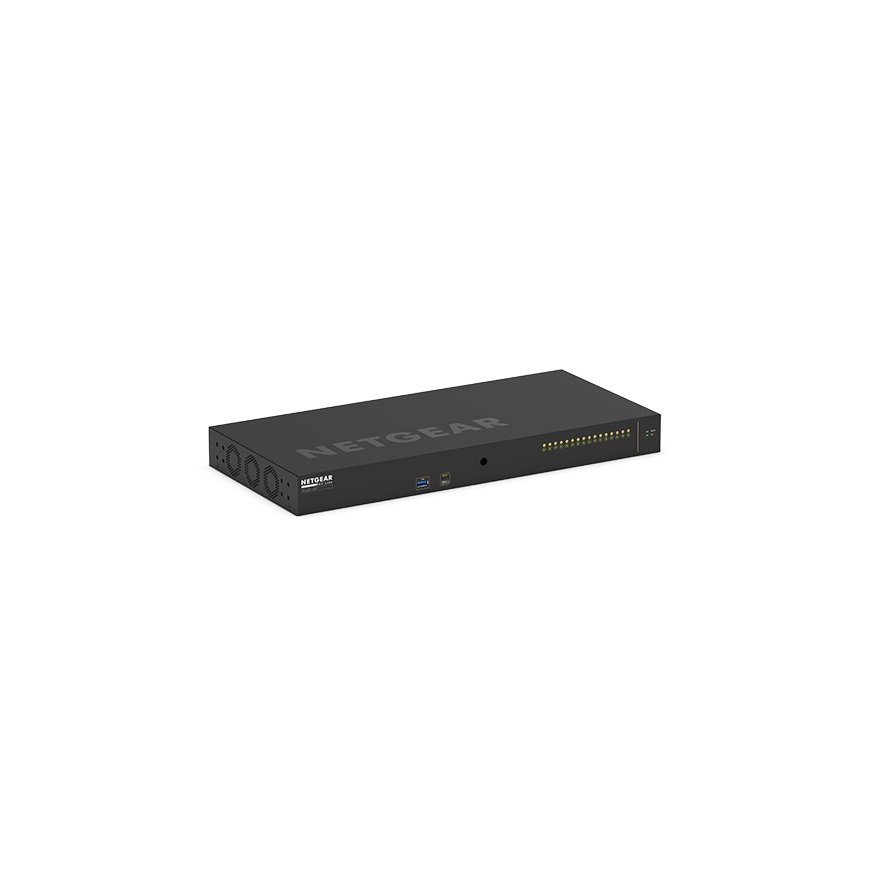

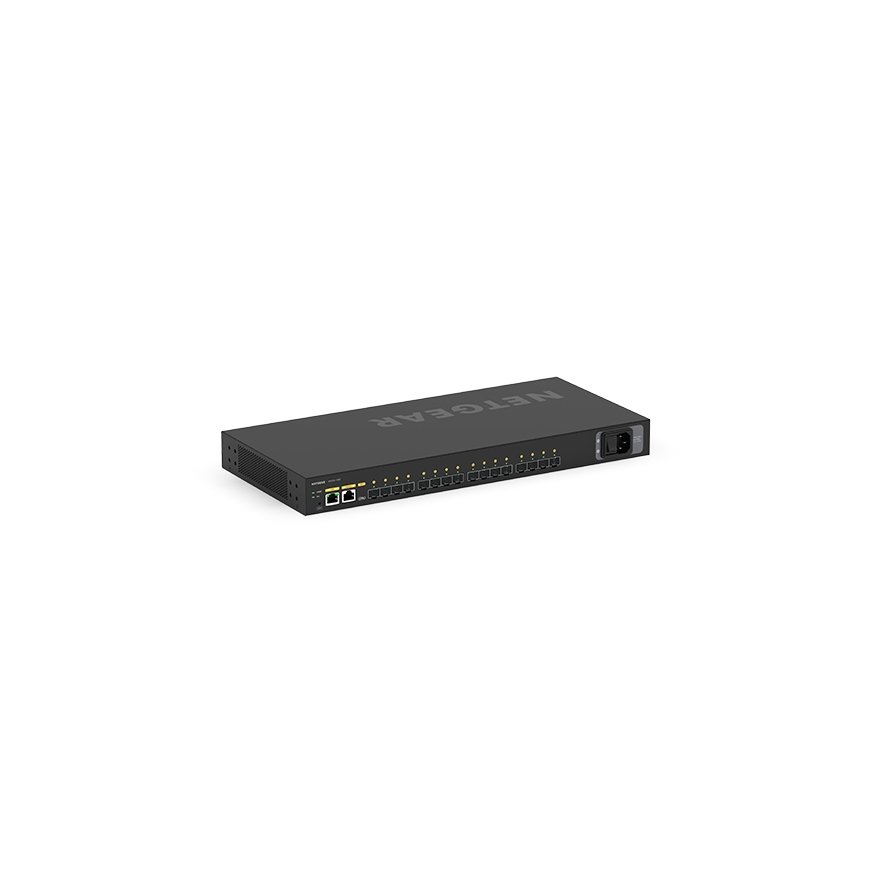

NETGEAR M4250-16XF Managed L2/L3 1U Black
NETGEAR M4250-16XF Managed L2/L3 1U Black
NETGEAR M4250-16XF Managed L2/L3 1U Black
NETGEAR M4250-16XF Managed L2/L3 1U Black
NETGEAR M4250-16XF Managed L2/L3 1U Black

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

NETGEAR M4250-16XF Managed L2/L3 1U Black

1 536,19 €
Monthly payment from 40.46
1025188

XSM4216F-100EUS

0606449149708

This product is no longer in stock

You are interested in this product?
(Read terms of service)
Switching engineered for 1G AV over IP with PoE+, Ultra90 PoE++ and rear-facing ports ensuring a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, SVSI, Q-SYS, NDI, Dante etc. as well as audio/video/control mixed profiles. When multiple switches, NETGEAR IGMP Plus brings automation for you to just connect them together.

M4250 Support for Audio Video Bridging (AVB)
One of the many features designed into the new M4250 product line is full support for Audio Video Bridging (AVB), an industry standard for transporting content over a network. AVB is used most often when very low latency is required such as in live performances when lip sync is critical. All of the AV Line M4250 switches can be optionally licensed for AVB support.
Network
Networking standards IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.3bt
Full duplex Yes
Multicast support Yes
Jumbo frames support Yes
Jumbo frames 12000
Number of VLANs 4093
Management features
Quality of Service (QoS) support Yes
Security
MAC address table 16000 entries
Access Control List (ACL) Yes
IGMP snooping Yes
Design
LED indicators Power, Status, PoE
Product colour Black
Features
Built-in processor Yes
Processor frequency 1250 MHz
Heat dissipation 163.33 BTU/h
Mean time between failures (MTBF) 778769 h
Internal memory 2048 MB
Processor model ARM Cortex-A9
Power
Power consumption (typical) 47.84 W
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 3000 m
Weight & dimensions
Width 440 mm
Depth 100 mm
Height 43.2 mm
Weight 1.74 kg
Other features
Form factor 1U
Rack mounting Yes
Logistics data
Harmonized System (HS) code 85176990
