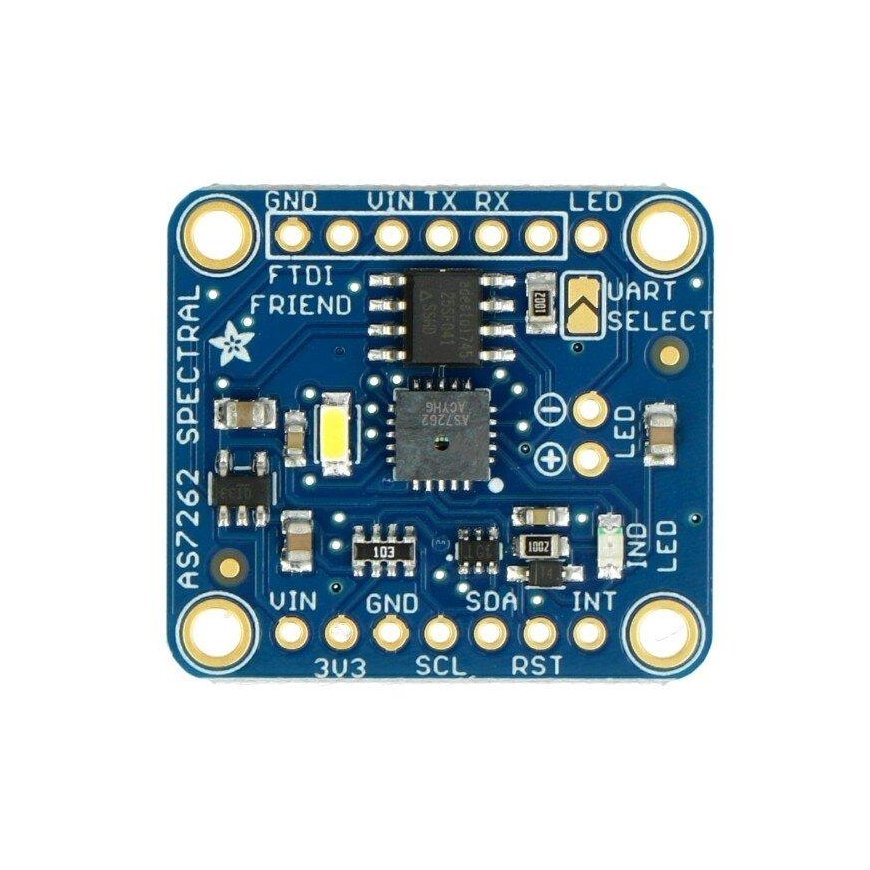

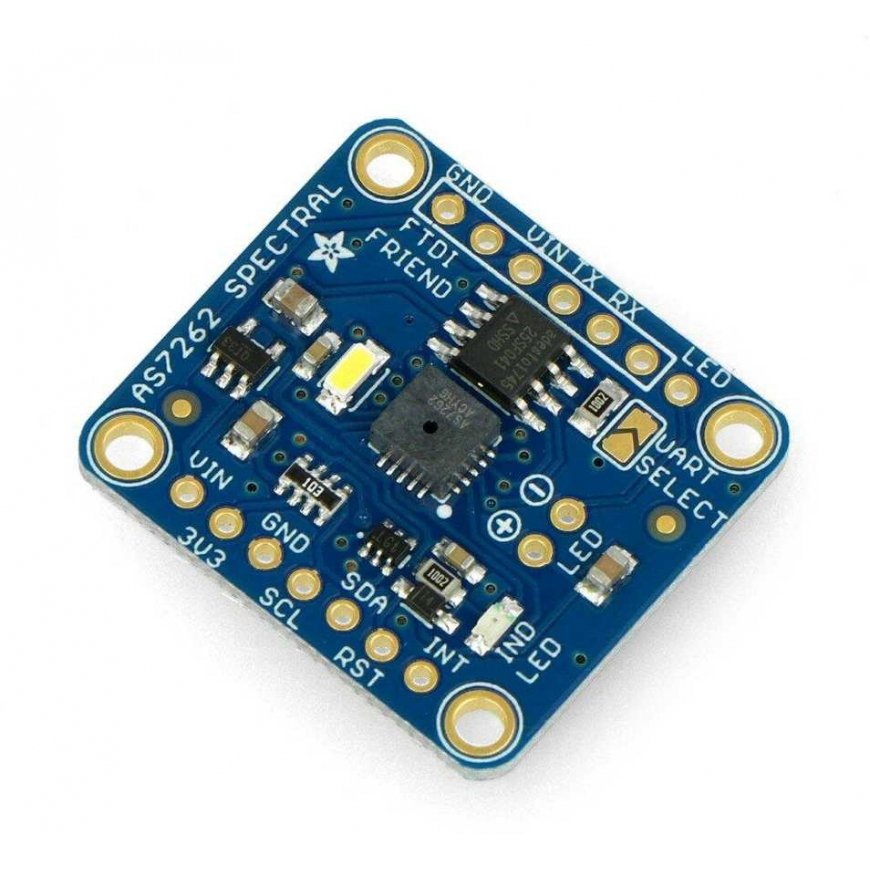

AS7262, 6-channel visible light/color spectrum sensor, Adafruit 3779
3688778 AN-11666
5904422362041
Доставка 11-18 р.д.
Все о продукте

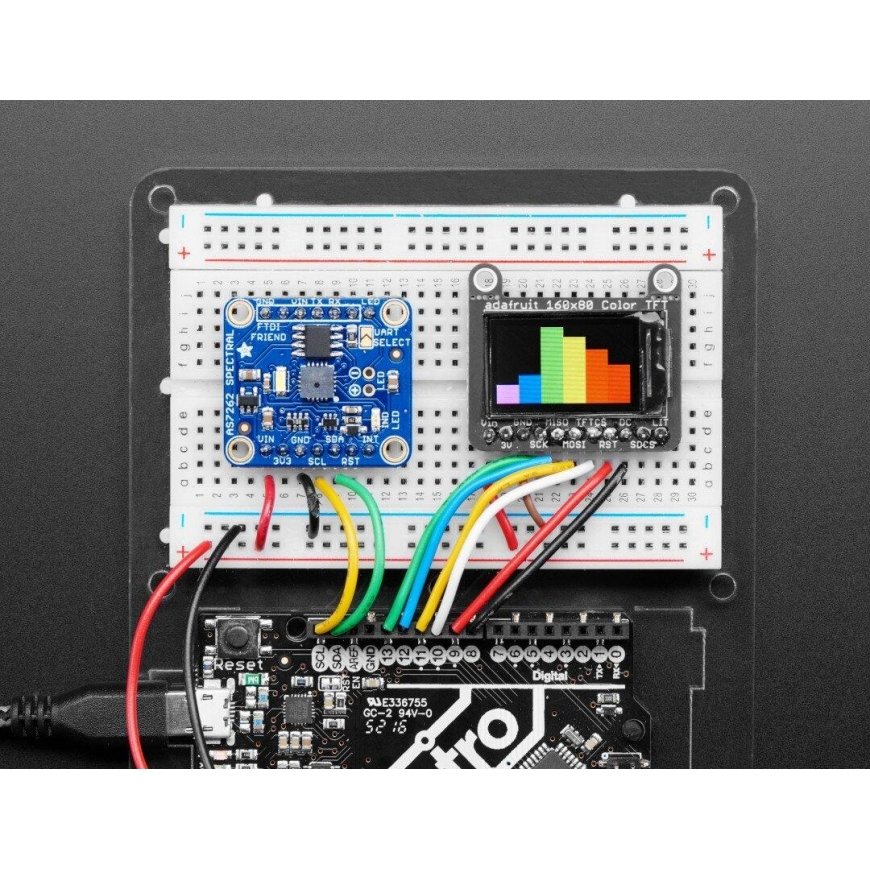

The module includes a 6-channel color spectrum/visible light sensor. Allows you to measure and characterize how different materials absorb and reflect light waves. The 6 channels can detect the following colors: red, orange, yellow, green, blue, and violet. Can determine the wavelength range it sees in 450, 500, 550, 570, 600, and 650 nm light. The sensor interacts using I2C and UART interfaces and AT commands. In addition, the board includes a temperature sensor that can read the system temperature and a useful 5700K power LED that is used to illuminate objects.
Specifications:
- Supply voltage: 3 V to 5 V

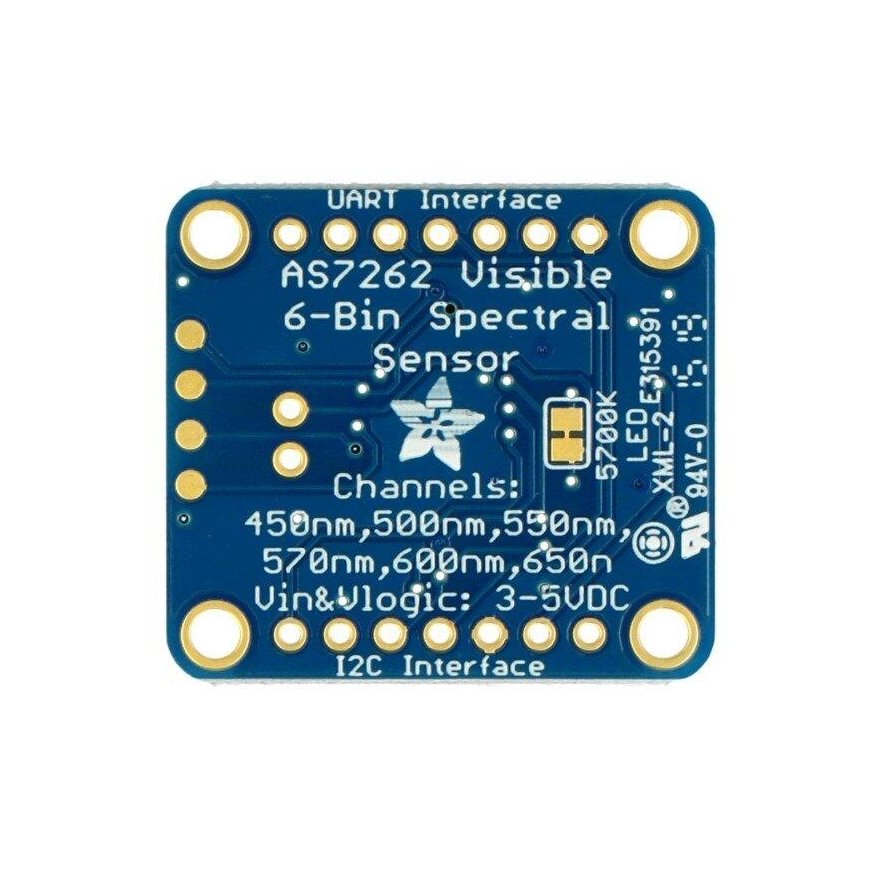

- 6 visible channels: 450, 500, 550, 570, 600 and 650 nm
- 16-bit ADC with digital access
- Programmable LED controller
- Temperature sensor
- Communication interface: I2C and UART
- Connectors:

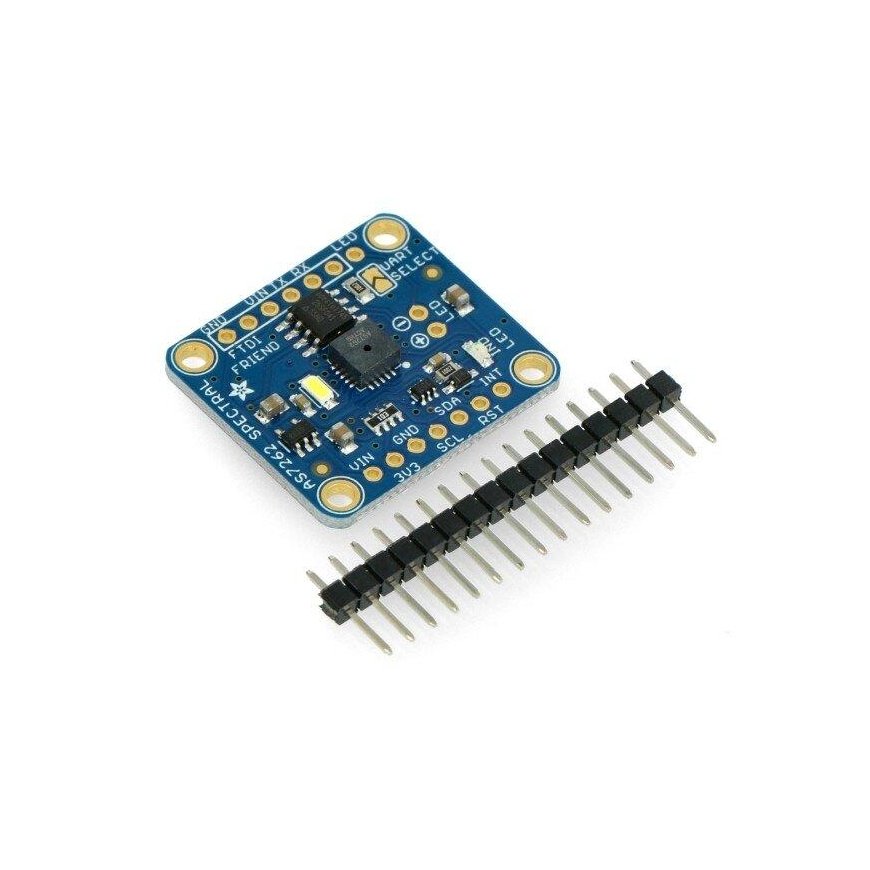

- 2x 7 pins, 2.54mm
