IoT module with SIM7080G chip manufactured by M5Stack. The module supports wireless communication and data transmission, supports CAT-M, NB-IoT and global GNSS modes. The kit includes a connecting cable with a Grove connector and two antennas - GNSS and LTE, which improve communication quality and signal stability. IoT CAT-M/NB-IoT + GNSS SIM7080G can be programmed using Arduino IDE, UIFlow, as well as AT commands and multiple communication protocol files.

Main features:
  • GSM SIM7080G wireless communication module
  • Supports CAT-M, NB-IoT and GNSS global coverage
  • UART interface, operation via AT command
  • Micro SIM card slot
  • External GNSS and LTE antenna included
  • Certificates:
    • Softbank / Telec / RoHS / REACH / JATE / Docomo / KDDI / RCM / CE (RED) / GCF
    • Deutsche Telekom / FCC / PTCRB / AT&T / Verizon / T-Mobile / US Cellular / IC
  • Supported development platforms such as Arduino IDE, UIFlow
Specifications:
  • Integrated chip: SIM7080G, UART 115200 8N1 interface
  • CAT-M bands support: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B14 / B18 / B19 / B20 / B25 / B26 / B27 / B28 / B66 / B85
  • CAT-NB Band Support: B1 / B2 / B3 / B4 / B5 / B8 / B12 / B13 / B18 / B19 / B20 / B25 / B26 / B28 / B66 / B71 / B85
  • GNSS support: GPS/GLONASS/BeiDou/Galileo
  • CAT-M download and upload speeds: up to 1119 kb/s upload, up to 589 kb/s upload
  • NB-IoT download and upload speed: up to 150 kb/s upload, up to 136 kb/s upload
  • RF power class: Class 5 (21 dBm)
  • Supported protocols: TCP / UDP / HTTP / HTTPS / TLS / DTLS / PING / LWM2M / COAP / MQTT and other communication protocols
  • Supply voltage:
    • DC input 9-24 V (5.5 / 2.1 mm DC jack), built-in DC/DC circuit to convert 9-24 V to 5 V
    • External 5V DC power supply via HY2.0-4P connector
  • Energy consumption:
    • 42 mA / 12 V - when the module is connected to the network
    • 13 mA / 12 V - when the module is not working
  • Communication interfaces: UART (3.3V TTL, AT commands)
  • Module dimensions: 62 x 40 x 18.4 mm
  • Weight: 25.1 g

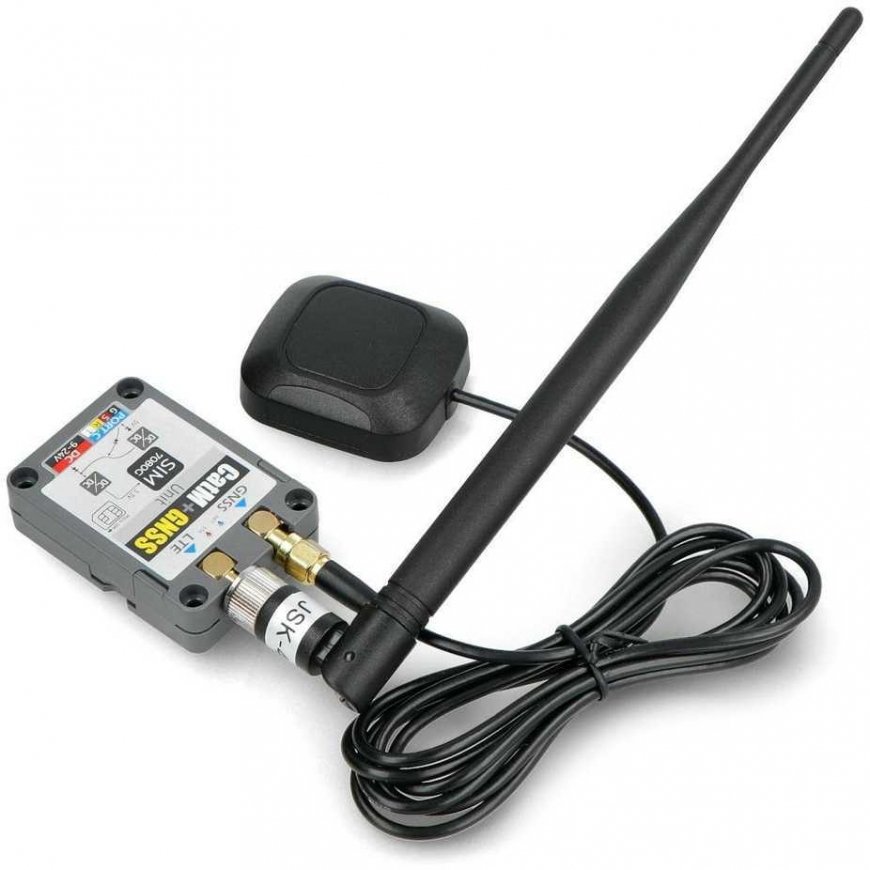

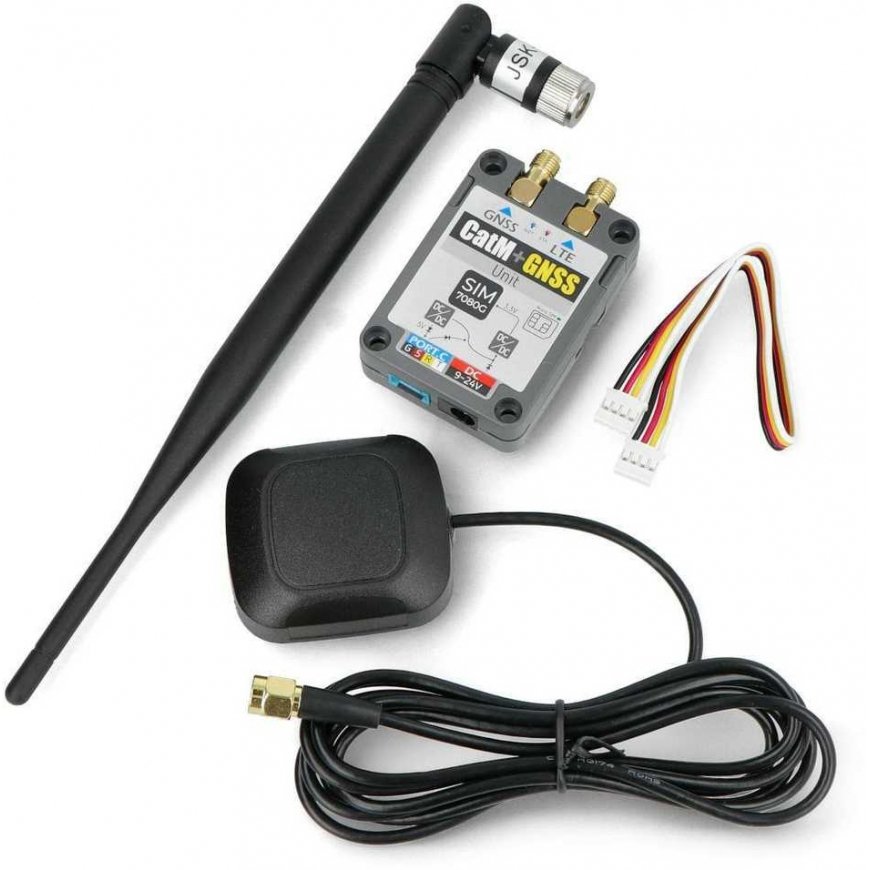

Included:
  • 1 x CAT-M IoT module
  • 1 x 4G LTE antenna (telecommunications)
  • 1 x GPS antenna
  • 1 x 20 cm Grove connecting cable
