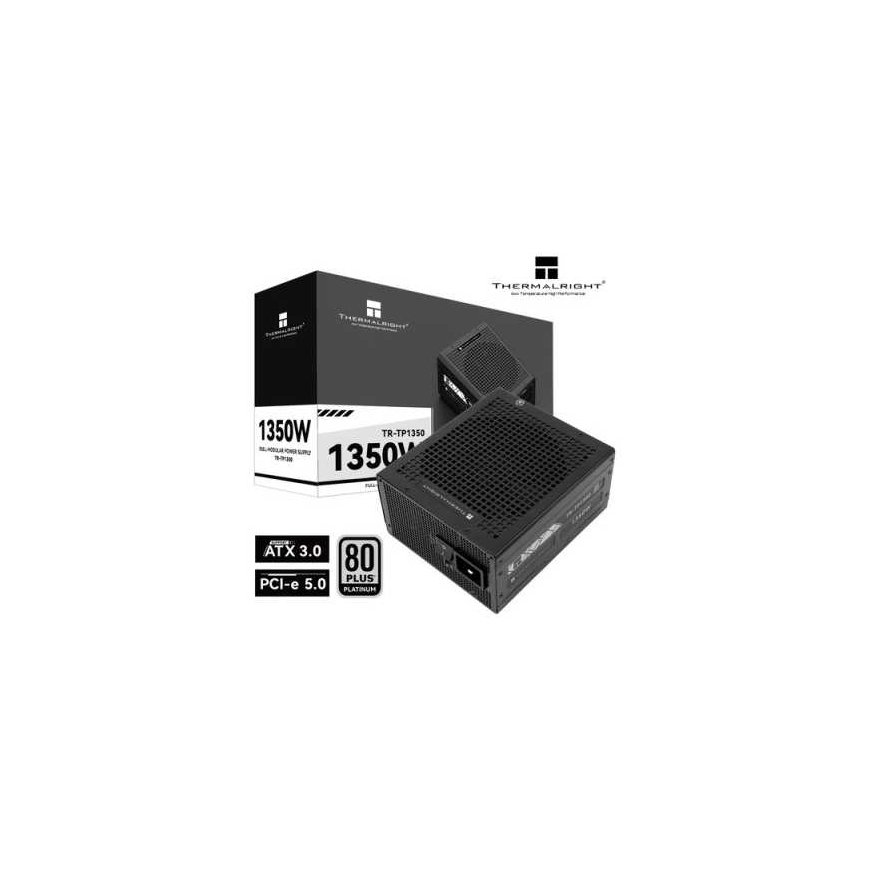

Thermalright TP-1350 - 1350W Fully Modular 80Plus Platinum ATX 3.0 PSU Power Supply

PSU Power Supply Series (Performance)

TP Series (80Plus Platinum)

Power

1350W

Fan bearing system

-

Fan size

-mm

PSU Power Supply Unit Dimensions (Form Factor)

150mm x 140mm x 86mm (ATX)

Connectors

Modular:

1 x PCIe 5.0 12VHPWR
1 x 20+4 pin motherboard power
1 x 4+4 pin CPU power
4 x 6+2 pin PCI-E power
15 x 15 pin SATA + PATA power

Cable sheath

-

Additional features

OPP/OVP/OTP/OCP/SCP/UVP - Power surge protection, Voltage surge protection, Temperature protection, Short circuit protection

Standards compliance

CE, CB, FCC, cUL, CCC, BSMI, GOST-R, KC MARK, IRAM, RCM, WEEE, RoHS

Voltage/current dependence

+3.3V - 20A
+5V - 20A
+12V - 112.5A
-12V - 0.3A
+5VSB - 2.5A

Specification matches

ATX12V 3.0 / EPS12V 3.0

Required voltage (frequency)

AC 100-240V (47-63Hz)
