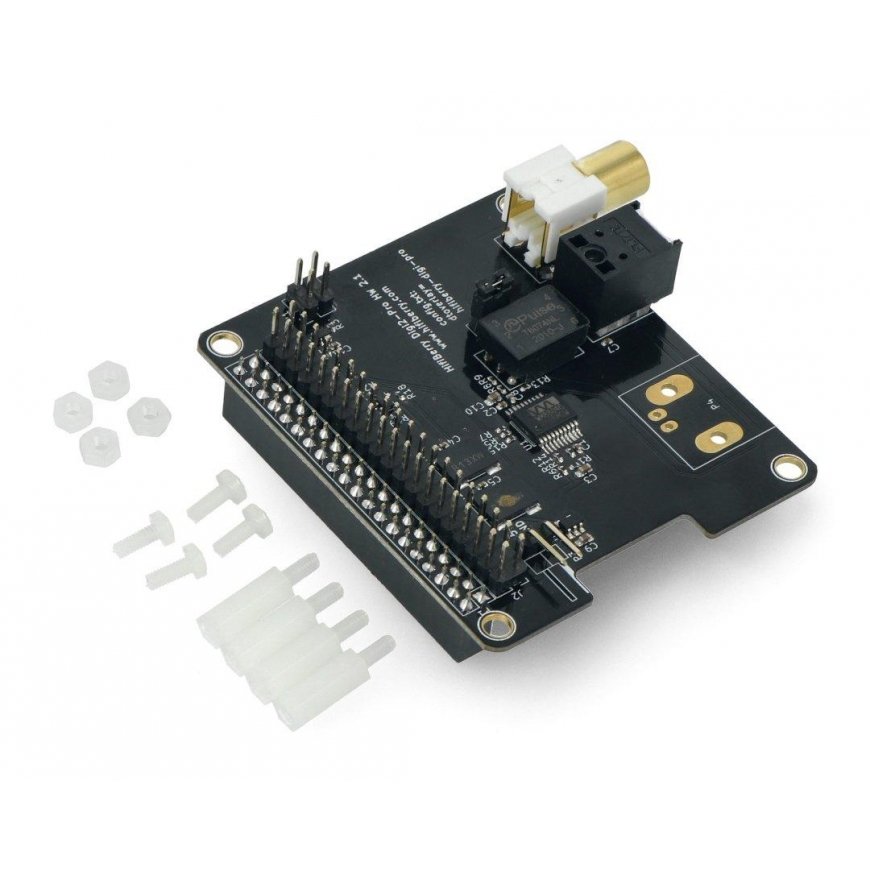

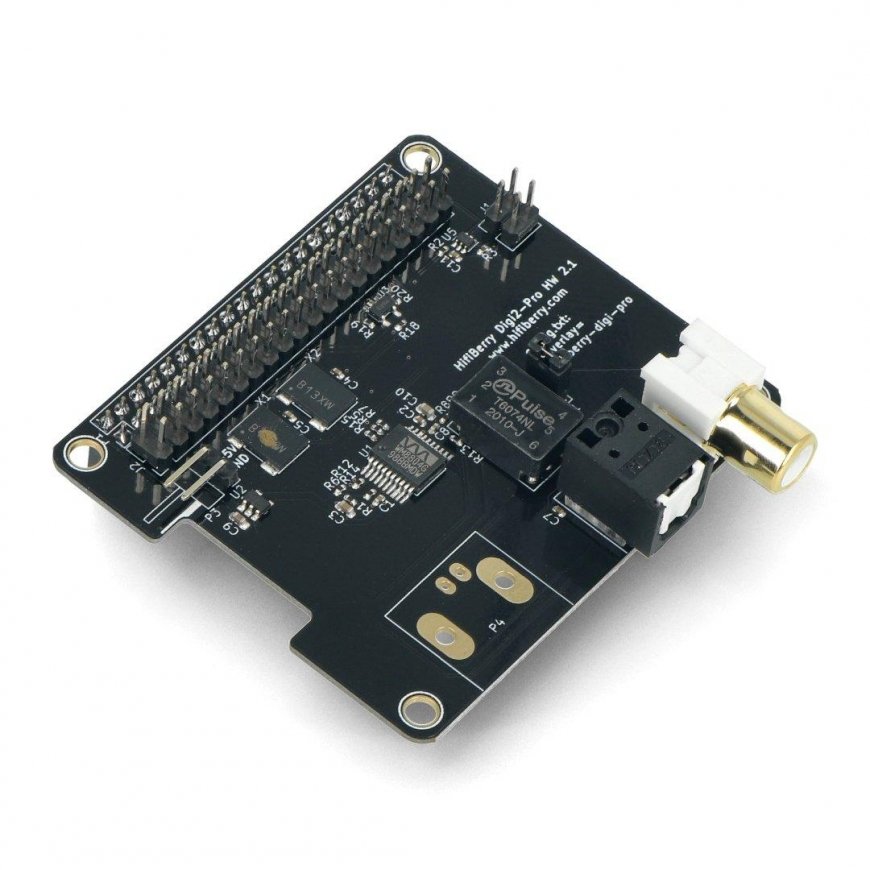

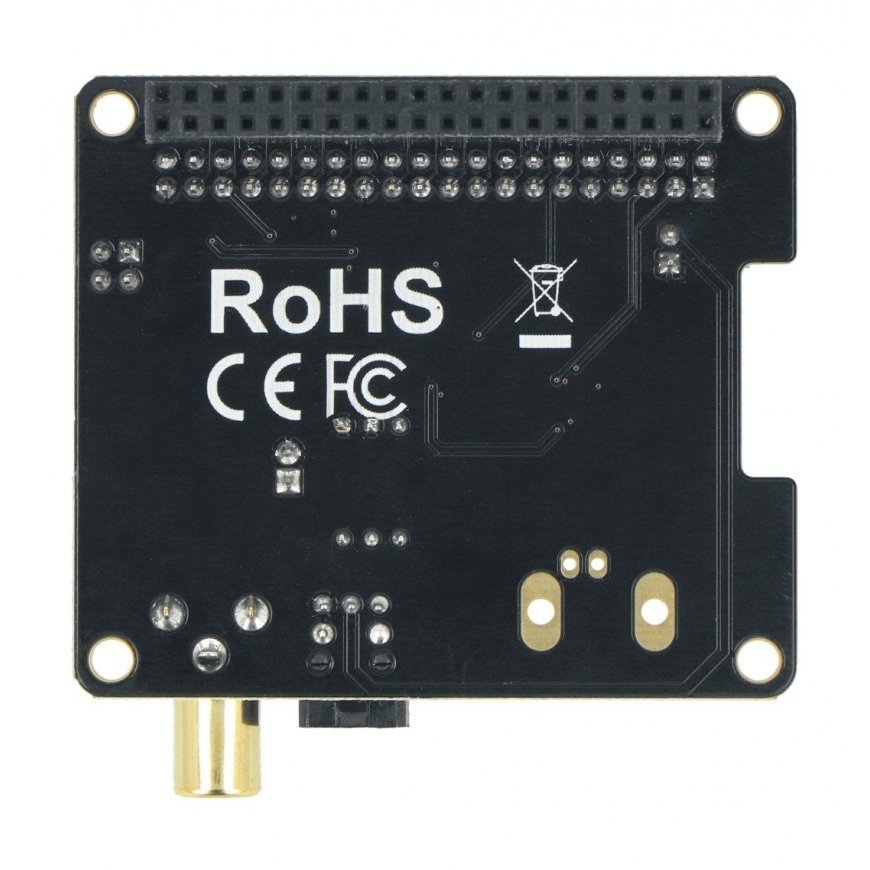

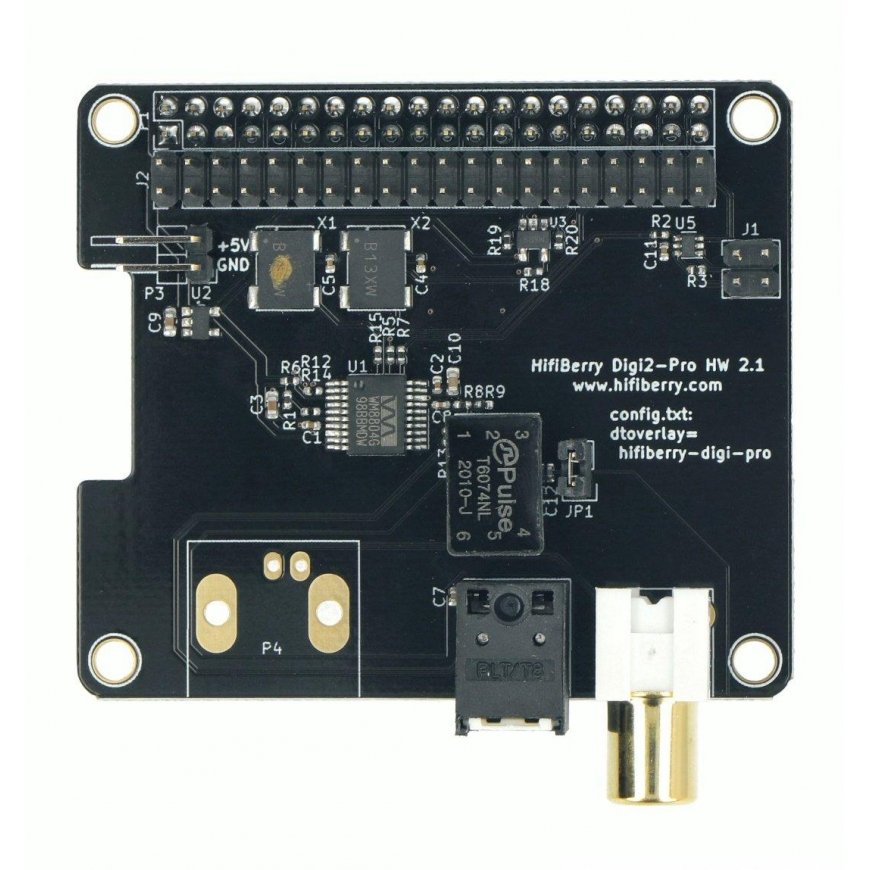

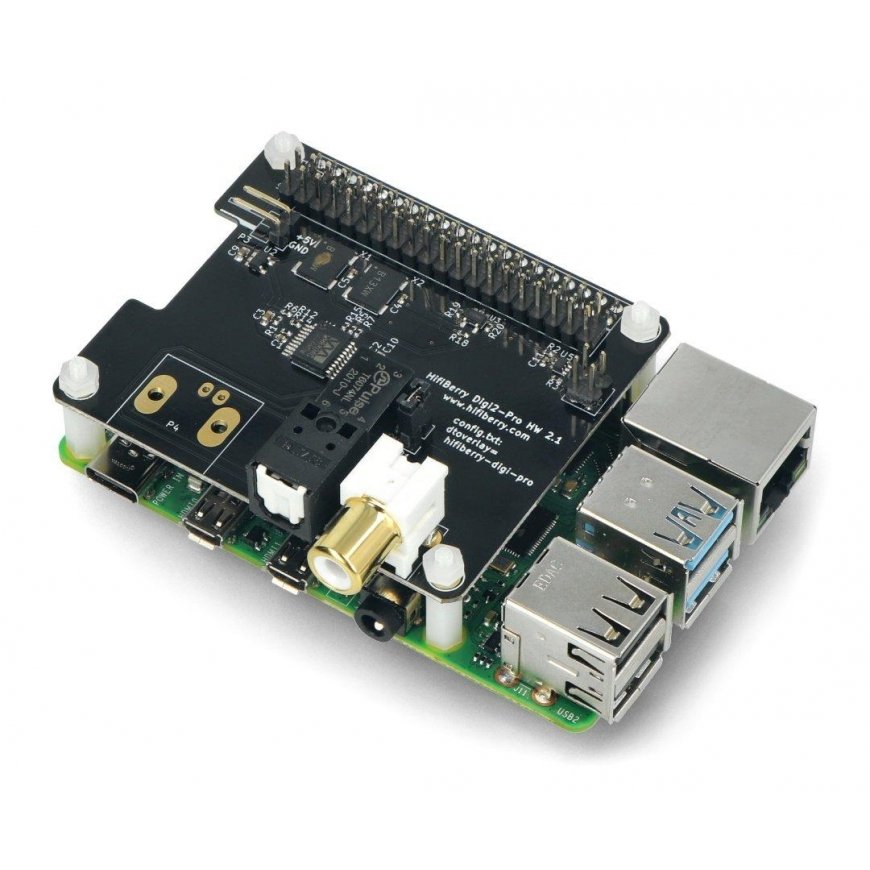

HiFiBerry Digi2 Pro - sound card for Raspberry Pi 4B/3B+/3/2/B+/A+/Zero
99.00 €
Мес. плата от 3,45 €
3659332 AN-19063
4260439550927
Доставка 11-18 р.д.
Вас заинтересовал этот товар?
Все о продукте
HiFiBerry Digi2 Pro is a sound card for Raspberry Pi 4B / 3B+ / 3 / 2 / B+ / A+ and Zero versions. Made by HiFiBerry, it has a high-quality 2-channel S/PDIF interface and an optical connector. The board is optimized to achieve high-quality sound reproduction and reduce component costs and size. It uses the I2S bus, which connects directly to the processor, without requiring additional USB conversion.Main features:
- Compatible with all Raspberry Pi models with a 40-pin GPIO connector
- S/PDIF interface with sampling rates from 44.1 kHz to 192 kHz
- Easy to set up, connect directly to Raspberry Pi without any additional wires
- Has TOSLink optical output and gold-plated RCA connector
- Can be upgraded with an optional digital signal processor (DSP) for smoother audio processing
- The chip transmits digital audio when it is sent from the application
- It has an output isolation transformer and a low-noise linear voltage regulator.
- The set-top box does not require an additional power supply - it is powered directly from the Raspberry Pi minicomputer
- All necessary mounting hardware is included
- Type: sound card
- Compatible with Raspberry Pi 4B / 3B+ / 3 / 2 / B+ / A+ / Zero
- Output impedance: 75 Ohm
- Power consumption: <0.3W
- Sampling frequency: 44.1 kHz to 192 kHz
- Dimensions of the set-top box: 5.5 x 6.5 x 1.5 cm
- Weight: 25 g
- HiFiBerry sound card Digi2 Pro
- Installation elements:
- Nylon spacers - 4 pcs.
- Nylon screws - 4 pcs.
- Nylon washers - 4 pcs.
