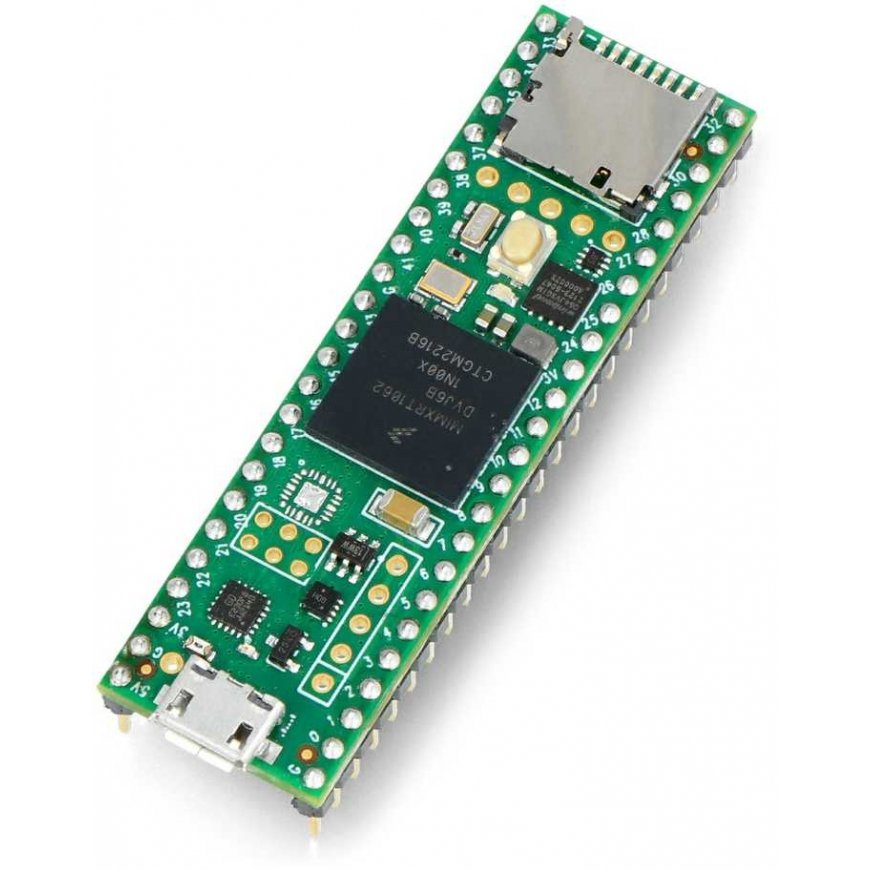

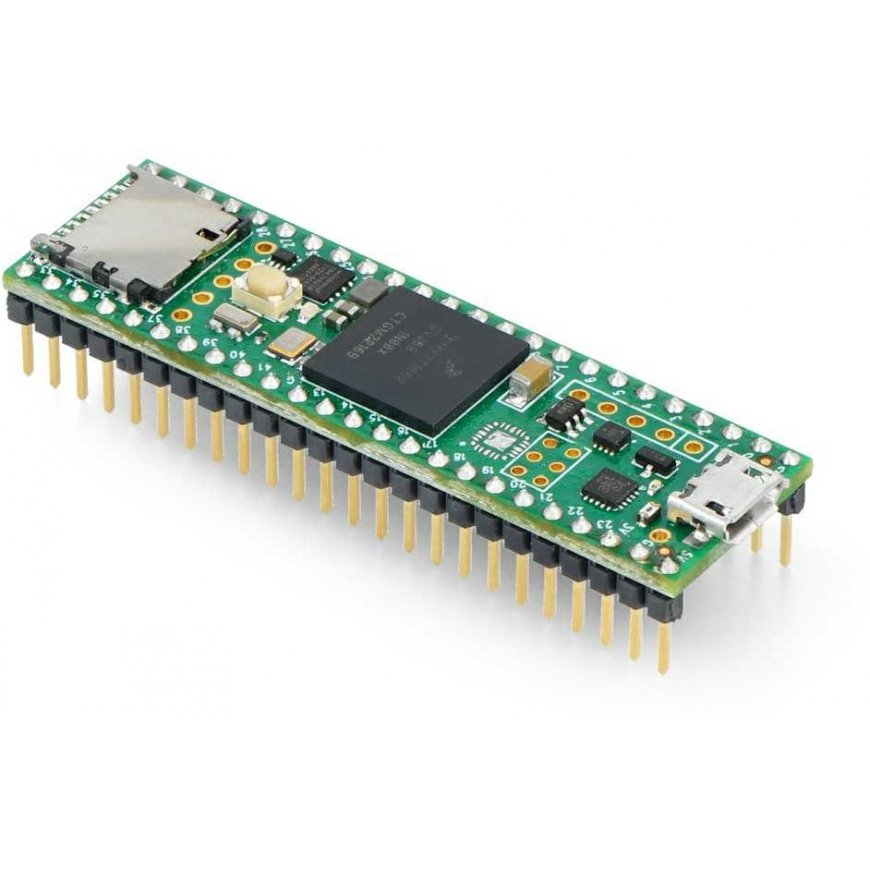

Teensy 4.1 - version without Ethernet - ARM Cortex M7 - with connectors - Arduino compatible - SparkFun DEV-20360
79.00 €
Мес. плата от 2,93 €
3659030 AN-21957
0714833879992
Доставка 11-18 р.д.
Вас заинтересовал этот товар?
Все о продукте
Teensy 4.1 is a compact board manufactured by SparkFun. It has a dual-core ARM Cortex-M7 processor with a clock frequency of 600 MHz and an NXP iMXRT1062 chip. It has four times the Flash memory compared to the Teensy 4.0 version, and two slots for adding more memory. Teensy 4.1 is the same size and shape as version 3.6 and has more I/O capabilities, including a microSD card slot and a USB port. This version has a soldered gold-pin connector.Specifications:
- Processor: ARM Cortex-M7 600 MHz dual-core
- RAM memory: 1024 kB
- Flash memory: 8 MB (64 KB reserved for recovery and EEPROM memory)
- USB port
- 2 additional program memory chips
- 55 input/output ports
- 3x CAN bus (1x CAN FD)
- 2x I2S digital audio connection
- 1x S/PDIF digital audio
- 1x SDIO (4-bit) native SD
- 3x SPI, all with 16 FIFOs
- 7 bottom SMT signal pads
- 8 serial ports
- 32 general-purpose DMA channels
- 35 PWM pins
- 42 input and output ports with tablet connectivity
- 18 analog inputs
- Cryptographic acceleration
- Random number generator
- RTC date and time
- Programmable FlexIO
- Pixel processing flow
- Cross-connecting peripherals
- MicroSD card slot
- Power on/off control
- Soldered gold pin connectors
