Stmicroelectronics STM32 NUCLEO-F103RB – STM32F103RBT6 ARM Cortex M3

79.00 €
Мес. плата от 2,93 €
3656662

AN-02238

5904422330644

Доставка 11-18 р.д.

Вас заинтересовал этот товар?
(Прочитать условия обслуживания)

Все о продукте

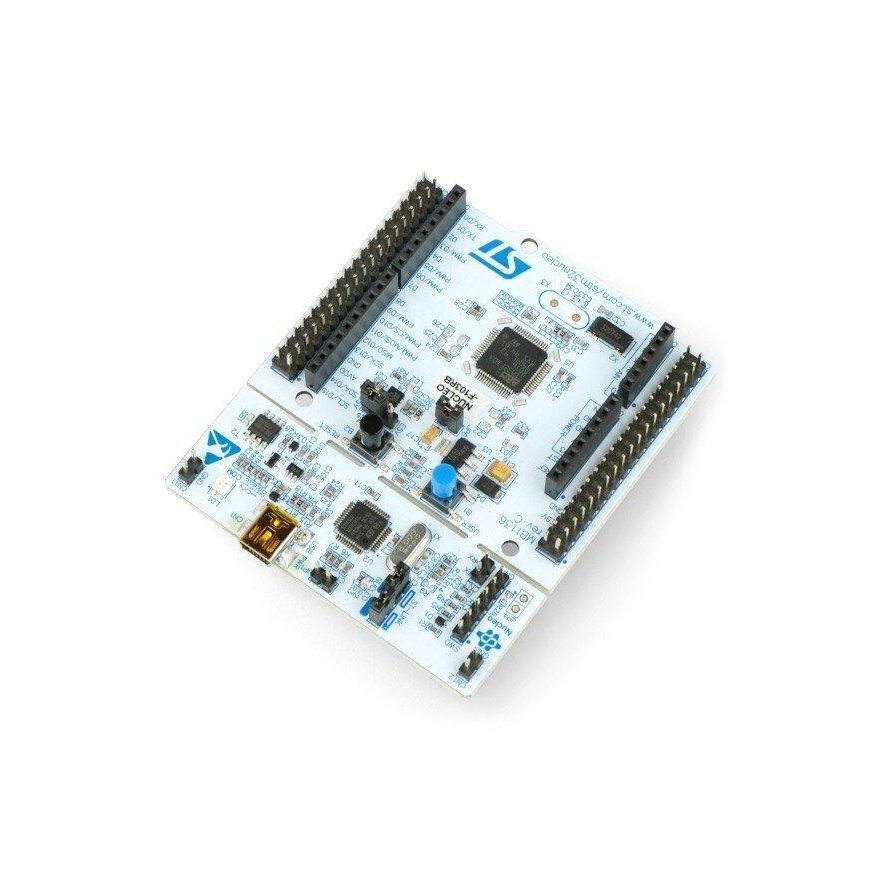

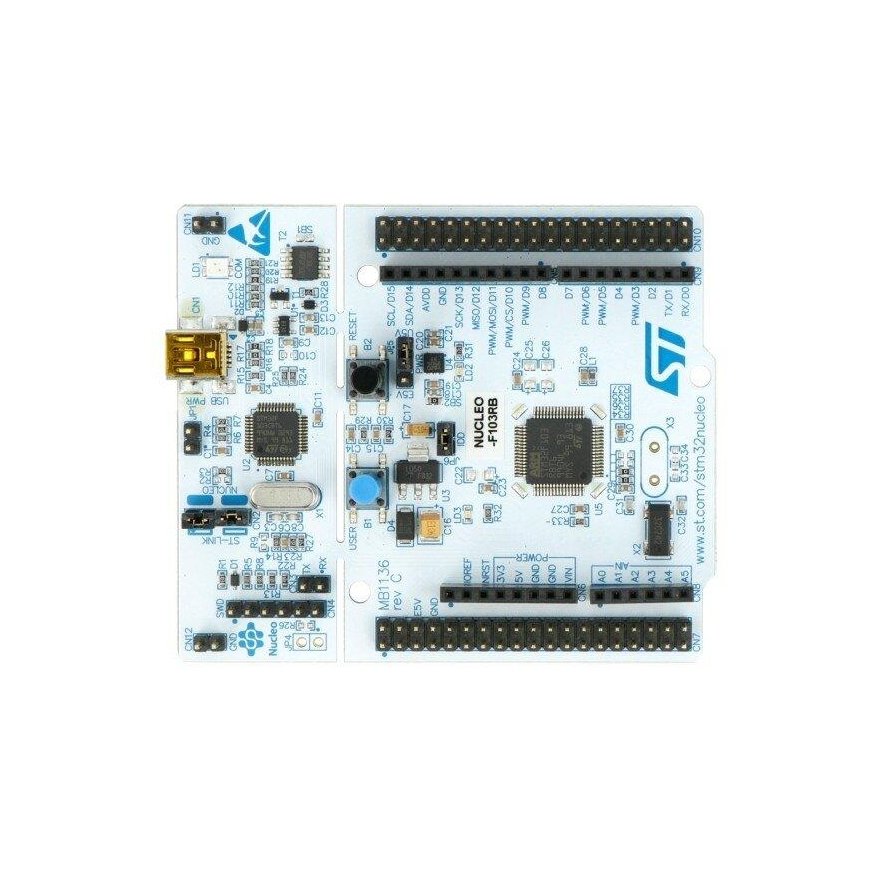

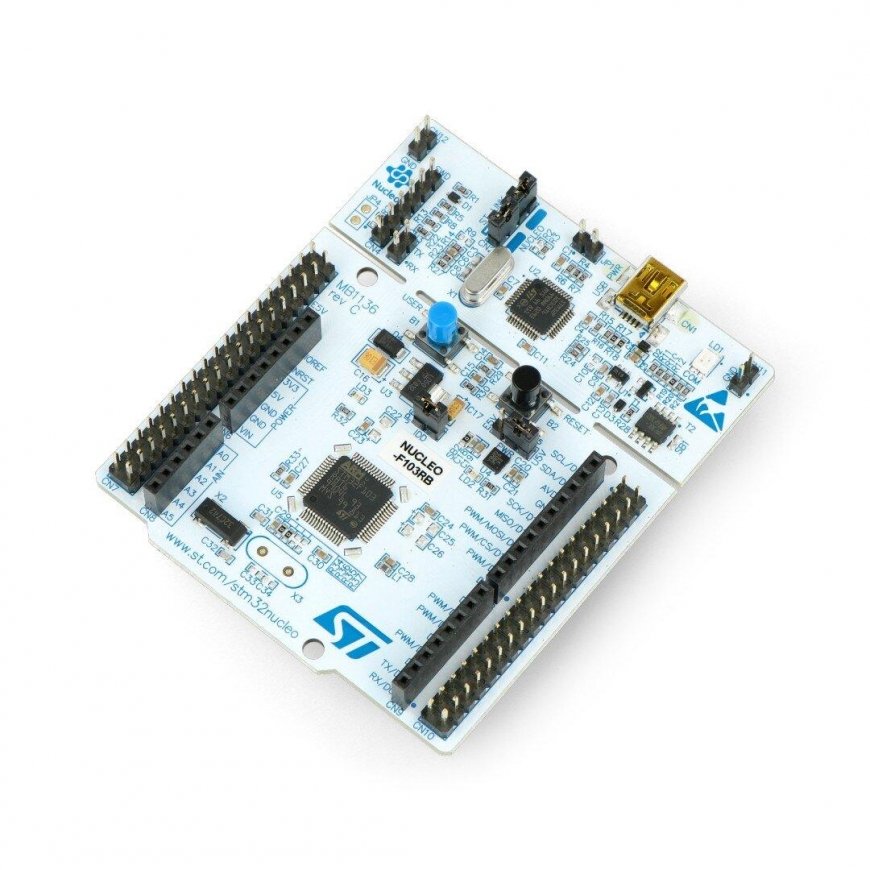

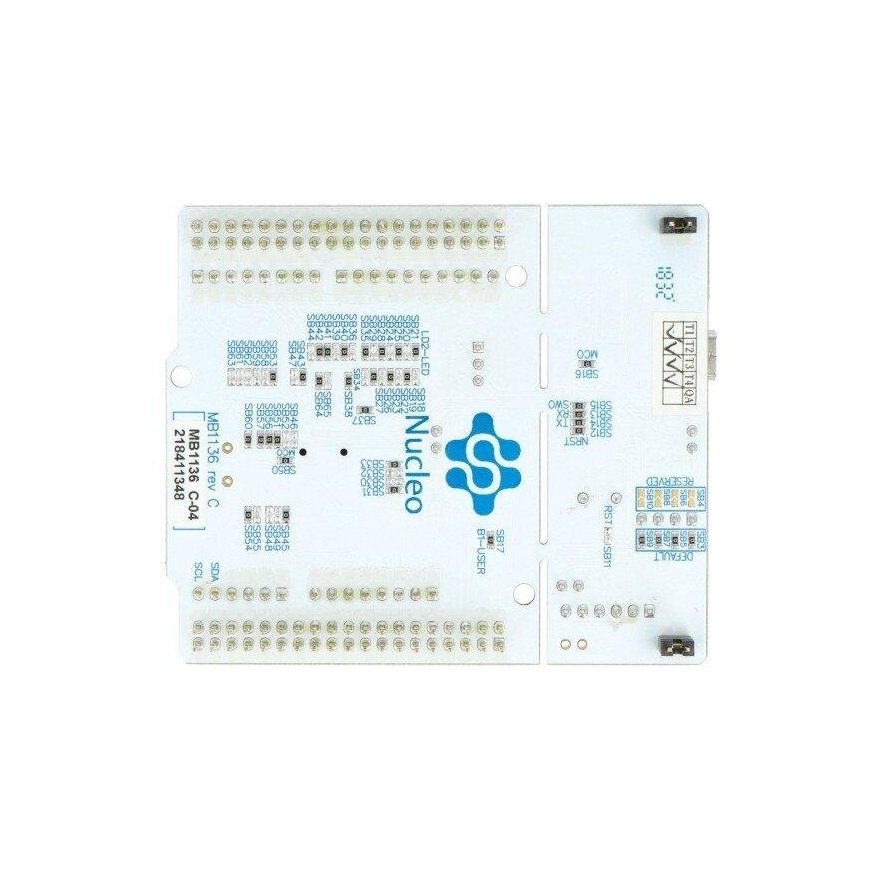

Module with 32-bit microcontroller with ARM Cortex M3 core, 72 MHz, 128 KB Flash, 20 KB SRAM. Nucleo is compatible with the mbed platform and has connectors for connecting an Arduino board.

Specifications:
  • Microcontroller: STM32F103RBT6
    • Core: 32-bit ARM Cortex M3
    • Clock frequency: 72 MHz
    • Flash memory: 128KB
    • SRAM: 20KB
    • 2 x Analog-to-Digital Converter: 12-bit, 16 channels
    • Number of timers: 7
    • Interfaces: 3x USART, 2x SPI 18Mbit/s, 2x I2C, Full Speed USB, CAN 2.0 B
  • Two types of connections:
    • Set-top box connectors compatible with Arduino Uno Rev3
    • Standard pins STMicroelectronics Morpho to access microcontroller wiring
  • The module is compatible with the mbed operating system (mbed.org)
  • The ST-Link/V2 debugger is placed on a board with the ability to work as a standalone device with SWD output.
  • Possibility of power supply via USB connection
  • Three LEDs are embedded:
    • 1 x for power supply voltage indication
    • 1 x, indicating connection
    • 1 x at the user's disposal
  • Two buttons:
    • 1 x RESET
    • 1 x at the user's disposal
  • Three different interfaces via miniUSB connector (USB re-enumeration):
    • Virtual COM port
    • Mass storage
    • Programming/debug port
  • The module supports most popular environments, such as IAR, Keil, and platforms based on the GCC compiler.
