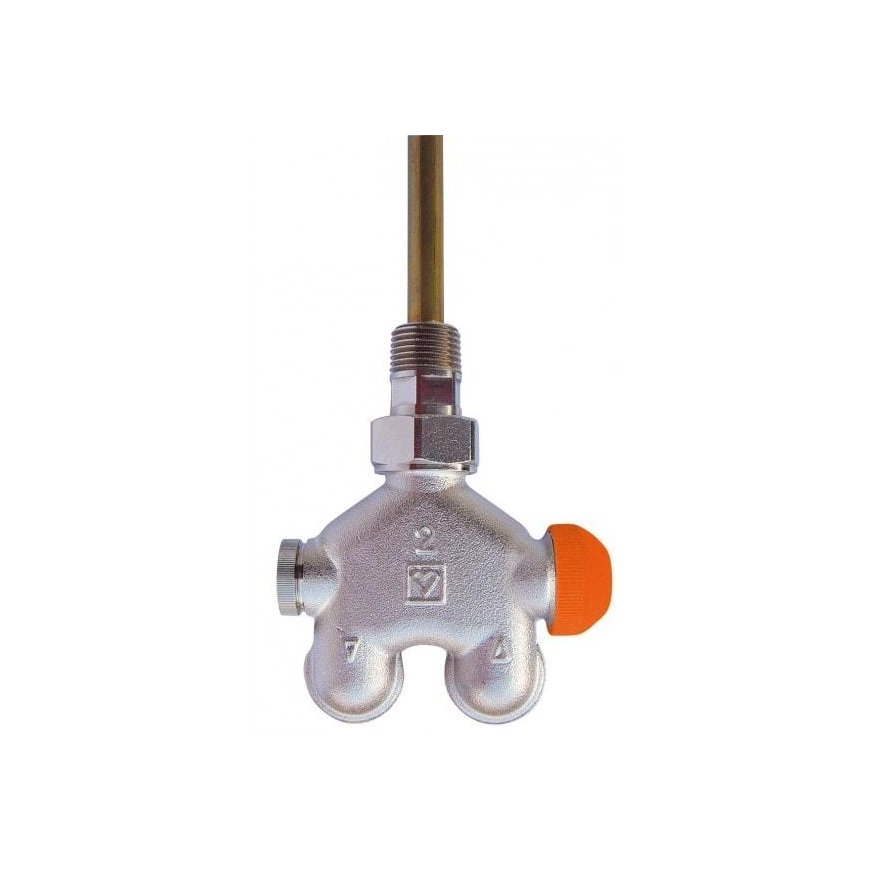

Towel dryer connection unit HERZ VUA-40, Bottom corner connection, without rim
49.00 €
Мес. плата от 2,16 €
3648927 9004174723001
Доставка 10-14 р.д.
Вас заинтересовал этот товар?
Все о продукте

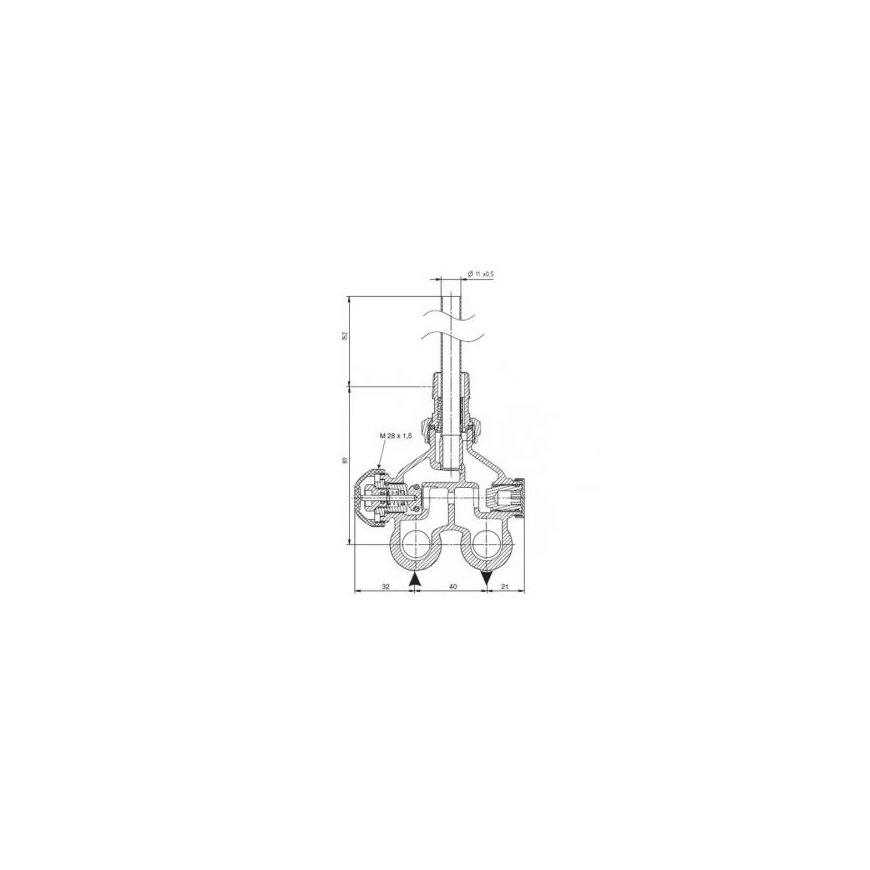

Distance between centers 40 mm. Connection 1/2" out with tube, L=150, d=11. Pipe connections 3/4" out. Connector M28Application
Corner four-way thermostatic connection unit VUA-40. Designed to conveniently connect the heating device from below in two-pipe heating systems and control the flows flowing through it.
Construction
Body - brass.
Functions
- Convenient connection of heating devices
- Thermostatic valve closing-opening
- Manual flow control
Technical parameters
- Permeability (Kvs value): 1.1 m3/h
- Maximum working temperature: 110 °C
- Maximum working pressure: 10 bar
- Device tube diameter: 11 mm
- Device tube length: 150 mm
- Distance between tube centers: 40 mm
- Mounting position of the thermostatic head: on the supply side, on the right
- Thermostatic head connection thread: M28
- Connector(s): 3/4' (external thread, pipe connection); 1/2' (external thread, device connection)
Optionally ordered separately:
- chrome or white cover
- chrome or white head
