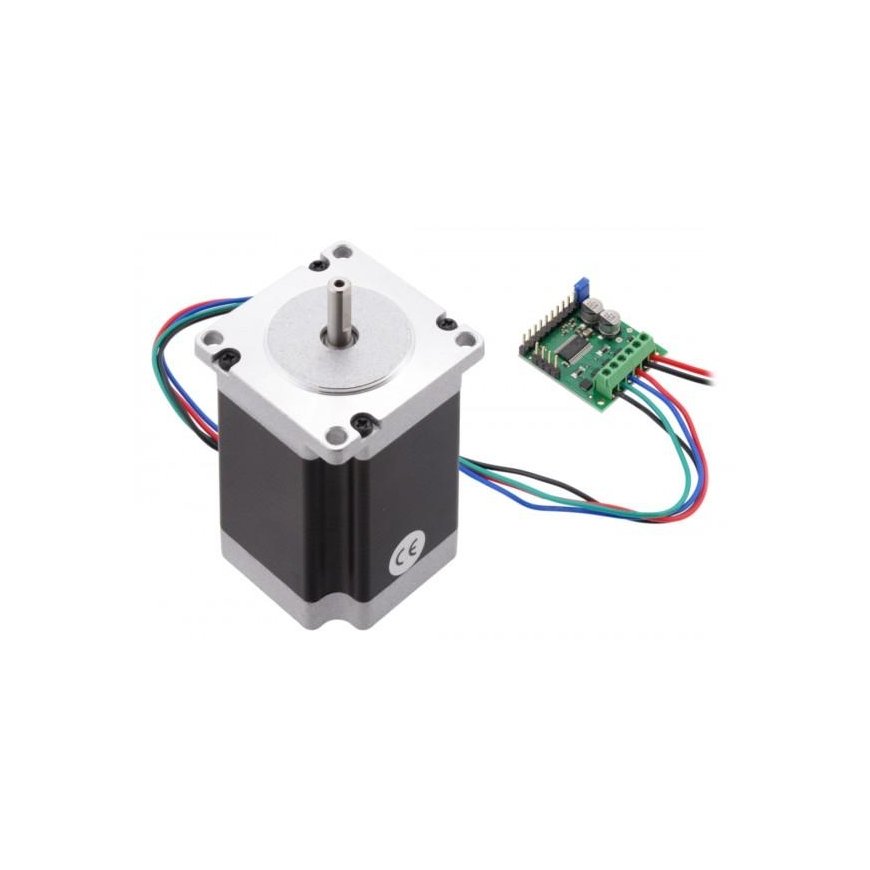

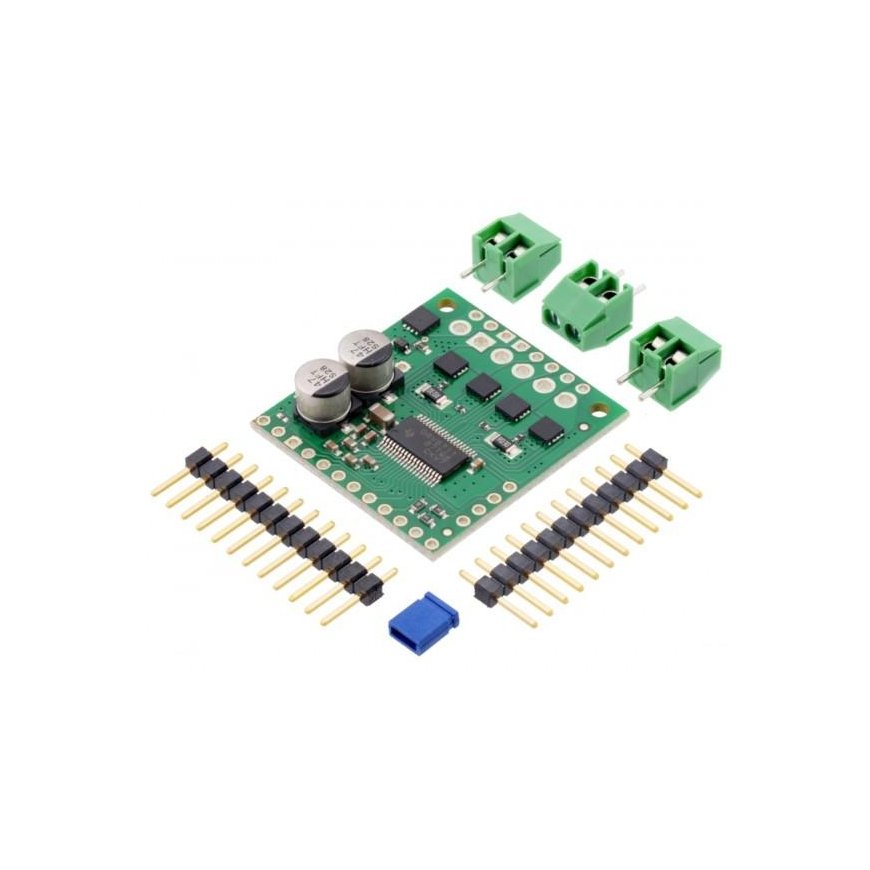

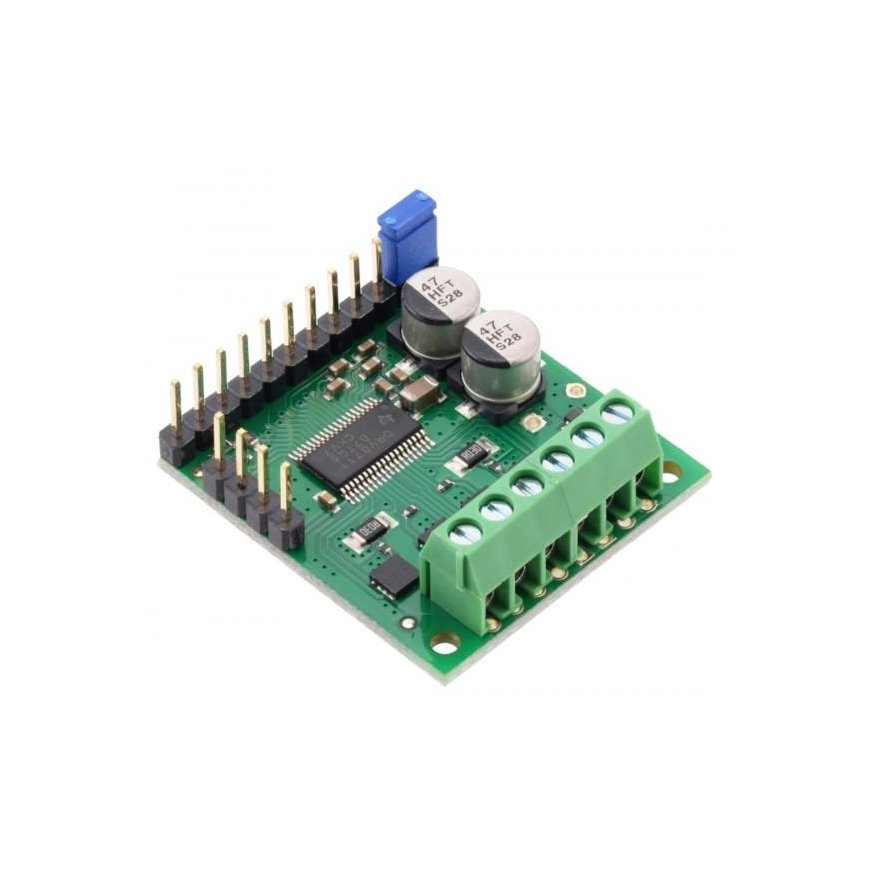

Stepper motor controller Pololu 3730 36v4 50V/6A

Все о продукте

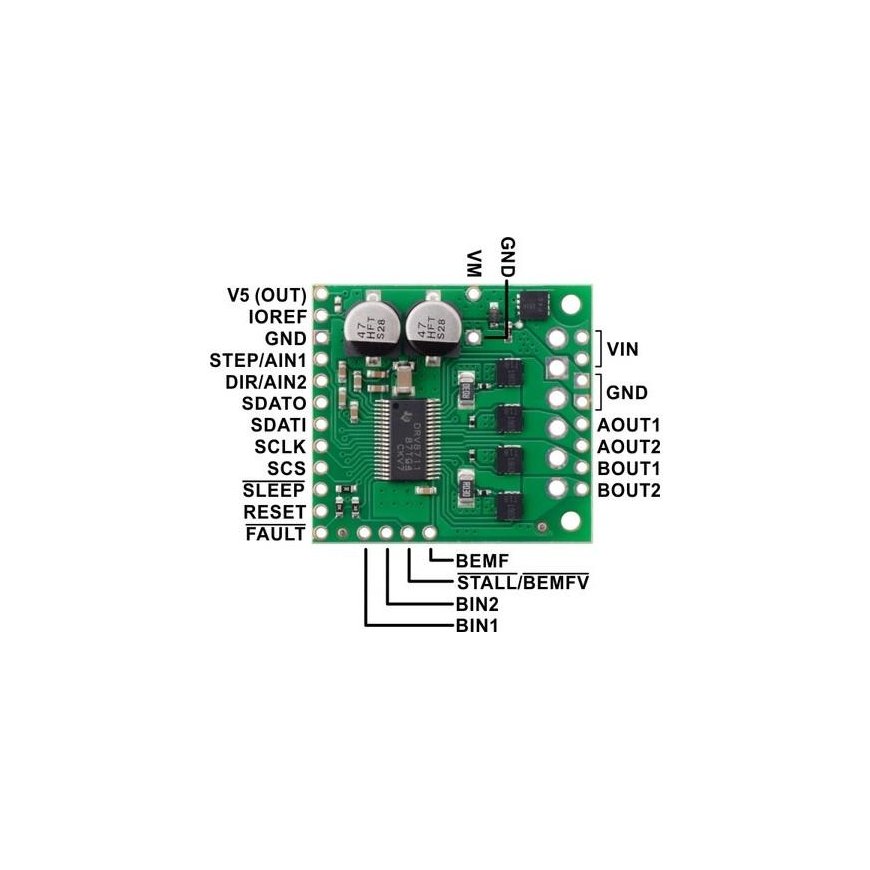

The controller allows you to control the motor with a simple step and direction interface, but first it must be configured via the SPI interface. This means that the control module must be able to operate in basic SPI bus mode (like Arduino) and be connected to the SDATi, SCLK and SCS pins. In addition, the controller has a number of protections, such as protection against reverse voltage, undervoltage. The controller has a PWM interface that allows you to control two DC motors.

Technical data:

• Motor supply voltage: from 8 V to 50 V
• Current: max. Per coil 4 A (6A after cooling)
• Controller supply voltage: 1.8 V, 3.3 V and 5 V
• Interface:
• SLEEP
• Simple direction and pitch control interface
• PWM interface for controlling DC motors
• 9 modes:
• full step
• half step
• 1/4 step
• 1/8 step
• 1/16 step
• 1/32 step
• 1/64 step
• 1/128 step
• 1/256 step
• Protection against:
• reverse voltage
• too low voltage
• excessive current
• overheating
• Dimensions: 34 x 30 x 10 mm
• Weight: 9 g
