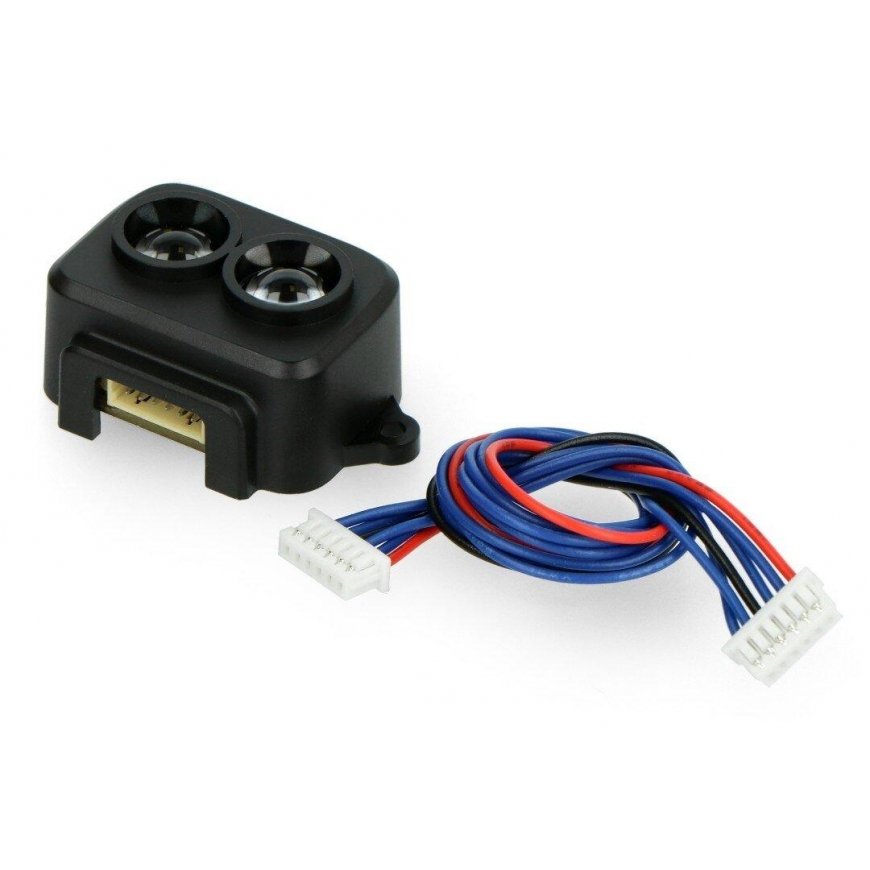

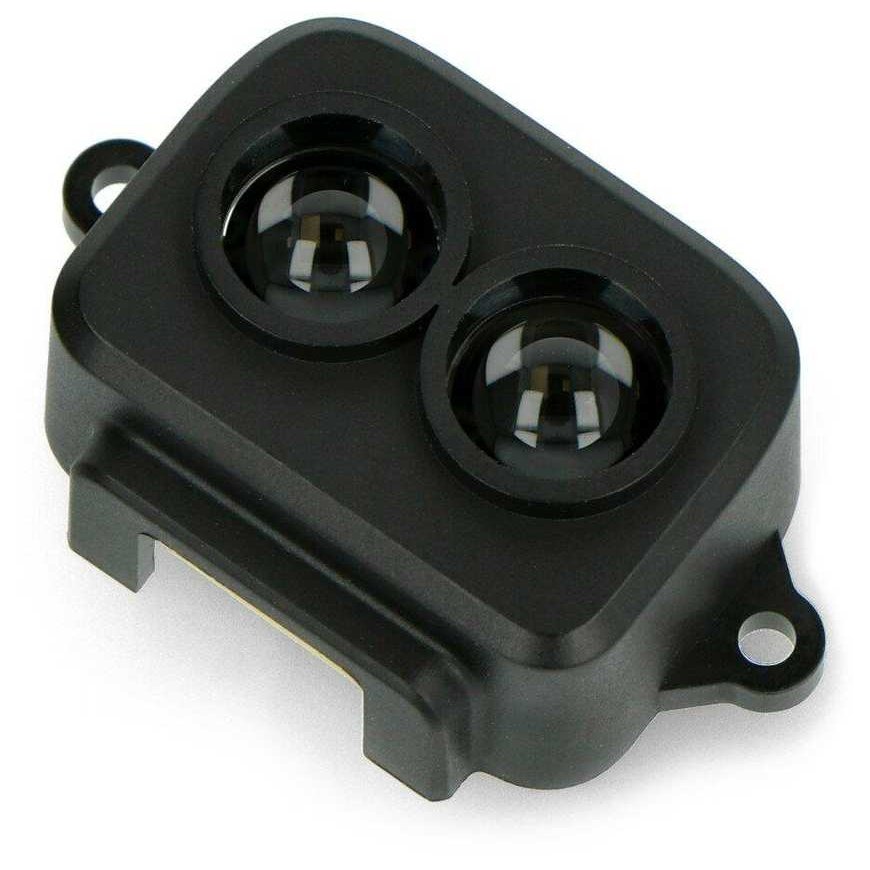

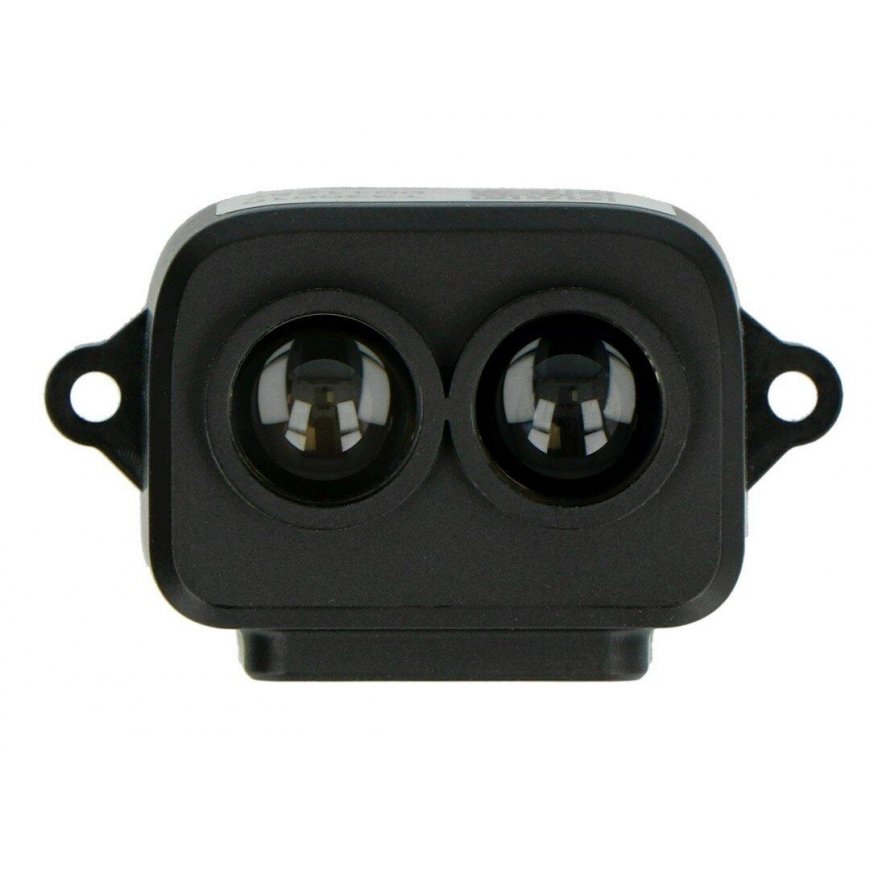

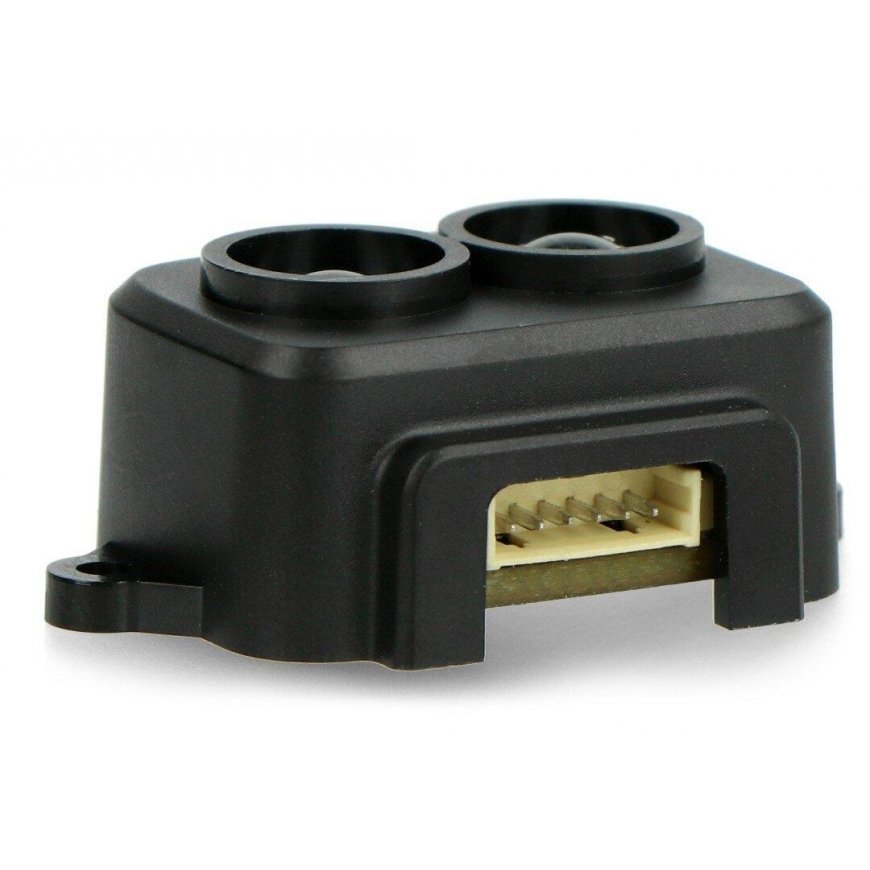

Benewake Lidar TF Luna - laser distance sensor - 8m - UART/I2C
49.00 €
Мес. плата от 2,16 €
3633066 AN-16638
5903351249041
Доставка 11-18 р.д.
Вас заинтересовал этот товар?
Все о продукте
Highly accurate laser distance measurement sensor from 0.2 m to 8 m with an accuracy of 0.06 m. The sensor is powered by 5 V. Lidar TF Luna communicates via UART or I2C interface. The wavelength is 850 nm. The sensor can operate at illumination up to 70000 lx.Main features:
- Affordable Lidar module is available from 0.2m to 8m
- Low weight of 5g suitable for lightweight projects
- Power consumption down to 0.35W, ideal for low-power projects
- Small dimensions of 35 x 21.25 x 13.5 mm, so it can be successfully used in projects that require small dimensions
- Supply voltage: 5V ± 0.1V
- Operating voltage LVTTL: 3.3 V
- Average current consumption: up to 70 mA
- Maximum power consumption: 150 mA
- Power consumption: up to 0.35 W
- Interface: UART/I2C
- Operating range: 0.2 m to 8 m (90% reflectivity)
- Accuracy:
- ±6cm/(0.2-3m)
- ±2%/(3-8m)
- Resolution: 1 cm
- Frequency: 100Hz
- Light source: VSCEL
- Light resistance: up to 70 keys
- Emitted wavelength: 850 nm
- FoV angle of view: 2°
- Housing: ABS + PC
- Storage temperature: -20 °C to 75 °C
- Dimensions: 35 x 21.5 x 13.5 mm
- Weight: 5 g
