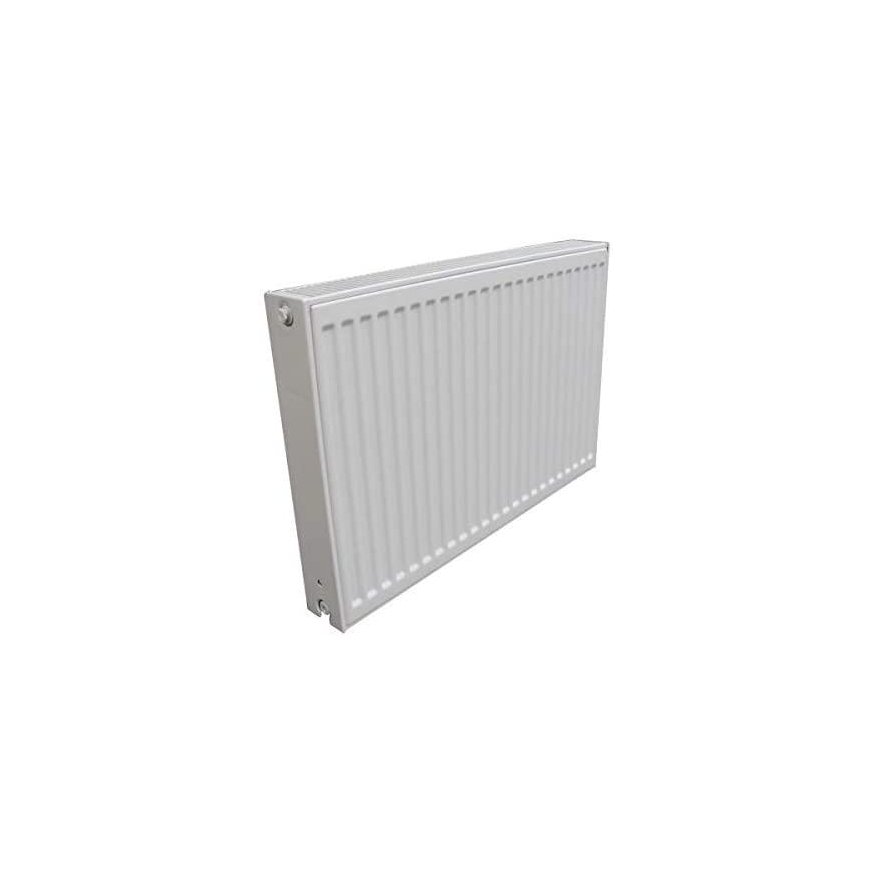

Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400 – 2

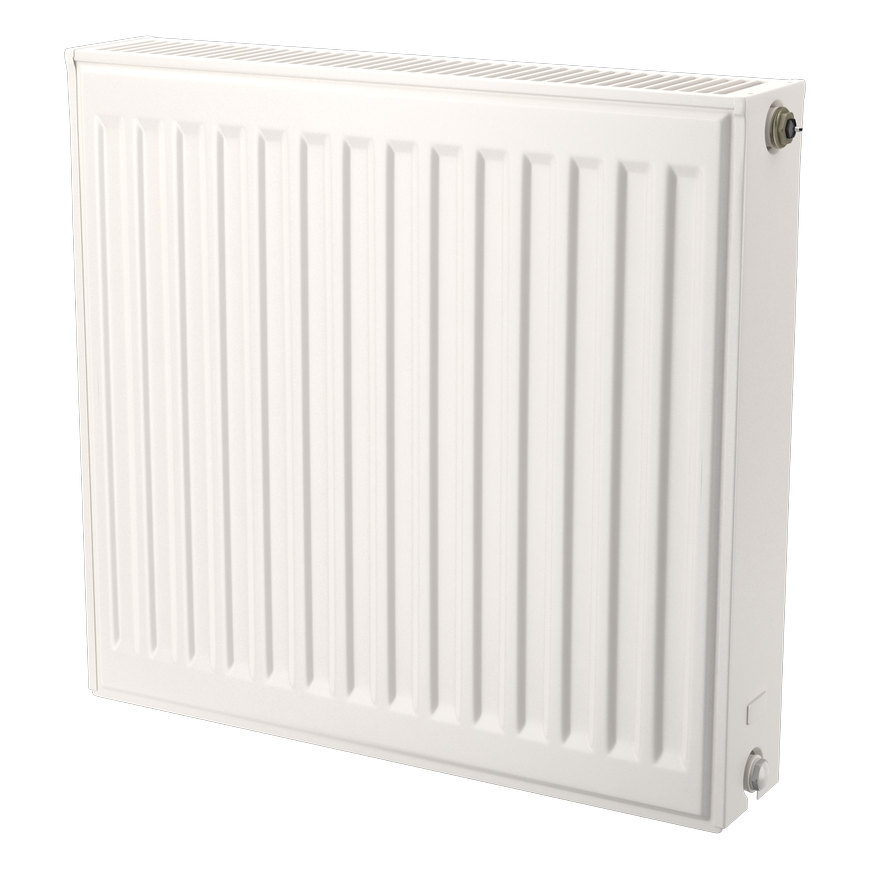

Bottom connection radiator Purmo CV 22, 300-400 – 3
Bottom connection radiator Purmo CV 22, 300-400 – 4

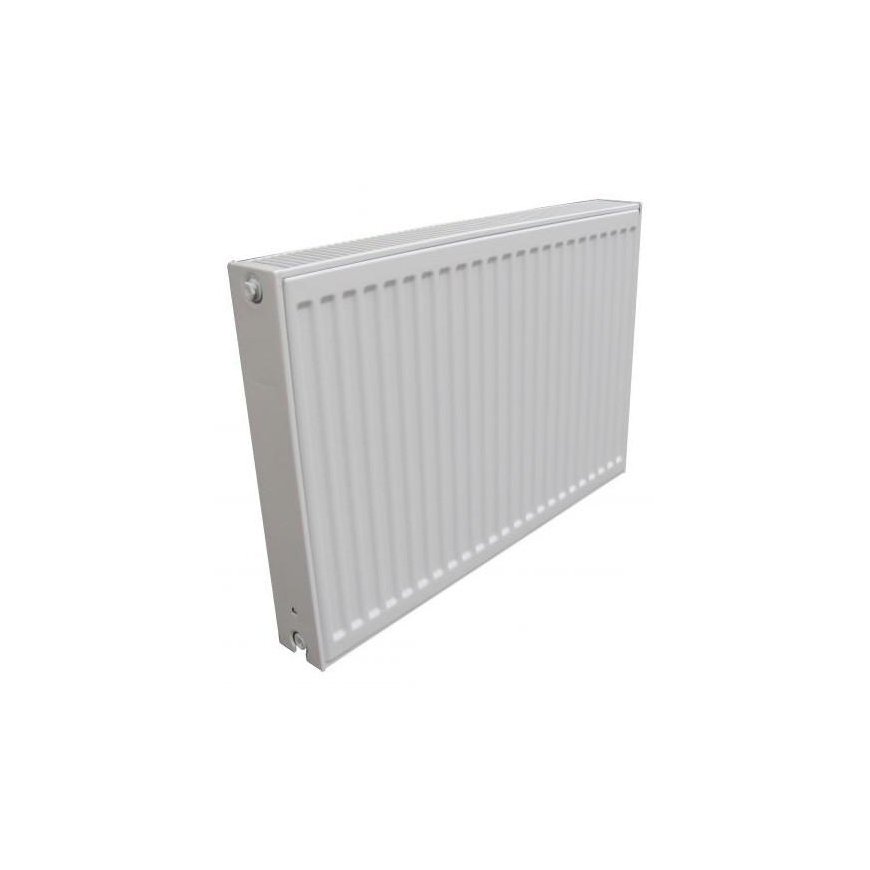

Bottom connection radiator Purmo CV 22, 300-400 – 5
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400
Bottom connection radiator Purmo CV 22, 300-400

Оттенок товара и его реальный цвет могут отличаться от того, что показано на фотографии, так как изображения носят иллюстративный характер. Описание товара является общим и может не включать все его характеристики.

Bottom connection radiator Purmo CV 22, 300-400

99.00 €
Мес. плата от 3,45 €
3624554

F072203004011300

5907814707499

Доставка 10-14 р.д.

Вас заинтересовал этот товар?
(Прочитать условия обслуживания)

Все о продукте

Bottom connection radiator with thermostatic element

Top quality product
Two profiled panels, two convectors
Height from 300 mm to 900 mm
Length from 400 mm to 3000 mm
Power from 384W to 7164W (75º/ 65º / 20º )
Connection at the bottom, standard from the right
Thermostatic element installed
Includes wall brackets, blind and vent

bottom-mount-radiator-purmo-cv

Purmo Ventil Compact

A compact radiator is a classic panel radiator that meets the highest quality and efficiency requirements. While traditional radiators have all the pipes visible, compact radiators have top and side covers that give them a pleasant and attractive appearance. And the choice of models is as wide as that of all our panel radiators.

Compact radiators come in several different types, which you can perfectly adapt to your room. The Ventil model is a variation of the classic compact radiator. In this radiator, all the pipes and valves are hidden inside the radiator, making it look subtle and uncluttered.

Technical data

Universal PURMO "Ventil Compact" radiators with profiled panels and convection elements, with side covers and top grilles. Two bottom and four side connection ports, internally threaded G ½", allow connection from below and, if necessary, from the side. Radiator with Oventrop pre-regulation thermostatic valve.

  • Material: high-quality stamped mild steel sheet FePO 1 according to EN 10130
  • Vertical water channel pitch: 33.3 mm
  • Connections: 2 x G ½ " bottom connection right (left - on request), 4 x G ½ " side connection
  • Working pressure: 10 bar
  • Maximum temperature: 110 °C
  • Test pressure: 13 bar
  • Color: white RAL 9016, other RAL colors - on request
  • Accessories: mounting elements, blind, air valve (included in the kit)
