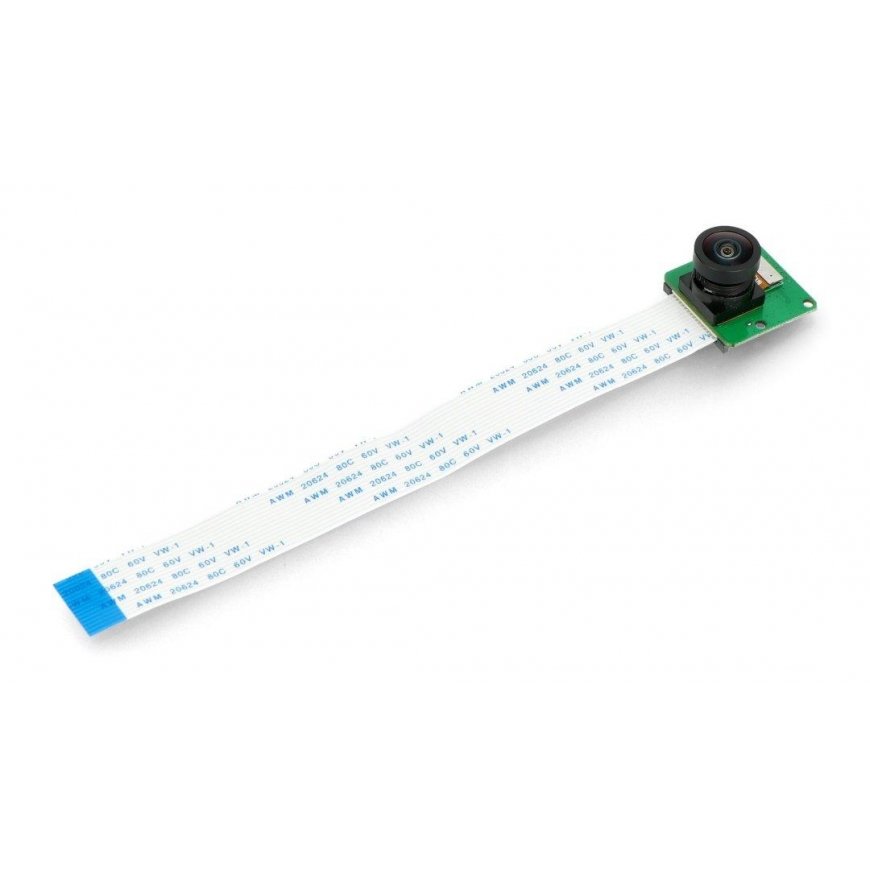

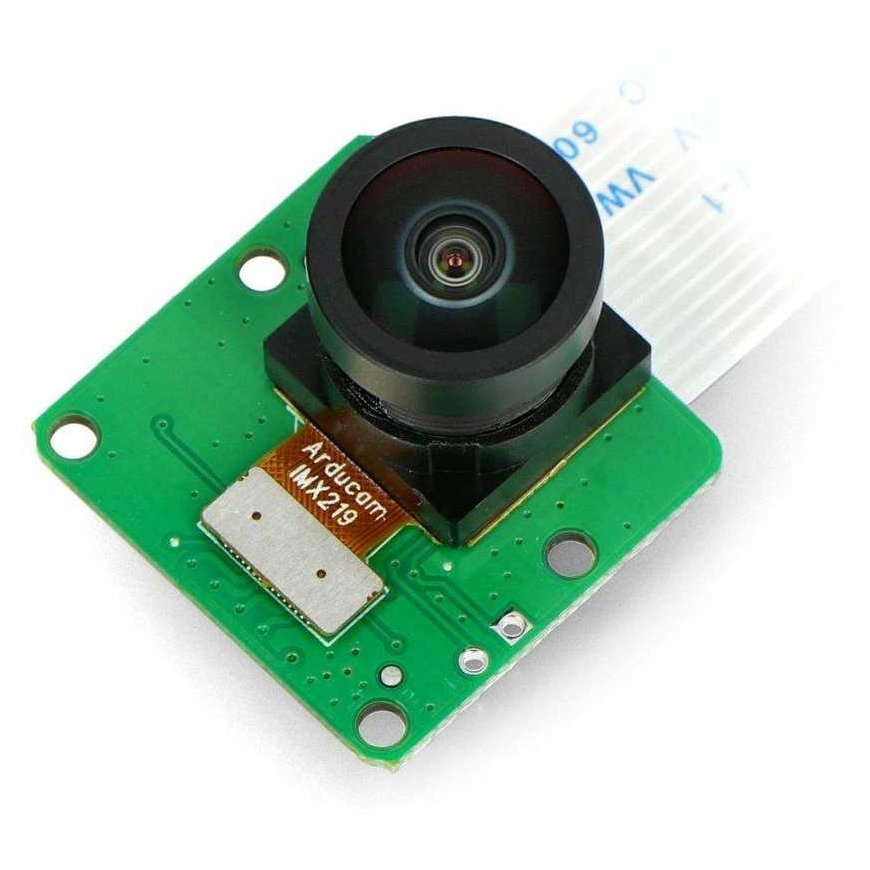

ArduCam IMX219 8Mpx 1/4" camera - wide angle - for NVIDIA Jetson Nano - ArduCam B0179
39.00 €
Мес. плата от 1,90 €
3610629 AN-20191
5904422380359
Доставка 11-18 р.д.
Вас заинтересовал этот товар?
Все о продукте
Camera module for use with NVIDIA Jetson Nano minicomputer. Equipped with an 8 Mpx resolution IMX219 sensor with a wide-angle lens M12 175° (D). The lens used provides a much wider field of view compared to the standard lens of the camera module V2. The product is equipped with an IR filter and a MIPI CSI-2 2-lane/4-lane interface. The camera module can also be used to work with Raspberry Pi Compute Module boards.Main features:
- The camera module provided is more than HD quality: it uses a 1/4'' 8 megapixel IMX219 sensor, ensuring extremely sharp images. The maximum resolution is 3280x2464px
- Much wider viewing angle: with a wide-angle lens M12 175° (D) x 155° (H) x 115° (V), which provides a much wider field of view compared to the standard lens in the camera module V2
- High frame rate: frame rate is 21fps at 8Mpx / 60fps at 1080p / 180fps at 720p
- IR sensitivity: visible light, built-in IR filter
- Integrated sensor: Sony 8 MP IMX219
- Optical format: 1/4"
- Number of frames displayed per second: 21 frames per second at 8 Mpx / 60 frames per second at 1080p / 180 frames per second at 720p
- Data format: RAW8 / RAW10
- EFL: 2.5 mm
- Focal ratio: 2.8
- Focus type: fixed
- Viewing angle: M12 175° (D) x 155° (H) x 115° (V)
- Interface: MIPI CSI-2 2-lane/4-lane
- IR sensitivity: Built-in IR filter, visible light
- ArduCam IMX219 8Mpx 1/4" camera - wide angle - for NVIDIA Jetson Nano - ArduCam B0179
- FPC 1 mm - 15 pins - length 15 cm
