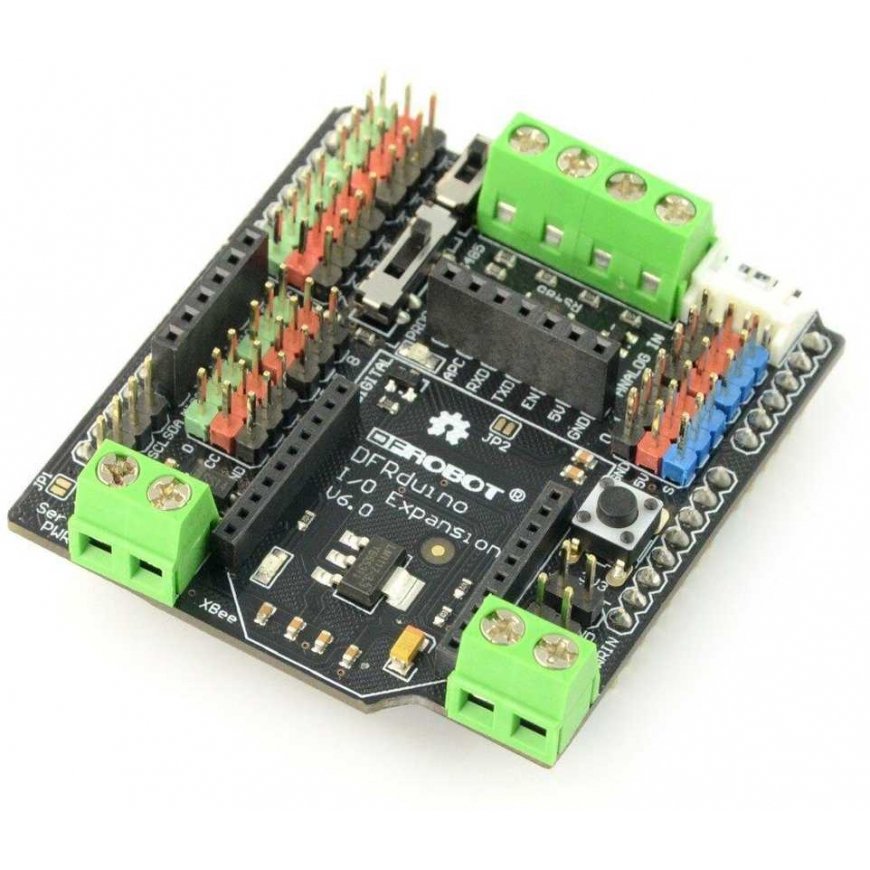

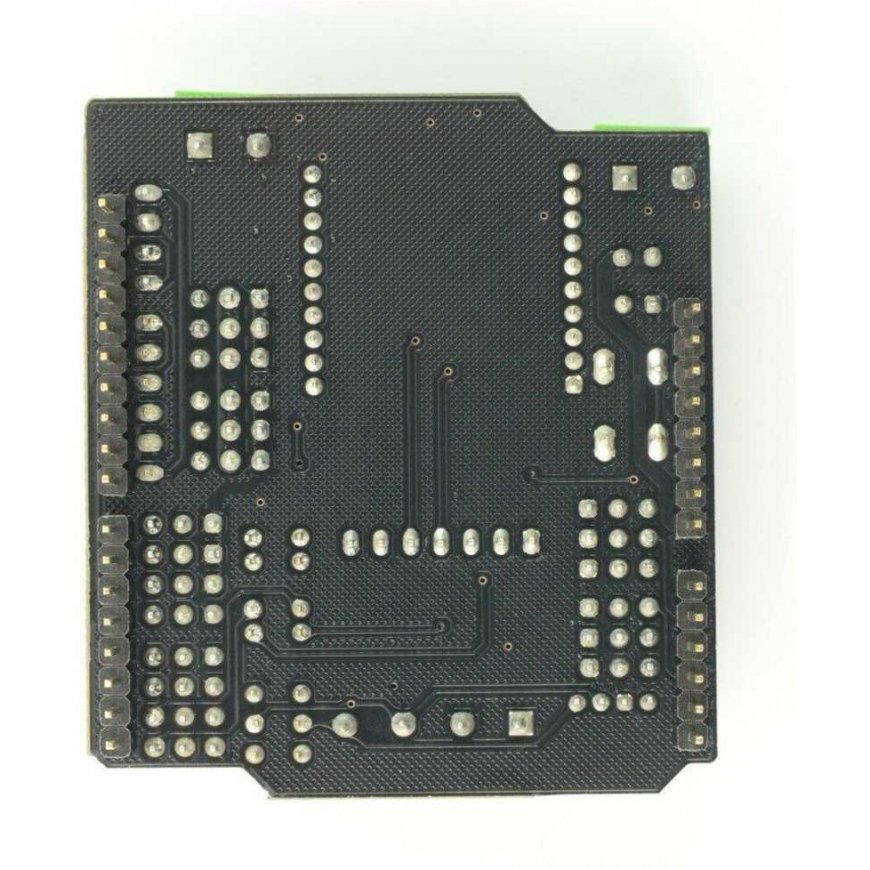

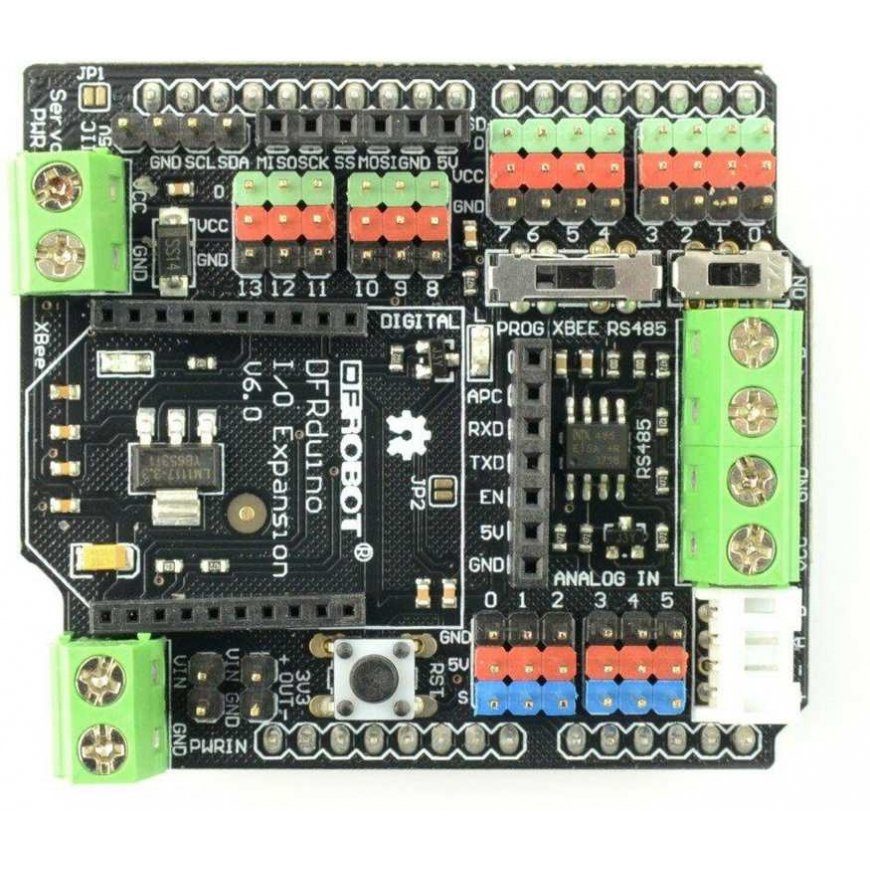

DFRobot Gravity RS485 IO Expansion Board for Arduino

Все о продукте

The Arduino extension board expands the input/output pins. Each pin can be connected to a VCC and GND pair. Separate connectors allow for easy connection of SD cards, APC220 radio modules, Bluetooth, servo and RS485 modules, and a dedicated XBee module slot provides easy installation of a wireless communication system. The switch allows the user to change the XBee, RS485 or download operating modes, eliminating the need to remove the modules from the boards when uploading the Arduino program. In addition, the V6 version supports the URM04 interface and Arduino pin R3.

Specifications:

• The user has the option to select XBee, RS485 or download operating modes
• For each digital and analog pin: GND and VCC
• XBee module socket allows for easy installation of a wireless communication system
• Switch TTL/RS485
• Separate I2C and SPI interface connector for easy connection of, for example, a memory card reader
• The RESET button allows you to restart the Arduino at any time
• The manufacturer has installed LEDs that support Arduino
• Screw-in PWR connector allows you to connect power to any cable
• Works with Arduino Uno, Leonardo, Mega and Due
