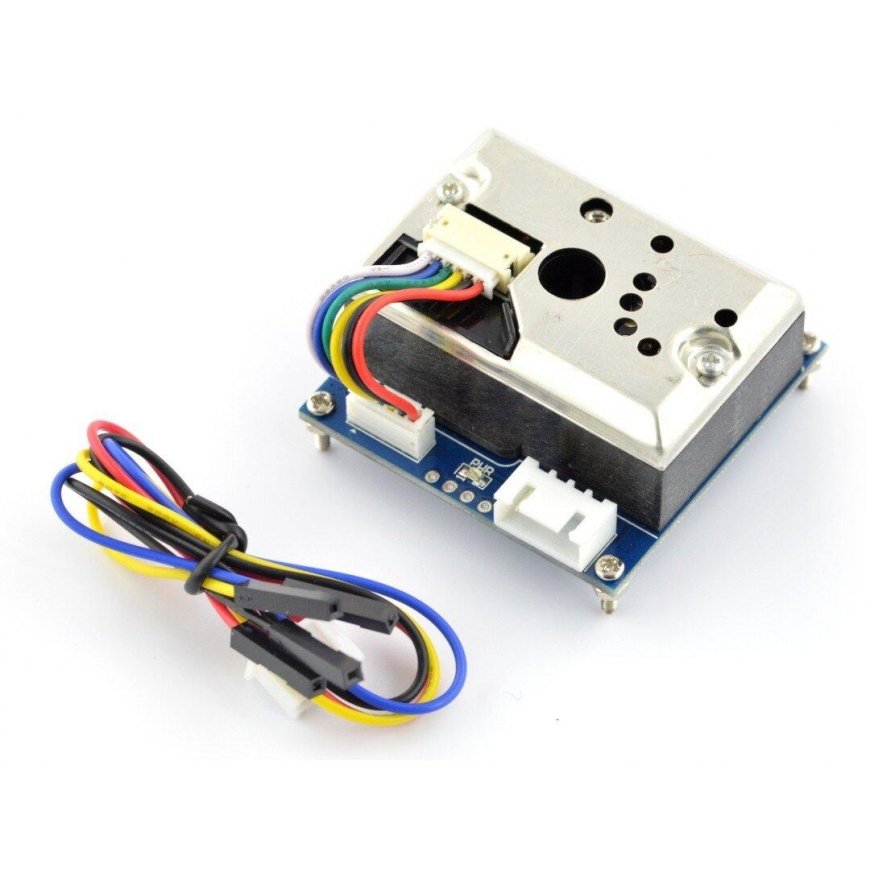

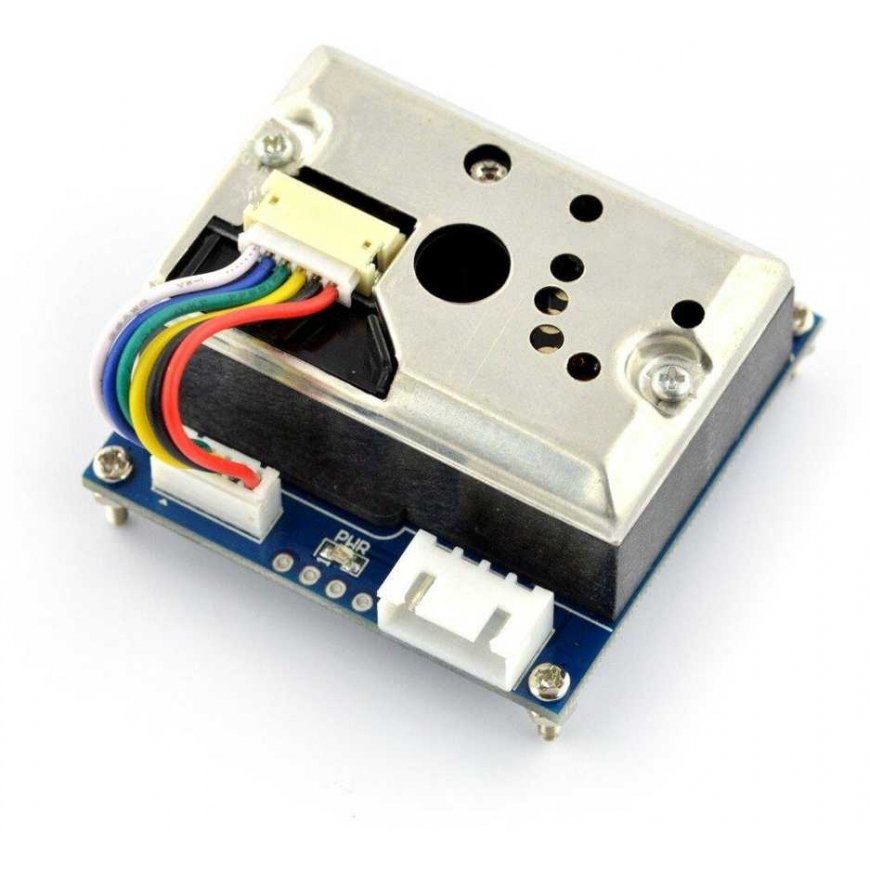

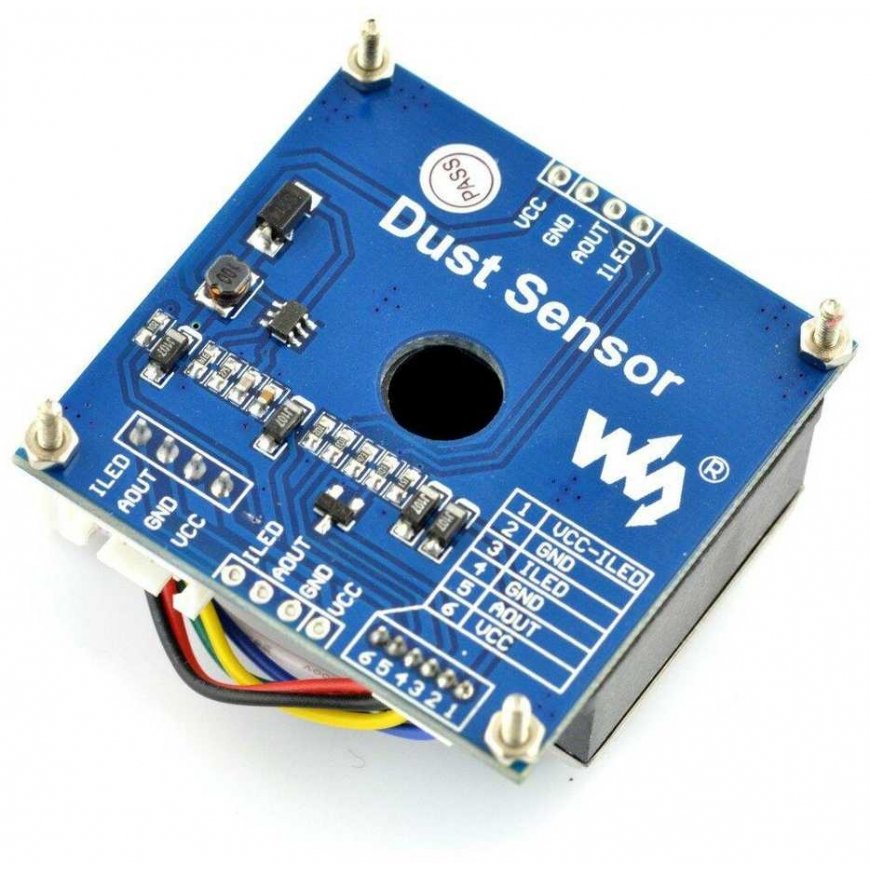

Oem Dust Particle Concentration Sensor, GP2Y1010AU0F Air Purity Meter + Module, Waveshare 10500

Все о продукте

The dust sensor allows you to monitor the purity of the air. It contains a Sharp GP2Y1010AU0F sensor that allows you to detect particles larger than 0.8 µm in diameter, such as cigarette smoke. The system is powered by a voltage of 2.5 V to 5.5 V, operates up to 500 µg/m3, and has a sensitivity of 0.5 V / (100 µg/m3).

Specifications:

• Supply voltage: 2.5 V to 5.5 V
• Current consumption: 20 mA
• Sensor: Sharp GP2Y1010AU0F
• Measuring range: 500 µg/m3
• Sensitivity: 0.5 V / (100 µg/m3)
• Service life: 5 years
• Operating temperature: -10 °C to 65 °C
• Air inlet diameter: 9 mm
• Mounting hole diameter: 2 mm
• Dimensions: 63.2 x 51.3 x 21.1 mm
