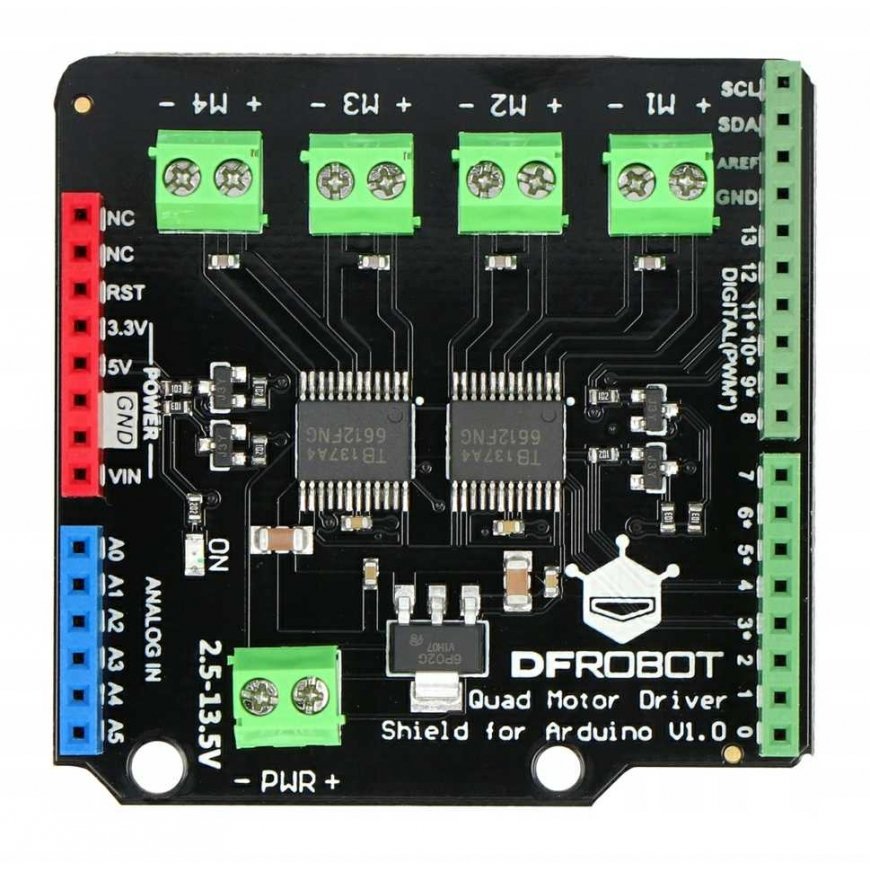

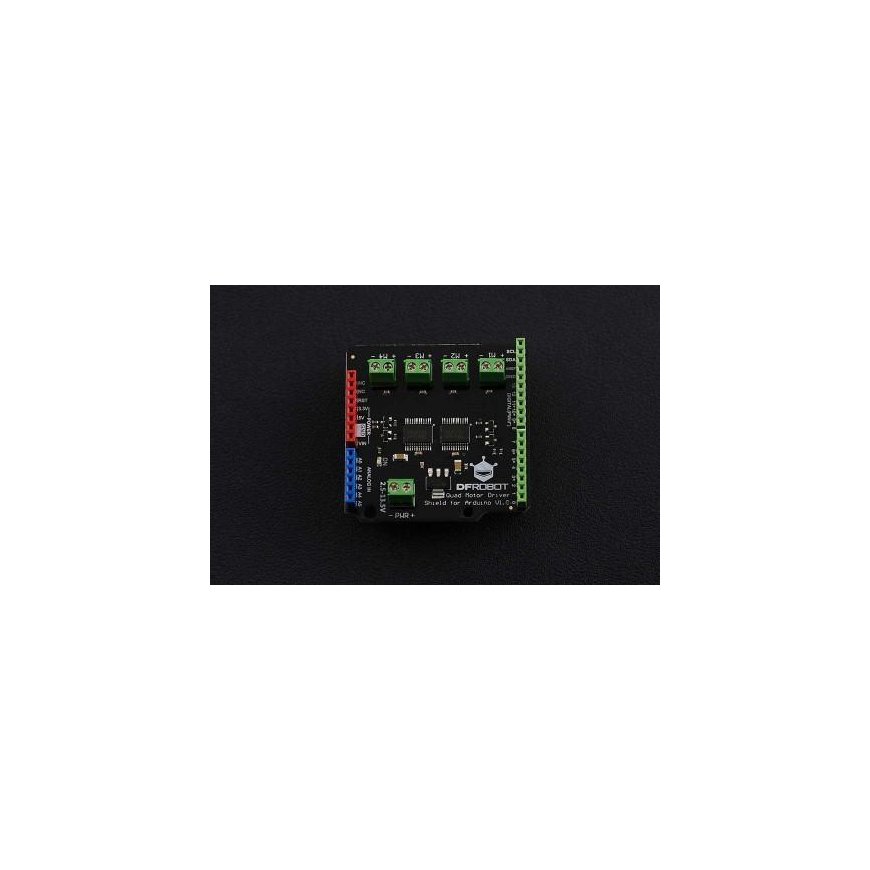

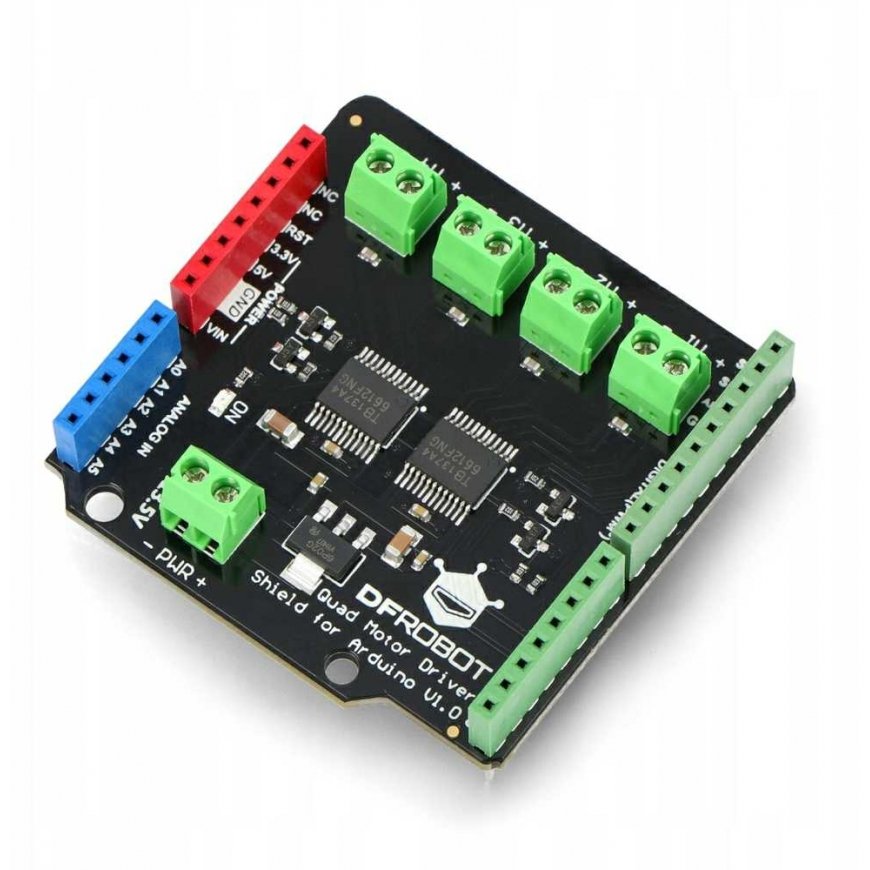

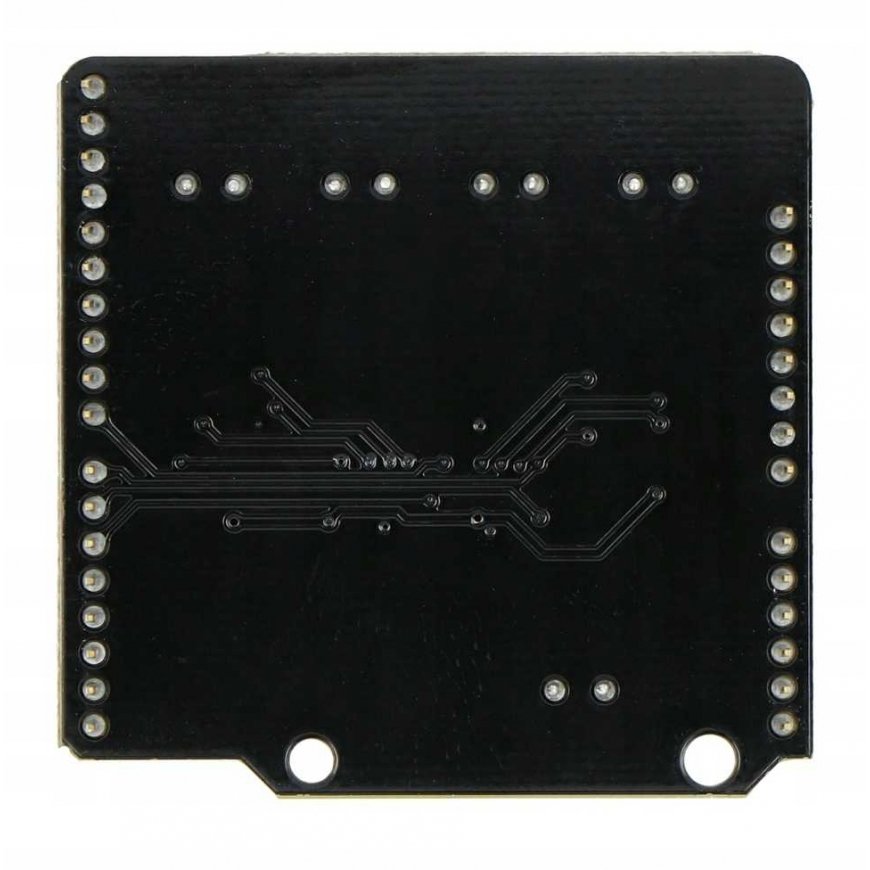

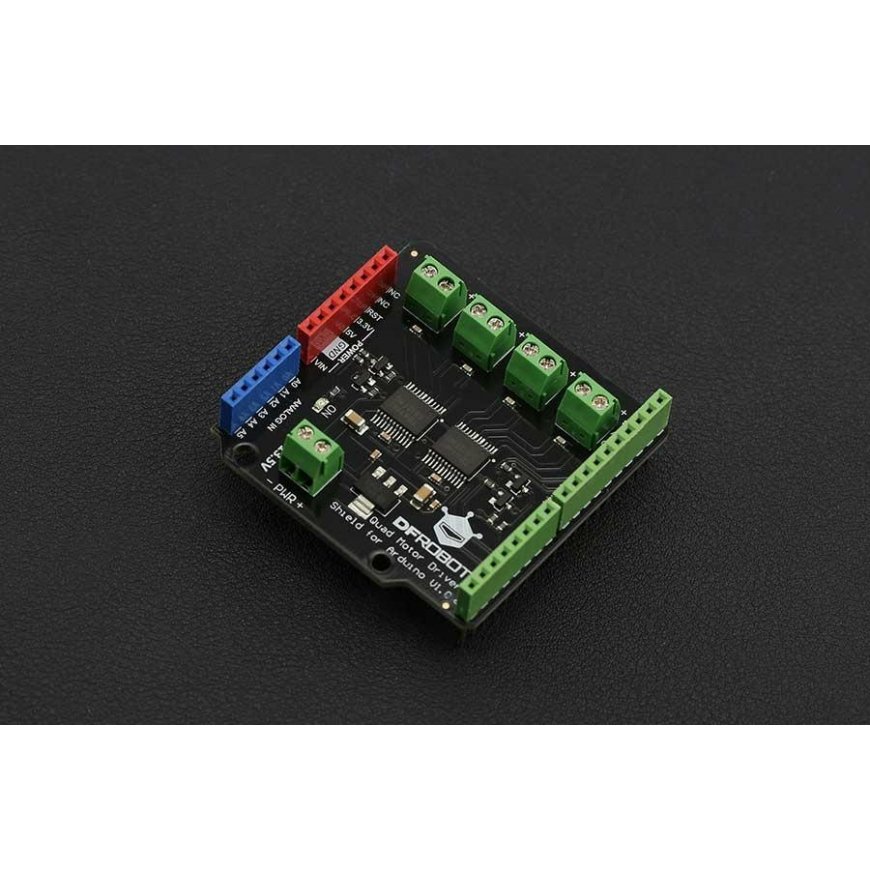

DFRobot TB6612 Quad Motor Controller - 4 Channel 13.5V/1.2A
30.83 €
3597609 AN-07441
5904422310400
Доставка 11-18 р.д.
Вас заинтересовал этот товар?
Все о продукте
DFRobot Quad DC Motor Shield is an Arduino Uno add-on designed to control up to 4 electric motors. The manufacturer has taken care of the following necessary features: screw terminals allow for a firm and reliable connection of high-power wires, F-type connectors help to quickly create prototypes and change motors, and a thermal overload protection mechanism is installed. The motors are controlled by the built-in TB6612FNG module, which can control up to 4 DC motors, and is more efficient and smaller than the L298N. Compatible with Arduino UNO R3, DFRduino R3, Arduino Mega and other microcontrollers.
Technical data:
- Can connect: 4 DC motors, supply up to 3.2A of electric current pulses to each
- Screw and F-type connectors for motors
- A thermal overheating protection mechanism has been installed.
- DC motor voltage: 2.5-13.5 V DC
- Maximum permissible motor current: up to 1.2A continuous, up to 3.2A pulsed
- The motors are controlled by the built-in TB6612FNG module
- Logic signal voltage: 3.3-5V
- Size: 53 x 52 mm
- Operating temperature: -20 - 85°C
