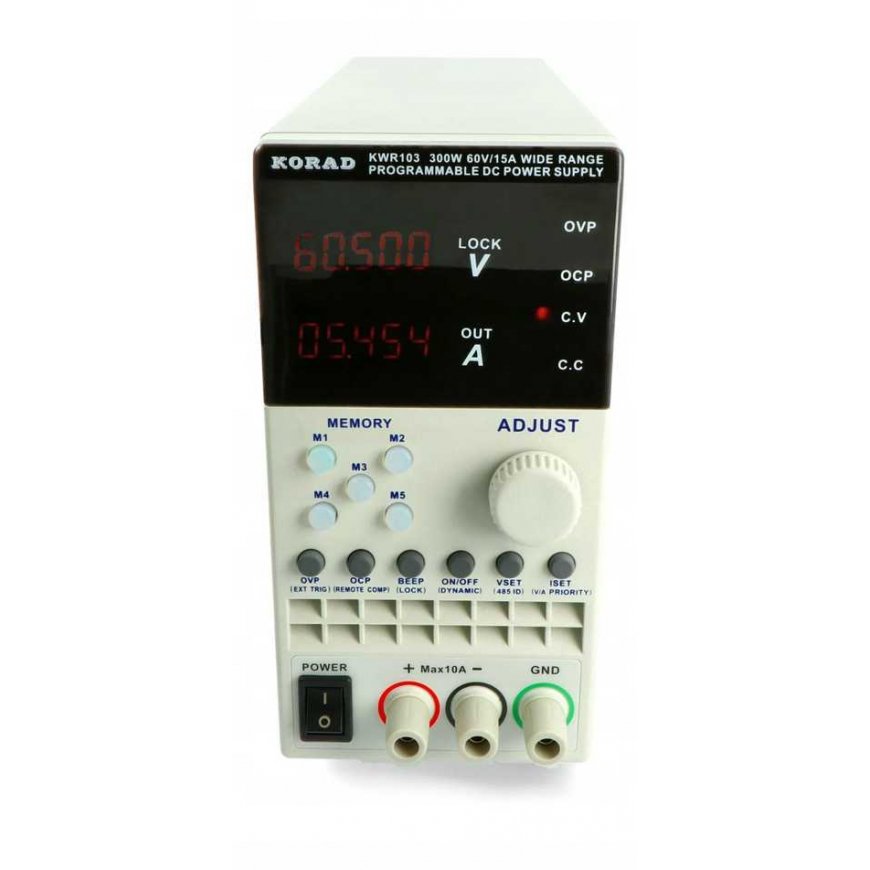

Laboratory power supply Korad KWR103 60V 15A
3593761 AN-15487
5904422323844
Доставка 11-18 р.д.
Все о продукте
The wide voltage range programmable laboratory power supply allows you to adjust the voltage from 0 to even 60 V, and the current from 0 to 15 A. The single-channel KWR103 is characterized by a high current resolution ratio: 1 mV / 1 mA and low output pulse values. The device allows you to save up to five operating settings, which can be assigned to one of the buttons located on the front of the case.

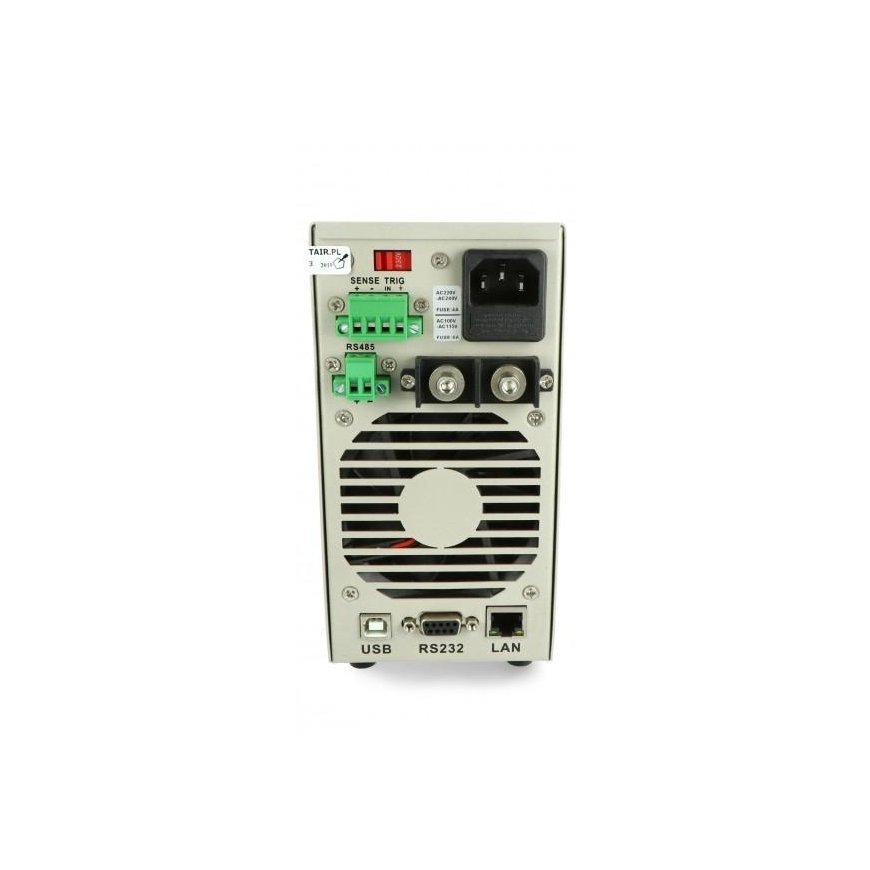

The power supply is compact and operates extremely quietly. The source can be controlled by a computer via USB, LAN or RS232 interfaces, and LabView and C++ control examples are also provided.
Specifications:
- Voltage range: 0 to 60 V
- Current range: 0 to 15 A
- Power: 300 W
- Operating modes:
- CV - constant voltage at the output
- CC - constant load current
- Load regulation:
- Voltage: <0.01% + 1mV
- Current: <0.1% + 3 mA
- Line adjustment
- Voltage: <0.01% + 3mV
- Current: <0.1% + 3 mA
- Adjusting settings:
- Voltage: 1mV
- Current: 1 mA
- Reading resolution:
- Voltage: 1mV
- Current: 1 mA
- Operating accuracy (at 25°C +/- 5°C):
- Voltage: <0.5% + 5mV
- Currents: <0.5% + 3 mA
- noise:
- Voltage: <1 mVrms
- Current: <5 mArms
- Voltage rise time:
- Voltage rise: <50 ms
- Voltage drop: <50 ms
- Weight: 2.2 kg
- Dimensions: 87 x 175 x 290 mm

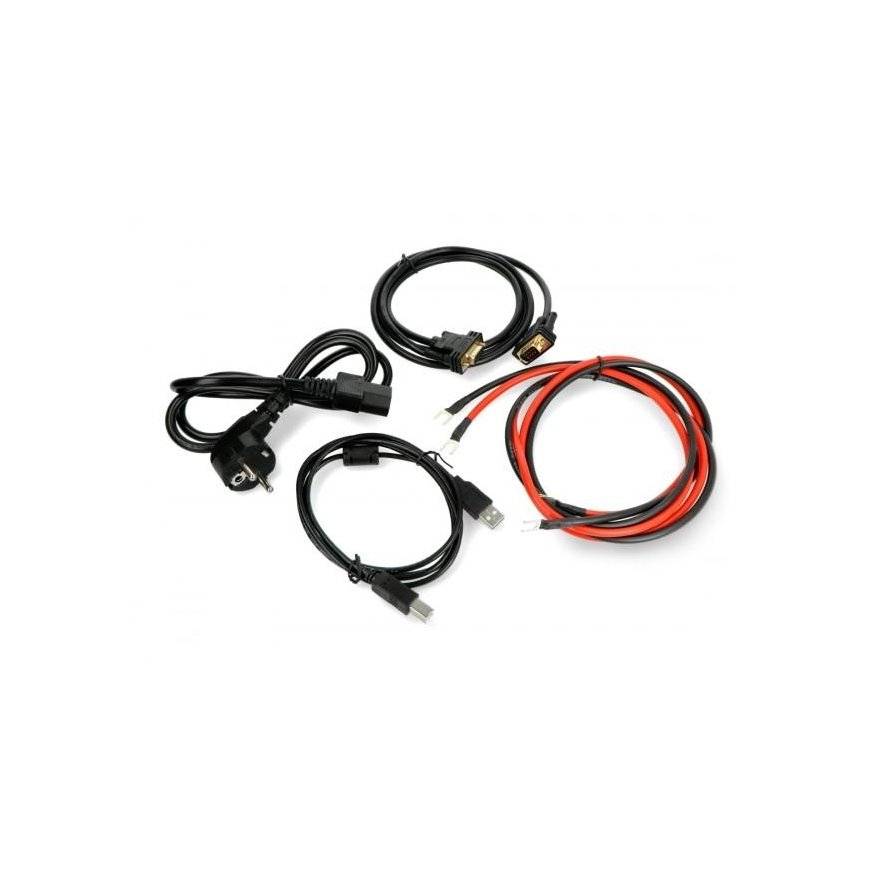

In the kit:
- Korad KWR103
- Power cord
- USB cable
- RS232 cable
- Instructions for use
