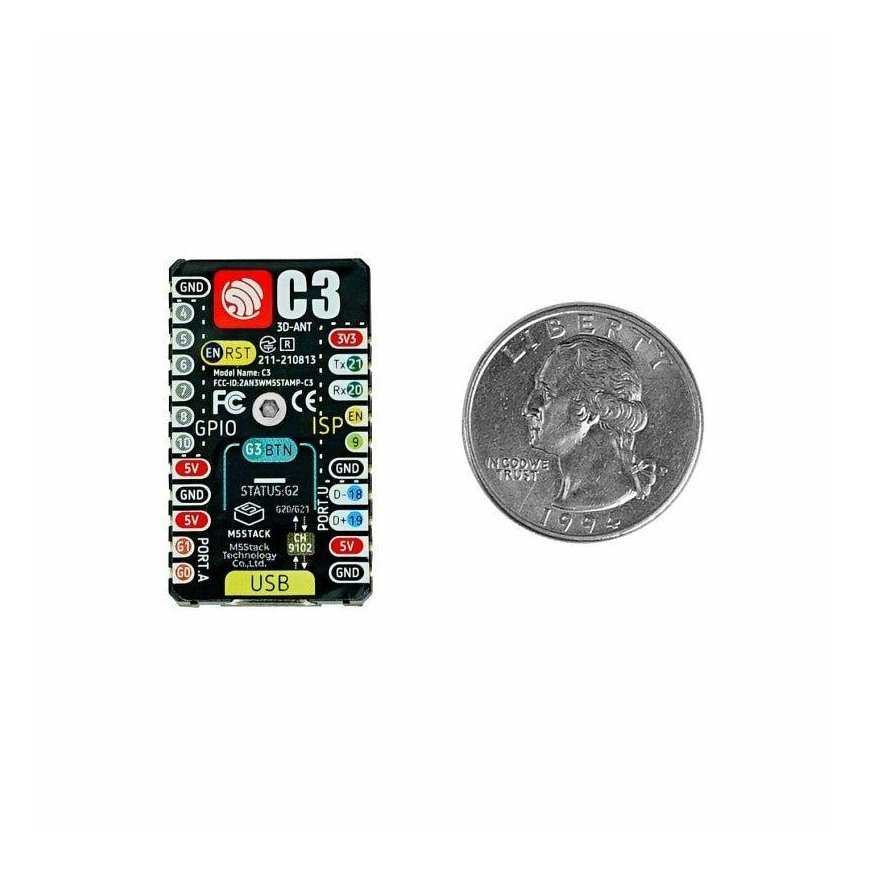

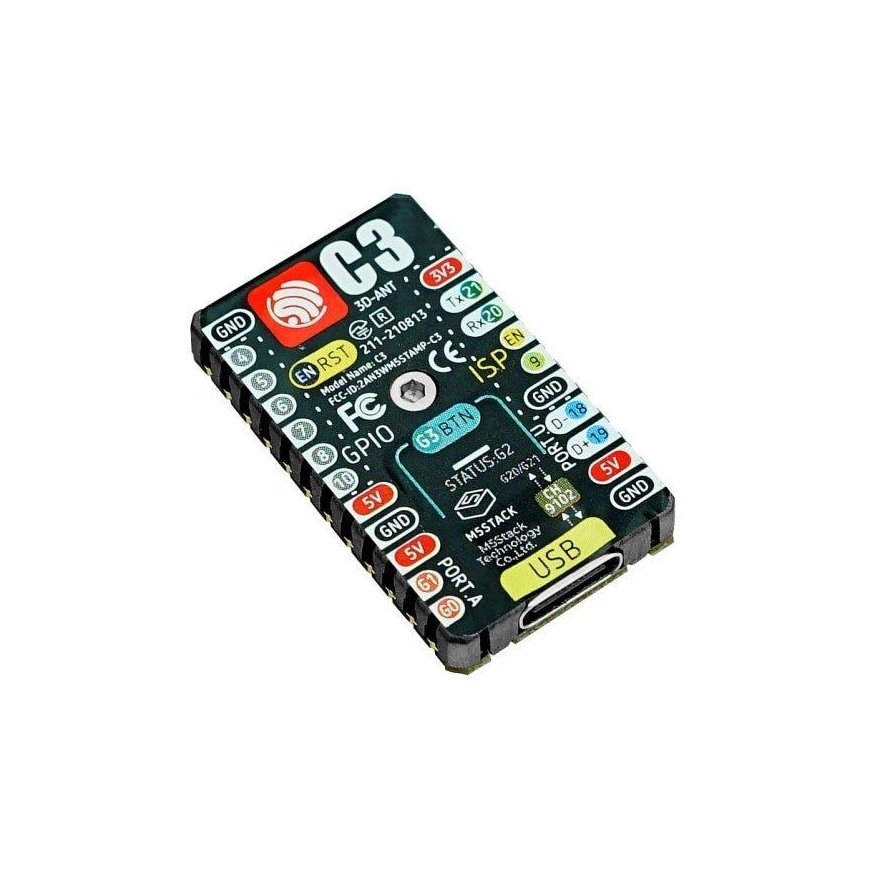

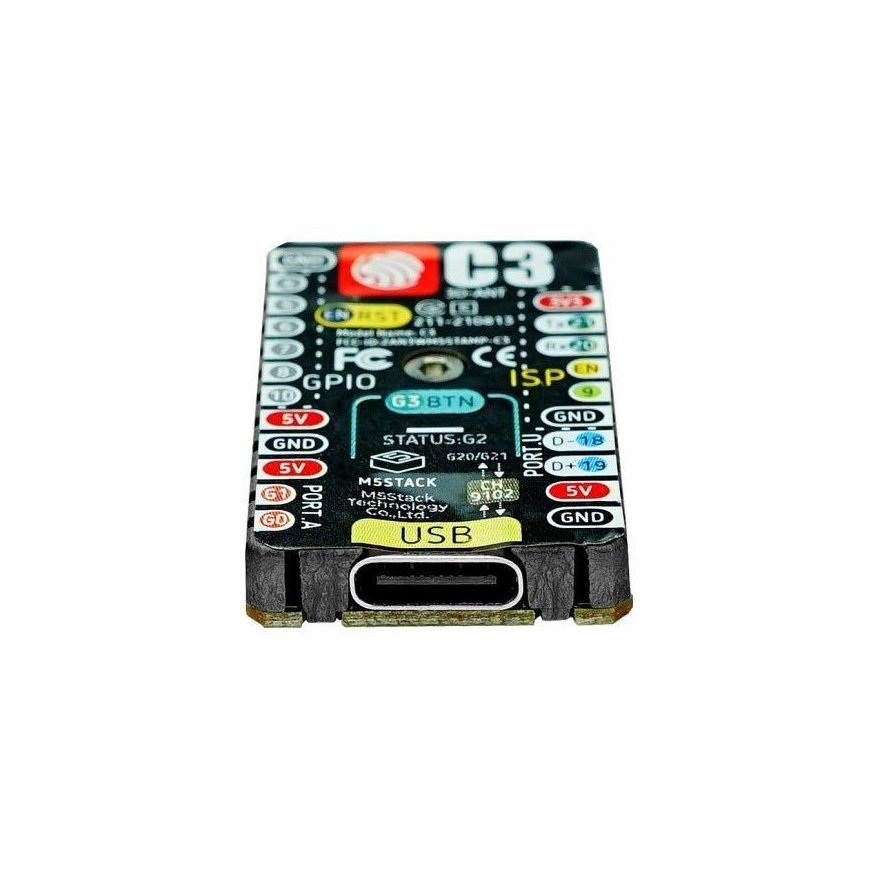

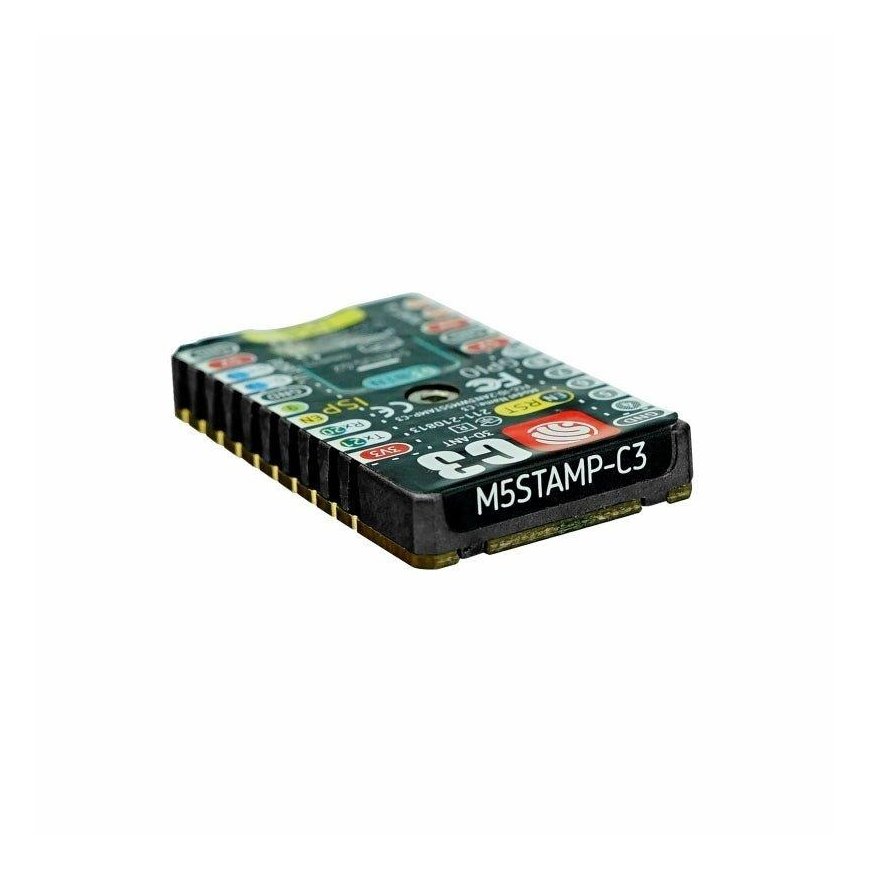

M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips – 2
M5Stack M5Stamp C3 Mate with Pin Strips – 3
M5Stack M5Stamp C3 Mate with Pin Strips – 4
M5Stack M5Stamp C3 Mate with Pin Strips – 5
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips
M5Stack M5Stamp C3 Mate with Pin Strips

Оттенок товара и его реальный цвет могут отличаться от того, что показано на фотографии, так как изображения носят иллюстративный характер. Описание товара является общим и может не включать все его характеристики.

M5Stack M5Stamp C3 Mate with Pin Strips

22.01 €
3583404

AN-20528

5904422381516

Доставка 11-18 р.д.

Вас заинтересовал этот товар?
(Прочитать условия обслуживания)

Все о продукте

The M5Stack M5Stamp C3 module features an Espressif ESP32-C3 Risc-V microcontroller with WiFi and Bluetooth wireless connectivity for IoT devices. The combination of an RSA-3072-based secure boot chip and AES-128-XTS-based Flash memory encryption ensures secure Bluetooth communication, making it an optimal device for industrial IoT and data acquisition applications. The Stamp C3 is based on a 32-bit microcontroller with a clock frequency of 160 MHz and has 400 kB RAM and 4 MB Flash memory. It supports Bluetooth 5 LE connectivity and long-range and mesh networking functions.

Main features:
  • Three types of soldering options available (SMT, DIP, flywire), with heat-resistant plastic housing, maximum temperature 230 °C
  • Stamp C3 has a 5 V - 3.3 V DC/DC voltage converter, GPIOx13, programmable RGB LED x1, Reset button x1, push-button x1, 3D antenna ensuring stable and reliable wireless connection
  • Stamp C3 is fully compatible with Arduino, ESP32-IDF and other popular development platforms to quickly create a variety of applications (UIFlow support coming soon)
Specifications:
  • ESP32-C3: 32-bit single-core RISC-V processor with a clock frequency of 160 MHz
  • Memory: 384 KB ROM, 400 KB SRAM, 8 KB RTC SRAM, 4 MB Flash
  • WiFi: 2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data transfer rate up to 150 Mbps
  • Bluetooth 5, supported data transfer rates 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
  • Input voltage: 5V/500mA
  • HMI: programmable physical button x 1, debugging reset button x 1, programmable RGB LED (SK6812) x 1
  • 1 x USB-C interface
  • Antenna type: 2.4 GHz 3D antenna
  • Peripheral module interfaces: ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI
  • IO interface x13: G21, G20, G9, G18, G19, G1, G0, G10, G8, G7, G6, G5, G4
  • Pitch: 2.54 mm
  • Product dimensions: 34 x 20 x 4.5 mm
  • Weight: 3.8 g

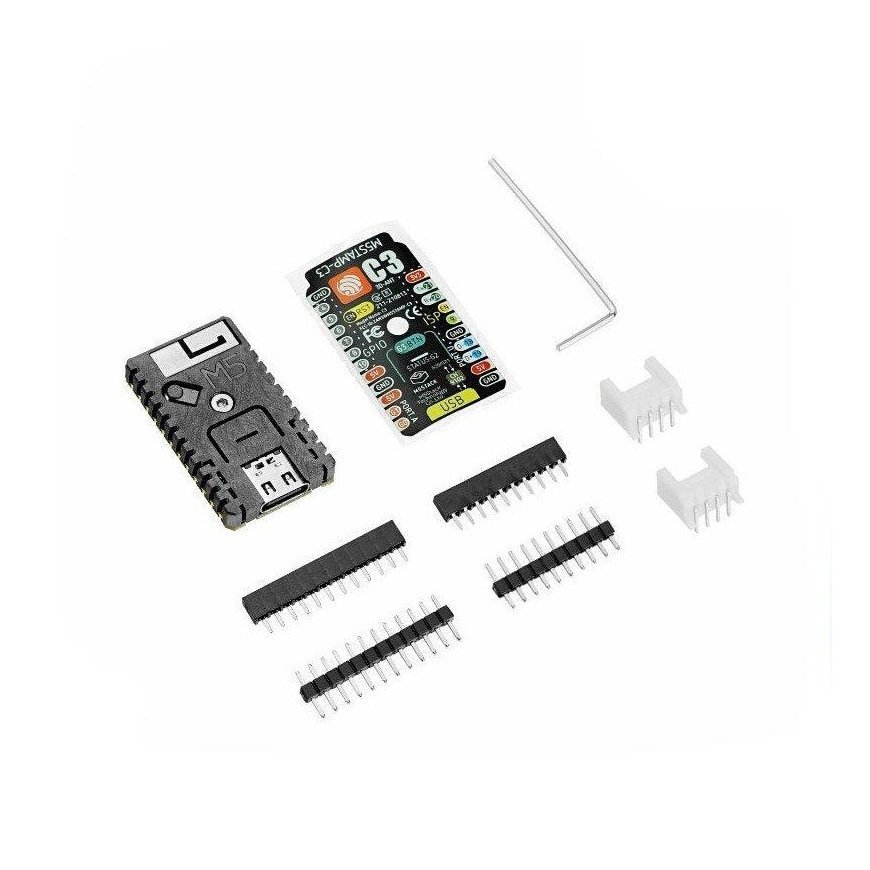

Included:
  • 1 x M5Stamp C3
  • 1 x heat-resistant lid
  • 2 x 9 pin strip - 2.54 mm pitch
  • 2 x 6 pin strip - 2.54 mm pitch
  • 2 x 90° Grove connector
  • 1 x M2 hex wrench
