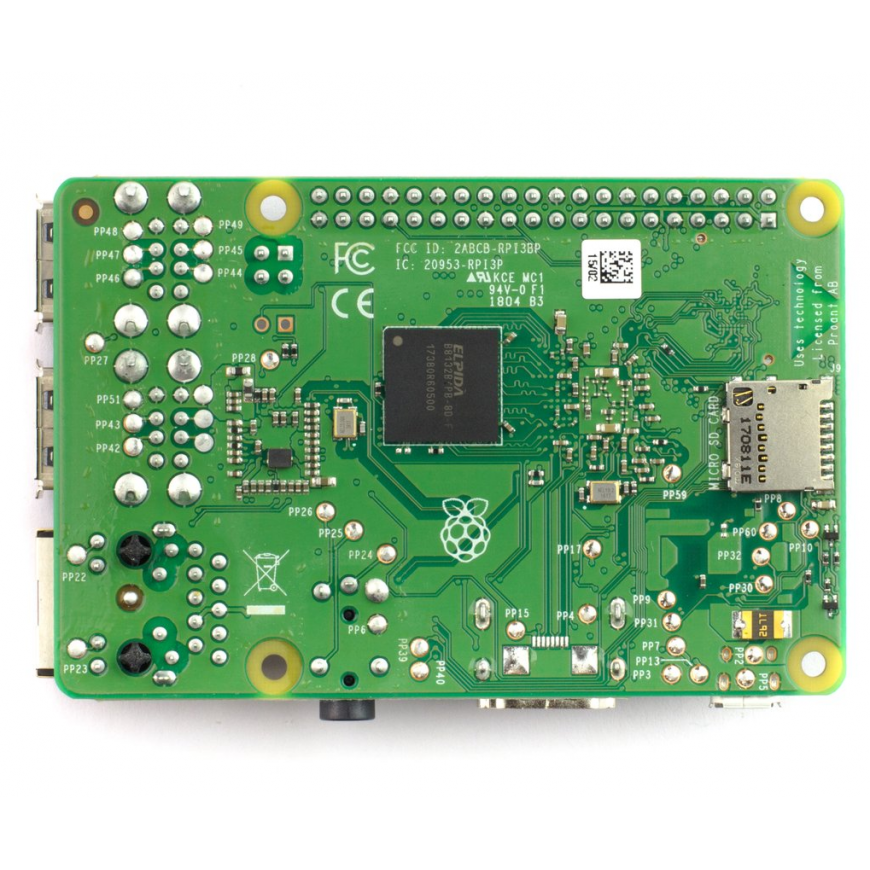

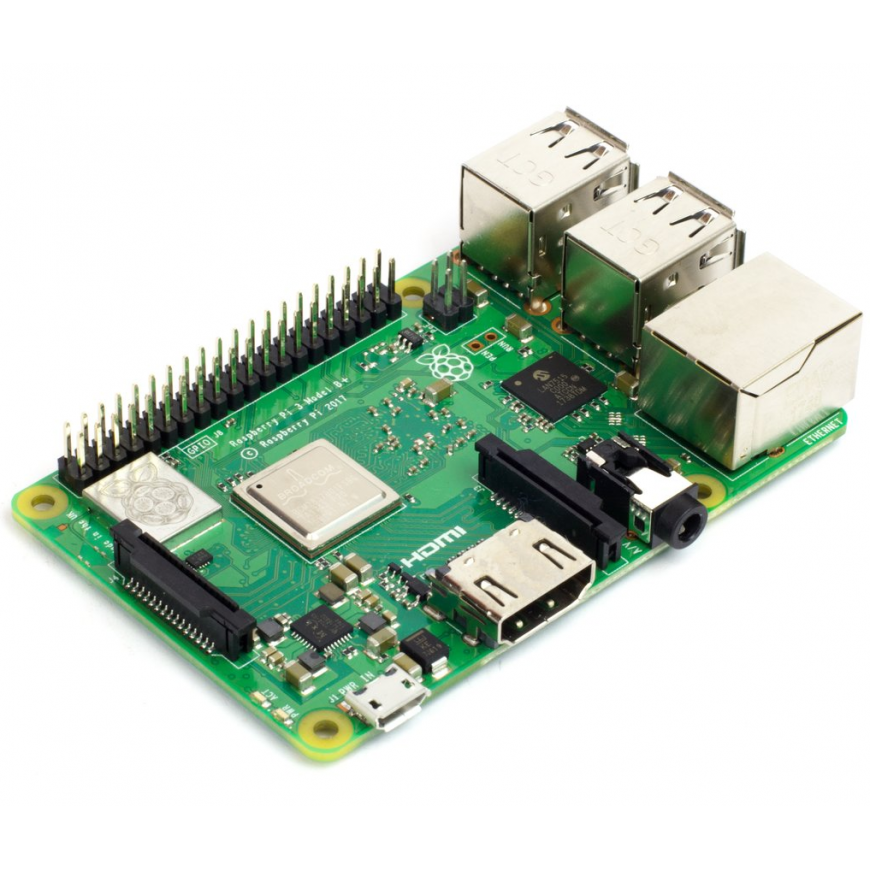

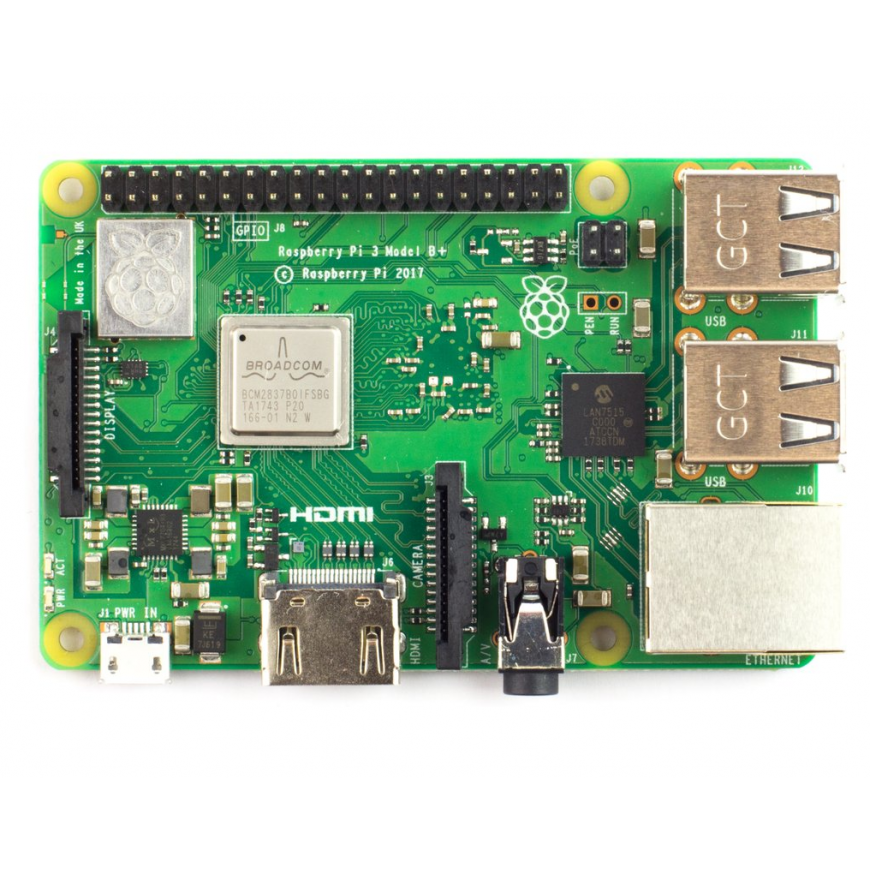

Raspberry Pi 3 B+ WiFi Dual Band Bluetooth 1GB RAM 1.4GHz

Все о продукте

Raspberry Foundation product - Pi 3 B+. This model is distinguished by a faster processor - Broadcom BCM2837B0, quad-core, 64-bit ARM-8 Cortex-A53 with a frequency of 1.4 GHz. Also, the microcomputer has an integrated WiFi 2.4 GHz and 5 GHz, Bluetooth 4.2 / BLE, a Gigabit Ethernet port supporting a speed of up to 300 Mb/s and the possibility of PoE power supply using an extension. All other technical specifications are identical to the Pi 3 B model: 4x USB slots, 40 GPIOs, microUSB card slot, DSI and CSI connectors.

Image and sound

Raspberry Pi has an HDMI 1.4 socket, which can be used to transmit both video and audio. In addition, the microcomputer has a 4-pole socket jack 3.5 mm, which allows you to connect headphones, speakers or output the image via standard RCA Composite. The device supports H.264 (1080p30) compression and OpenGL ES 1.1 and 2.0 graphics.

operating system

A Raspberry Pi is a microSD card. The operating system can be saved with the help of a computer using an adapter. In our store, you can buy microSD cards with pre-loaded software NOOBS, or you can buy a complete microcomputer kit together with the card. NOOBS software allows you to write the following systems on first boot: Raspbian, Openelec, RaspBMC, OSMC Linux. The buyer can also register a Windows 10 IoT system.

Communication

Raspberry has the basic communication interfaces found on desktop computers. Also, in addition to the listed audio and video sockets, the user can use the following connections:

• Four USB sockets, thanks to which you can connect a mouse, keyboard, WiFi adapter or pendrive. If the number of these slots is too small, it is possible to expand their number using a USB HUB hub.
• Ethernet socket for direct connection to LAN.
• WiFi module - provides wireless communication at 2.4 GHz and 5 GHz 802.11b/g/n/ac frequencies.
• Bluetooth 4.2 module - allows data transfer via the popular interface
• GPIO - general purpose inputs/outputs, which can be used to connect LEDs, buttons, motor controllers. These include connectors for I2C, SPI and UART interfaces.


feed

As a power source, the microcomputer uses a microUSB connector. The manufacturer recommends using a source with a current of at least 2.5A.

Technical parameters:

• Processor: Broadcom BCM2837B0 64-bit
• Cores: Quad-Core ARM Cortex-A53
• Operating systems: Linux, Raspbian, Windows 10 LoT
• Clock frequency: 1.4 GHz
• Architecture: ARMv8-A
• RAM: 1 GB LPDDR2 @ 900 MHz
• GPIO: 40-pin (2x20 pin) raster 2.54 mm
• Power: 5.0 V / 2.5 A via microUSB connector, 5 V via GPIO, PoE via add-on
• Dimensions: 85 x 56 x 17 mm
• USB: 4x USB A 2.0
• Network: Ethernet 100/1000 Gbps
• WiFi: Dual Band 2.4 GHz and 5 GHz 802.11 b/g/n/ac
• Bluetooth: Low Energy, BLE 4.2
• Camera: CSI slot
• Touch screen: DSI socket
• Video: HDMI HD 1080px / 30 fps, H.264 1080p30, OpenGLES 1.1, 2.0
• Communication: UART, SPI, I2C, GPIO
