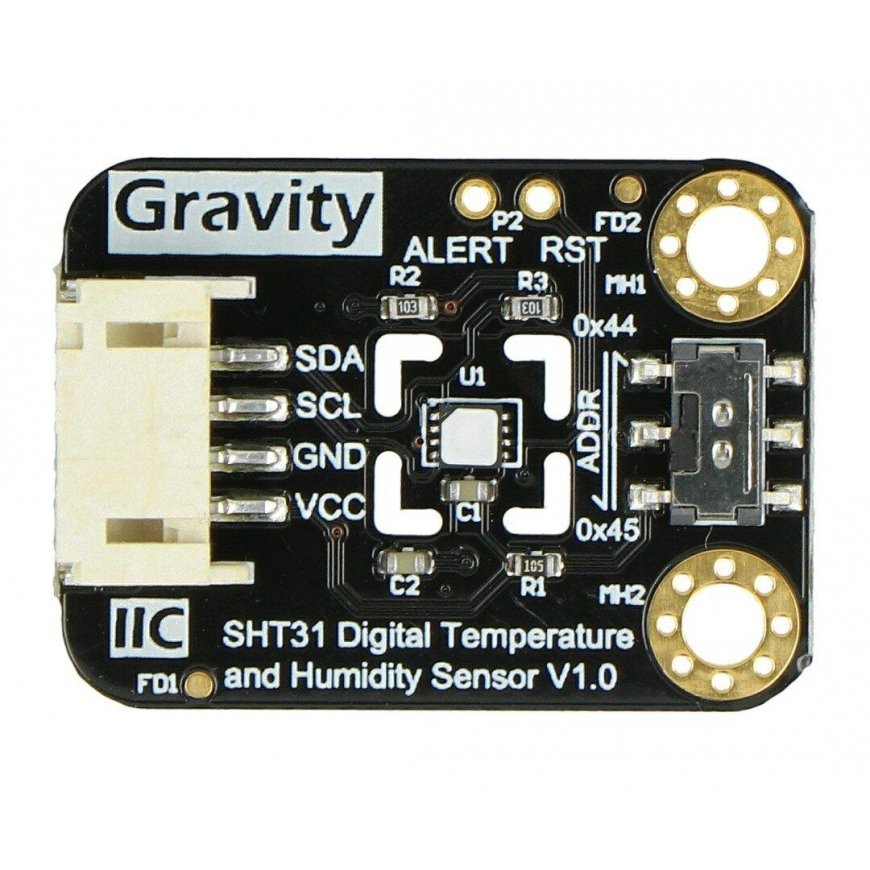

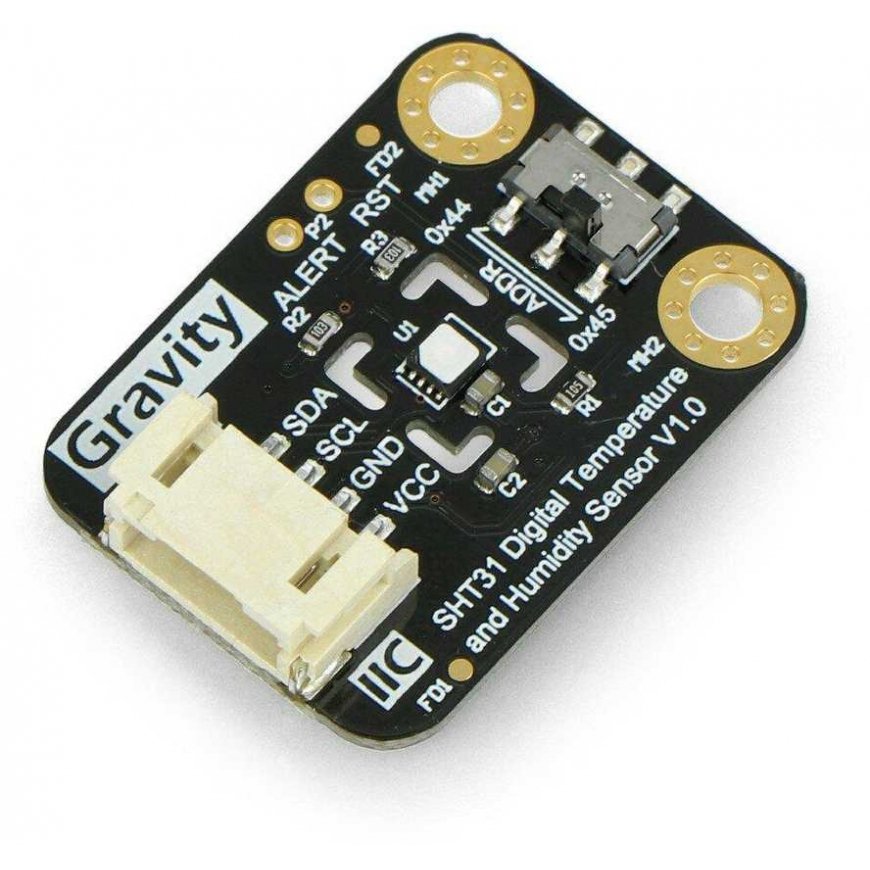

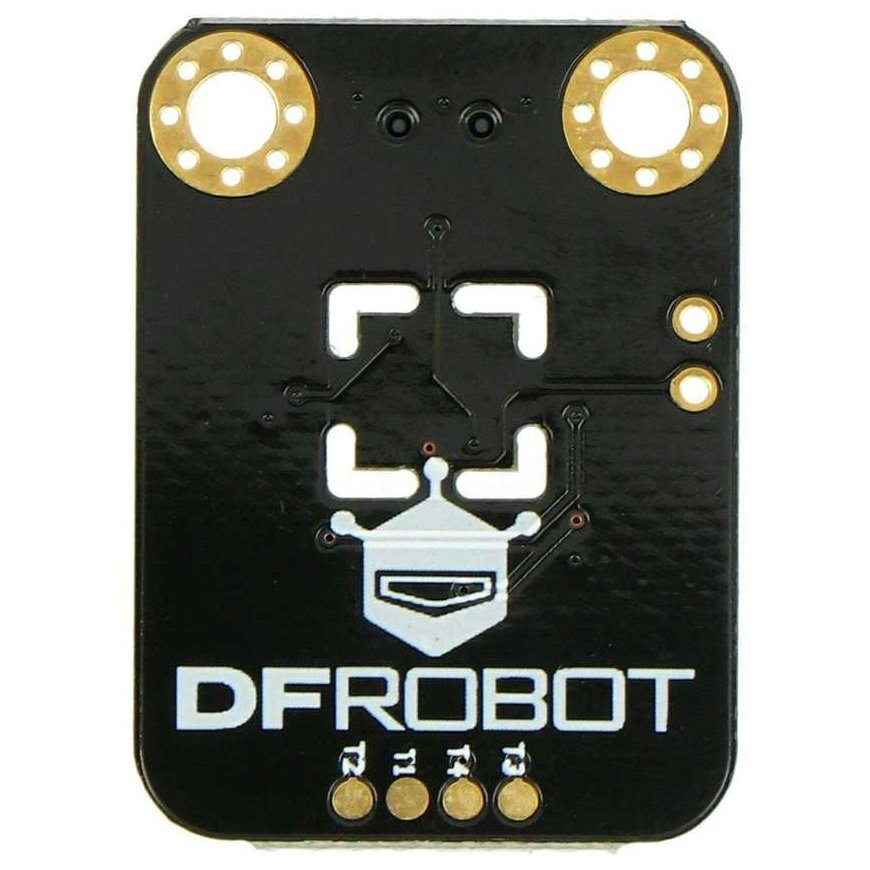

SHT31-F digital temperature and humidity sensor I2C, DFRobot SEN0334
3565911 AN-17380
5904422378578
Доставка 11-18 р.д.
Все о продукте
The Sensirion SHT31-T sensor is based on the Sensirion SHT31-T sensor chip. A DFRobot product that supports I2C communication. Works great with 3.3 V / 5 V Arduino, micro:bit, ESP32 type controllers. The measurement range is very wide. Temperatures from -40 °C to 125 °C (measurement accuracy ±0.2 °C) and humidity from 0% to 100% RH (error ±2% RH). The sensor has automatic calibration with high accuracy. In addition, it consumes little power and still remains resistant to interference. The installed dust-proof IP67 foil additionally protects the module from external factors.
Specifications:
- Operating voltage: 3.3 to 5.5 V
- Operating current: 1.5 mA
- Communication port: Gravity-I2C 4-pin
- Temperature
- Measurement range: -40 °C to 125 °C
- Accuracy: ±0.2°C
- Humidity
- Measurement range: 0% to 100% humidity
- Accuracy: ±2%RH from 0%RH to 90%RH (at 25℃)
- Communication: I2C
- Outline dimensions: 32 x 22 mm
- Mounting hole size: 3 mm
- Mounting hole spacing: 15 mm

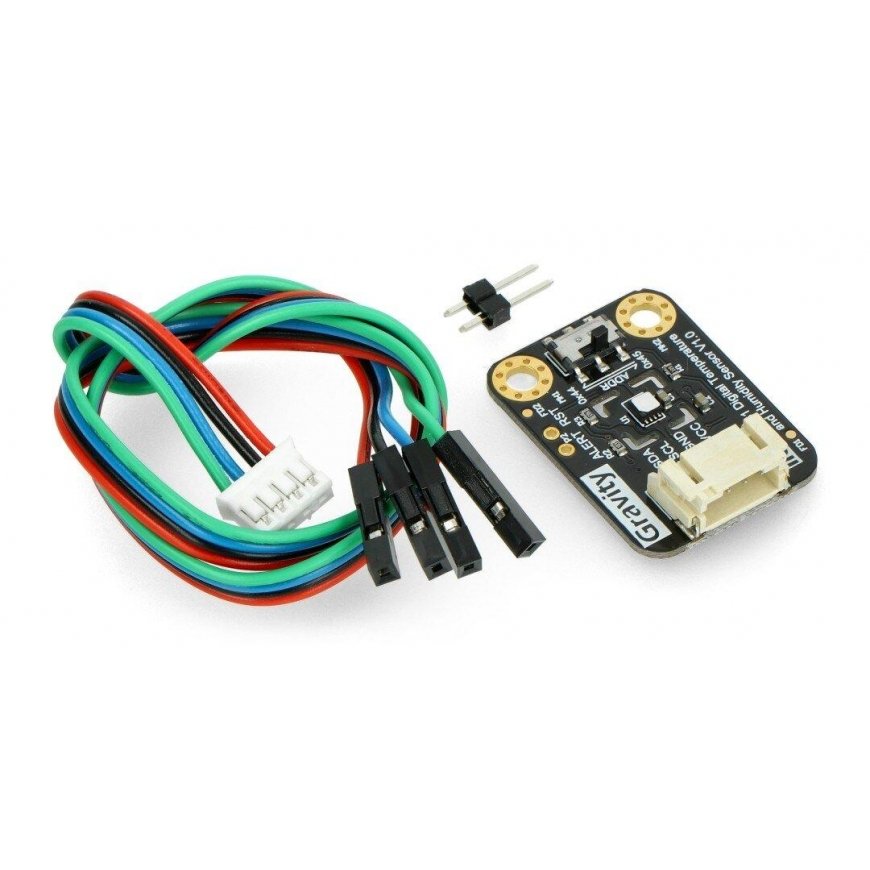

Included:
- Gravity-4P I2C/UART sensor connector x1
- Black 2.54-2P pins, single row x1
