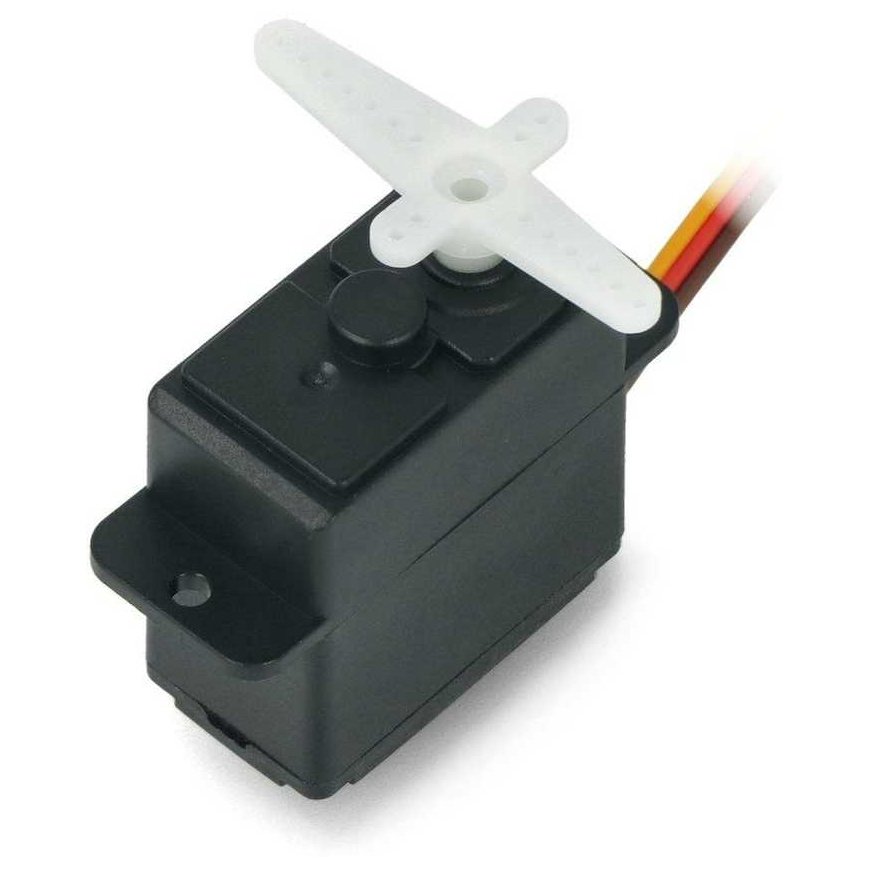

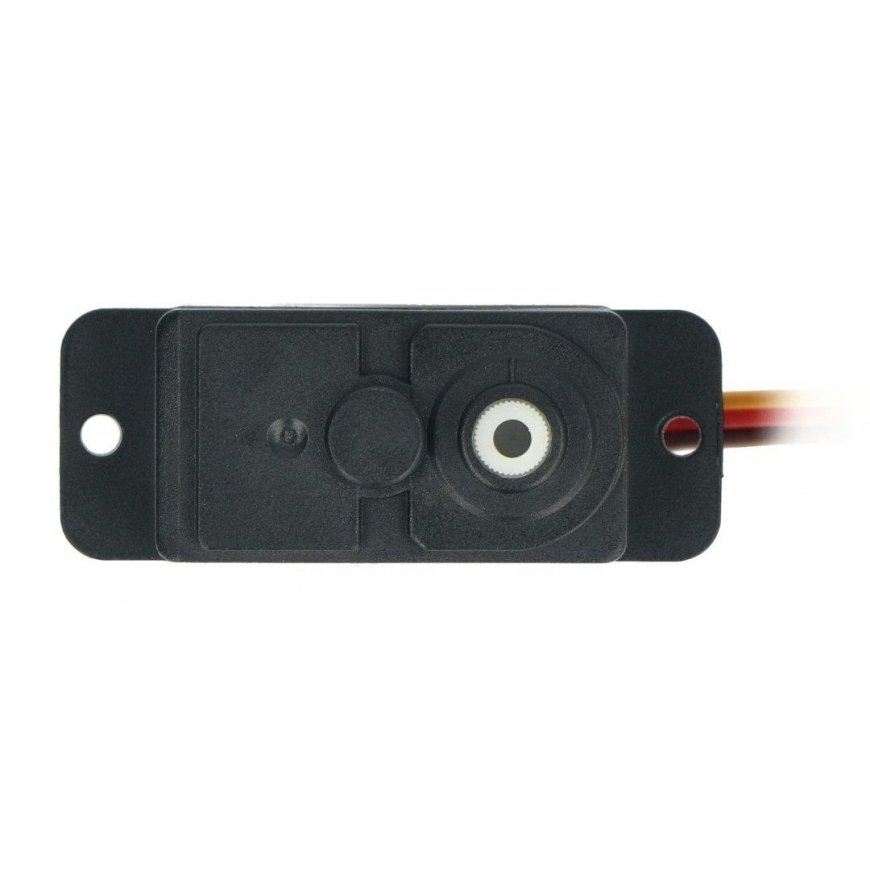

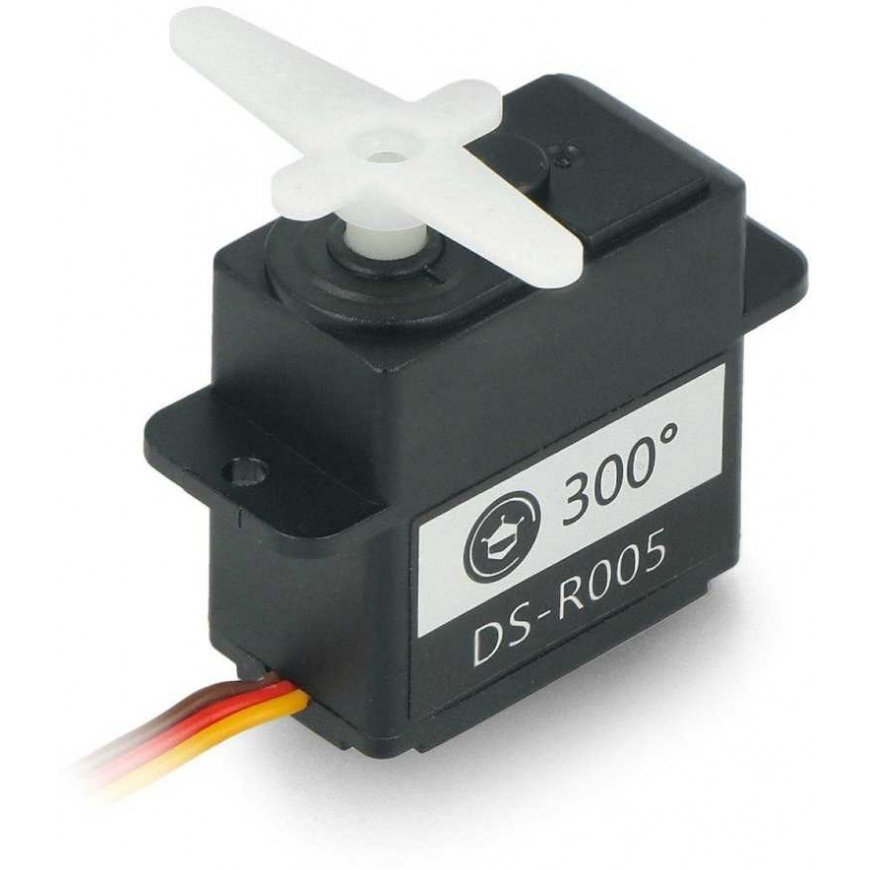

Servo DFRobot SER0056, standard, 2kg 300 degrees
21.22 €
3559161 AN-19206
5904422361693
Доставка 11-18 р.д.
Вас заинтересовал этот товар?
Все о продукте
This servo manufactured by DFRobot has the features of high torque, stable operation, precise working angle and easy installation. The working voltage of this model ranges from 4.8V to 6V. At 6V, the servo torque is 2kg/cm. You will not find any mechanisms inside this device that would limit its movement, so it will rotate 360° manually. Meanwhile, the servo can operate smoothly with minimal power, it can be powered by batteries. In addition, users can directly control the servo control using the Arduino IDE servo libraries and let it reach a maximum rotation angle of 300° in the pulse range of 500-2,500μs.Specifications:
- Operating voltage: 4.8 V to 6 V
- No restriction of movement
- Rated current consumption: ≤8 mA at 6.0 V
- Current consumption without load:
- ≤110 mA at 4.8 V
- ≤120 mA at 6.0 V
- Current consumption when the shaft is stopped:
- ≤700 mA at 4.8 V
- ≤800 mA at 6.0 V
- Nominal torque:
- ≥0.45 kg/cm at 4.8 V
- ≥0.55 kg/cm at 6.0 V
- Torque:
- ≥1.6 kg/cm at 4.8 V
- ≥2.0 kg/cm at 6.0 V
- Working angle: 300° ±10°
- Communication mode: PWM
- Pulse width range: 500 to 2500 μs
- Dimensions: 42.4 x 16.6 x 31.5 mm

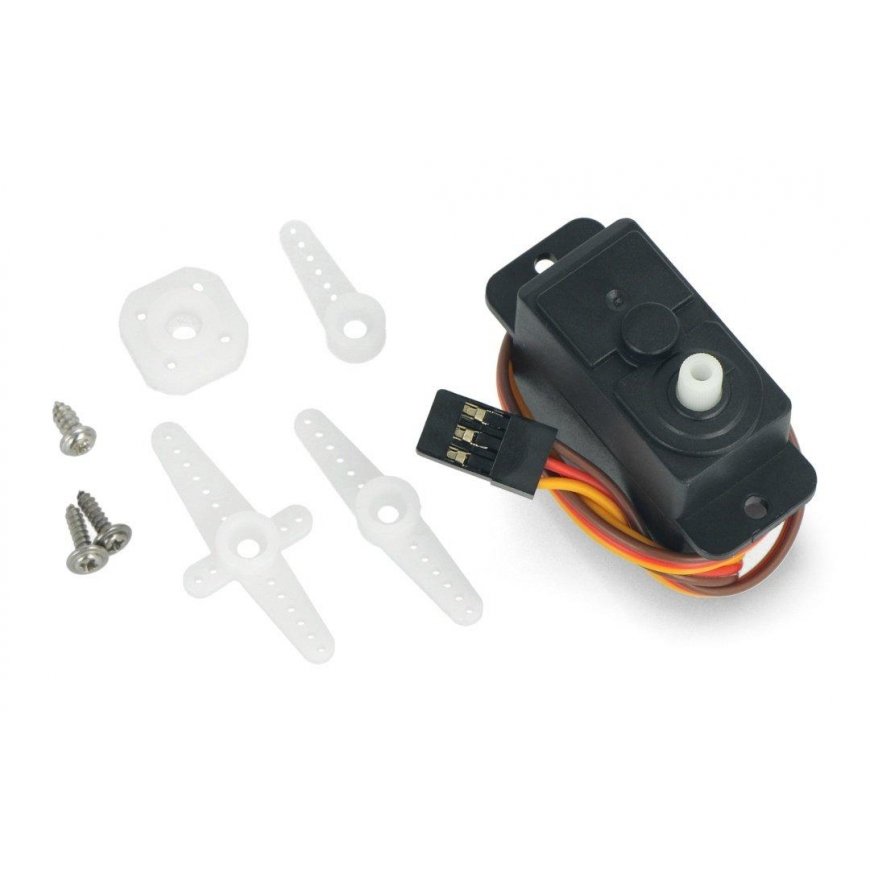

- 2kg 300° servo x1
- Servo Plate and Accessory Set x1 (Set of Rings, Washers and Screws)
