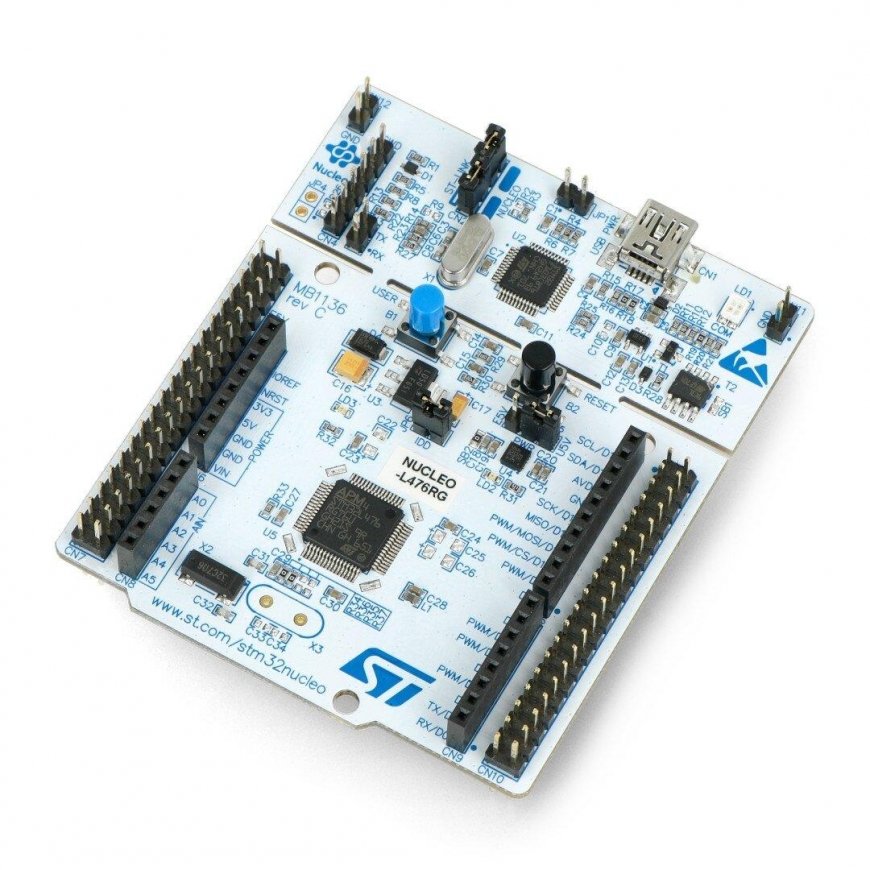

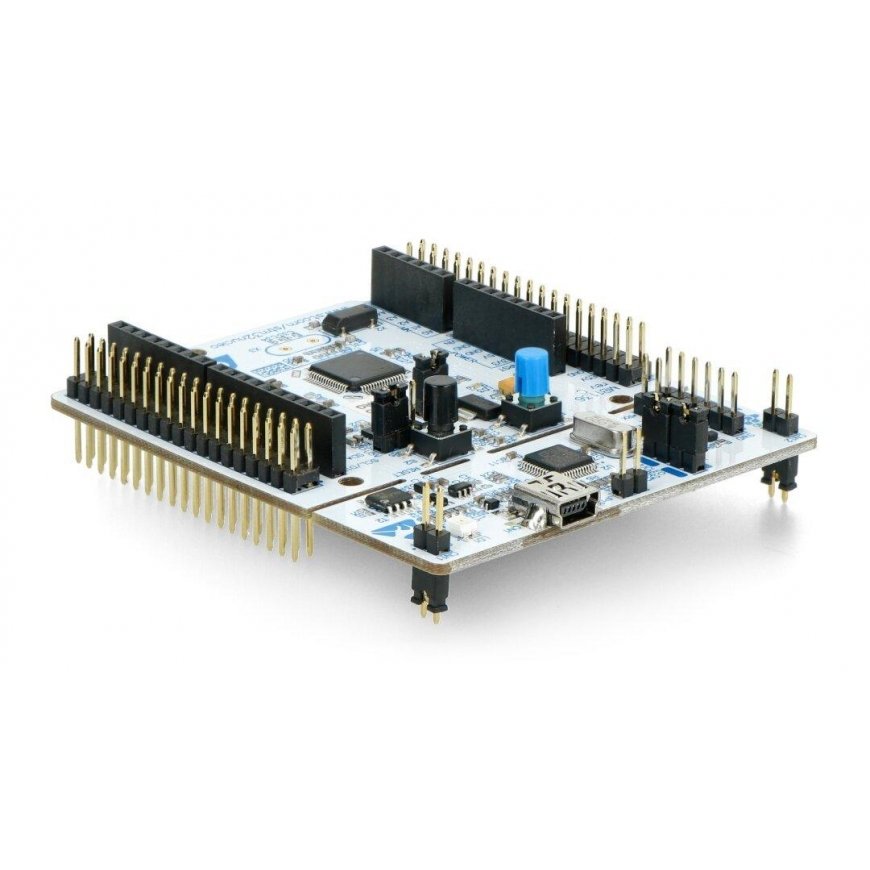

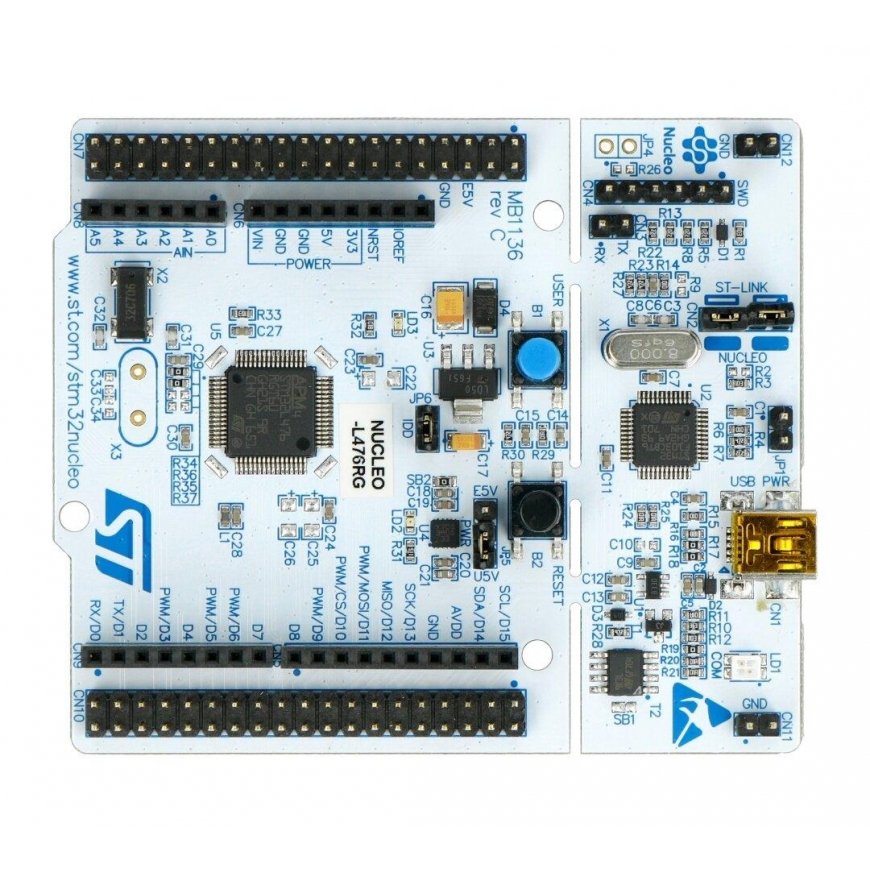

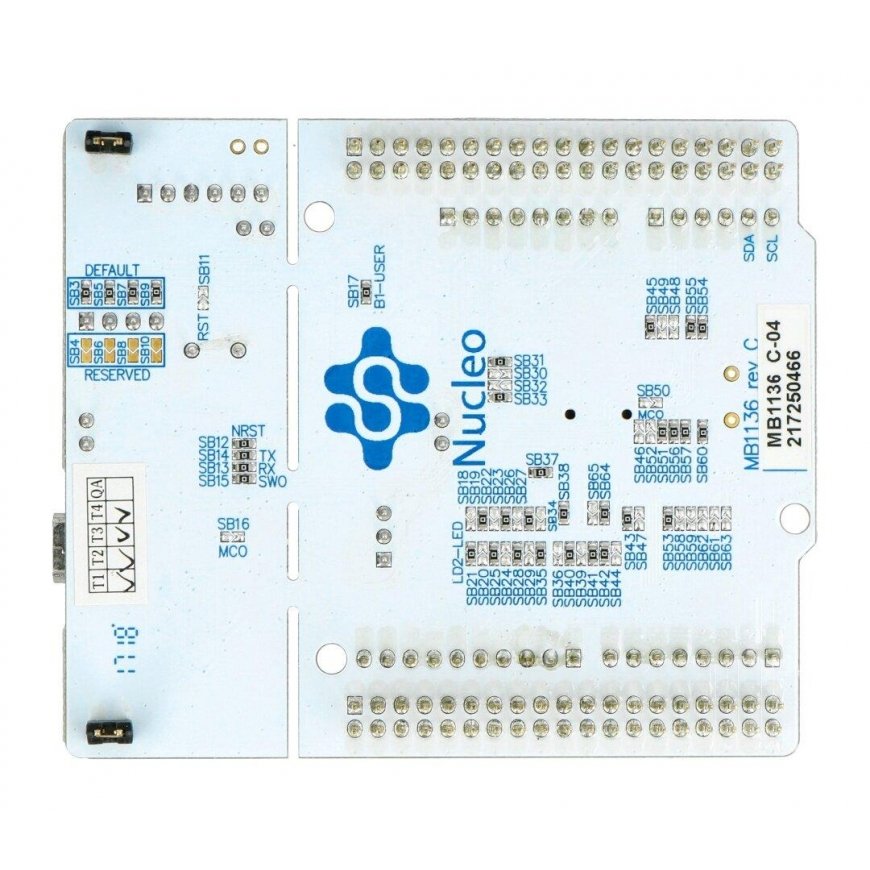

Stmicroelectronics STM32 NUCLEO-L476RG - with STM32L476RGT6 ARM Cortex M4 MCU
49.00 €
Мес. плата от 2,16 €
3557570 AN-18800
5904422364977
Доставка 11-18 р.д.
Вас заинтересовал этот товар?
Все о продукте
Nucleo module with 32-bit STM32L476RG microcontroller, featuring an ARM Cortex M4 core clocked at 80 MHz, 1 MB Flash memory, 128 kB SRAM. Nucleo is compatible with the mbed platform and has Arduino Shield connectors. It works with the most popular development platforms, including Keil, IAR and GCC compiler environments. The device includes an ST-LINK debugger/programmer.Specifications:
- Microcontroller: STM32L476RG
- Core: ARM Cortex M4 32-bit
- Clock frequency: 80 MHz
- Flash program memory: 1 MB
- SRAM: 128KB
- DMA: 14 channels
- Interfaces: 1 x CAN, 3 x I2C, 3 x SPI, 1 x I2S, 5 x UART/USART, 1 x LPUART, 2 x SAI, 1 x SWPMI, 1 x IRTIM, 1 x USB OTG, 1 x LCD controller, 24 x capacitive touch inputs, 1 x Quad SPI
- 3 x ADC: 16 bit
- 2 x DAC: 12-bit
- 2 x ultra-low power comparators
- Two types of connections:
- Connectors for Arduino Uno Rev3 compatible add-ons
- Standard STMicroelectronics Morpho pins allowing access to microcontroller contacts
- The module is compatible with the mbed system (mbed.org)
- ST-Link / V2 tuner is placed on the board with the ability to work as a standalone device with SWD output
- Possibility of power supply via USB connection
- Three integrated LEDs:
- 1 x indicates the supply voltage
- 1 x indicates connection
- 1 x user accessible
- Two buttons:
- 1 x RESET
- 1 x USER at the user's disposal
- Three different interfaces via miniUSB (USB re-enumeration):
- Virtual COM port
- Mass storage
- Programming/debugging port
- The module is supported in many popular environments, such as: IAR, Keil and platforms
