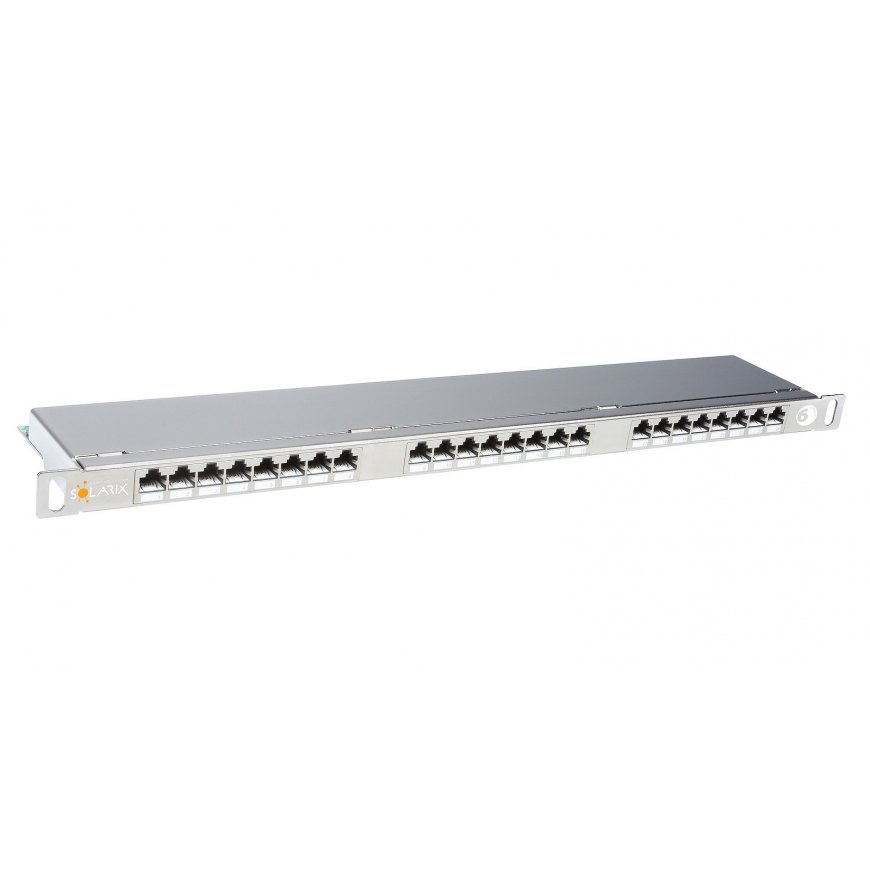

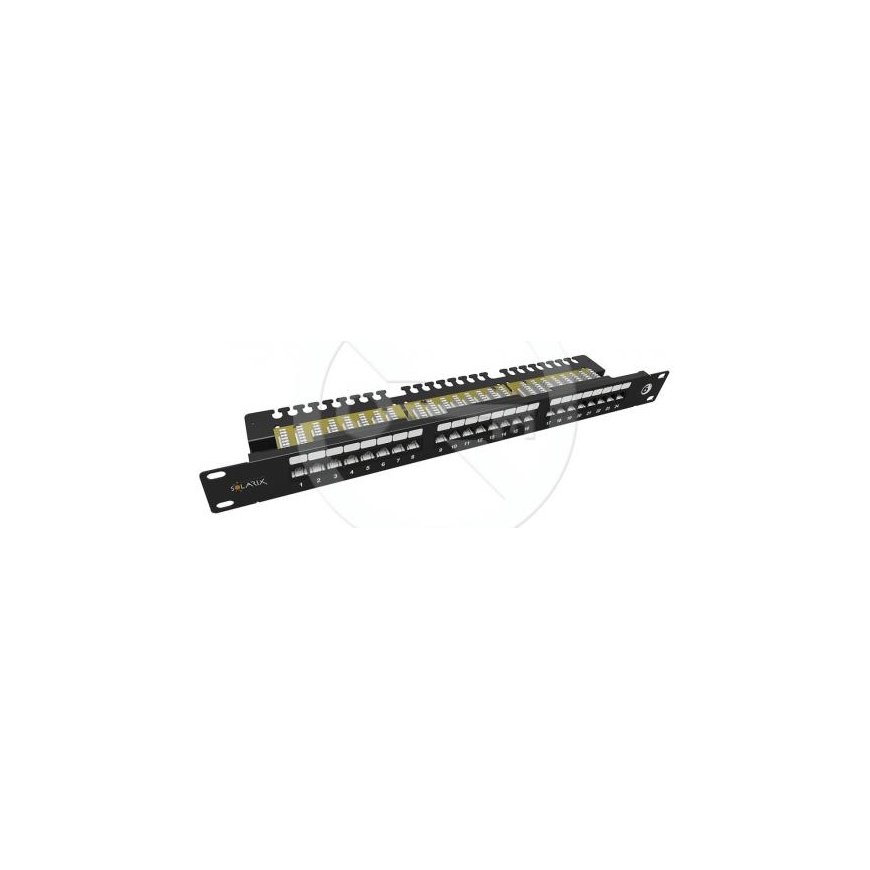

Solarix Patch panel 24xRJ45 CAT6 STP with binding strip 0.5U SX24HD-6-STP-SL
3557378 24000147
8595684700060
Доставка 12-16 р.д.
Все о продукте
Patch panel Solarix 24xRJ45 CAT6 STP with 0.5U binding strip
High density 0.5U shielded patch panel CAT6 24 ports with mounting strap.
Solarix patch panels, marked SX24HD-6-STP-SL, are high-density 19" 0.5U high patch panels with 24 RJ45 ports and a dual IDC terminal block 110/Krone. With these panels, the emphasis is on maximum space saving in the cabinet, where up to 48 ports can be easily installed in up to 1U height. These high-density Solarix panels are available in shielded and unshielded versions and easily comply with the requirements set out in international standards ANSI/TIA. 568, ISO/IEC 11801 and EN 50173, including all the latest amendments to Category 6 and Class E conductivity classes. The panels are designed to be robust, reliable, ensure maximum performance and allow for easy installation. The body of these panels has a tie strip that allows for a firm fixation and clear arrangement of the data cable. In the case of the shielded design, this panel is made of galvanized sheet.
| Technical details | |
| Category: | CAT6 |
| Supported protocols: | 2.5/5GBASE-T and older versions |
| Number of ports: | 24 |
| Shielding: | Yes |
| Binding tape: | Yes |
| Min. port operating time: | 1000 connections/disconnections |
| Contact coverage: | 50 µ gold and 100 µ nickel |
| Terminal block: | double 110 / Krone 8p8c |
| Min. terminal board service life: | 200 cuts |
| Wire size and type: | AWG 26 - 22, wire |
| Color: | silver |
| Size: | 0.5 U |
| Height: | 22 mm |
| Width: | 484 mm |
| Depth: | 100mm |
