Waveshare RGB LED Hat - Raspberry Pi 3/2/Zero Accessory
3555887 AN-08869
5904422375973
Доставка 11-18 р.д.
Все о продукте

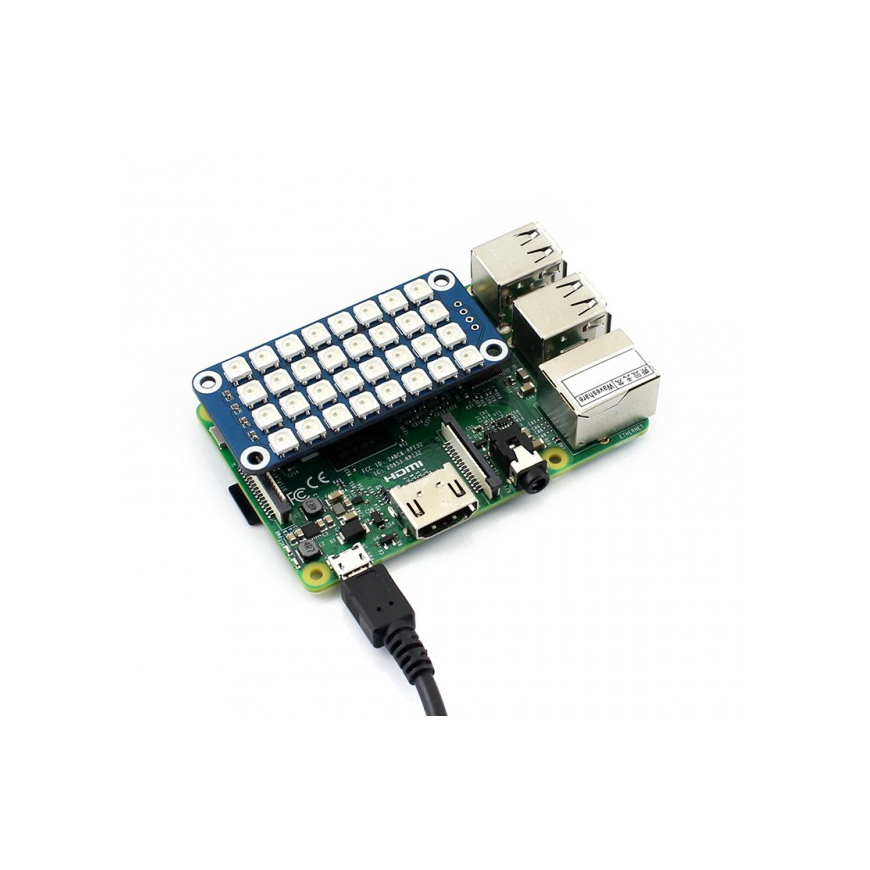

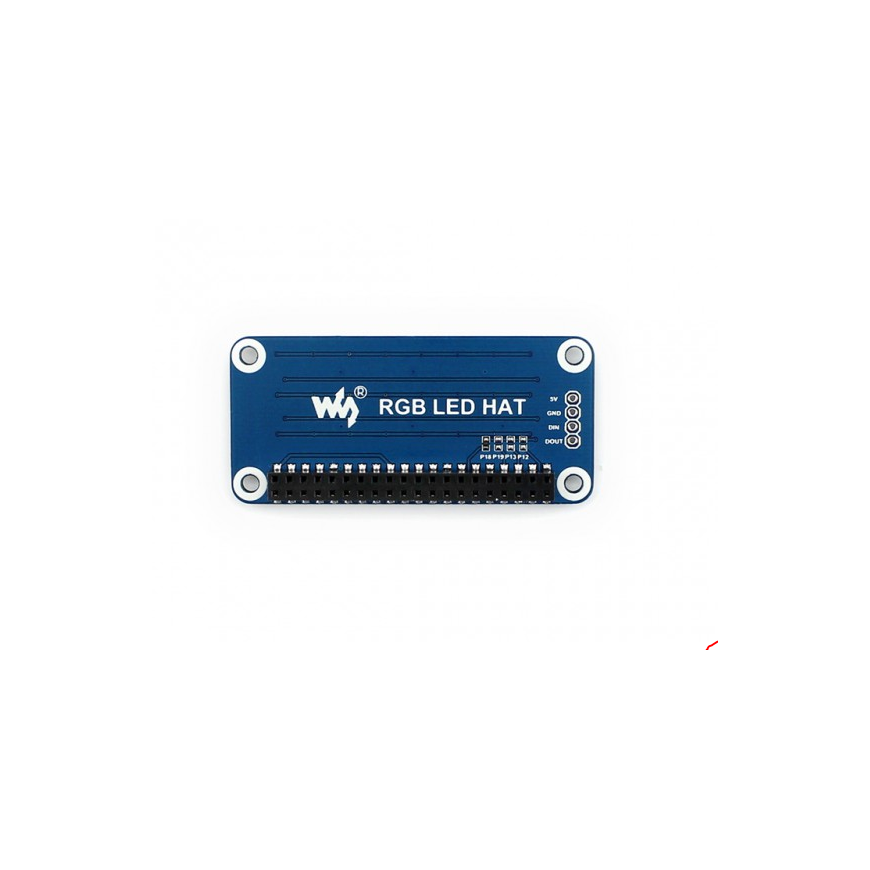

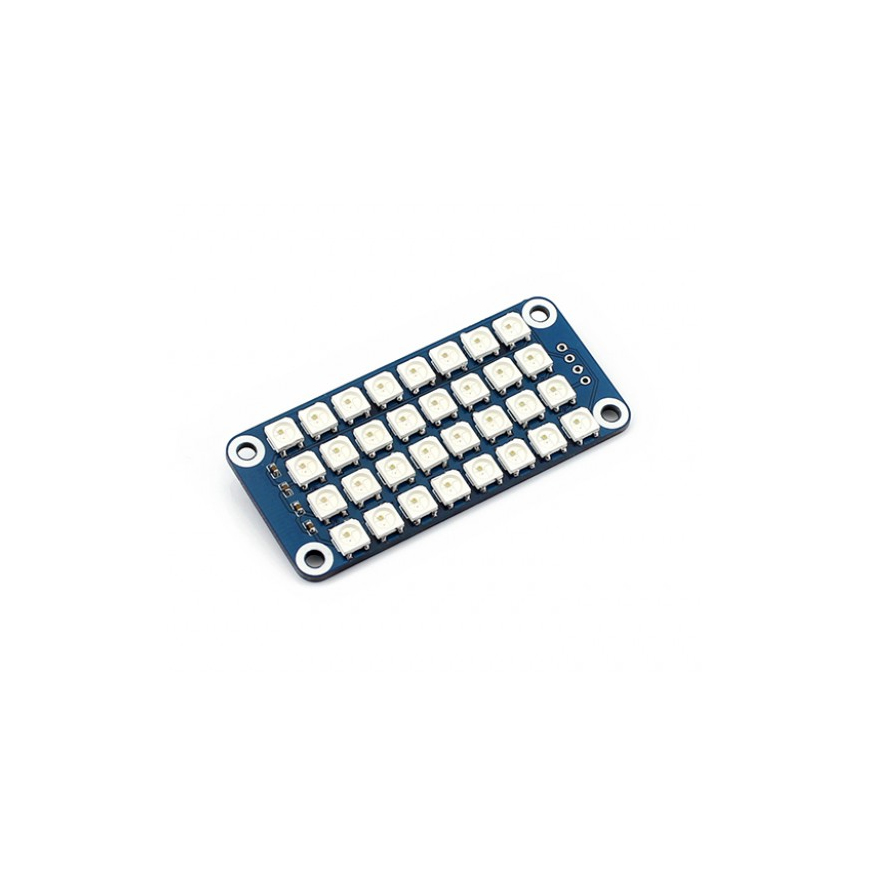

The RGB LED HAT is a 32 (4 x 8) color-changing LED module suitable for all Raspberry PI microcomputers. The module is easily connected to the microcomputer without any soldering, and only 1 signal connector is needed to control it. The diodes have 256 brightness levels. This module also has a signal output connector, which potentially allows you to connect a series of such modules.
Technical data:
● LED RBG diode type: WS2812B
● The kit includes a user manual and programming examples (Python and Web)
● Voltage: 5V
● 256 brightness levels
● Colors: 4-bit true color (8 bit R/G/B, total 256x256x256=16777216 colors)
● Data rate: 800Kbps
● Dimensions: 65mm × 30.2mm
● Suitable for all Raspberry PI models
References and application:
● User manual and examples
