Dfrobot RGB LED matrix 64x32 - 2048
3551986 AN-08363
5904422311575
Доставка 11-18 р.д.
Все о продукте

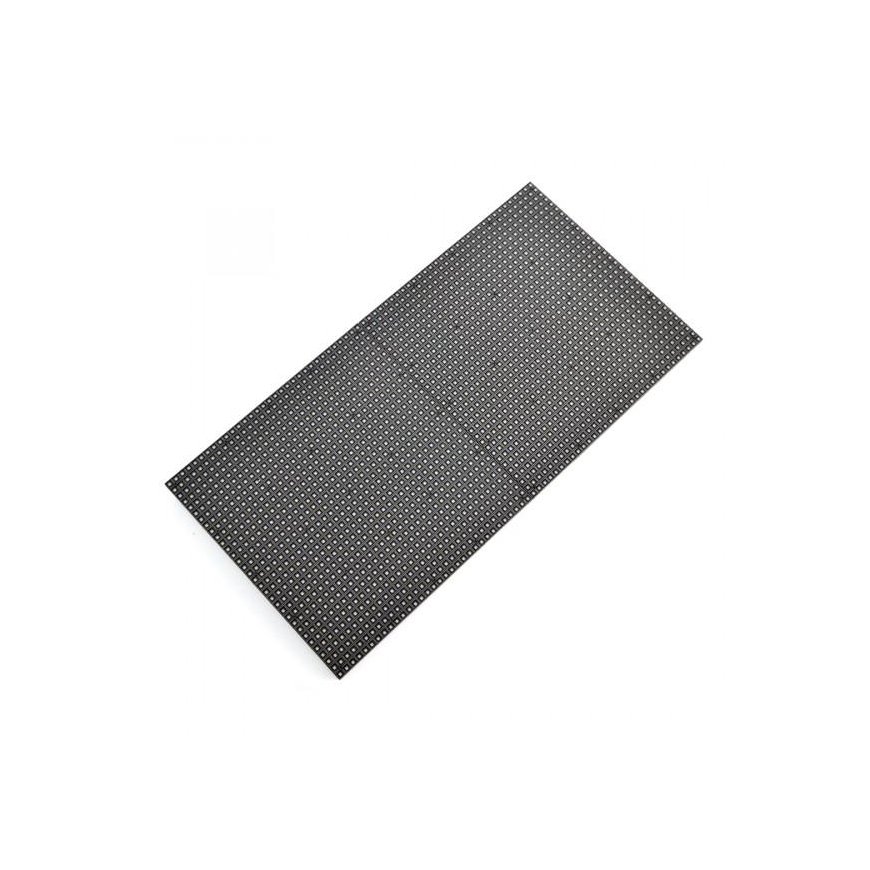

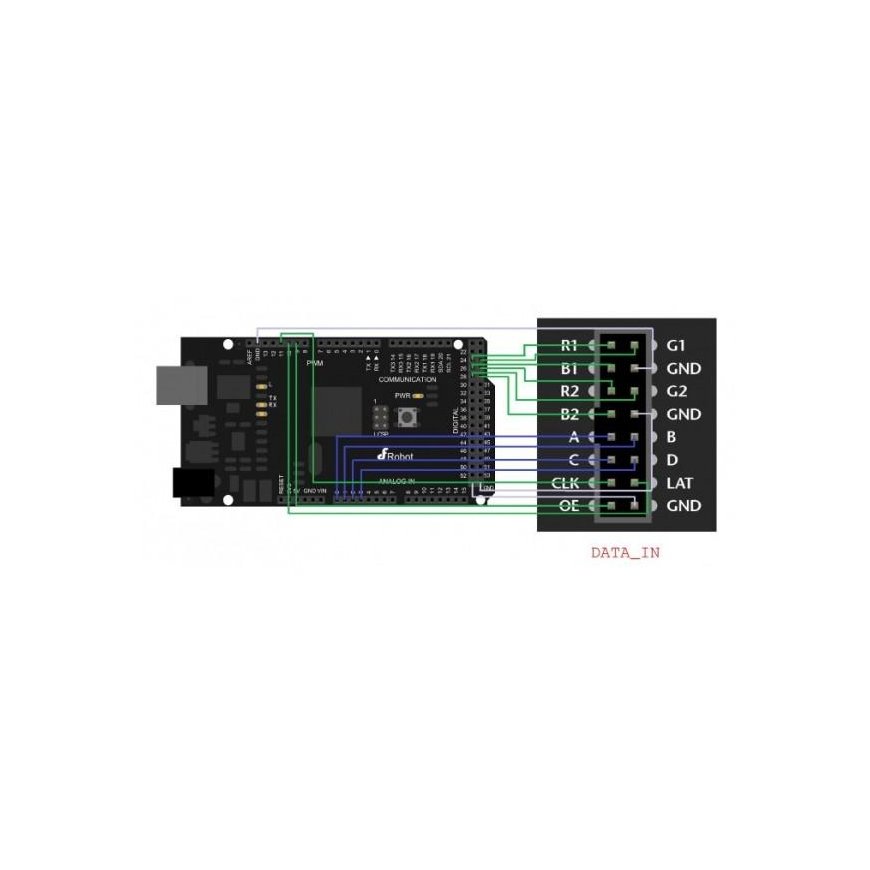

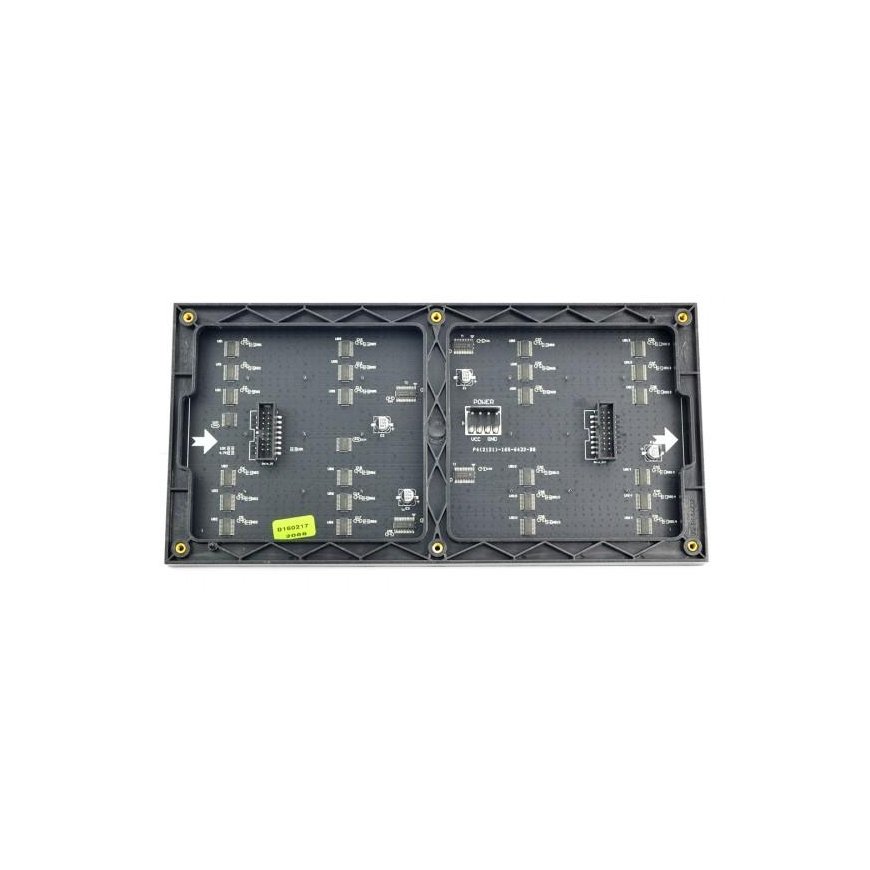

A matrix consisting of 2048 individually addressable RGB LEDs arranged in the form of 32 rows and 64 columns. Each pixel can emit colors from a 24-bit palette. To control the module, 13 microcontroller pins are enough. The distance between the diodes is 4mm. The supply voltage is 5V. The manufacturer recommends using a power supply with a minimum power of 4A. The matrix has two IDC connectors, which allows cascading many devices. The manufacturer recommends using devices with large RAM memory and fast, such as Raspberry Pi, Arduino Mega, etc. Arduino will not support all display functions, and its speed is insufficient for several elements connected in cascade.
Specification:
- Supply voltage: 5V
- Average energy consumption: up to 500 W/m2
- Maximum power consumption: up to 1000 W/m2
- Number of pixels: 2048 Viewing angle: 160°
- Synchronous control
- Control mode: 1/16 scan speed
- Refresh rate: at least 60 Hz
- White balance brightness: 1200 cd/m2
- Refresh rate: at least 300 Hz
- Pixel pitch: 4mm

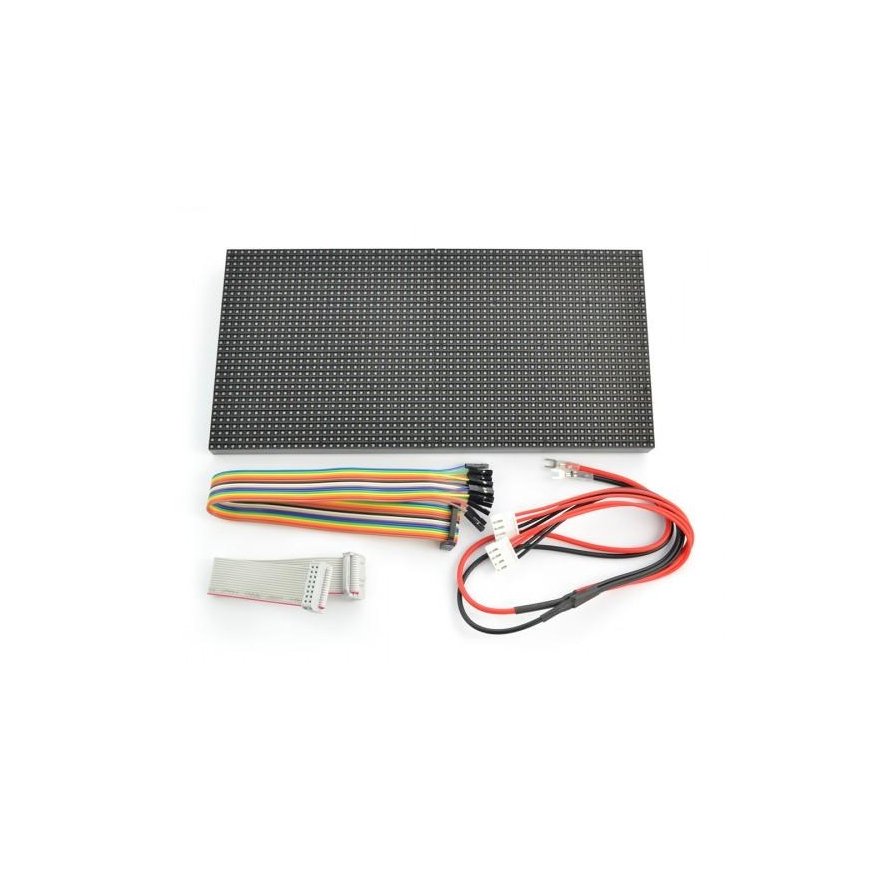

- Connection cables included
- Module dimensions: 255x127mm
- Thickness: 14mm
