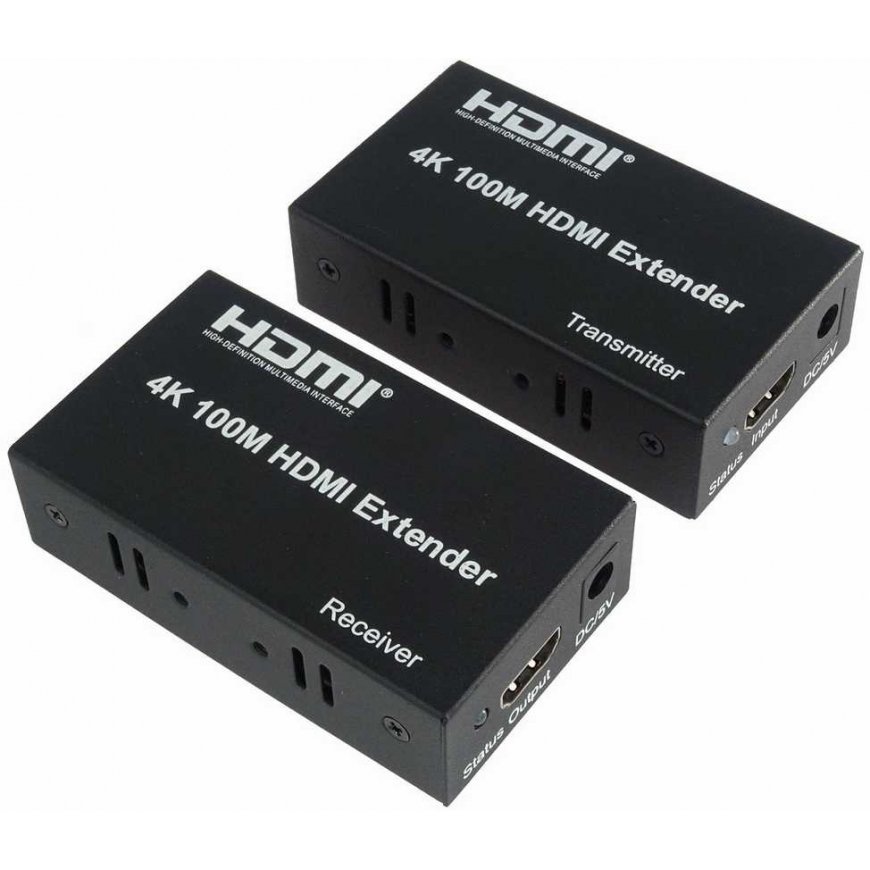

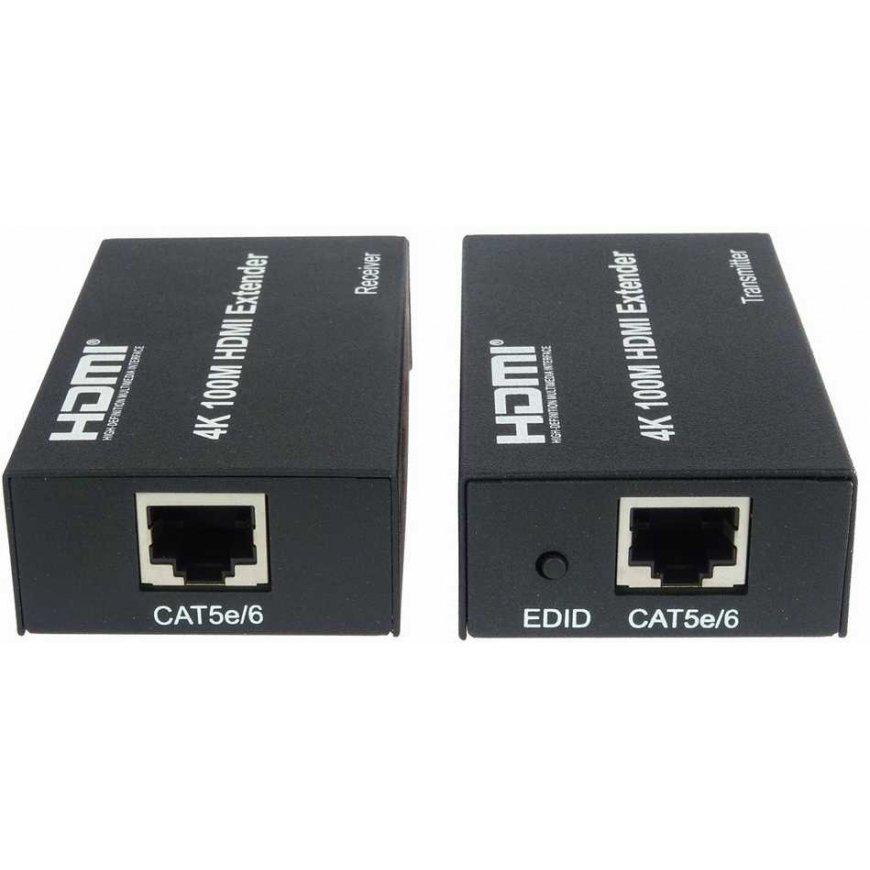

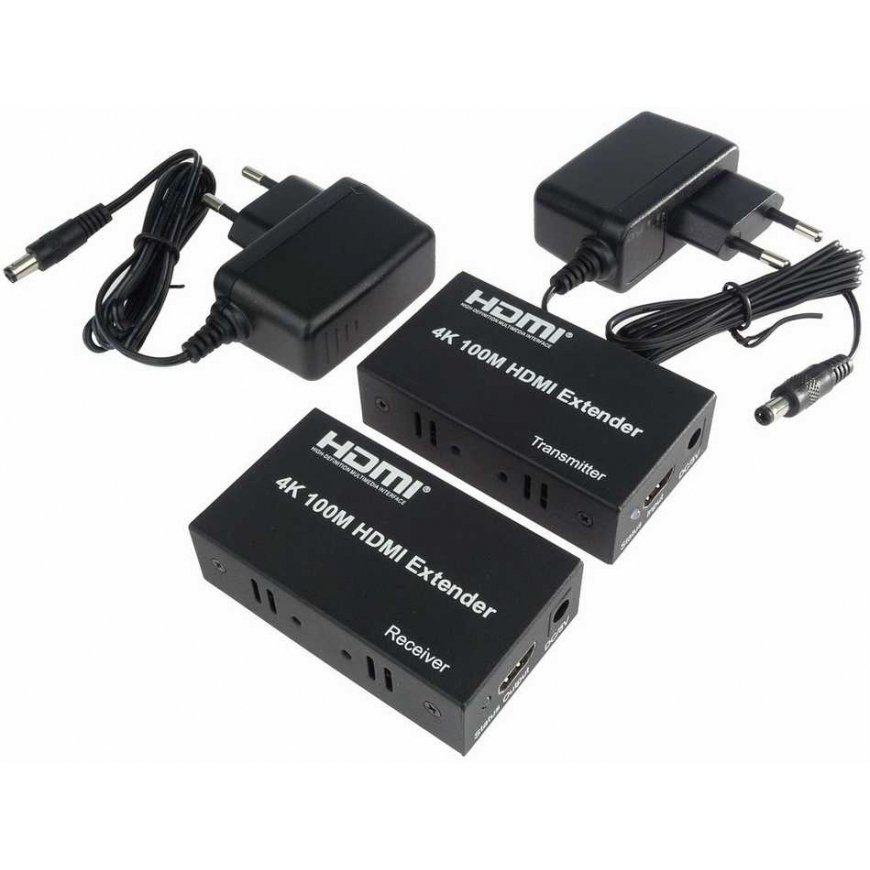

Product description:PremiumCord 4K HDMI extender up to 100 m over a single Cat5e/Cat6 cableThis device allows you to transmit a 4K@30Hz or FULL HD 1080p HDMI signal up to 100 m over a single network cable.- Supports 4K@30Hz, FULL HD 1080p resolution up to 100m- The HDMI extender consists of a TX transmitter and an RX receiver- Transmitter and receiver input and output connectors: HDMI socket- Transmitter and receiver connection connectors: RJ45 female- High-quality 1x LAN cable Cat5e, Cat6 or Cat7 is used to connect TX and RX (for a distance of 60 m, use a copper cable with AWG23 wires, e.g. UTP Cat6 cable with meter code: sutpd6c3)- 3x3.4 Gbps transmission speed, including HDCP support- Bandwidth: 340 MHz- Designed for: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K@30Hz- The extender transmits HDMI digital video and audio- The extender does not need to be connected to an active computer network, switch, router or other active network device. The extender transmitter and receiver must be directly connected by a LAN cable, preferably without interruptions. - HDMI input and output cables can be up to 10 m long, and AWG AWG26 (AWG26 applies to 7 m and 10 m cables). - The transmitter and receiver are powered by the included 230V/5V, 1A power adapters - The devices have a convenient EDID button, a longer hold of the EDID button will switch the resolution from FULL HD 1080p to 4K@30Hz and vice versa. - The transmitter and receiver have signal LEDs indicating that the devices are connected and the signal is being transmitted. - The LED lights up blue to indicate the power status, and when active, flashes red to indicate an active HDMI signal. - Operating temperature: -15 to +55°C - Transmitter and receiver dimensions: 81mm x 47mm x 22mm- Transmitter weight: 102g- Receiver weight: 103gPackage includes:1x transmitter1x receiver1x manual2x power adapterFor connection, use a continuous Cat5e/Cat6 straight cable with strong copper wires, with a min. cross-section of AWG24.The extenders must not be connected to an Ethernet computer network.
