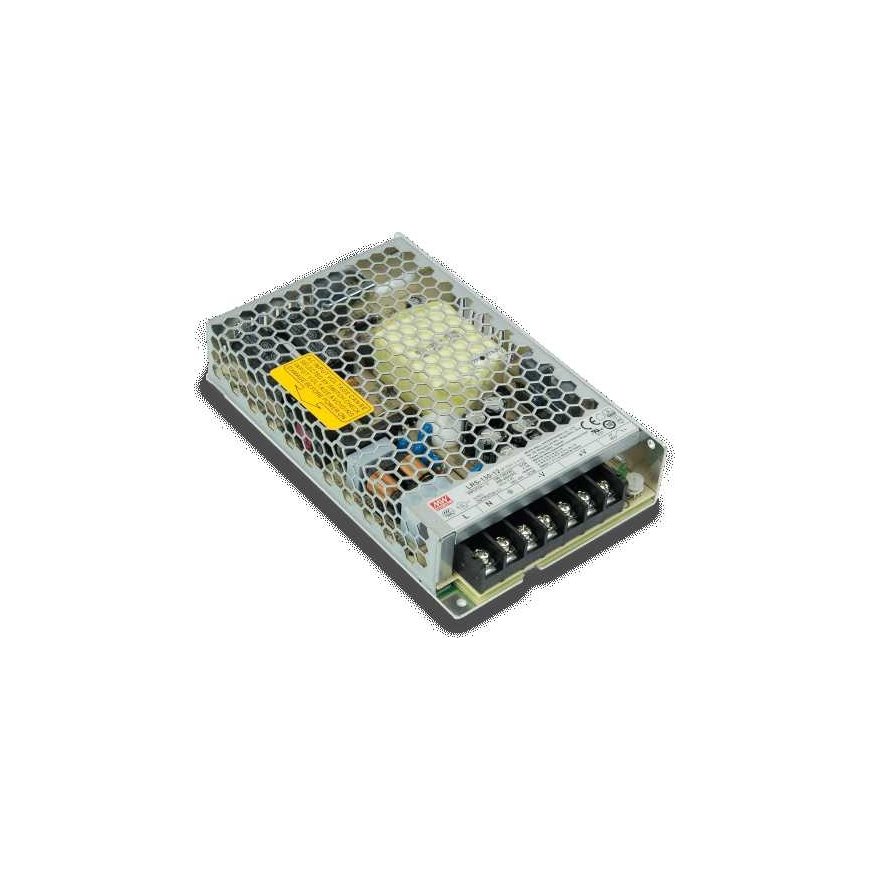

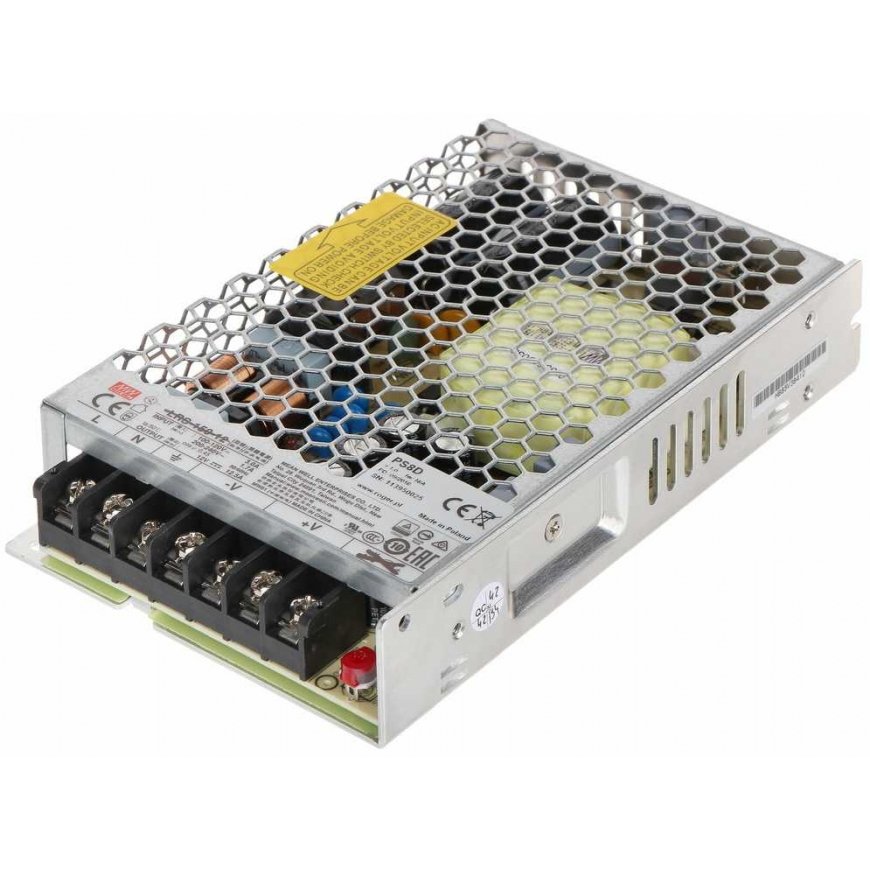

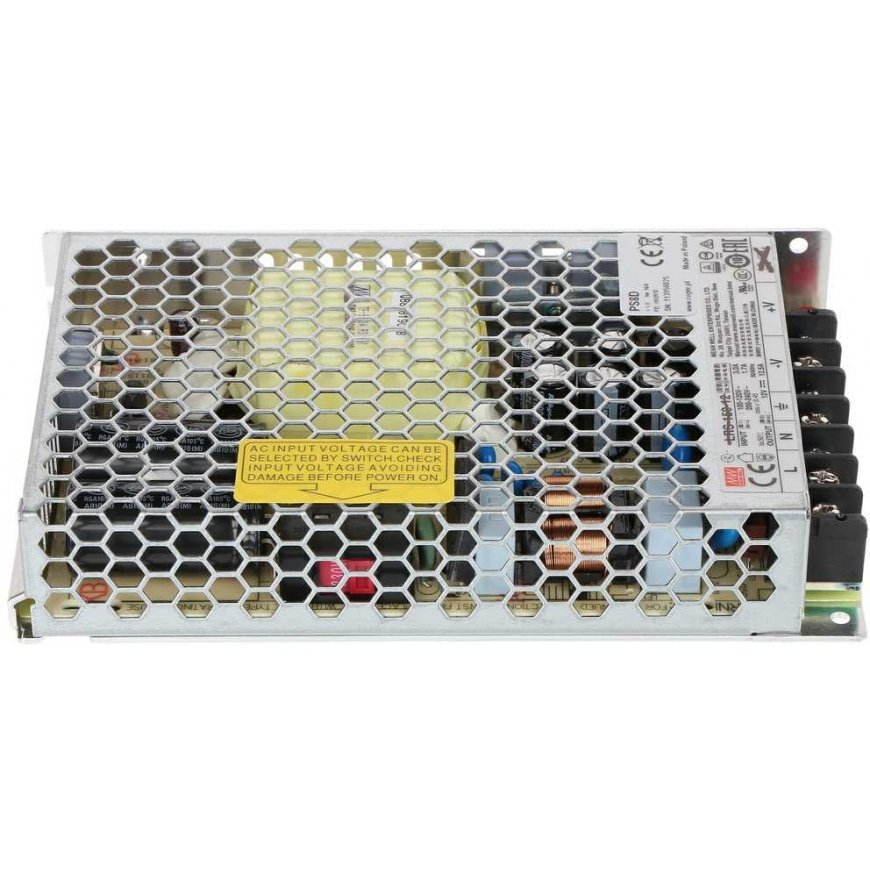

SWITCHING POWER SUPPLY PS8D ROGER
3505586 PS8D
5907608963575
Доставка 8-12 р.д.
Все о продукте
Power supply with two pairs of output terminals.
The PS8D power supply is intended for use in the access control system and building automation system RACS 5.
It can be used in particular for powering MCX2D, MCX4D expanders and for power distribution PSD4D.
Attention! If the power supply is designed for continuous operation (24H), its nominal current must not exceed 80% of the maximum current.
It is necessary to pay attention to proper cooling of the power supply during operation! In rack cabinets and less ventilated areas, it is recommended to use the following elements with the power supply: fan A19-W12 and speed controller FR-1.
Attention!.

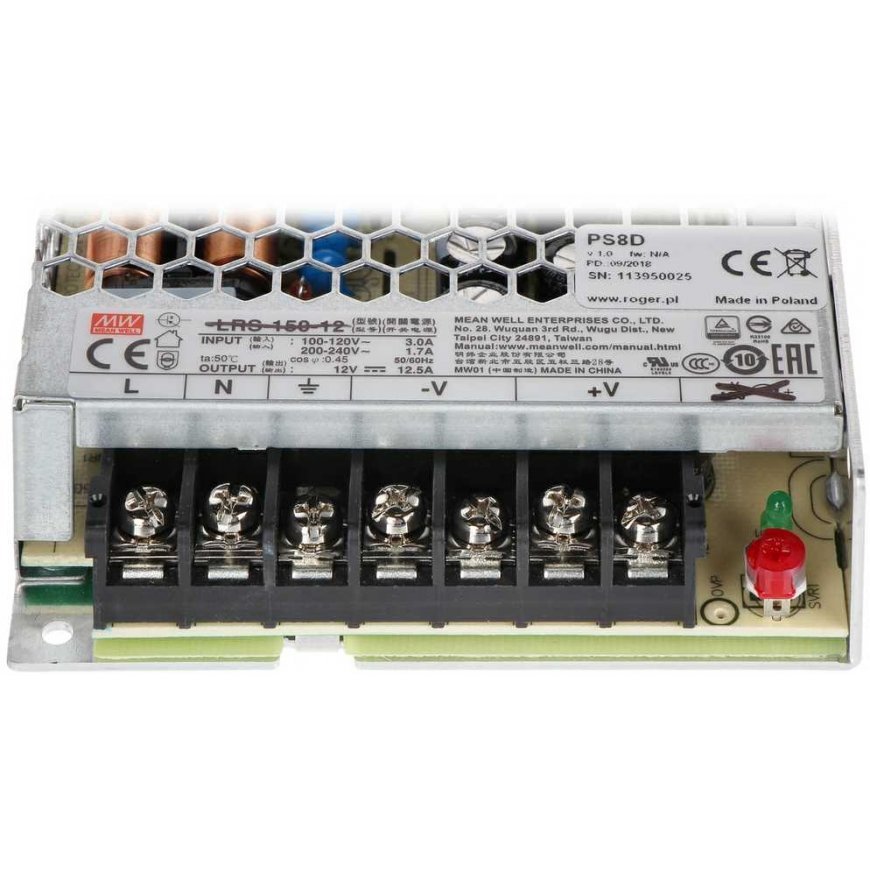

The two -V terminals are physically in contact with each other, similar to the two +V terminals of a power supply.
| Power supply type : | Impulse |
| Supply voltage : | 230V AC |
| Output voltage : | 13.8V DC |
| Output voltage regulation : | - |
| Power supply current capacity : | 10.8 A |
| Power supply power : | 150W |
| Number of outputs : | 2 pcs. |
| Protective measures : | From surges From overloads |
| Operating temperature/relative humidity : | -10 °C ... 40 °C / 20 % ... 90 % |
| Weight : | 0.42 kg |
| Dimensions : | 159 x 97 x 30 mm |
| Manufacturer / Brand : | ROGER |
| Warranty : | 3 years |
