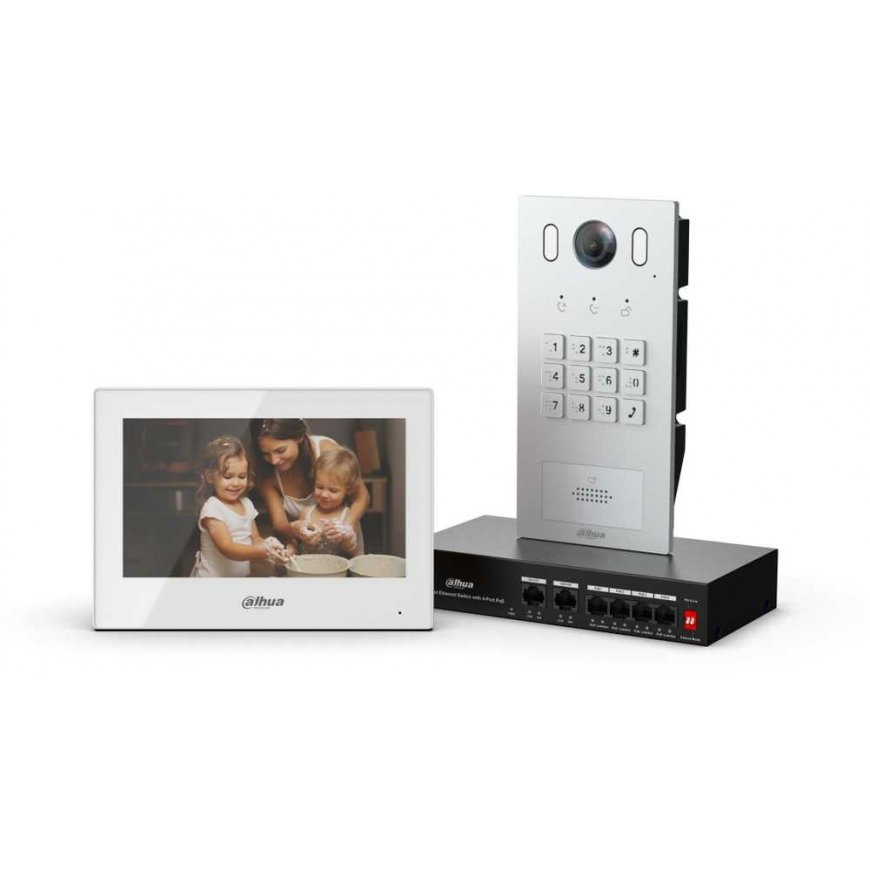

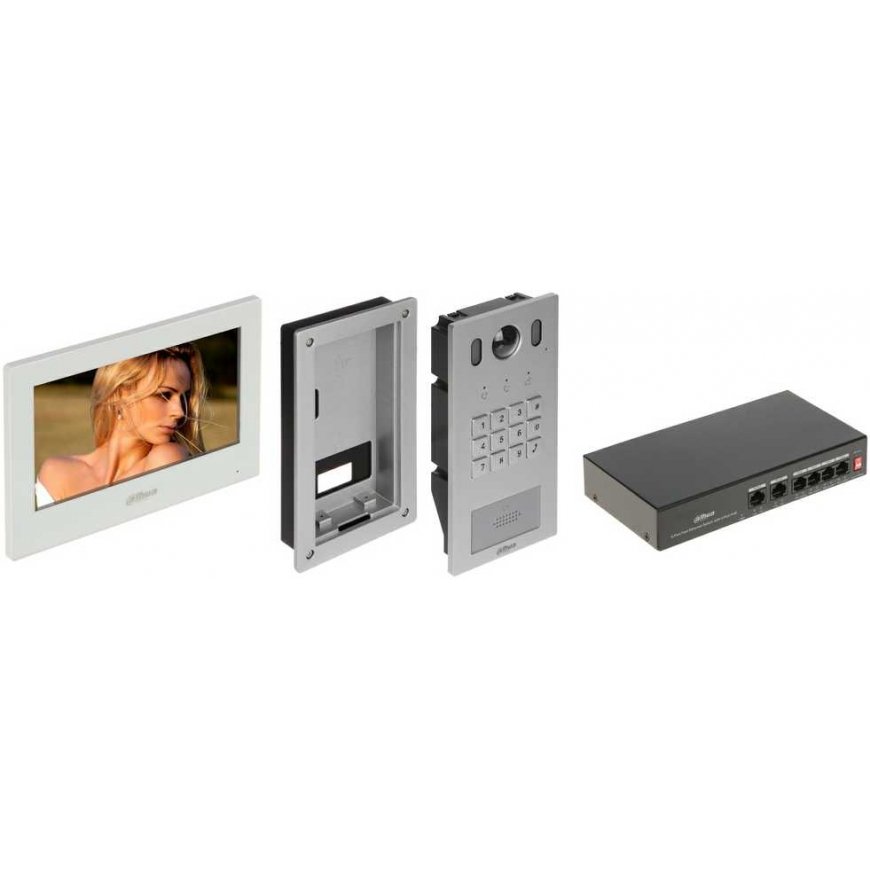

Dahua KTP05(F) video intercom kit

Name: Dahua KTP05(F) video intercom kit
Brand: Dahua Technology
SKU: KTP05(F)
Price: 409.00 EUR
Availability: InStock

409.00 €

Мес. плата от 11,43 €

Код товара: 3487092

MPN: KTP05(F)

EAN: 6923172562340

Доставка 8-12 р.д.

Вас заинтересовал этот товар?

Все о продукте

VIDEO NETWORK :

Sensor :	1/2.9", 2Mpx CMOS
Lens :	2mm
Viewing angle :	140°
LED illuminator :
IR illuminator :
Integrated contactless reader :	Access control cards - 13.56 MHz S50 Memory 10,000 cards RFID, 5,000 indexed users
Image compression method :	H.265 / H.264
RS-485 :
Access from mobile phone :	Port: 37777 or cloud access Android: Free app DMSS iOS (iPhone): Free app DMSS
Main features :	Opening with card or PIN code, Remote door opening, Integrated keyboard, buttons with Braille, LED indication, Support for Micro SD cards up to 256GB (local recording possible), Recording a short video message if there is no answer when you press the call button, Two-way communication, Integrated microphone, Integrated speakers, Audio noise and echo removal, Sabotage detection – separation from the base, Wiegand interface, Alarm inputs/outputs: 1 / 1, Control door lock control output, Call additional button connector, Additional exit button connector, Power output: 12 V DC / 600 mA Remote control, WDR - 120 dB - Wide Dynamic Range 3D-DNR - Digital Image Noise Reduction Day/night mode (color/b&w;)
Power supply :	PoE (802.3af/at), 48 V DC / 400 mA - 2-Wire IP interface
Power consumption :	≤ 7W
Body :	Aluminum
Color :	Silver
Tightness class :	IP65 - after additional sealing of the housing with the mounting surface, e.g. with silicone
Mechanical resistance class :	IK08
Working temperature :	-40°C ... 60°C
Weight :	0.5 kg
Dimensions :	200 x 98 x 35 mm

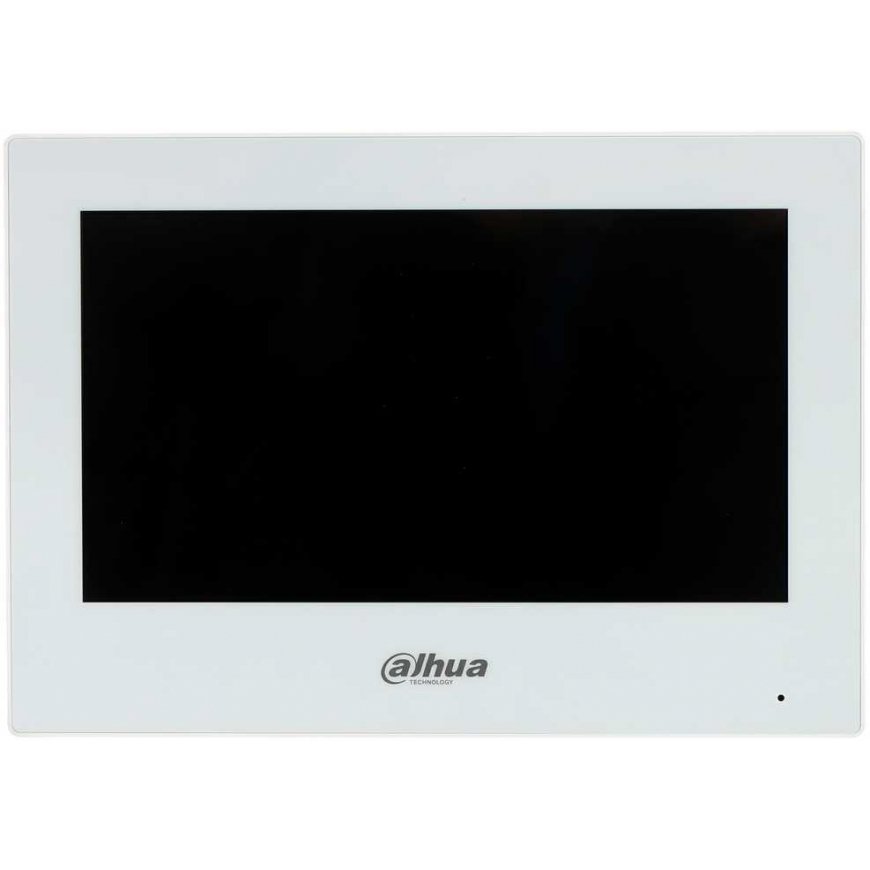

INTERIOR PANEL FOR ROOMS :

Screen :	7" capacitive touch screen
Resolution :	1024x600
Internal memory :
Memory card slot :
Selected features :	Wi-Fi module - 2.4 GHz IEEE 802.11 b/g/n, Security measures: WPA/WPA2 , WPA-PSK/WPA2-PSK , Echo suppression and elimination/digital noise reduction, IP Dahua cooperation with cameras, SOS service, Integrated microphone, Integrated speakers, Two-way communication, Volume control, Receiving and displaying information published in the control center, DND mode
Management :	capacitive touch screen
Signaling inputs :	6 ( 1 - as a call )
Alarm outputs :	1
Power supply :	PoE : 36 V ... 57 V DC / 350 mA, 12V DC / 1A
Power consumption :	≤ 6 W (operation) ≤ 2W (Standby mode)
Working temperature :	-10°C ... 55°C
Color :	White
Weight :	0.33 kg
Dimensions :	190 x 135 x 26 mm

DISCLAIMER :

Material :	Aluminum
Color :	Silver
Weight :	0.8 kg
Internal dimensions :	200 x 98 x 34 mm
External dimensions :	240 x 138 x 35 mm

SWITCH PoE :

Standards :	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af , IEEE 802.3at
Management :
LAN ports :	4 x RJ45 10/100 Base-TX ( 4 x PoE (802.3af/at) ), 2 x RJ45 10/100 Base-TX - Uplink
LED diodes :	Power, Link/Act, PoE
Transmission speed :	10 / 100 Mbps : 4 LAN & PoE ports + 2 Uplink ports
Maximum total power :	36W
MAC address table :	2k
Working mode :	PD Alive Extend On: 250 m, 10 Mbps
Main features :	Power supply mode PoE: The device is powered by an 8-pin power supply EXTEND mode - ports PoE1, PoE2, PoE3, PoE4 support transmission up to 250 m Watchdog PoE / PD Alive Mode - monitoring of ports that supply PoE to devices and automatic reconnection after power loss, detecting an unresponsive device protection against lightning and potential differences between devices Kensington Lock
Certificates :	CE, FCC
Power supply :	100V ... 240V AC
Weight :	0.56 kg
Dimensions :	194 x 108 x 35 mm

General data :

Languages supported :	Polish, English
Manufacturer / Brand :	DAHUA
Warranty :	3 years
