Steinberg Systems Manual chain lifting equipment 1T/12m

Все о продукте

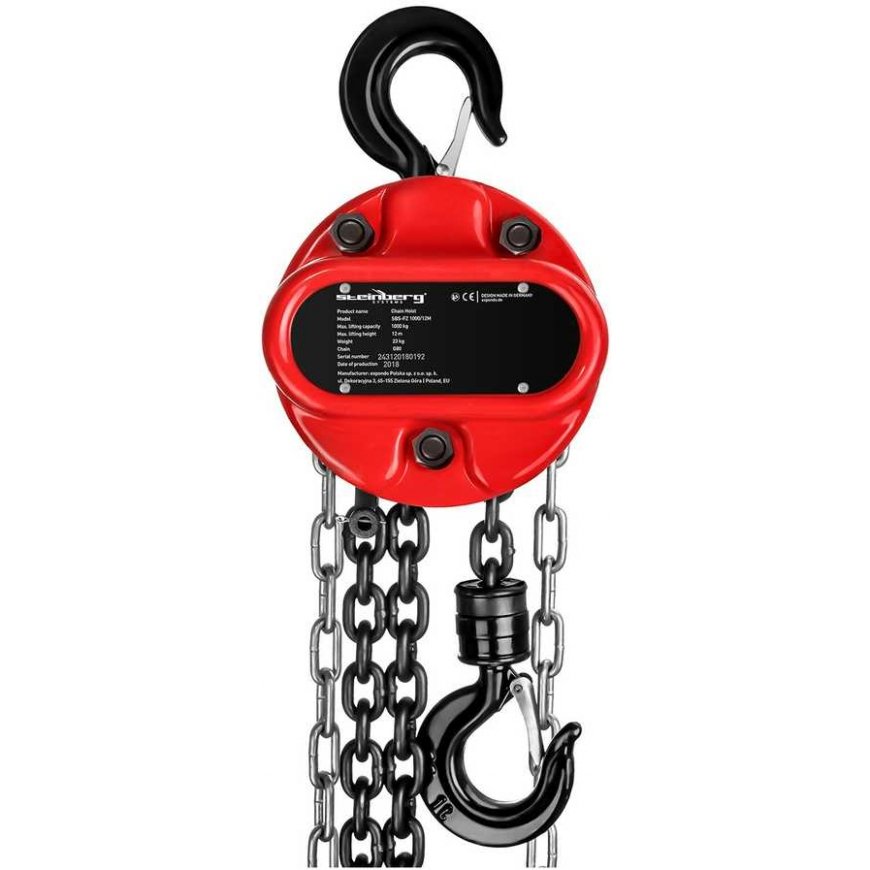

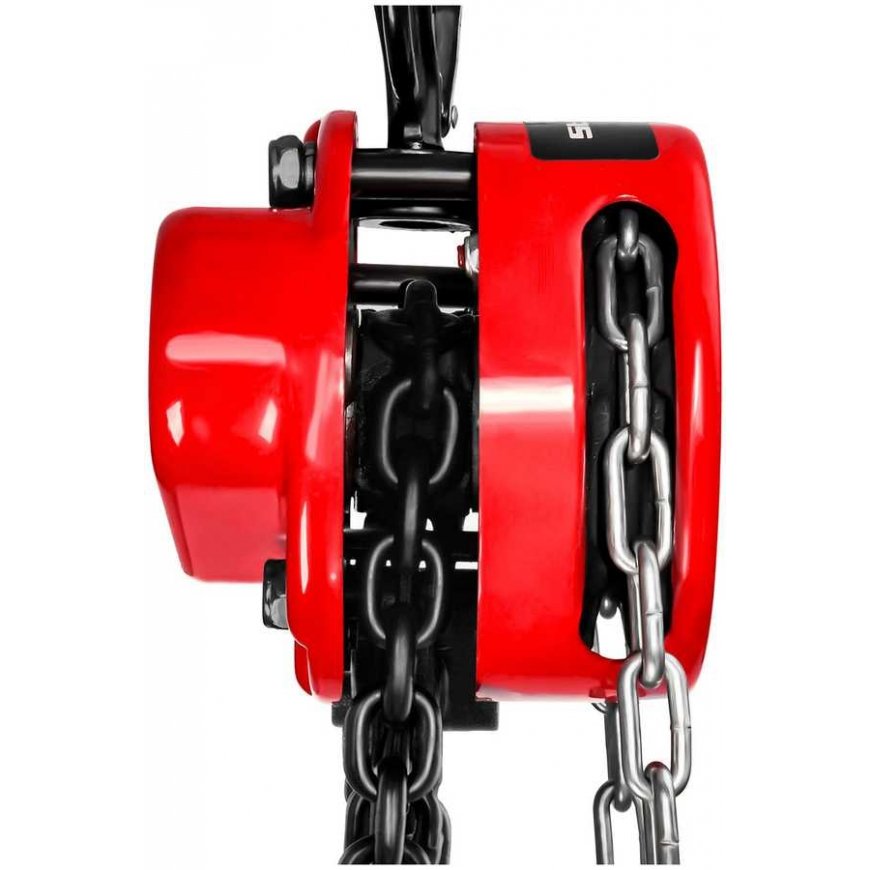

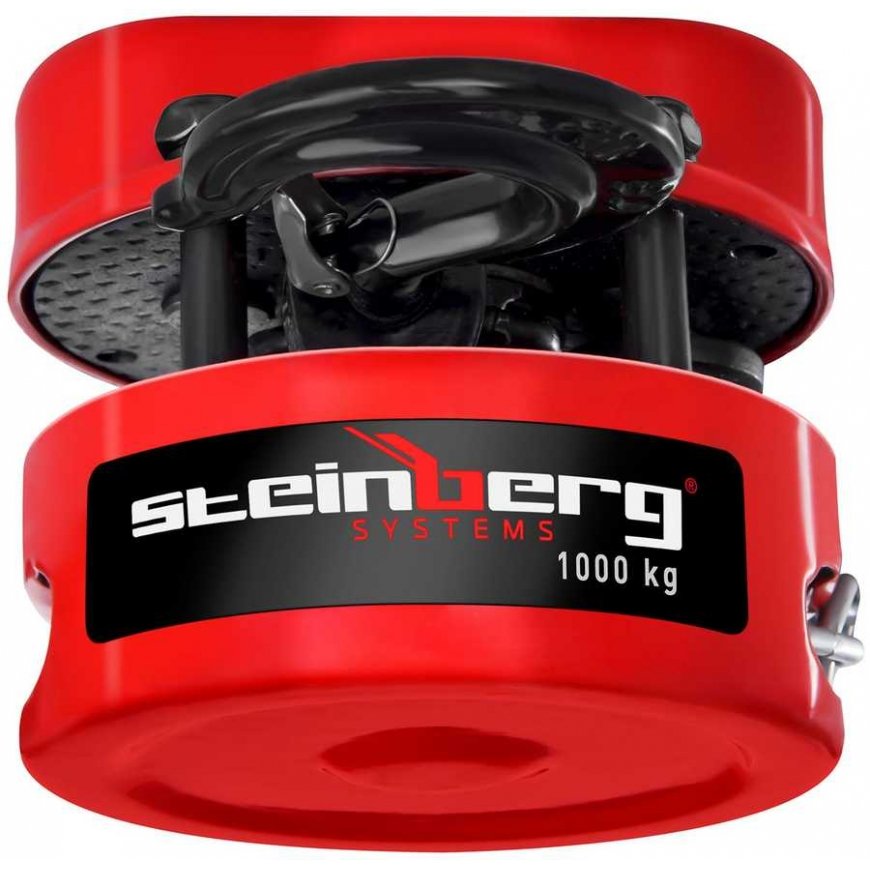

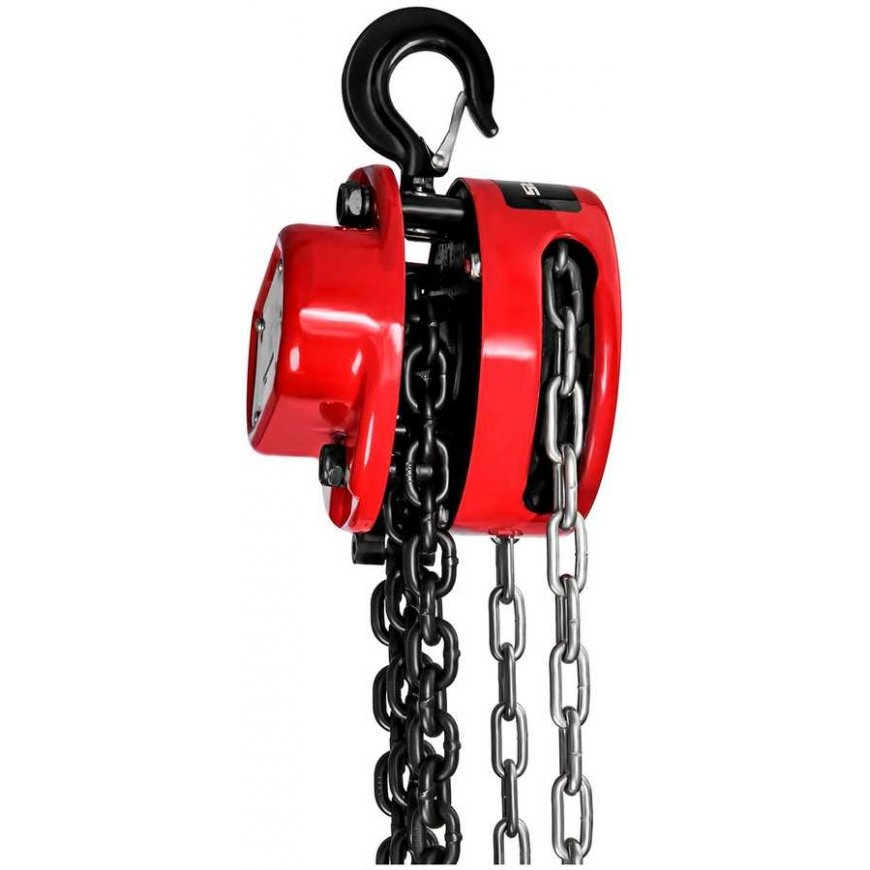

The manual chain hoist is a versatile tool that is perfect for a variety of industries, machine shops, warehouses or construction sites. Its main function is to lift and lower heavy objects. This device allows you to lift a weight of up to 1000 kg even up to a height of 12 meters. Thanks to the strong chains (type G80, diameter 6 mm) and high-quality steel construction, working with this model is very safe. This is ensured by the nylon-coated control lever handle and the safety mechanism that stops the device when the chain is started.

For added convenience, the lifting equipment has two rotating hooks and an easy-to-use lever connected to an internal mechanism that allows for convenient lifting and lowering of objects.

Product features:

• Performance - maximum lifting weight up to 1 T, which allows you to lift objects up to 12 m high.
• Convenience - control lever and safety mechanism that stops the device when the chain is started.
• Safety - steel construction, high quality, two rotating hooks and non-slip handle.

Technical parameters:

• Model - SBS-FZ 1000/12M
• Maximum lifting weight - 1000 kg
• Material - Steel
• Maximum lifting height - 12 m
• The minimum distance between the hooks is 265 mm
• The required force to lift the weight is 340 N
• Chain type - G80
• The diameter of the chain links is 6 mm
• Dimensions (LxWxH) - 14.5 x 13.3 x 23.5 cm
• Weight - 21.2 kg
• Shipping dimensions (LxWxH) - 42 x 21 x 18.5 cm
• Shipping weight - 22.6 kg

Complete set:

• Chain lifting equipment
• Instruction in Lithuanian
