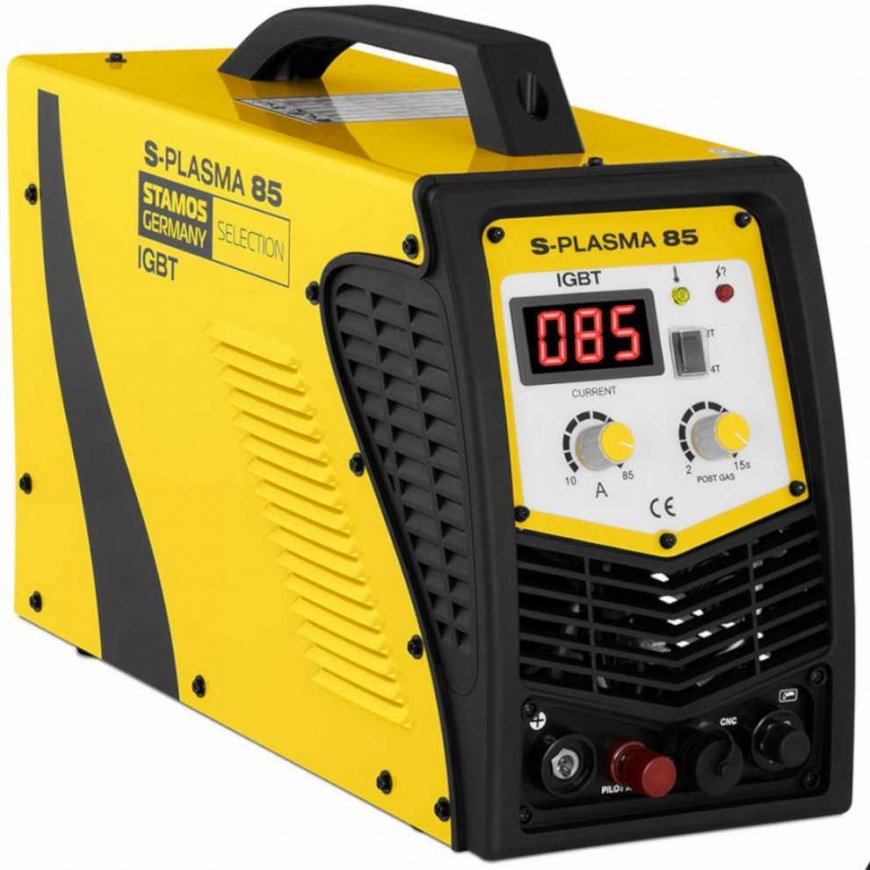

Stamos Germany CNC controlled plasma cutter S-PLASMA 85CNC SELECTION 85A
649.00 €
Мес. плата от 17,61 €
3322041 HP1000245
4260223026508
Доставка 9-13 р.д.
Вас заинтересовал этот товар?
Все о продукте
Product features:
- Functionality - to cut steel and other electrically conductive metals (titanium, copper, brass, etc.)
- Universality - a special slot allows you to connect the cutter to a CNC plotter
- Efficiency - modern IGBT technology and contactless arc ignition ensure smooth and stable operation,
- Simple operation - large knobs and switches allow precise setting of operating parameters without removing gloves,
- Readability - the LED screen shows the intensity of the current even in dark rooms, and the diodes inform about the drop in air pressure,
- Easy transport - comfortable handles, small size and weight make it easy to move the cutter as needed,
- Convenience - long 5 and 4 meter cables guarantee freedom of movement when cutting and facilitate work in hard-to-reach areas,
- Safety - built-in fan ensures heat dissipation,
Technical parameters:
- Model - S-PLASMA 85CNC
- Catalog number - 2079
- Product condition - New
- Voltage/frequency - 400 V (3 phases)/50 Hz
- Function - Plasma cutting
- Rated input current - 13.2 A
- Maximum input current - 18.6 A
- Nominal input power - 13.2 kVA
- Maximum input power - 18.6 kVA
- idle voltage - 280 V
- Cutting current - 20-85 A
- Duty cycle - 60 percent.
- Cutting current in duty cycle 60% - 85 A
- Cutting current at 100% duty cycle - 65.8 A
- Final gas flow time - 5, 10, 60 s
- Ventilation - Windmills
- Handle cooling - Gas
- Grounding cable length - 3 m
- Cutting cable length - 5 m
- Air hose length - 4 m
- Power cable length - 3.8 m
- Maximum thickness of material to be cut - 27 mm
- Cutting width - 1.2 mm
- Required air flow - 175 l/min
- Air pressure - 5.5 bar
- Insulation class - F
- IP protection level - IP21s
- Compliance with standards - EN 60974-1 / EN 60974-10
- Declaration of conformity - CE
- Dimensions (LxWxH) - 56 x 22 x 37 cm
- Weight - 20.1 kg
- Shipping dimensions (LxWxH) - 65.5 x 37.5 x 45 cm
- Shipping weight - 26.5 kg

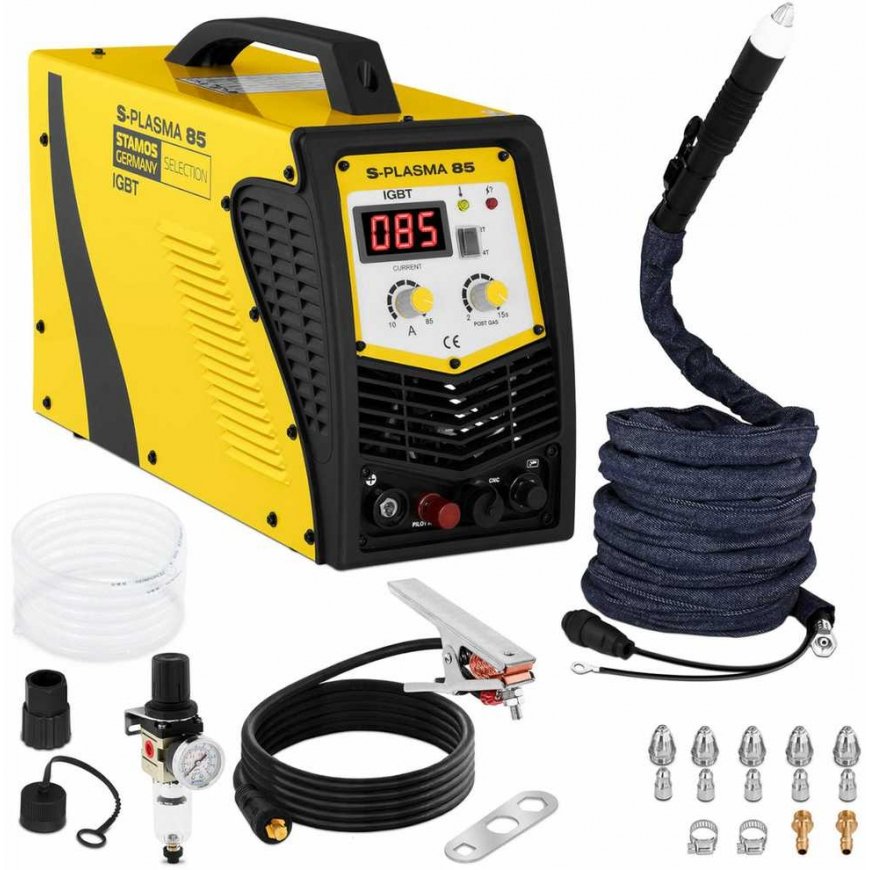

Including:
- S-PLASMA 85CNC cutting machine

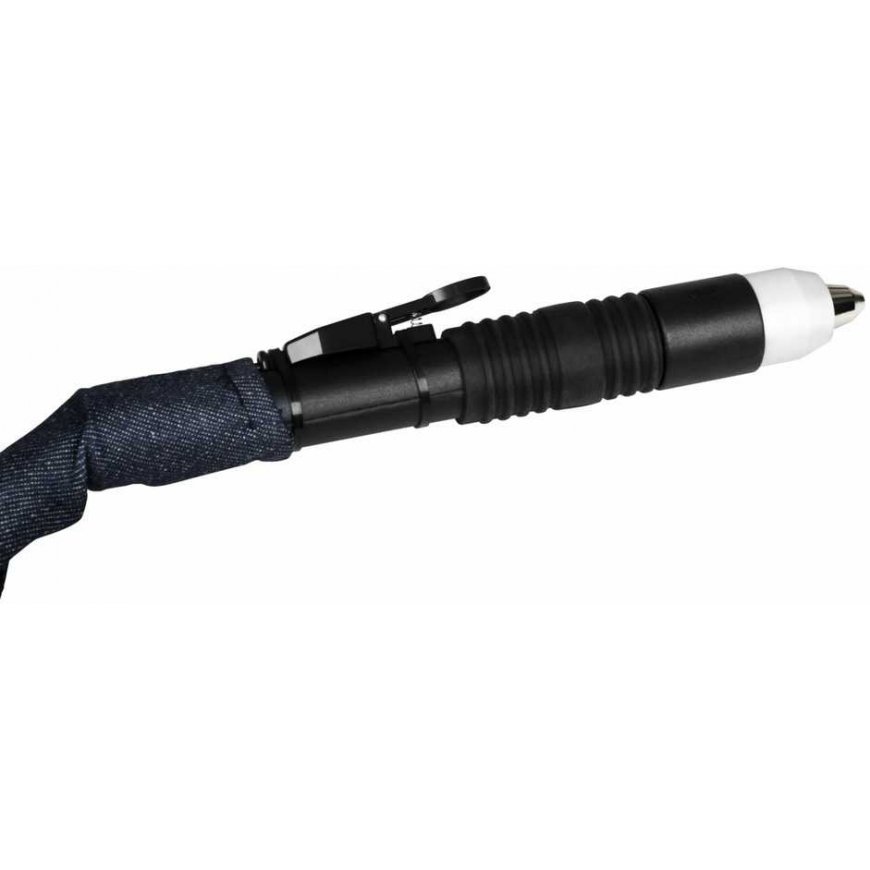

- Plasma cutting holder 5 m
- Earthing cable with clamp 4 m
- Duct 4 m
- Pressure regulator
- Pressure gauge
- Cutting holder components
- PL manager
