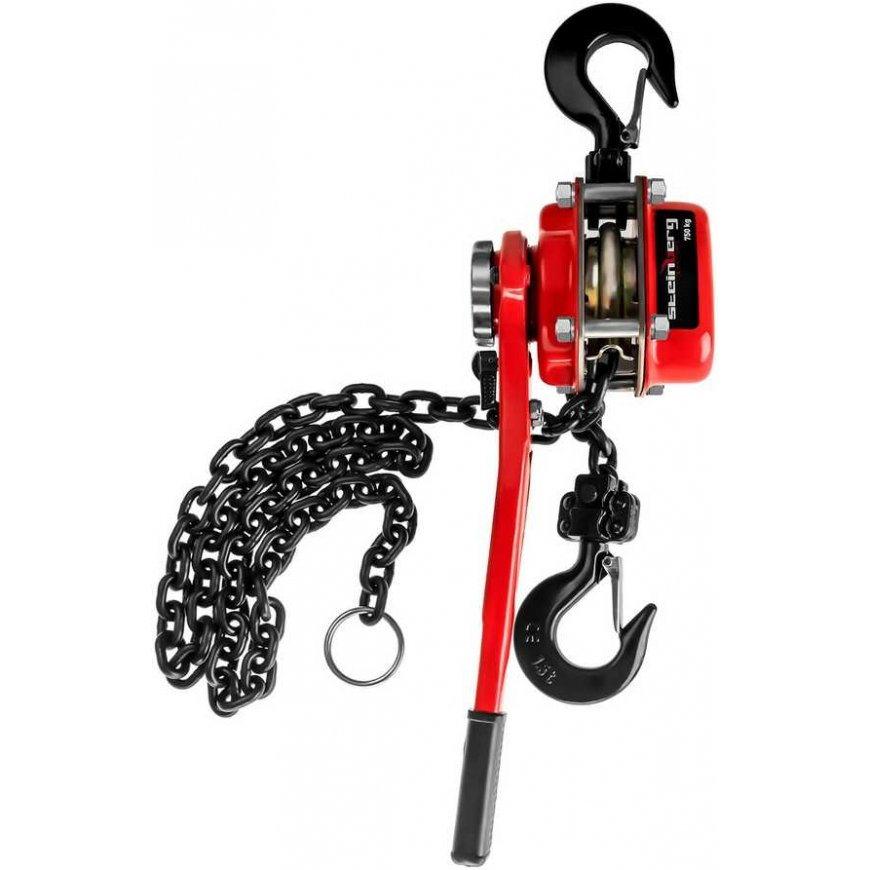

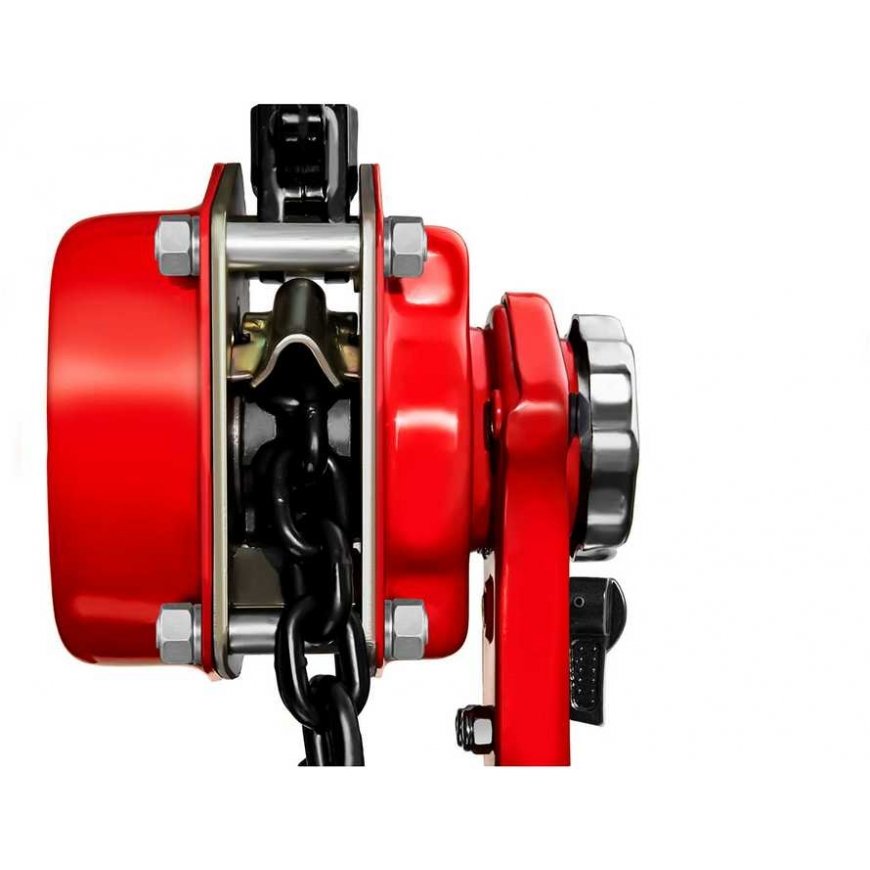

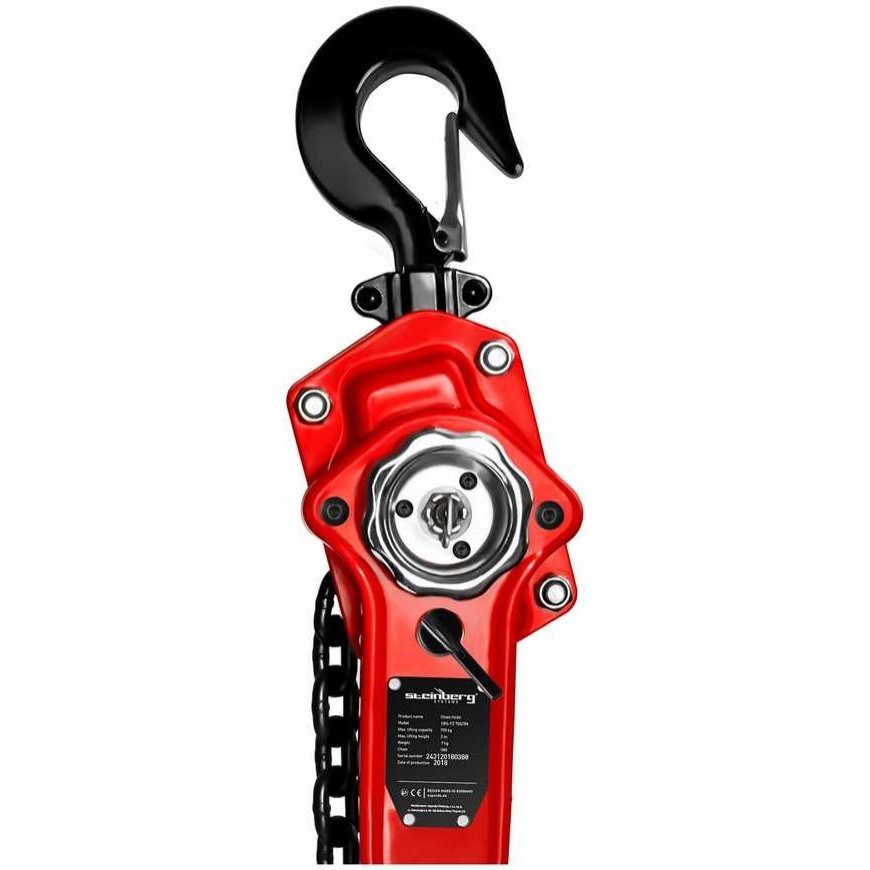

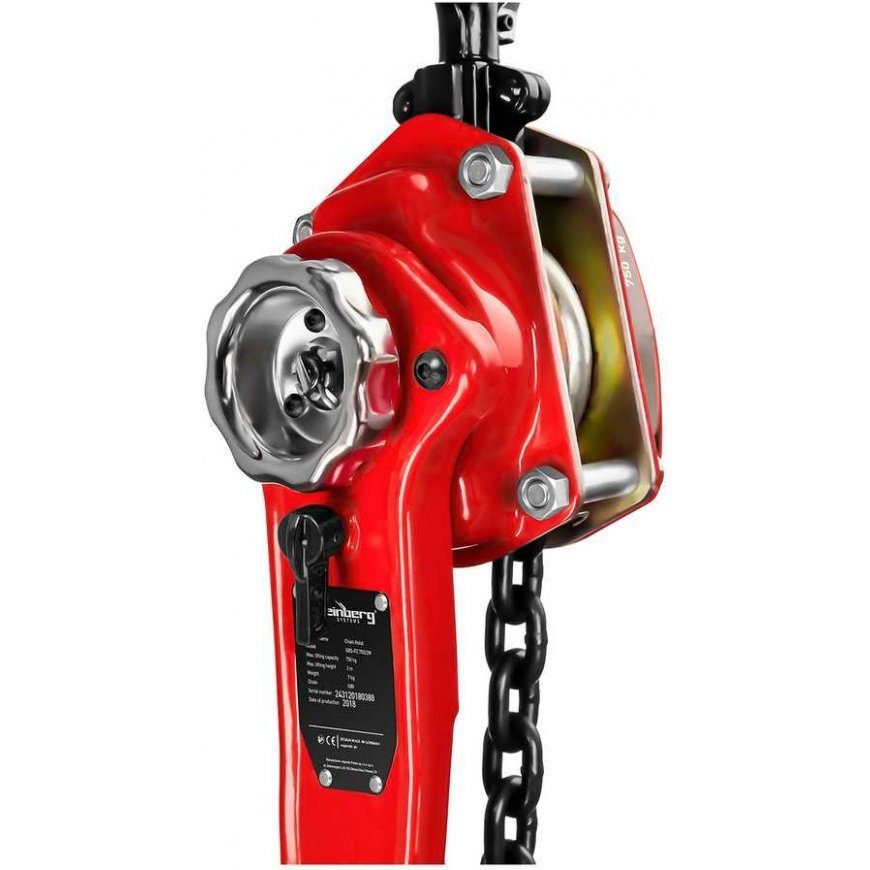

Steinberg Systems Winch chain winch chain hoist 750kg / 2m

Все о продукте

Manufacturer number: Steinberg Systems 10030380

The chain winch from the German brand Steinberg Systems is a versatile device that is perfect for various manufacturing plants, mechanical plants, warehouses and construction sites. Its main purpose is to lift and lower heavy objects.

The manual chain hoist allows you to lift objects weighing up to 750 kg to a height of two meters. The SBS-FZ 750/2M model is very safe to work with thanks to durable chains (type G80, 6 mm diameter connectors) and elements made of high-quality steel. This is also influenced by the rubber tip of the control rod and the lock, which allows you to stop the load at the specified height.

To increase user comfort, the lifter has two rotating hooks and a light ratio lever connected to a mechanism inside the housing. This allows for convenient lifting and lowering of the object.

Product features:

• - Efficiency - the maximum carrying capacity of up to 750 kg allows you to lift objects to a height of 2 m,
• - Convenience - control lever and lock to stop the winch,
• - Safety - steel construction, high quality workmanship, two swivel hooks and a lever with a non-slip handle.

• - Model - SBS-FZ 750/2M
• - Catalog number - 10030380
• - Product condition - New
• - Maximum carrying capacity - 750 kg
• - Material - Steel
• - Maximum lifting height - 2 m
• - Minimum distance between hooks - 300.5 mm
• - The force required to lift the weight - 180 N
• - Chain type - G80
• - Number of load circuits - 1
• - Wednesday. chain links - 6 mm
• - User Guide - Yes
• - Dimensions (LxWxH) - 47 x 12 x 15.5 cm
• - Weight - 7.15 kg
• - Shipping dimensions (LxWxH) - 37.5 x 16.5 x 15.5 cm
• - Shipping weight - 7.7 kg

Including:

• Chain winch
• LT instructions
