Blow Coating thickness gauge GL-PRO-2-F

Все о продукте

Currently, the varnish meter GL-PRO-2 is available in three versions:
– GL-PRO-2-F , measurement only on steel sheets;
– GL-PRO-2-FA , measurement on steel and aluminum sheets (automatic recognition of materials);
– GL-PRO-2-FAZ , measurement on steel and aluminum sheets (automatic material identification with zinc coating detection function on steel sheet).

GL-PRO-2 series meters are solutions based on modern 32-bit processors . As a result, a fast and accurate measurement was obtained using a 12-bit converter.

The counters use an innovative design of the measuring probe, which allows you to perform point measurements on ferromagnetic and non-magnetic materials (depending on the version), automatically recognize the material being tested and inform about the type of material on the screen. Survey completed ball.

A distinguishing feature of the GL-PRO-2-FAZ counters is the automatic recognition of whether the ferromagnetic sheet is coated with a zinc layer or not . This is very important when measuring on the car - it will tell us which body parts have been replaced with cheaper non-galvanized ones. The probe was completely developed by us.

The gauge has a calibration function according to thickness standards (included).

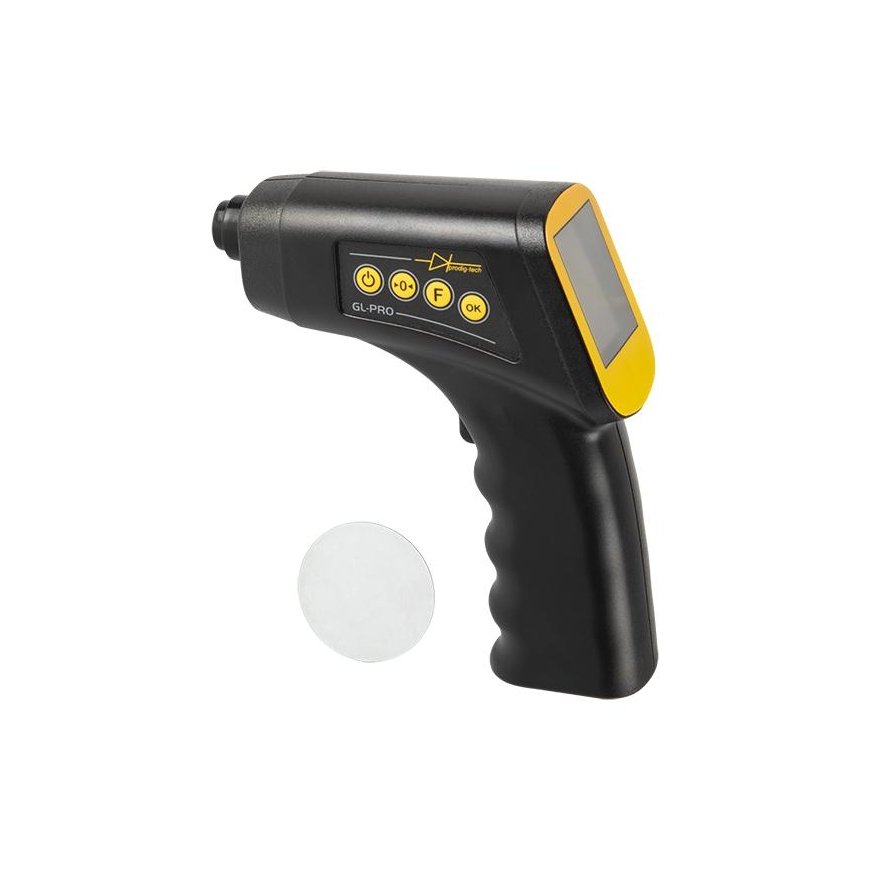

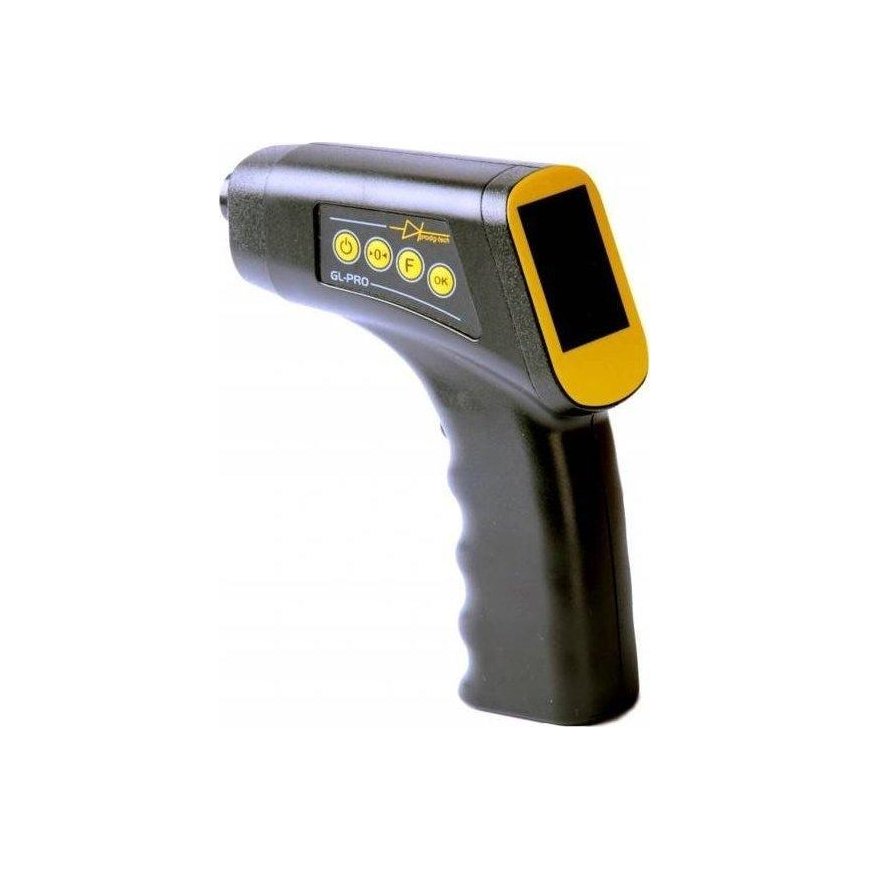

The counters have a color, easy-to-read 1.8-inch LCD screen that displays current measurements, measurement statistics and all necessary functions. Control is performed using a 4-button keyboard and an additional trigger, which illuminates the measurement area when pressed.

Main features of the device:

· measurement on leaves (automatic detection):
– steel, Fe (models GL-PRO-2-F, GL-PRO-2-FA, GL-PRO-2-FAZ);
– aluminum, Al (GL-PRO-2-FA, GL-PRO-2-FAZ models);

· automatic detection of zinc (Zn) on steel sheet (only for GL-PRO-2-FAZ model);

· automatic ground detection (does not apply to model GL-PRO-2-F, only for steel sheets);

· measuring range 0-2000μm;

· step 1μm Fe, 5μm nFe;

· minimum measurement area nFe 15x15mm, Fe 5x5mm;

built-in probe , flexible, ending in a so-called ball;

· measurement statistics (number, maximum, minimum, average, previous);

· 3 working modes: continuous measurement, measurement hold (HOLD 1), measurement stop (HOLD 2);

· possibility to manually set the measurement mode, Fe or Al;

· measurement memory 960 units;

· measuring assistant for the automotive industry (graphic + text);

· calibration (using tiles and thickness standard);

· sound alarm;

· diode illuminating the measurement location;

power supply : two AA (R6) alkaline batteries;
