AHD, HD-CVI, HD-TVI, CVBS CAMERA HAC-HFW1809TLM-A-LED Full Color - 8.3 Mpx, 4K UHD 3.6mm DAHUA
3072810 HAC-HFW1809TLM-A-LED-0360B
6923172534040
Товар отсутствует на складе
8 Megapixel camera with Progressive scan CMOS transmitter and AHD / HD-CVI / HD-TVI / PAL interface.
The AHD / HD-CVI / HD-TVI interface provides analog video signal transmission with the help of a coaxial cable for max. 8 Mpx (4K UHD).
There are no delays during transmission and the original, high image quality is maintained.
If the video is transmitted using a twisted pair cable and the corresponding transformers (balun), pay attention to the possibility of signal interference.
The camera complies with the IP67 sealing class.
Attention!
The Full-color series camera does not have a black-and-white mode.
Thanks to the highly sensitive sensor installed in the camera and the light LED emitting visible white light, the device allows you to get a clear, colorful image in all lighting conditions.
Thanks to the "Starlight" technology used, very low lighting is enough for the video camera to achieve a bright, colorful image.
| Standard : | AHD , HD-CVI , HD-TVI , CVBS |
| Sensor : | Progressive Scan CMOS |
| Matrix size : | 8.3 Mpx |
| Resolution : | 3840 x 2160 - 8.3 Mpx , 4K UHD @ AHD / HD-CVI / HD-TVI @ 15 kps , 2880 x 1620 - 5 Mpx @ HD-CVI @ 25 kps - Aspect Ratio 16 : 9, 2560 x 1440 - 4 Mpx @ HD-CVI @ 25 fps , 960 x 576 - 960H @ PAL |
| Lens : | 3.6 mm |
| Viewing angle : | 85 ° (manufacturer's data) 81 ° (our tests) |
| Scope of the white LED illuminator : | 40 years old |
| Video output : | AHD / HD-CVI / HD-TVI / CVBS , 1 Vpp / 75 Ω |
| Audio : | Built-in microphone, Audio service via coaxial cable - only HD-CVI |
| OSD menu : | The OSD menu is available on the DAHUA recorder |
| Selected features : | Possibility of turning off the LED of the lamp WDR - 120 dB - Wide dynamic range 3D-DNR - Digital noise reduction in the image BLC/HLC - background light/high light compensation Automatic white balance AGC - Automatic gain control Mirror - mirror reflection of the image Privacy zones - max. 8 Sharpness - sharpening of image contours |
| Sealing class : | IP67 |
| Meals : | 12 V DC / 580 mA |
| Power consumption : | ≤ 6.9 W |
| Body : | Compact, Metal + Plastic |
| Anti-vandal : | - |
| Color : | White |
| Working temperature : | -40 °C ... 60 °C |
| Weight : | 0.33 kg |

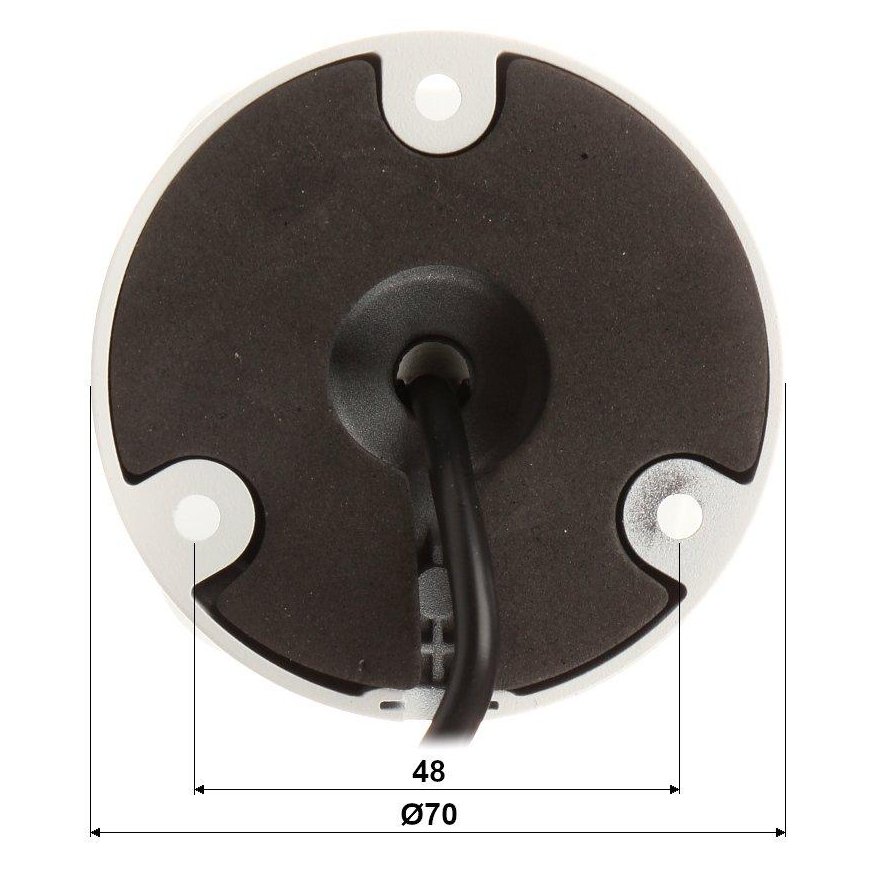

| Dimensions : | 198 x 80 x 76 mm |
| Manufacturer / Brand : | DAHUA |
| Warranty : | 3 years |
AHD
Image from the camera under artificial lighting (about 30 Lux)
The image from the camera at night with the built-in LED lighting
View from the camera with strong light shining directly on it
HD-CVI
Image from the camera under artificial lighting (about 30 Lux)
The image from the camera at night with the built-in LED lighting
View from the camera with strong light shining directly on it
HD-TVI
Image from the camera under artificial lighting (about 30 Lux)
The image from the camera at night with the built-in LED lighting
View from the camera with strong light shining directly on it
